ACDP Module09 Jaguar/Land Rover KVM Module
Module functions：
Support Adding key and all-key-lost for new Jaguar and land rover with KVM module after year 2015.
Module features：
1:No disassembly，No soldering.No removing the crystal oscillator and capacitors on the KVM board, no damage to the KVM computer board.
2: Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.
3: The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.
4: With the key refresh function, No longer afraid of loss caused by key be locked.

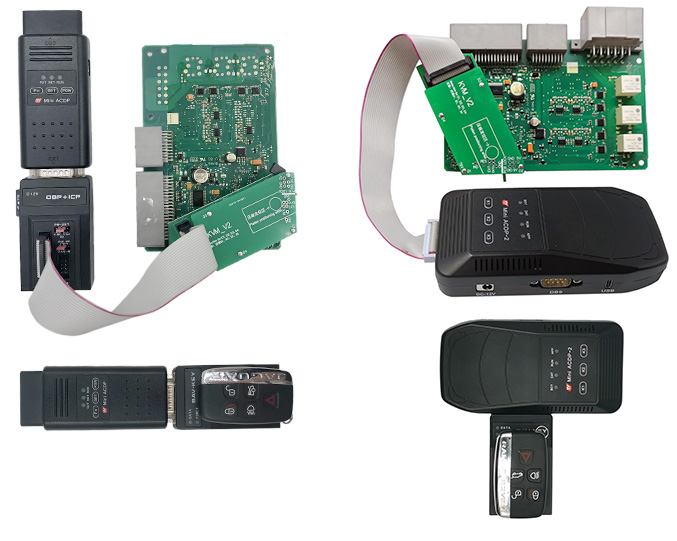

Overall connection diagram：

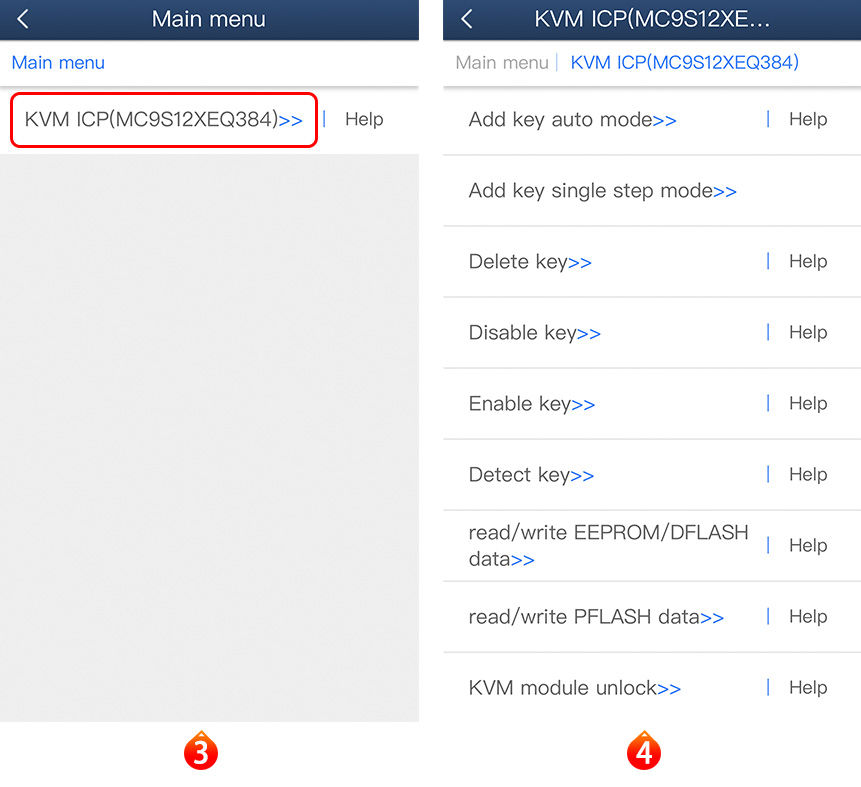

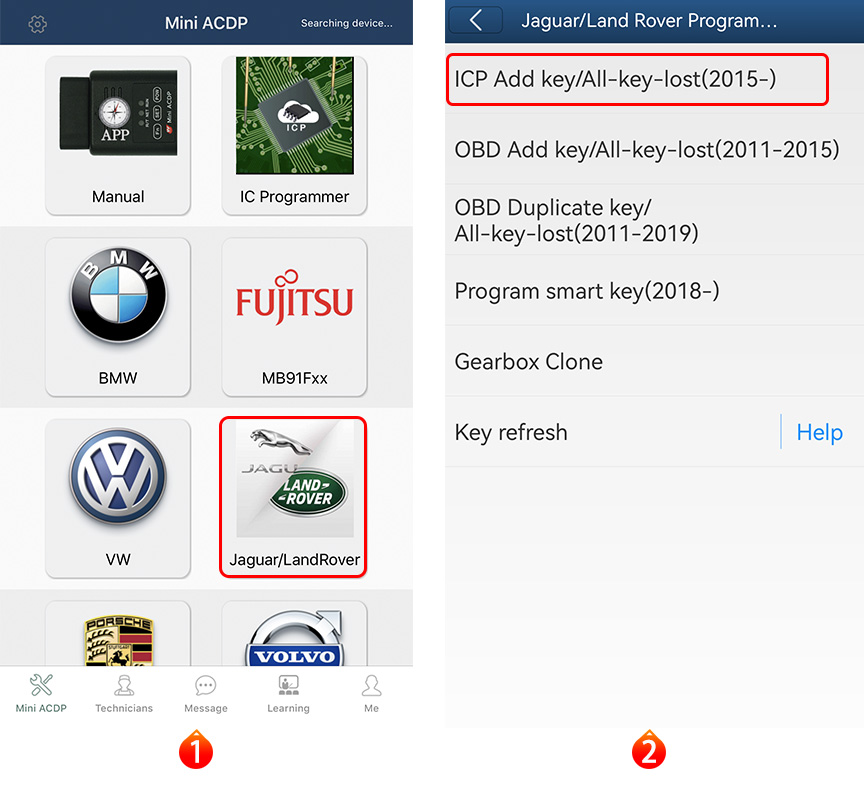

APP operation interface：
Jaguar/Land rover key refresh connection diagram：

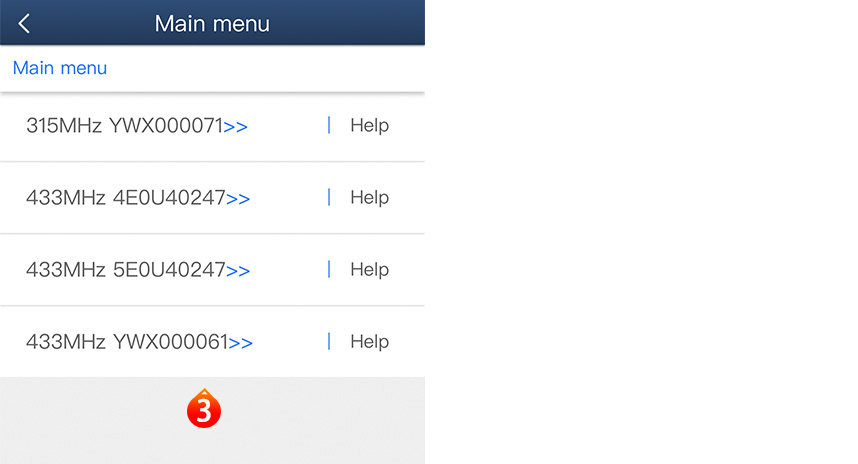

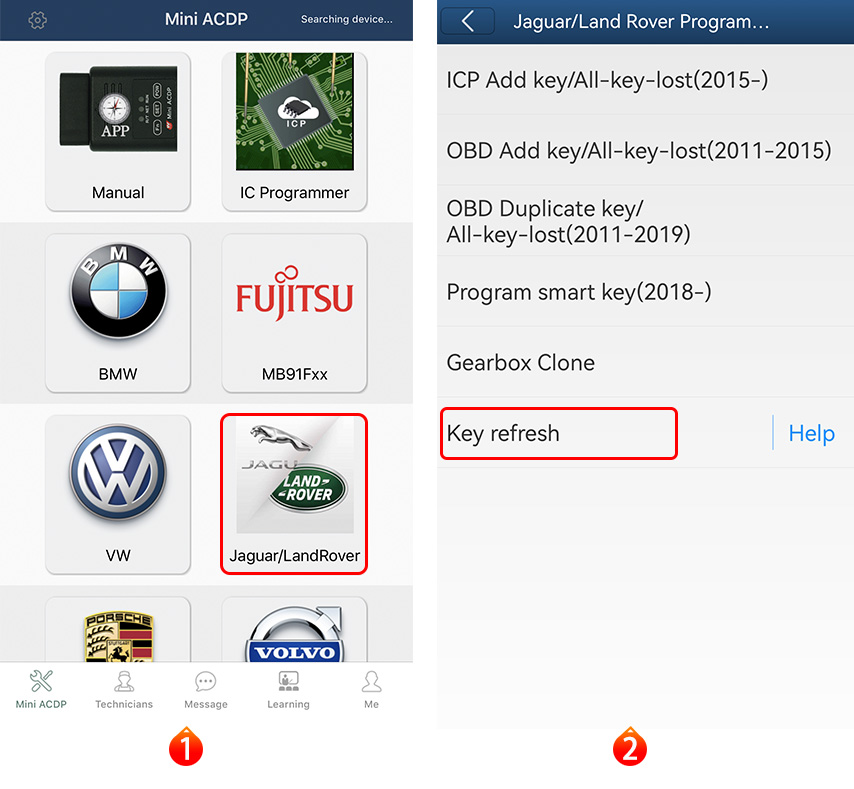

APP operation interface：
Configuration List:
ACDP Configuration List (Module09 Jaguar/Land Rover KVM Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | Jaguar/Land Rover KVM module Interface board |  |
Applicable to connect and fix Jaguar/Land Rover KVM module test point. | 1 |
| 2 | Jaguar/Land Rover KVM module copper pillar package |  |
Applicable to fix Jaguar/Land Rover KVM module interface boards | 3 |
| 3 | Jaguar/Land Rover KVM module test points cleaning probes |  |
Applicable to clean KVM module test points. | 2 |
| 4 | Land Rover key refresh interface board |  |
Applicable to connect Jaguar/Land Rover key test point | 1 |
| 5 | Jaguar/Land Rover key refresh Copper pillar package |  |
Applicable to fix Jaguar/Land Rover key test point | 2 |
