ACDP-2 Module08 BMW FRM Module
Module functions：
1：Repair FRM (3M25J Chip) without coding.
2：Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data.
3：Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data.
Module features：
1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

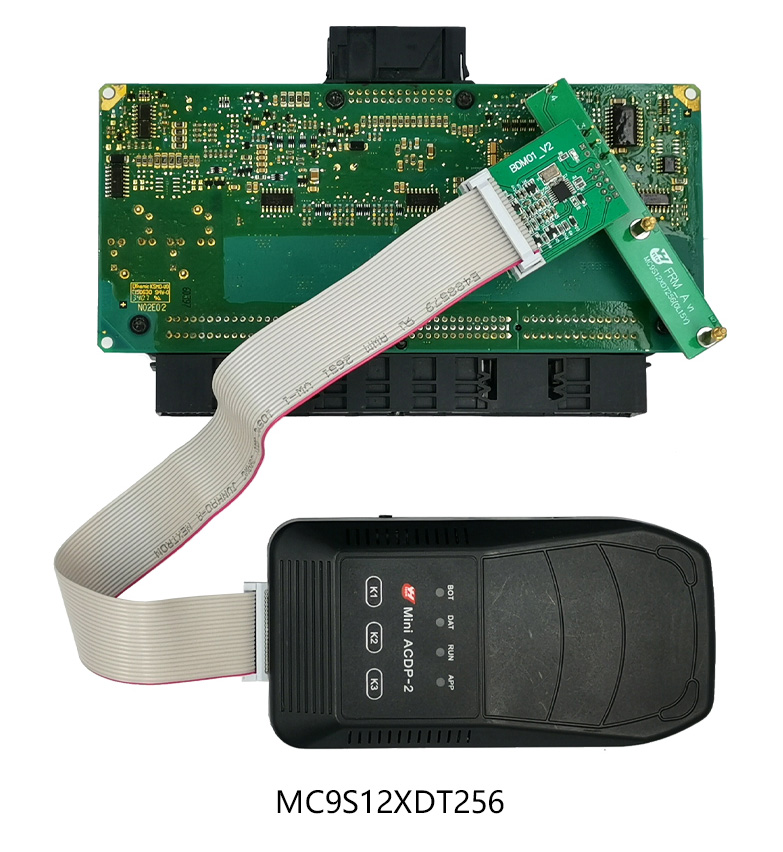

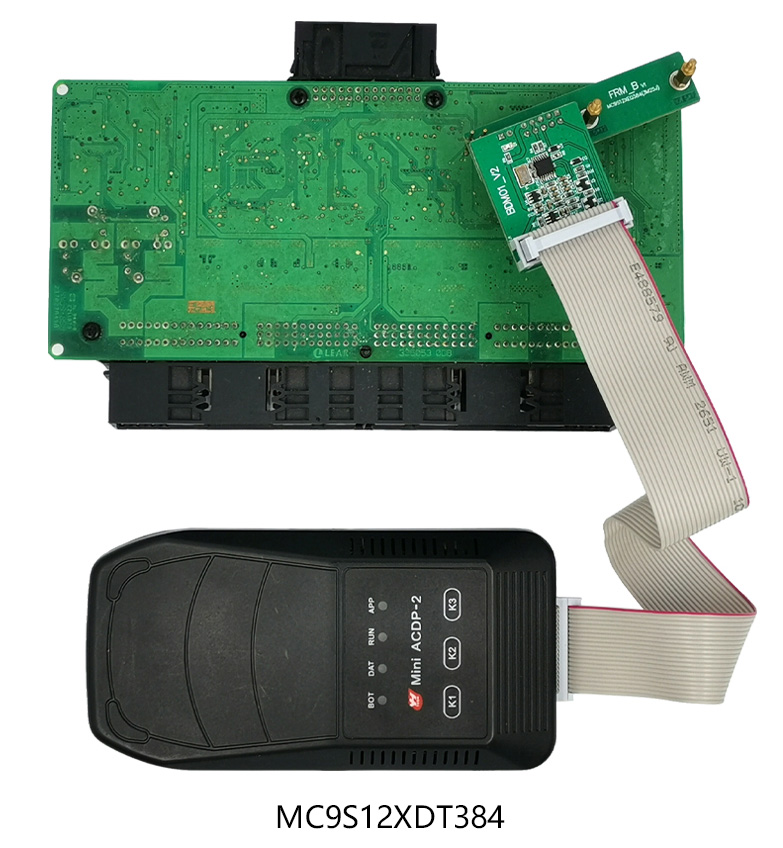

Overall connection diagram：

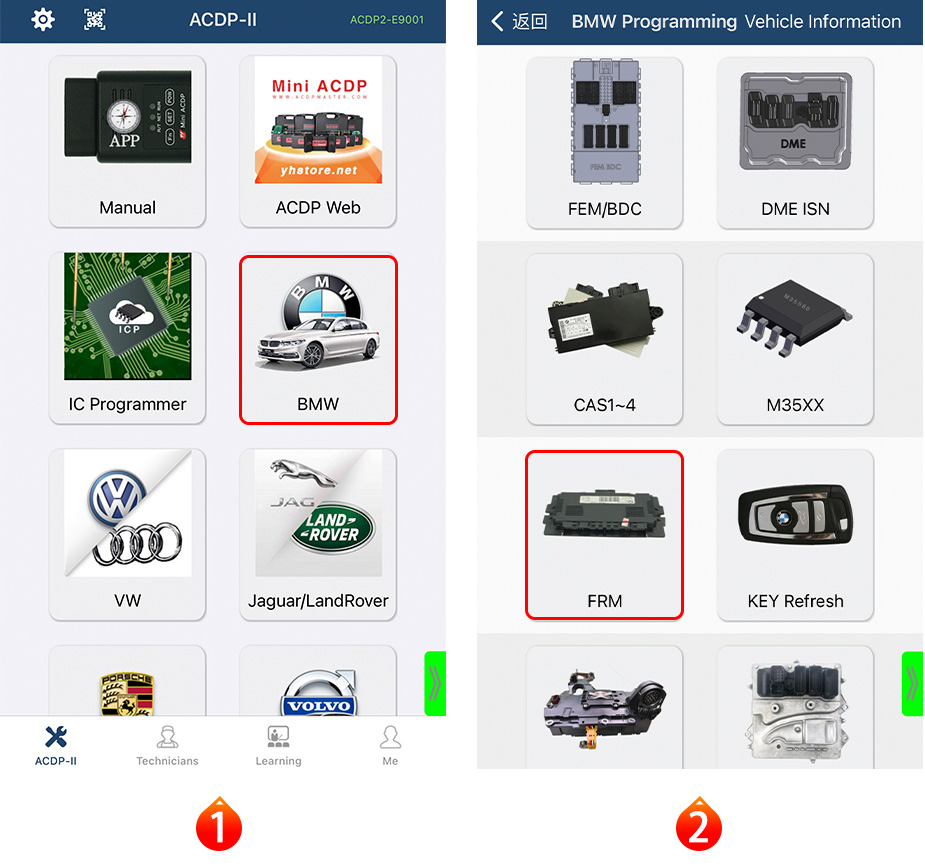

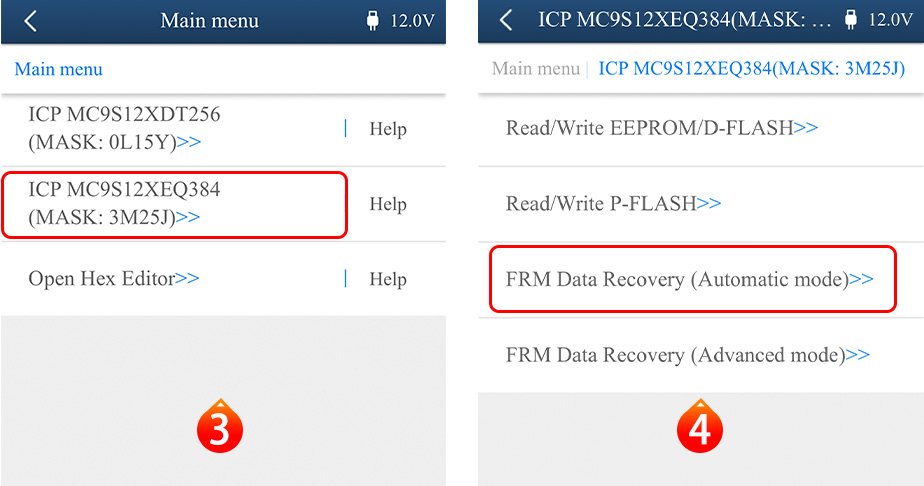

APP operation interface(Take MC9S12XDT384 as an example）：

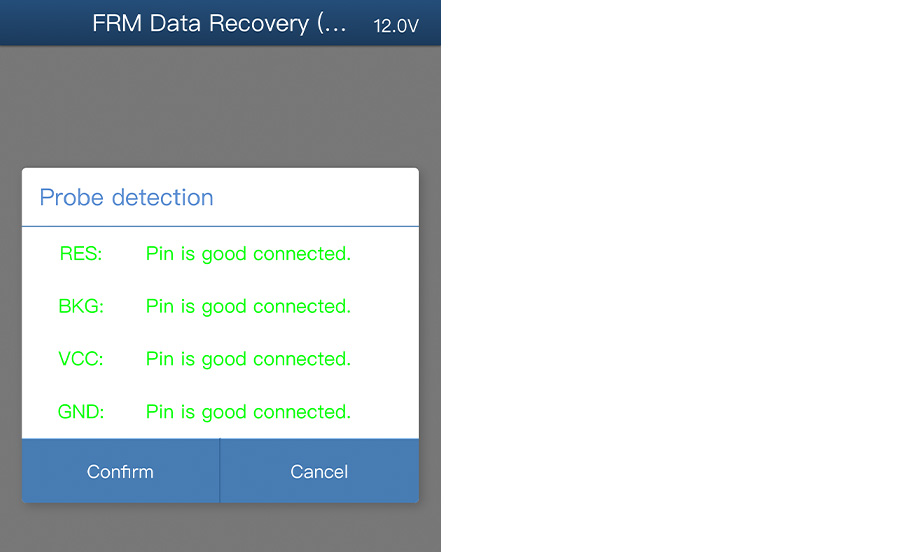

Pin detection results：
Configuration List:
ACDP-2 Configuration List (Module08 BMW FRM Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | 0L15Y chip Interface board |  |
Applicable to connect BMW FRM module (FRM Footwell module)，test point of 0L15Y chip interface board. | 1 |
| 2 | 3M25J chip Interface board |  |
Applicable to connect BMW FRM module (FRM Footwell module)，test point of 3M25J chip interface board. | 1 |
| 3 | BDM01 adapter |  |
Applicable to decrypt of BMW FRM module chip. | 1 |
| 4 | Copper pillar package（Single head six angle stud M2.5*12+6mm） |  |
Applicable to fix BMW FRM module (FRM Footwell module)，0L15Y and 3M25J chip interface boards. | 12PCS |
