ACDP Module07 Refresh BMW key
Module function：
Support key unlocking, key refresh function
Module Feature：
Refresh BMW E chassis/F chassis (CAS) key to make BMW keys can be used repeatedly

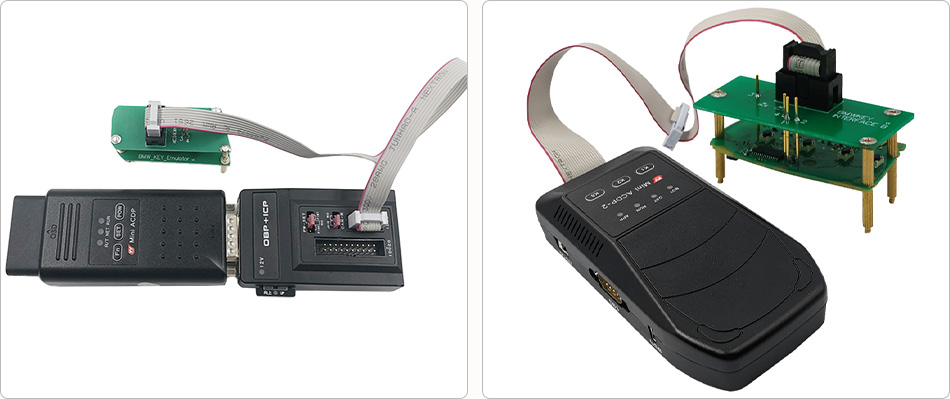

Overall connection diagram：

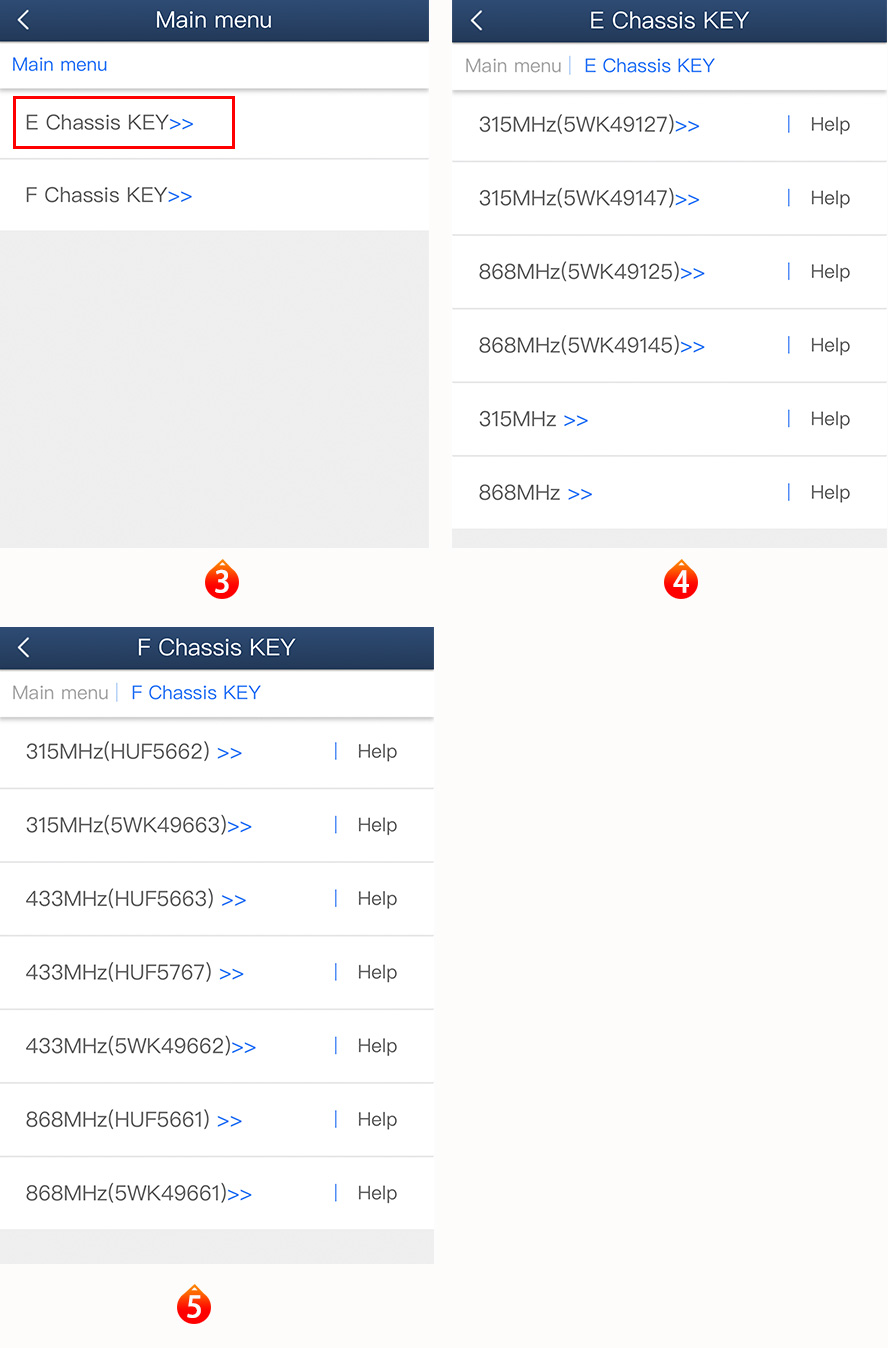

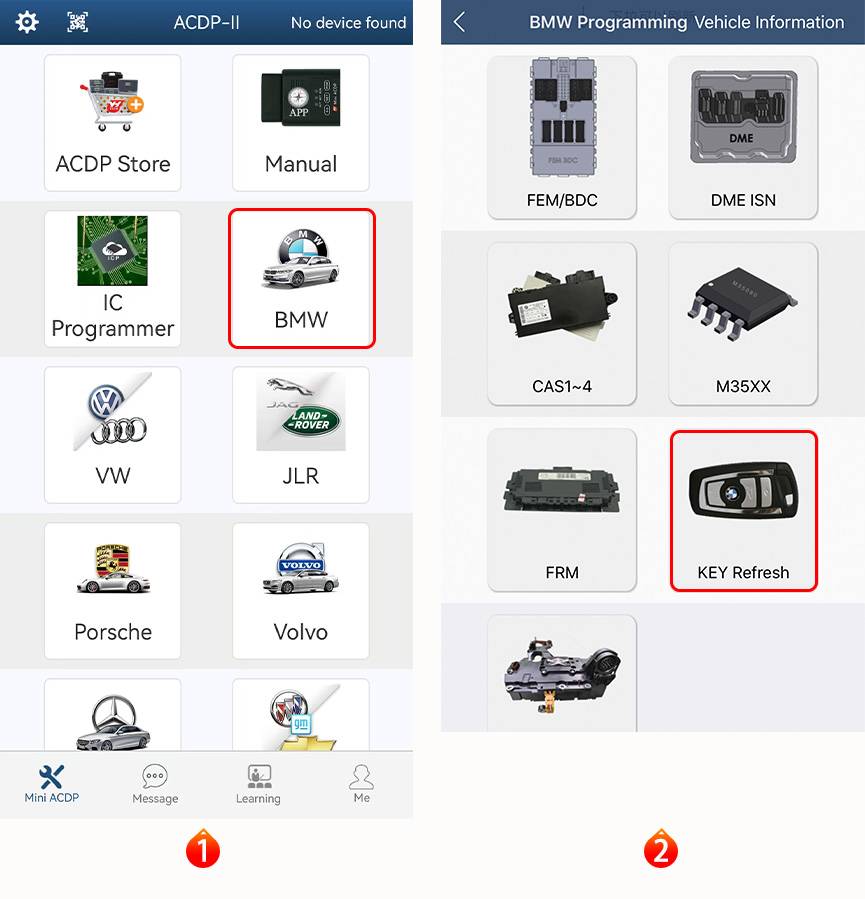

APP operation interface：
Configuration List:
ACDP Configuration List (Module7 Refresh BMW Key Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BMW F chassis（HUFXXXX）Key interface board |  |
Applicable to connect the test point of BMW F chassis（HUFXXXX） Key board. | 1 |
| 2 | BMW F chassis（5WKXXXX）Key interface board |  |
Applicable to connect the test point of BMW F chassis（5WKXXXX） Key board. | 1 |
| 3 | BMW Key simulator |  |
Applicable to analog BMW keys for platform testing | 1 |
| 4 | BMW key Refresh Module Copper pillar package（M2*14+3） |  |
Applicable to fix BMW F chassis（HUFXXXX，5WKXXXX） Key interface board. | 6pcs |
