ACDP Module06 MQB/MMC Instrument
Module functions：
Support parts of VDO mileage adjustment/key programming of VW MQB platform via OBD.
Passat MMC (NEC D70F3525 + 95320) instrument adjustment after years 2015 by ICP mode.
Module features：
1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

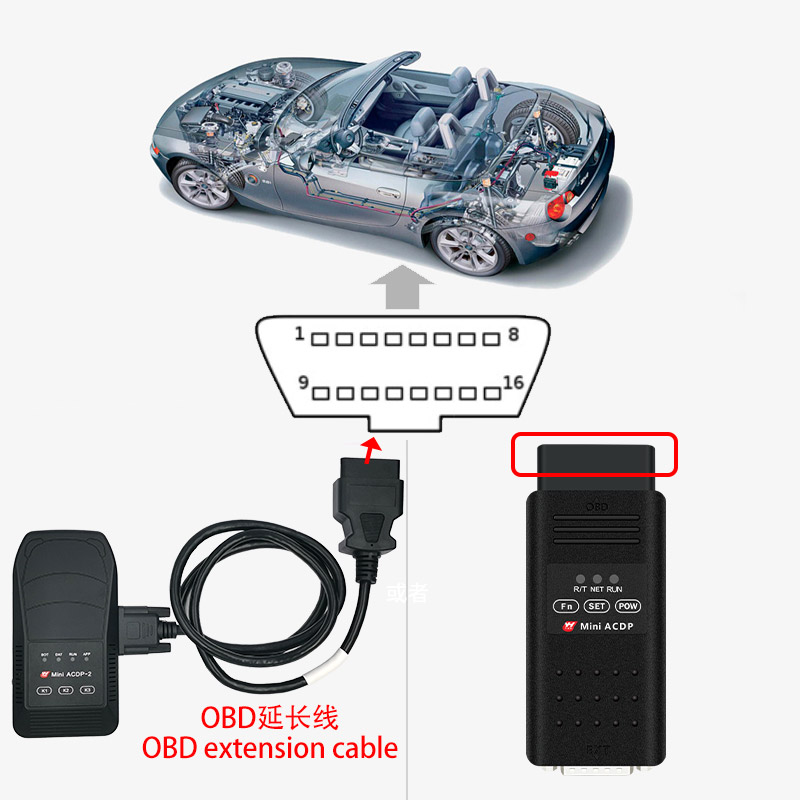

MQB connection diagram：

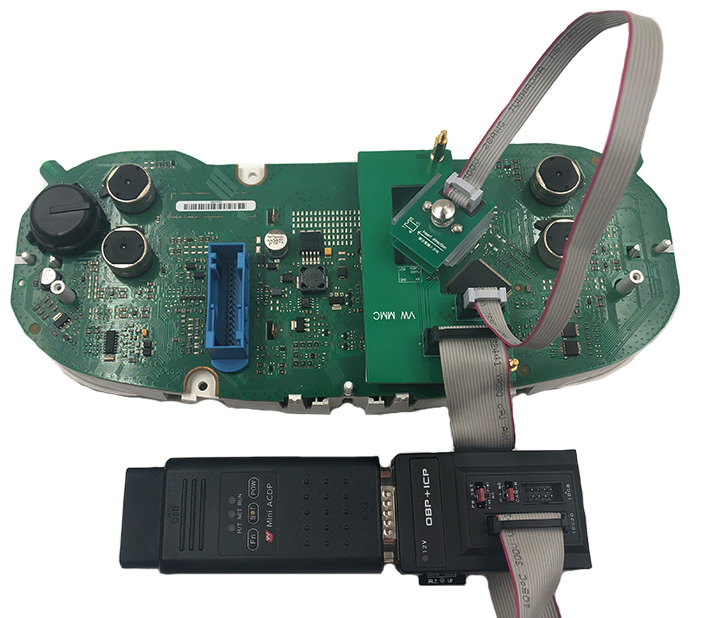

MMC Connection diagram:

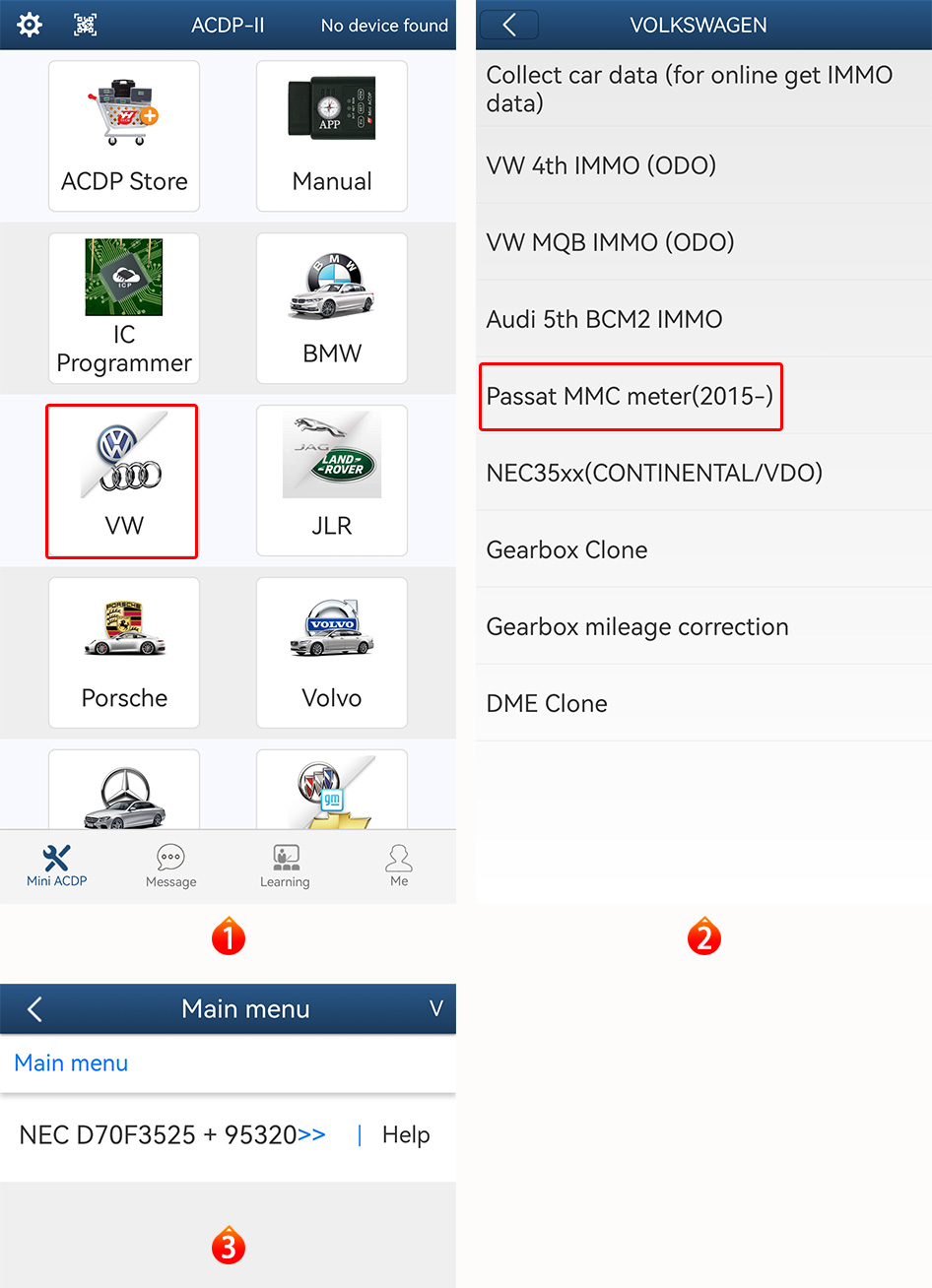

APP operation interface：
Configuration List:
ACDP Configuration List (Module06 MQB/MMC Instrument)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|

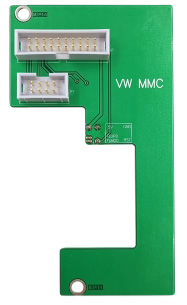

| 1 | VW Passat MMC instrument interface board |  |
Applicable to connect the VW Passat MMC instrument test point. | 1 |
| 2 | MQB/MMC Copper pillar package (Single head six angle stud M3*14+6mm) |  |
Applicable to fix VW Passat instrument interface board. | 6pcs |
| 2 | PCF KEY Adapter |  |
Applicable to Identify and program key. | 6pcs |
