ACDP Module47：2018+ JLR Duplicate Key Without Removing RFA
Module Description：
Supports 2018+ JLR duplicate the lost key without removing RFA via 0BD+ICP method.
Module Function Description:
1：Key duplication is supported for vehicles with the UWB function originally disabled. If the vehicle's UWB function was originally enabled, the new duplicated key will be restricted.
2：For the 2018–2024 vehicle(key with NCF29A4V chip), ACDP/ACDP2 supports OEM keys, ID-changeable aftermarket keys and universal keys to duplicate a new key.
3：For vehicle afterwards 2025 (key with NCF29AFV chip), ACDP/ACDP2 only supports OEM keys to duplicate a new key，and need to desolder the NCF29AFV chip.

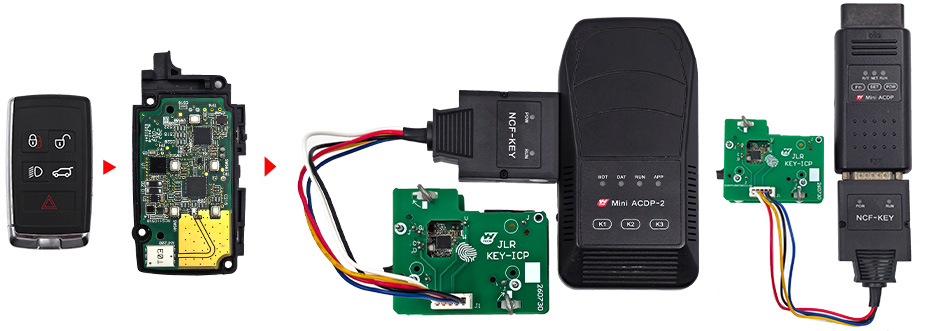

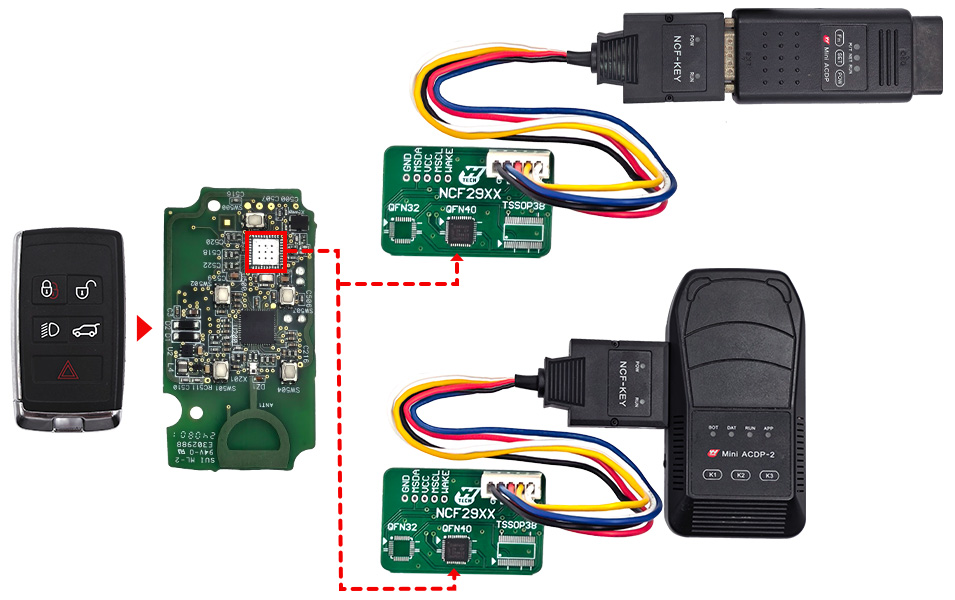

Overall connection diagram：
NCF29A4V CPU Key ▼
NCF29AFV CPU Key ▼

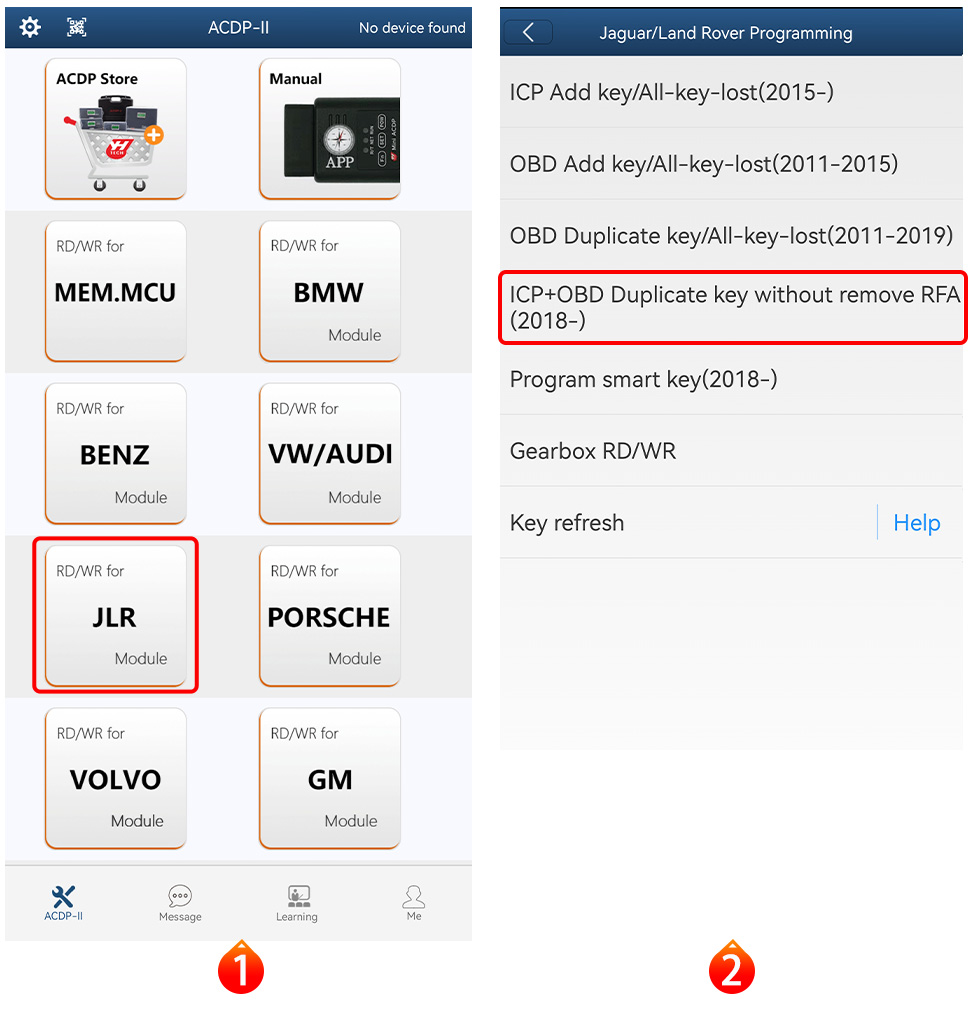

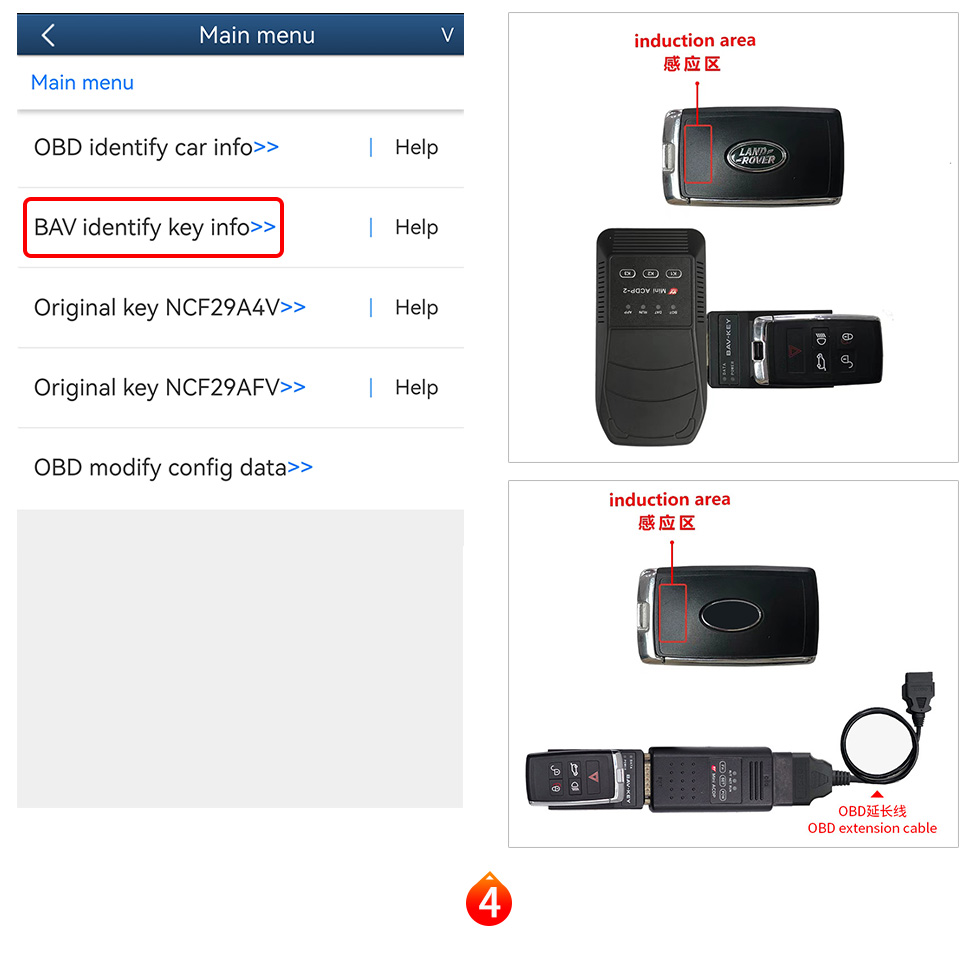

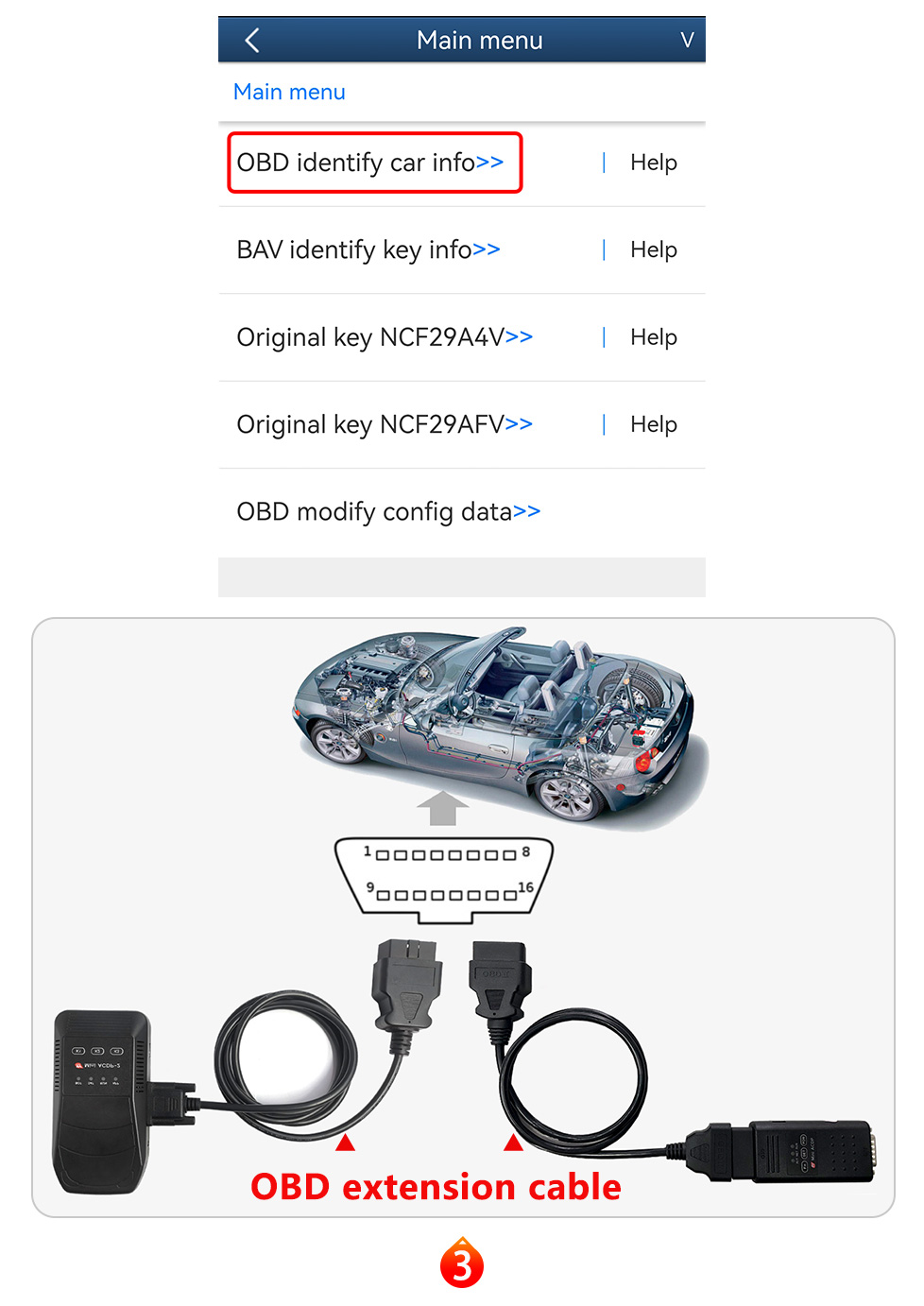

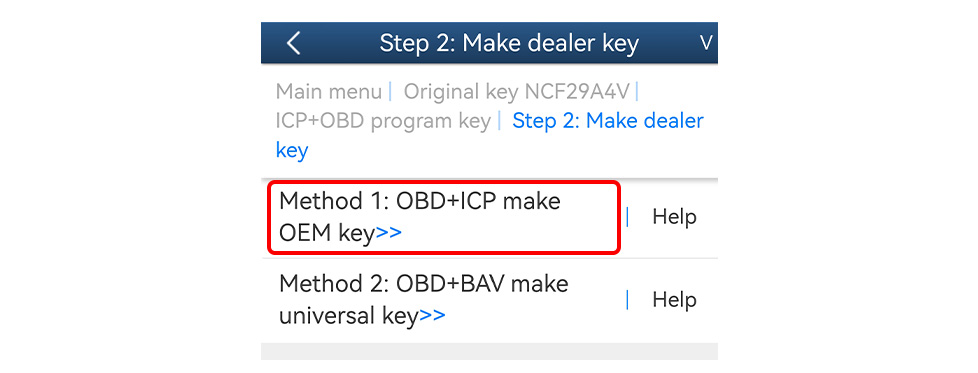

APP operation interface：

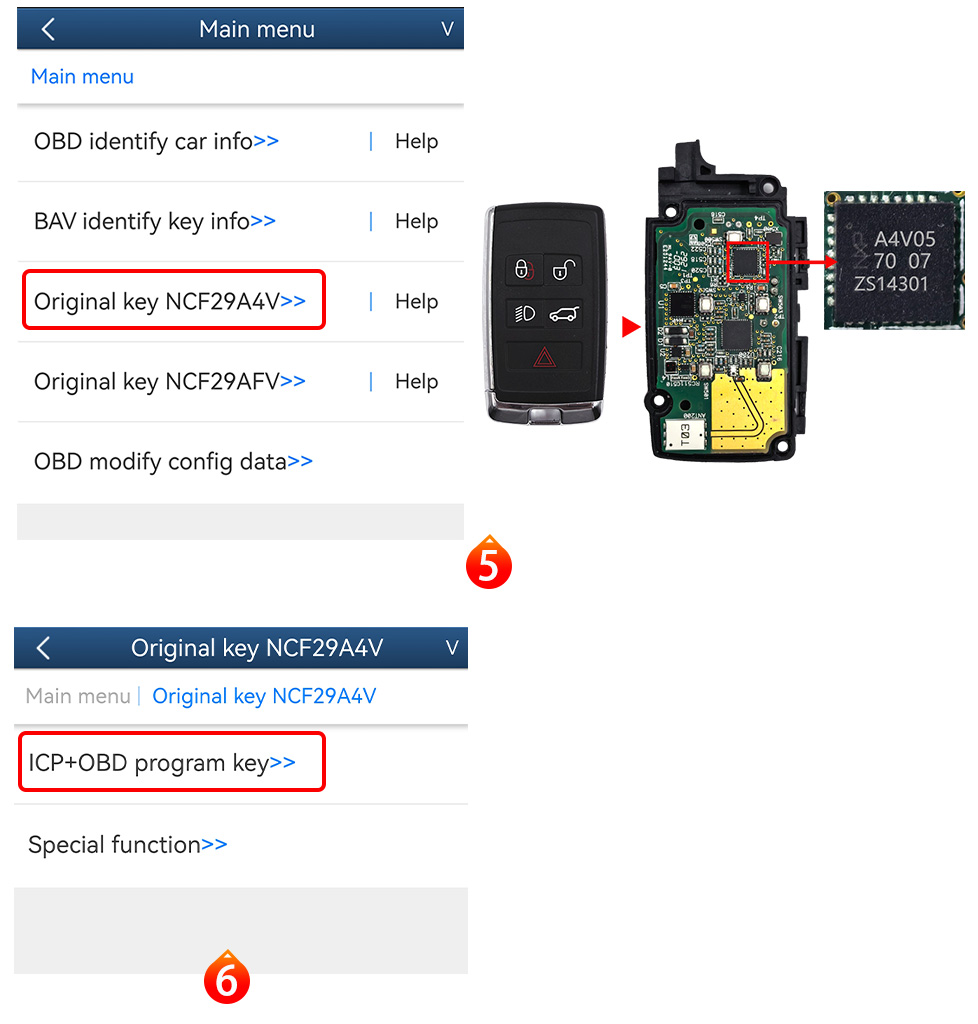

NCF29A4V CPU Key ▼

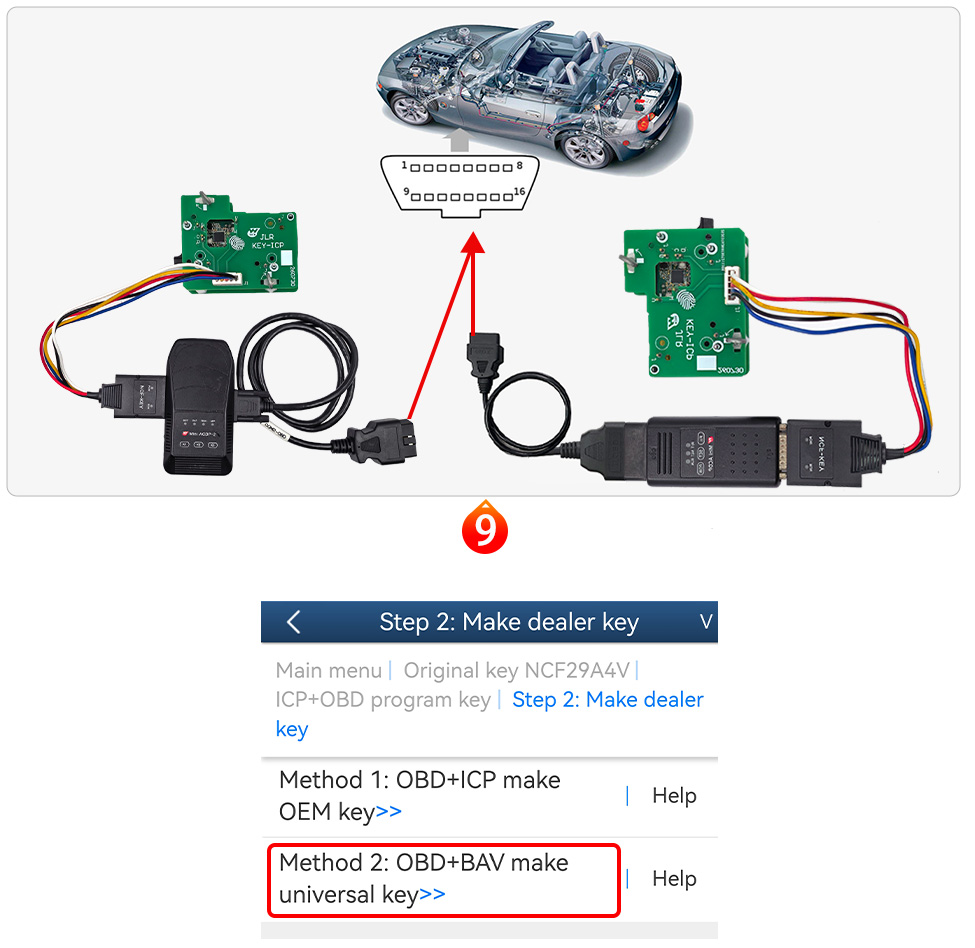

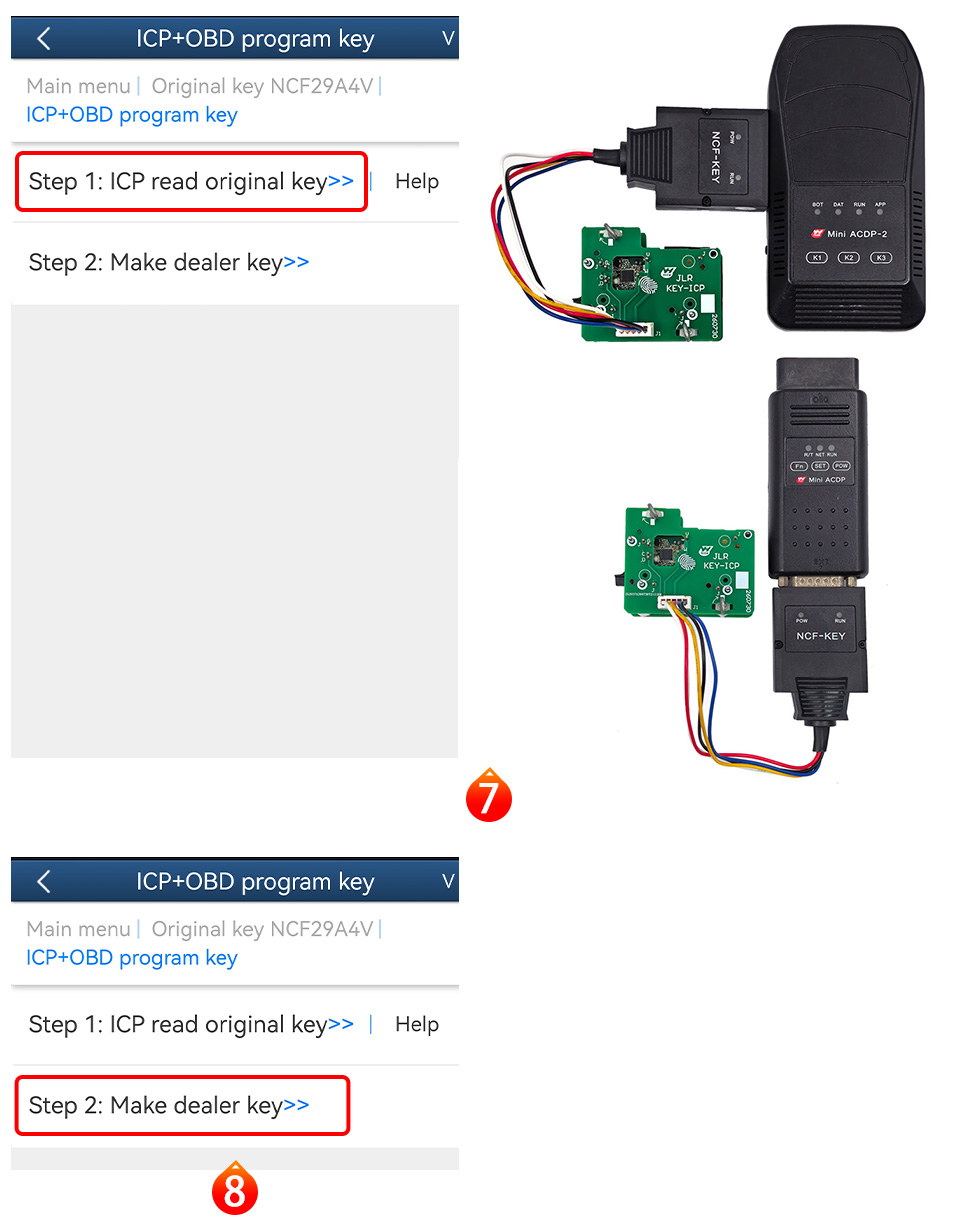

Duplicate original key：

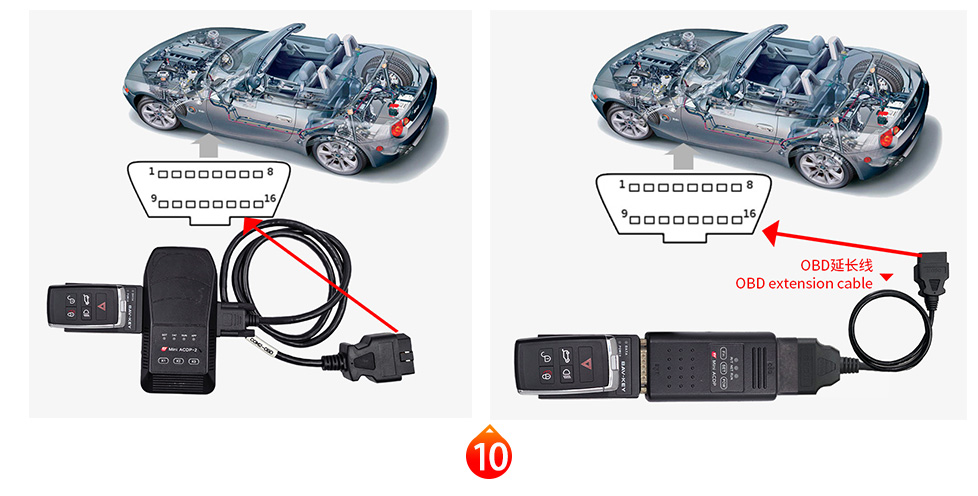

Duplicate original key：
Configuration List:
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | NCF29A4V CPU Key interface board |  |
Applicable to connect JLR NCF29A4V CPU Key | 1 |
| 2 | NCF29AFV CPU Key interface board |  |
Applicable to connect JLR NCF29AFV CPU Key | 1 |
| 3 | NCF-KEY adapter |  |
Applicable to connect ACDP host and JLR NCF29A4V/NCF29AFV CPU Key interface board | 1 |
| 4 | 5pin ICP expansion cable |  |
Applicable to connect JLR NCF29A4V CPU Key by wire bonding | 1 |
