ACDP Module44 5C/5D IMMO
Module Functions：
1:Supports add original new or used keys Volkswagen Audi Porsche 5C/5D.
2:Supports modify the ID of the original keys for 5C/5D.
Module Features:
The key interface board accurately positions all test points, No need manually connect wake test points.
Supported Key Types：
connection VW 5C Fold-1 ▼
connection VW 5C Fold-2 ▼
connection VW 5D Golf8-1 ▼
connection VW 5D Golf8-2 ▼
connection VW 5C Magotan ▼
connection AUDI 5D-1 ▼
connection AUDI 5D-2 ▼
connection Porsche ▼

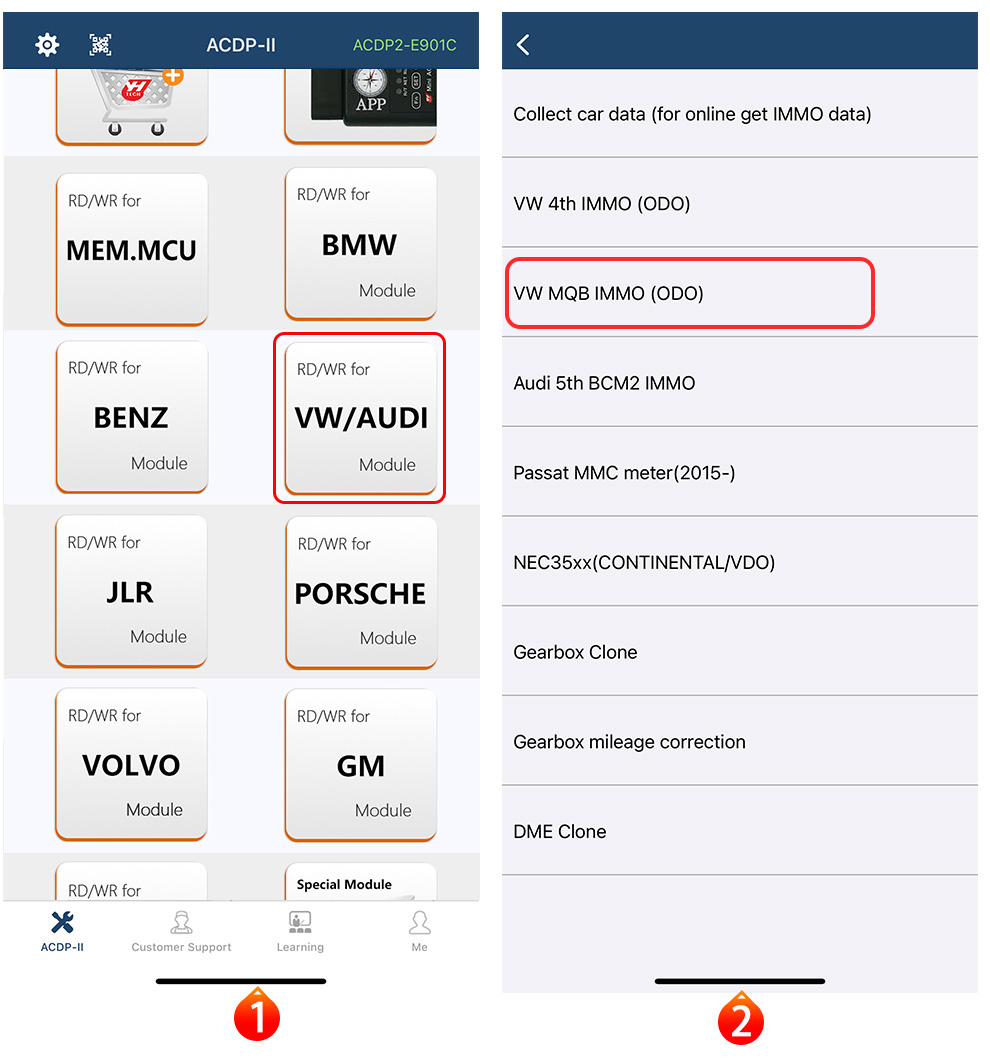

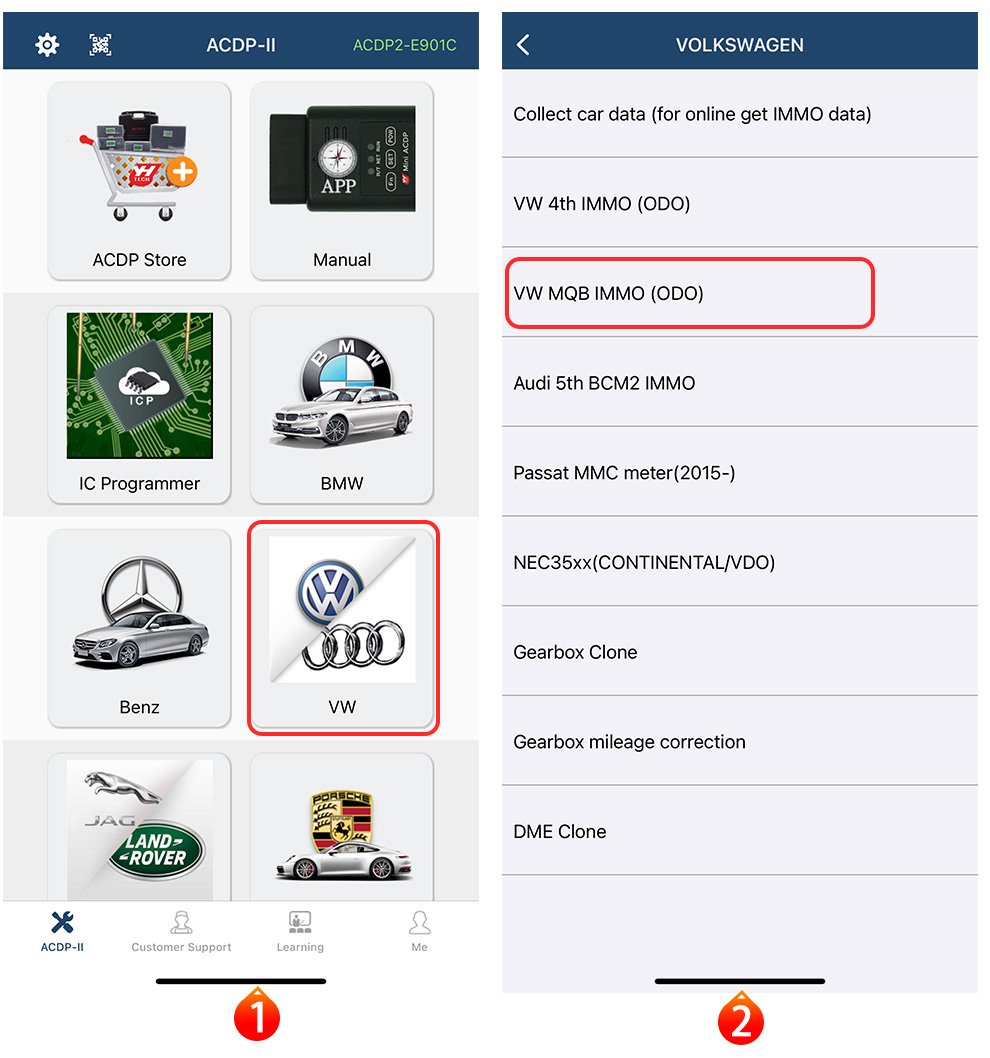

APP operation interface：

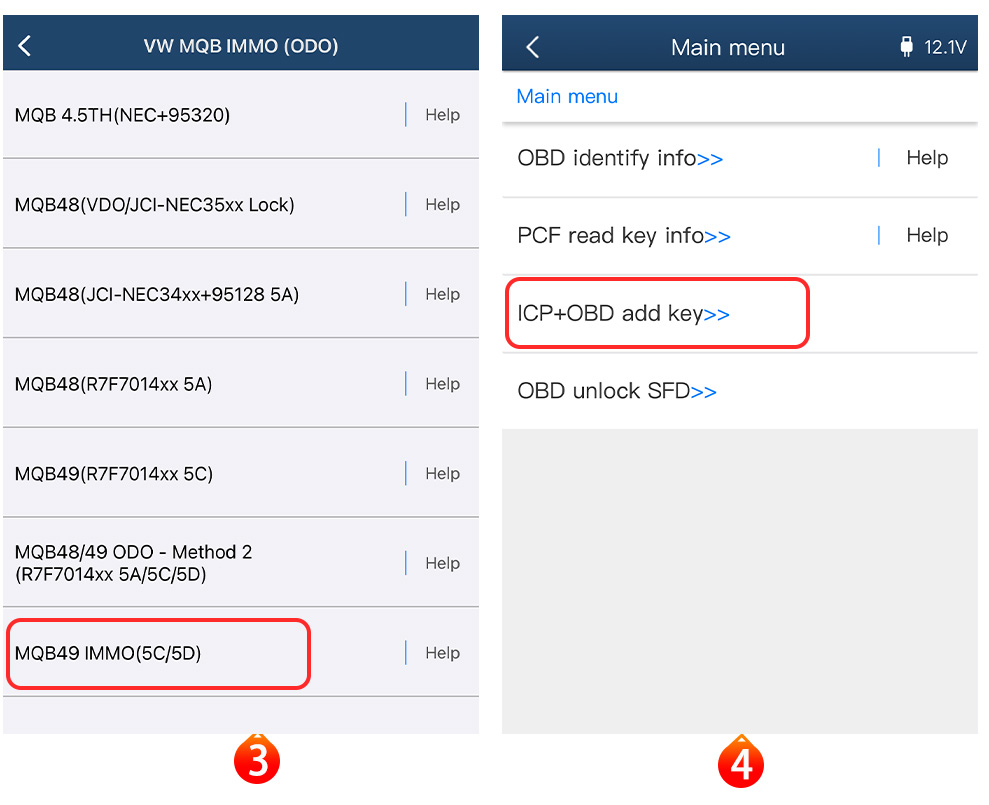

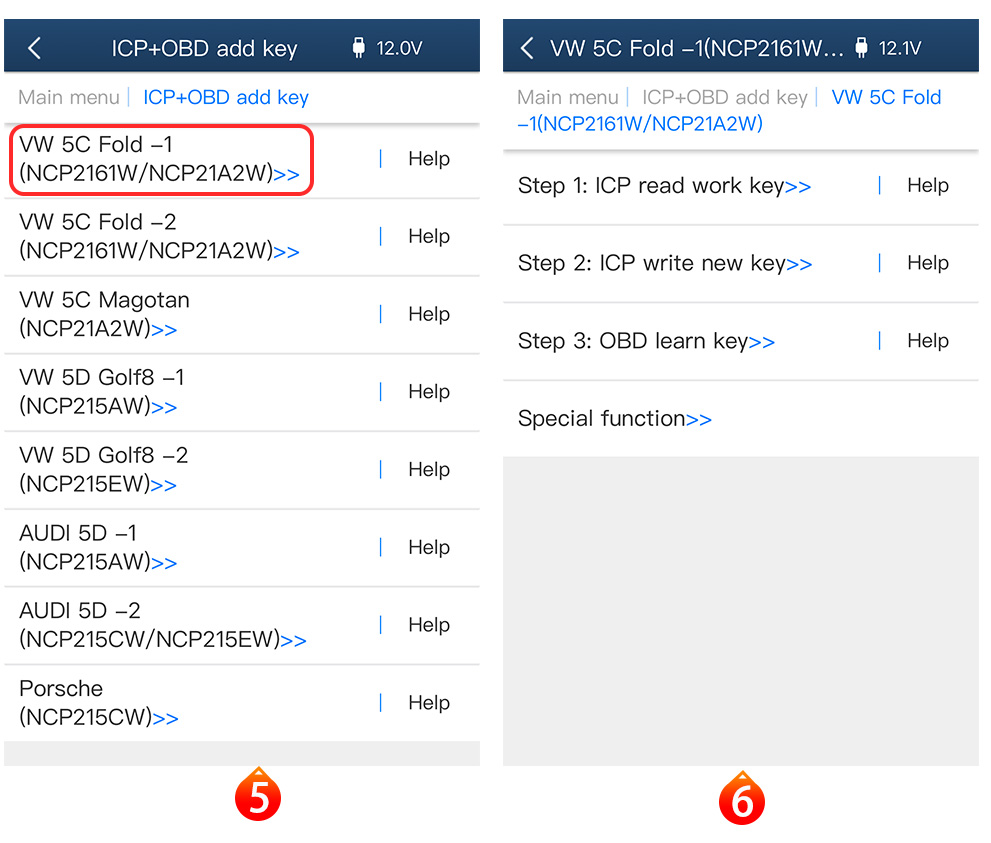

5C/5D key addition process

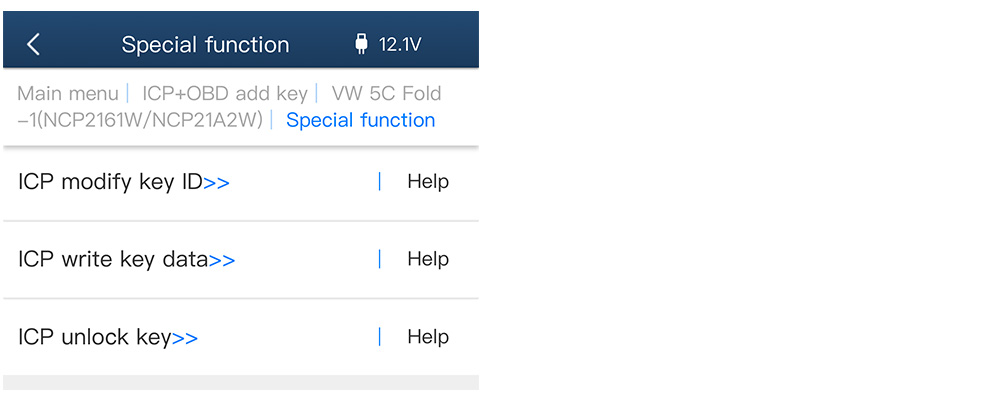

5C/5D key unlock key and modify key ID
Configuration List:
ACDP Configuration List (Module 44 5C/5D IMMO)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | 5C/5D interface board |  |
Applicable to connect VW Fold/Golf8 5C/5D keys board | 1 |
| 2 | 5D interface board |  |
Applicable to connect VW/AD/Pors 5D keys board | 1 |
| 3 | NCF-KEY adapter |  |
Applicable to connect ACDP host and VW Fold/Golf8/VW/AD/Pors 5C/5D Interface board | 1 |
| 4 | Glue remover |  |
Applicable to remove the waterproof sealant at the wake test points of the Fold key board. | 1 |
| 5 | 5pin ICP expansion cable |  |
Applicable to connect VW Fold/Golf8/VW/AD/Pors 5C/5D key boards by wire bonding | 1 |
