ACDP Module 39 MB HU7 Instrument Module mileage correction
Module functions：
Support mileage correction for the MB HU7 instrument module (A 206/A 223/A 177) with chip model R7F7015293/ R7F7015294.
Supported vehicle models:
S（W223）/C（W206 /S206/ V206 /X206）/AMG（192 /X290）/A（W177）/B（W243 W247）/ CLA（C118 /W118）/CLE（A236 C236）/EQA（H243）/EQB（X243）/EQE（V294）/EQS（V297）/GLA（H247）/GLB（X247）/GLC（C254/ X254）/GLE（V167）/GLS（X167）/CLS（W257）/SL（232）

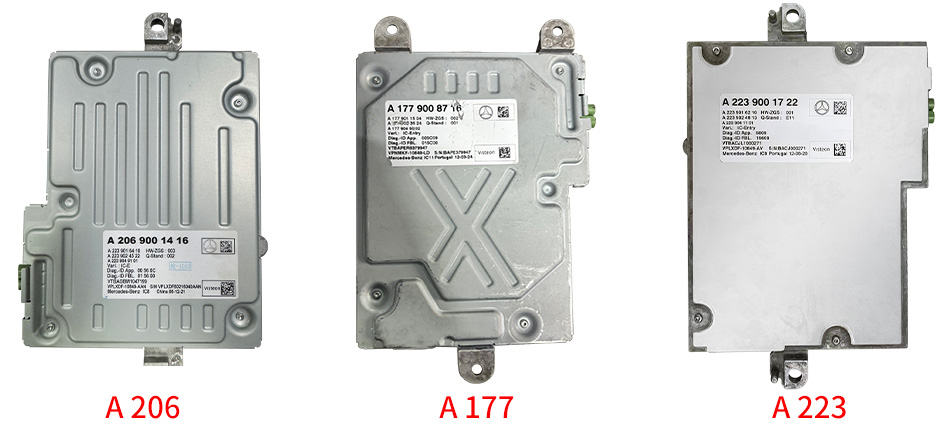

Supported Instrument Modules：
Overall connection diagram：

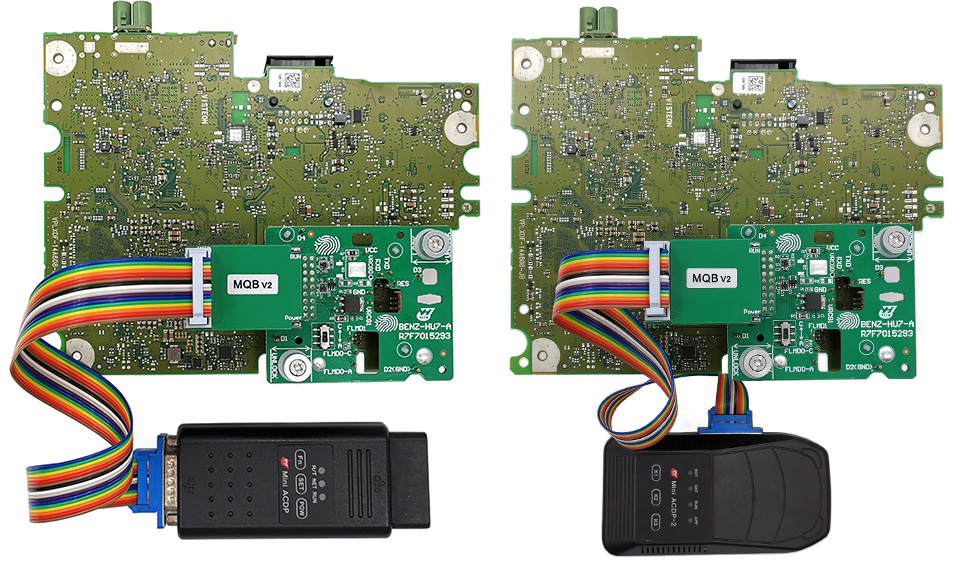

R7F7015293 - A ▲

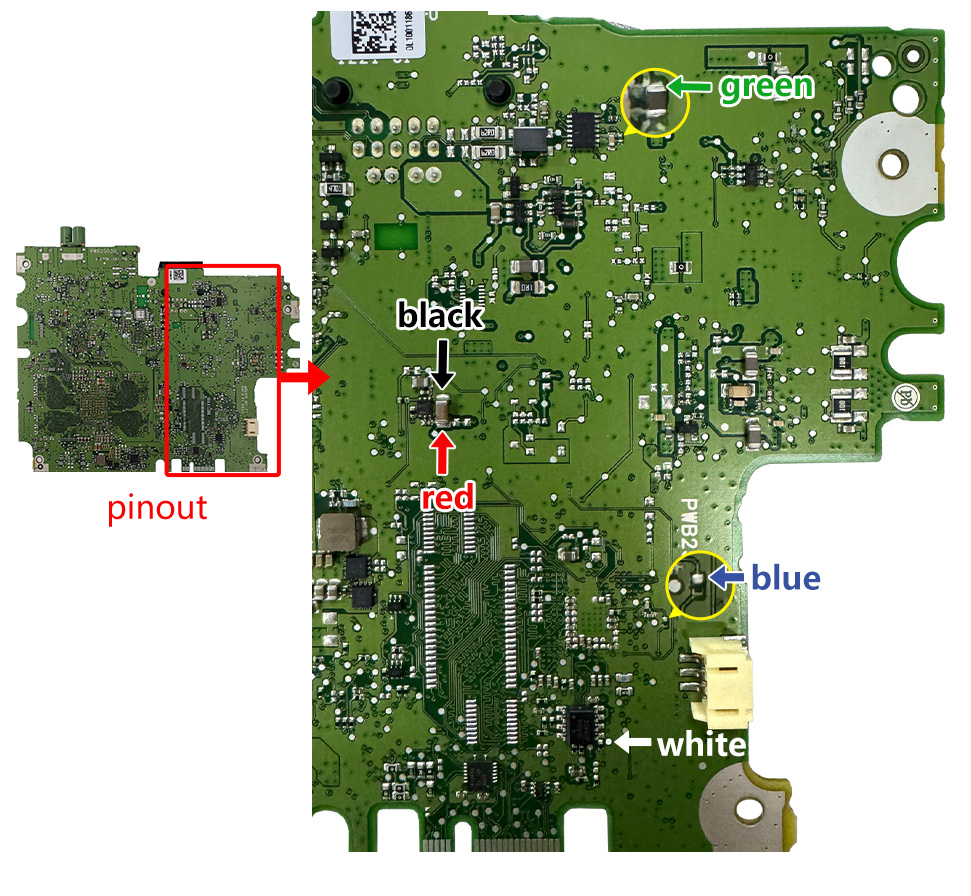

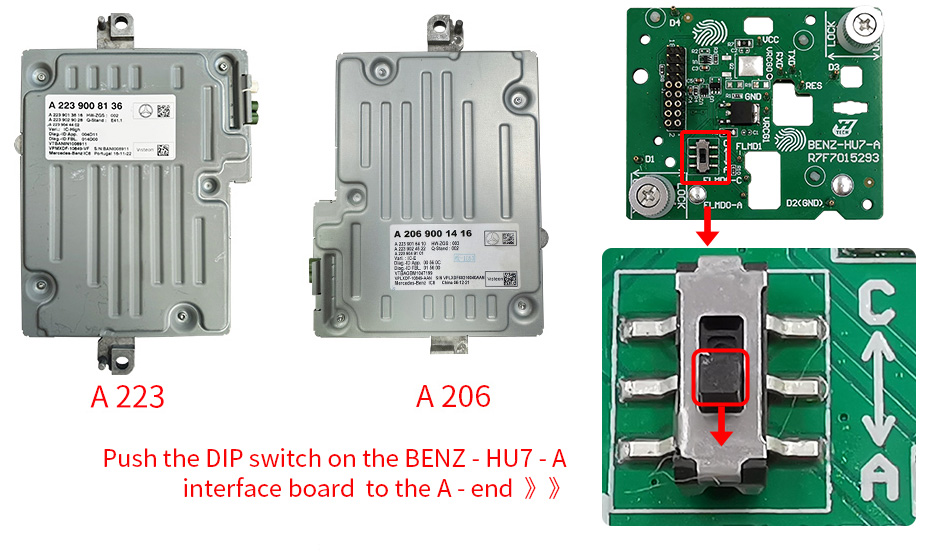

Push the DIP switch on the BENZ - HU7 - A interface board to the C - end ▲

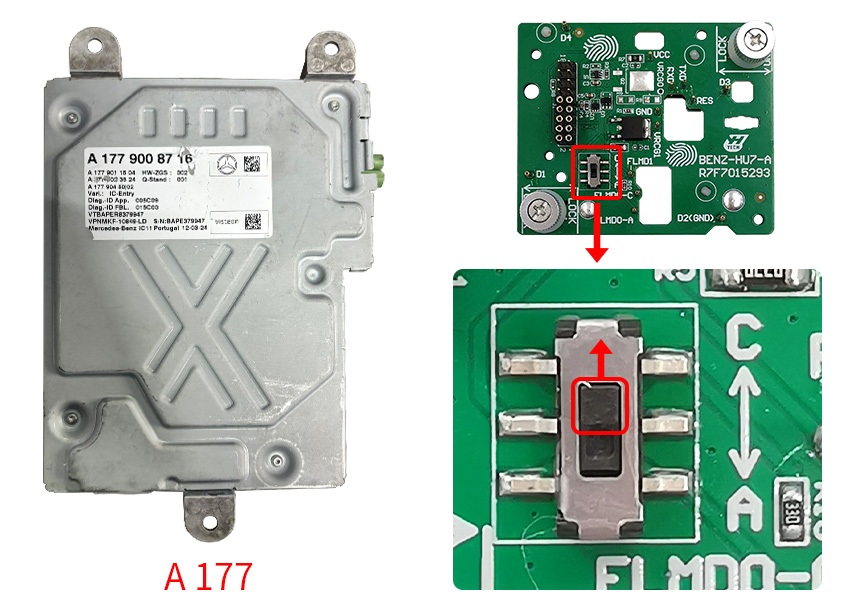

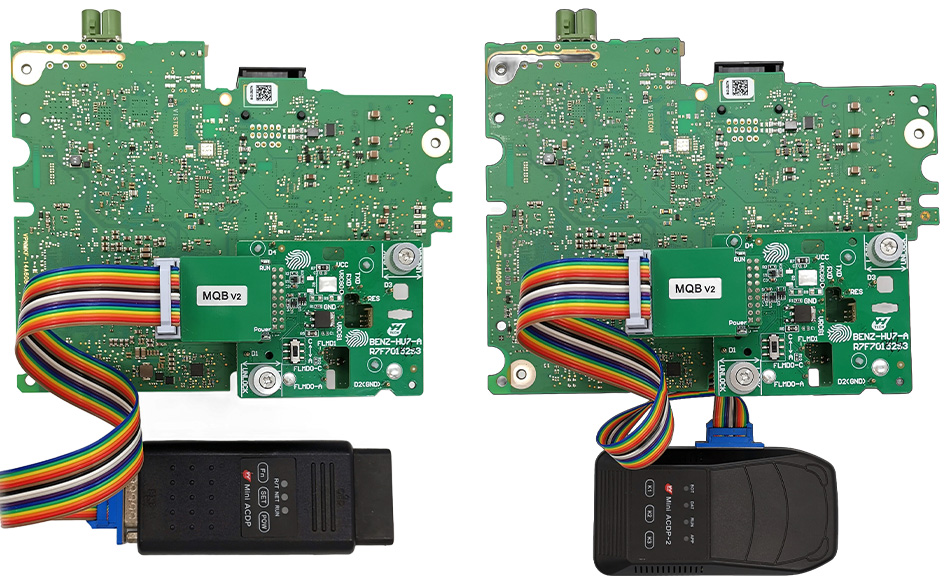

R7F7015293 - A ▲

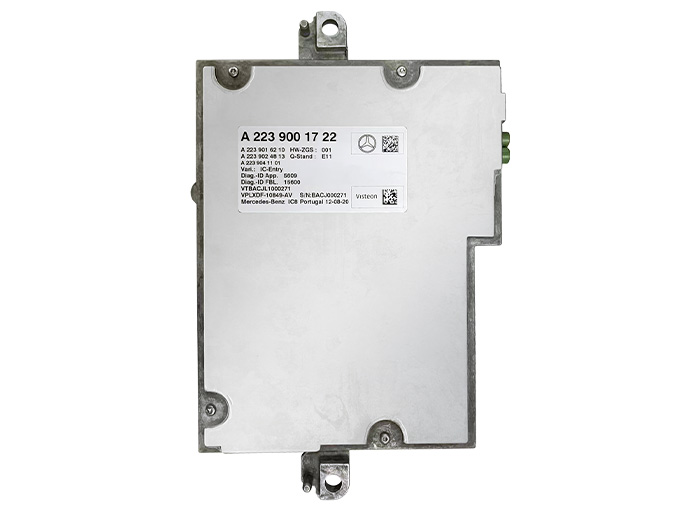

A 223 ▲

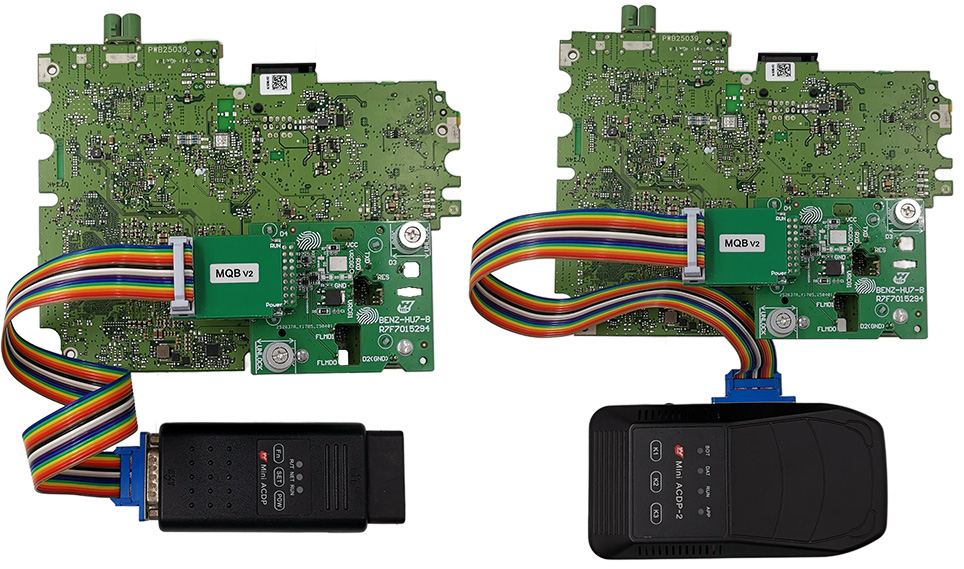

R7F7015294 - B ▲

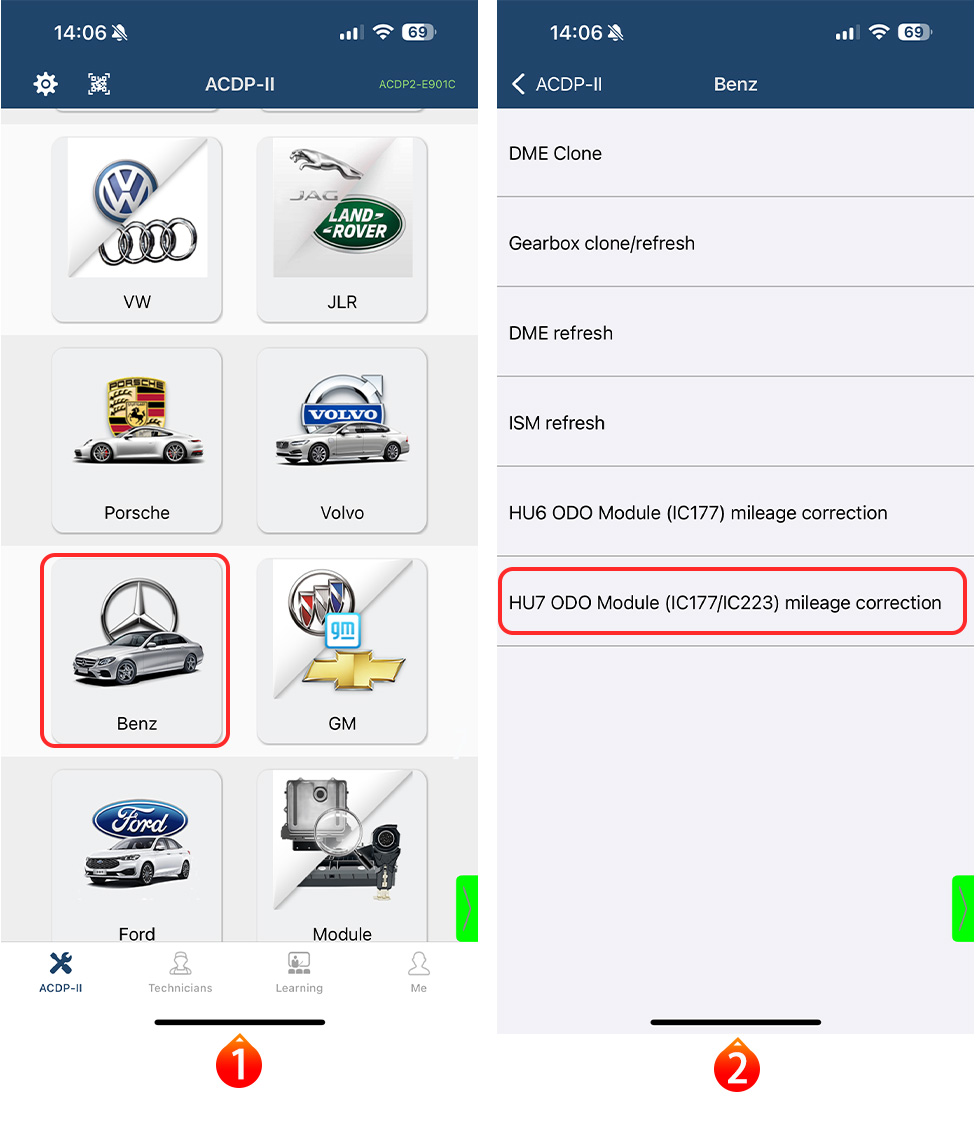

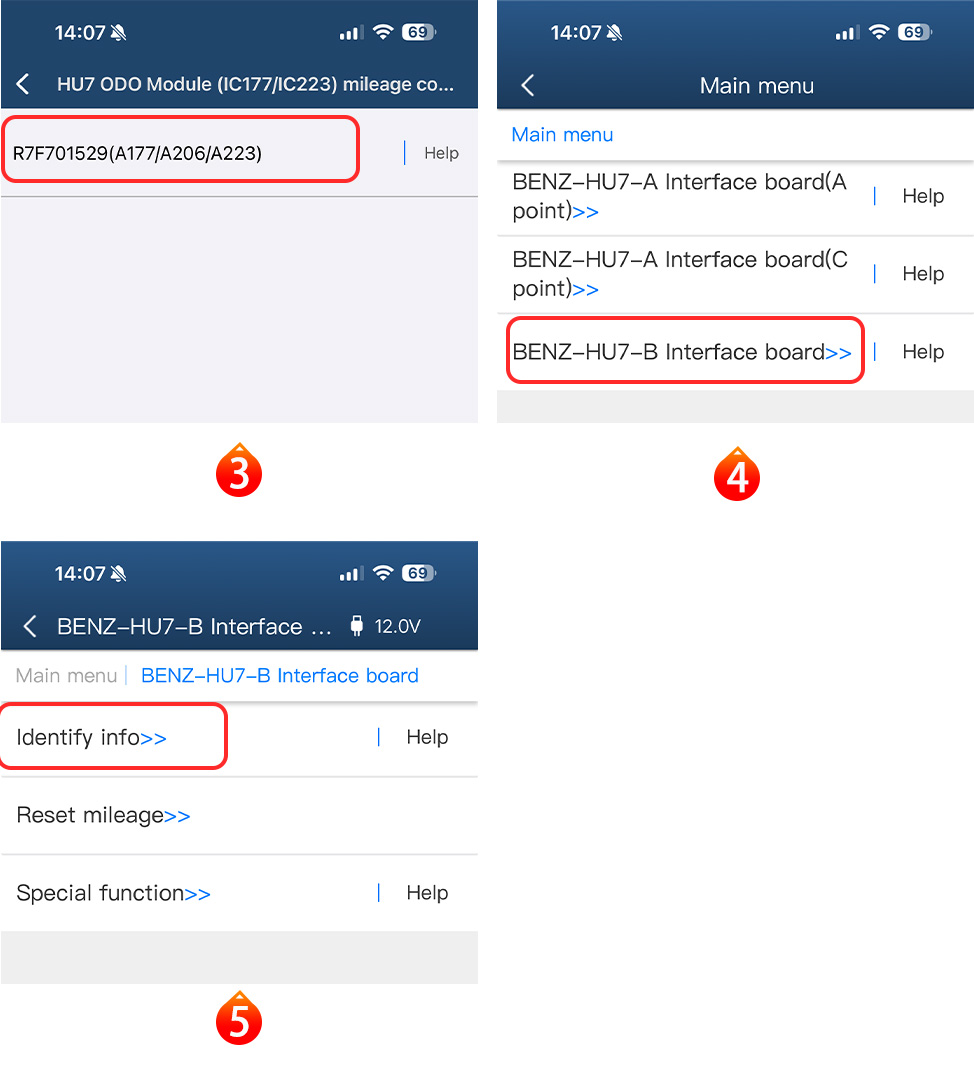

APP operation interface：

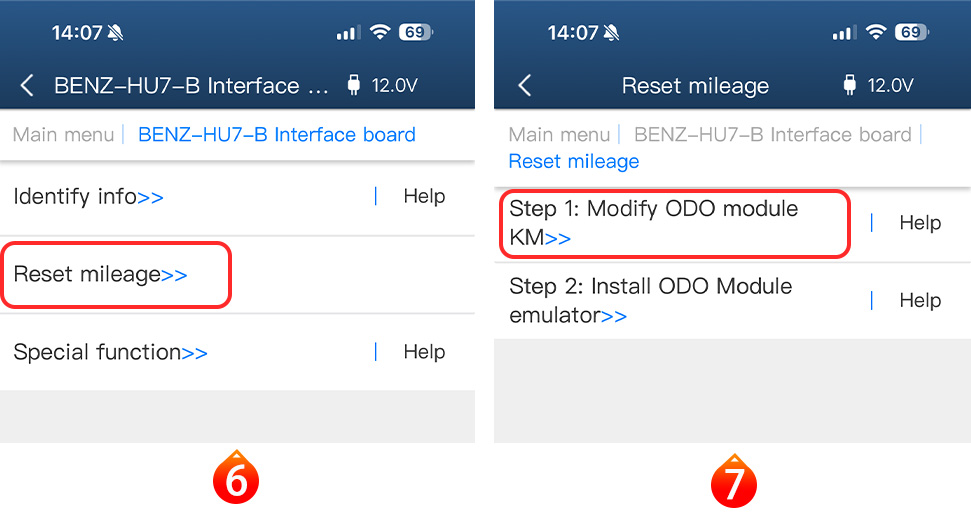

Step 1: Modify the mileage (in kilometers) of the HU7 instrument module ▼

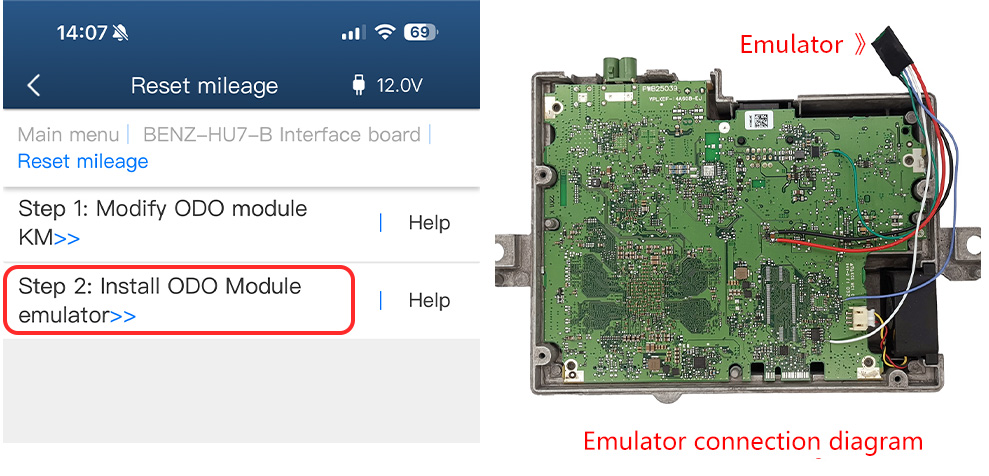

Step 2: Install ODO Module emulator ▼
Configuration List:
ACDP Configuration List (Module 39 MB HU7 Instrument Module mileage correction)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BENZ-HU7-AR7F7015293 Interface board |  |
Applicable to connect R7F7015293 chip benz HU7 instrument module | 1 |
| 2 | BENZ-HU7-B R7F7015294 Interface board |  |
Applicable to connect R7F7015294 chip benz HU7 instrument module | 1 |
| 3 | MQB V2 adapter |  |
Applicable to decrypt benz HU7 instrument module | 1 |
| 4 | 20 PIN cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
| 5 | MB HU7 Instrument module emulator |  |
Applicable to weld onto the MB HU7 instrument module | 1 |
