ACDP Module 37 MB HU6 Instrument Module (IC177) mileage correction
Module functions：
Support mileage correction for the MB HU6 instrument module (A 167/A 213/A 247) with chip model R7F701403.
Module features：
Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
The software comes with pin detection function, making data reading and writing safer and more reliable.
Supported vehicle models：
Support for Mercedes-Benz W247 A/B/CLA/GLA/GLB after 2019
Support for Mercedes-Benz W177 CLA/GLA after 2019
Support for Mercedes-Benz W167 GLE/GLS after 2019
Support for Mercedes-Benz W213 E/CLS after 2020
Support for Mercedes-Benz H243 EQA and X243 EQB after 2021

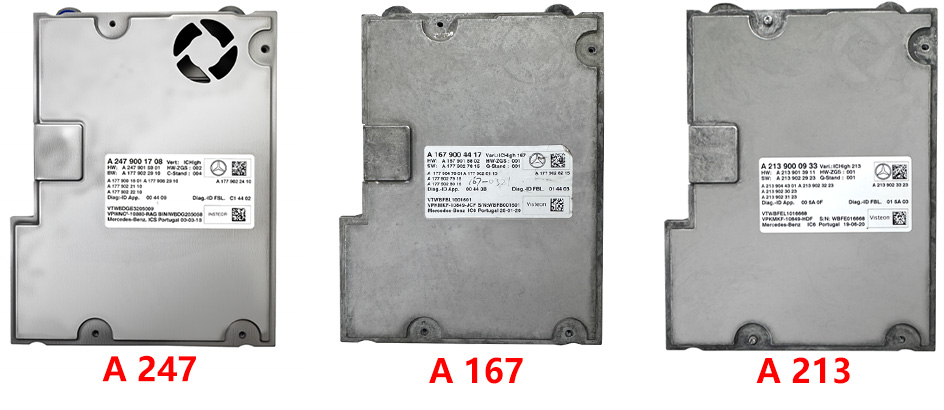

Supported Instrument Modules：

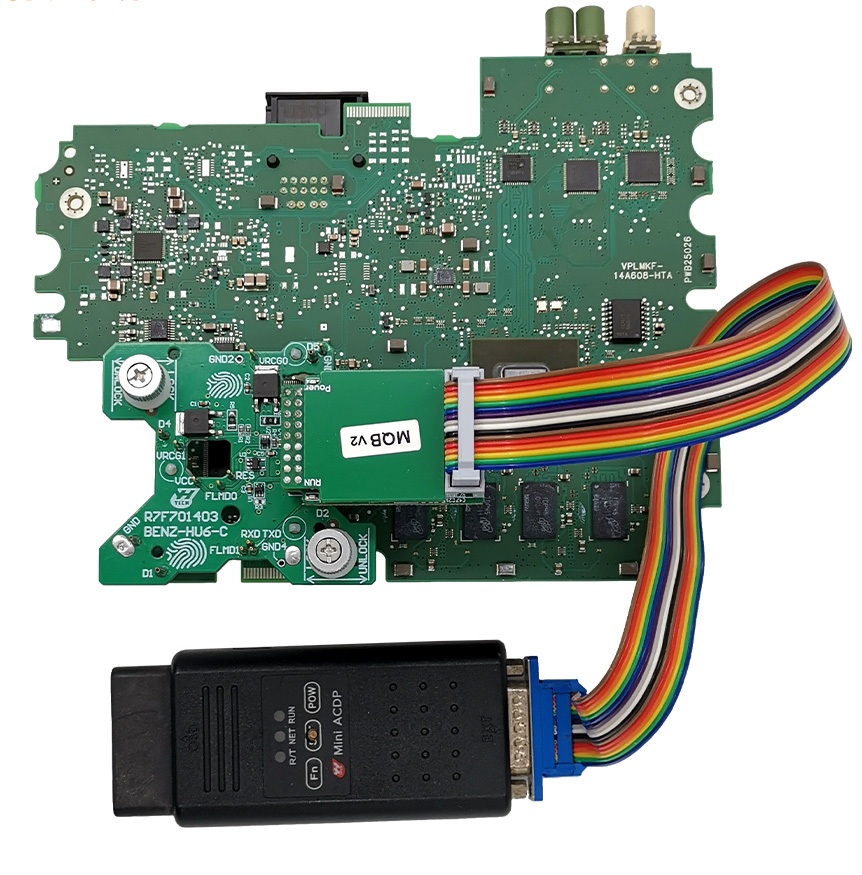

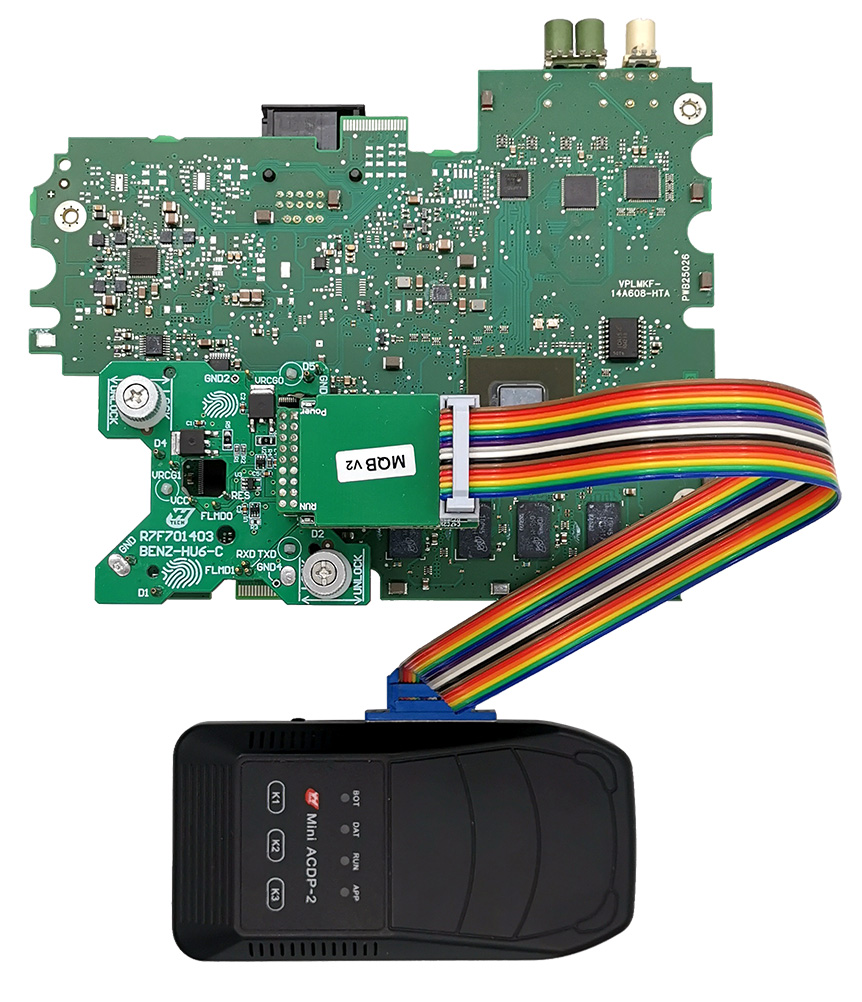

Overall connection diagram：

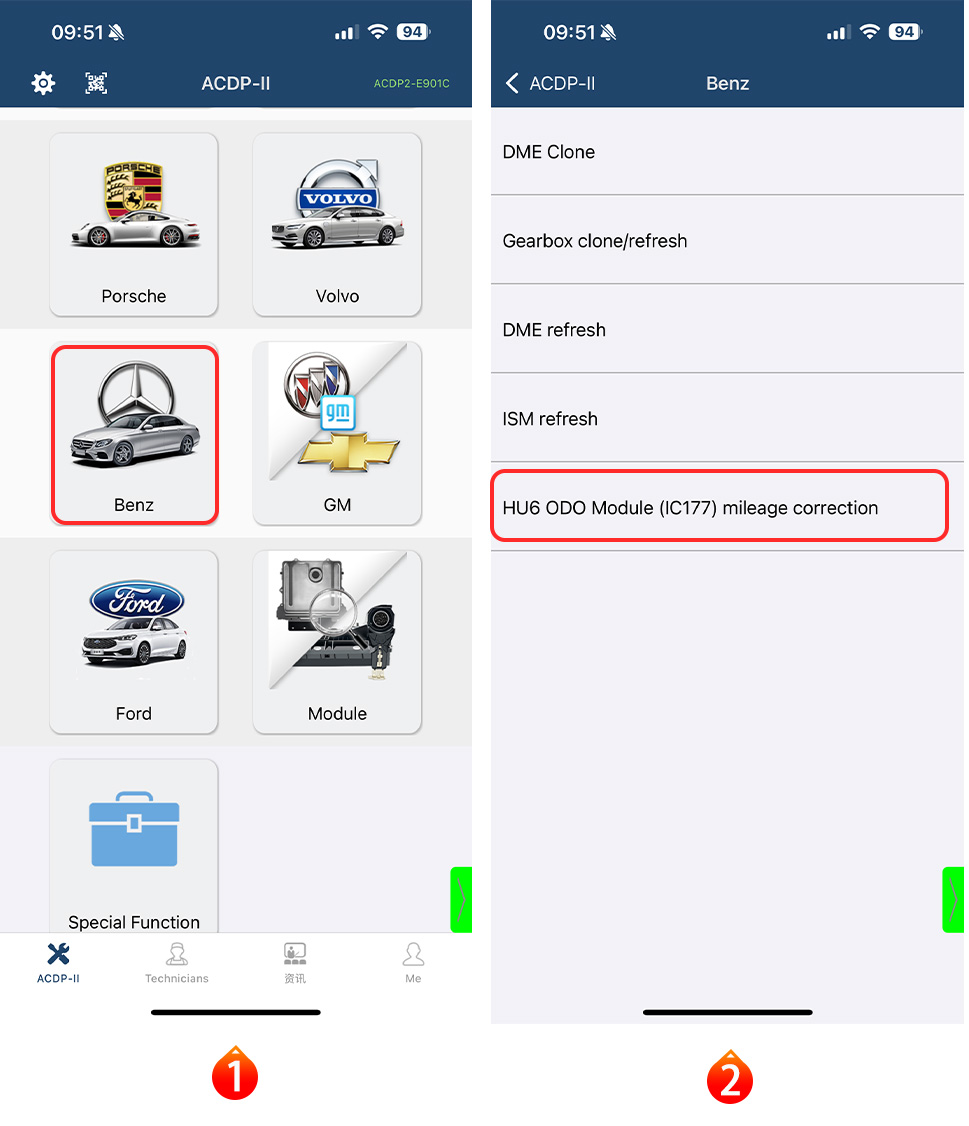

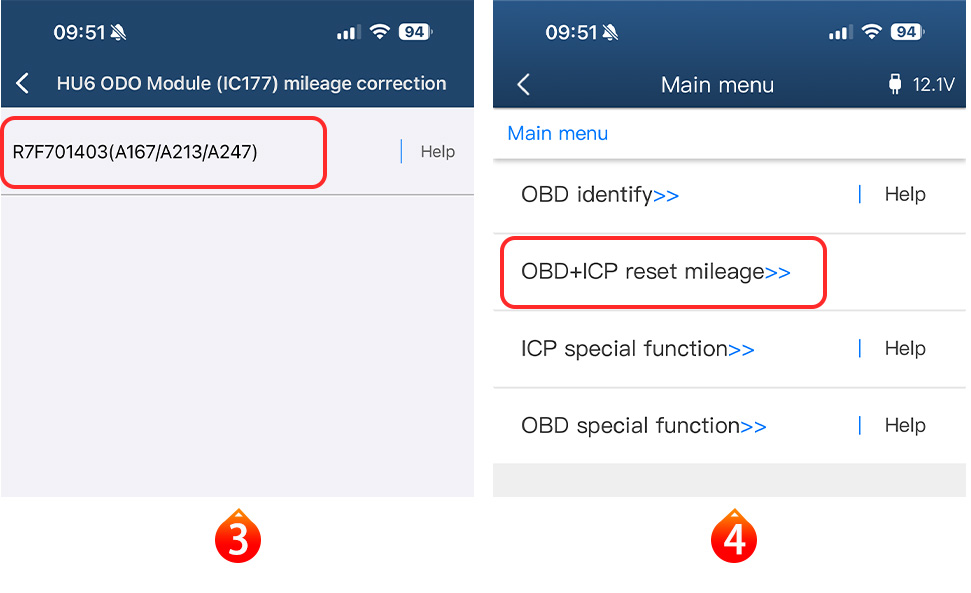

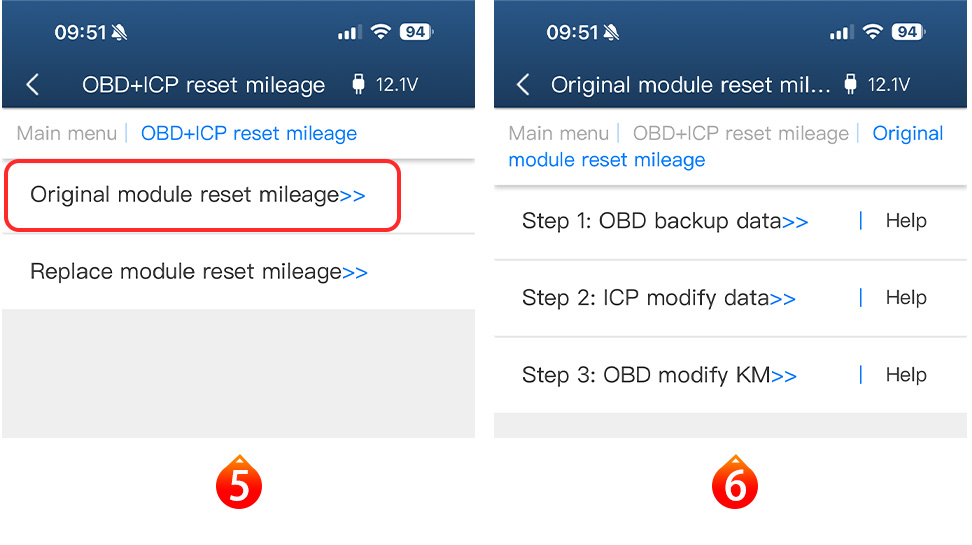

APP operation interface：
Configuration List:
ACDP Configuration List (Module 37MB HU6 Instrument Module (IC177) mileage correction)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BENZ-HU6-R7F701403 Interface board |  |
Applicable to connect R7F701403 chip benz Hu6 instrument module | 1 |
| 2 | MQB V2 adapter |  |
Applicable to decrypt benz HU6 instrument module | 1 |
| 3 | 20 PIN cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
