ACDP Module 36 ZF-TC1782/TC275/TC277 gearbox Read & Write
Module functions：
1：Support BMW 3rd generation 8HP (TC275/TC277) gearbox Read & Write .
2：Support 2017+ JLR 3rd generation 8HP (TC275) gearbox Read & Write .
3：Support JLR 9HP50 (TC275) gearbox Read & Write .
4：Support JLR, Honda, JEEP, Chrysler and other 9HP48 (TC1782) gearbox Read & Write .
5：Support Porsche 8DT/PDK2-TC400 (TC275) gearbox Read & Write .
6：Support Mercedes-Benz VGS3-FDCT (TC275) gearbox Read & Write .

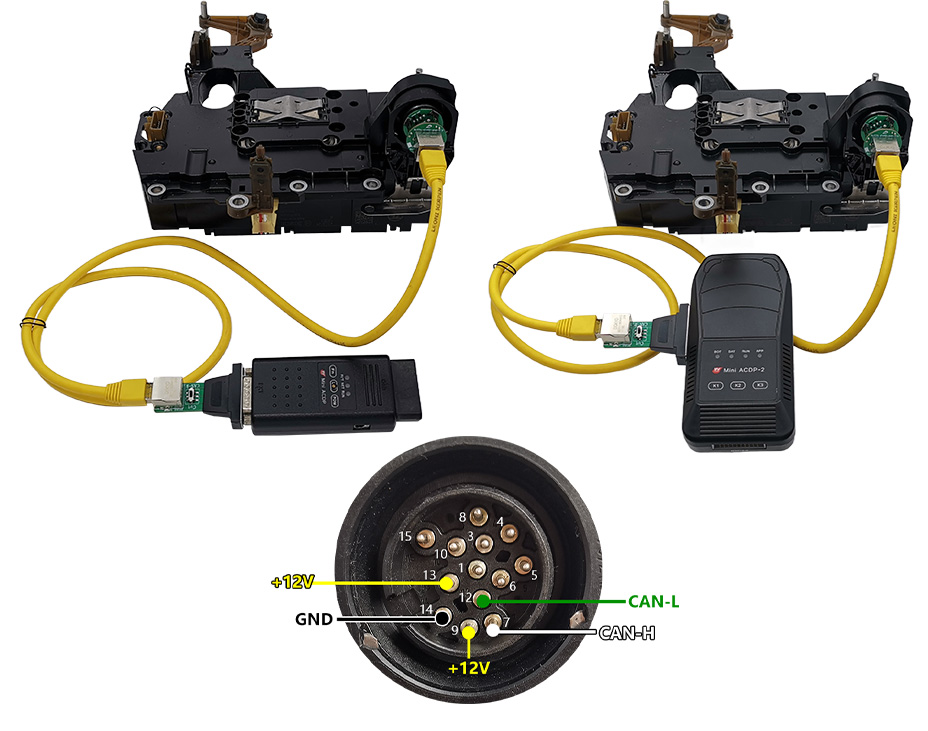

Overall connection diagram：

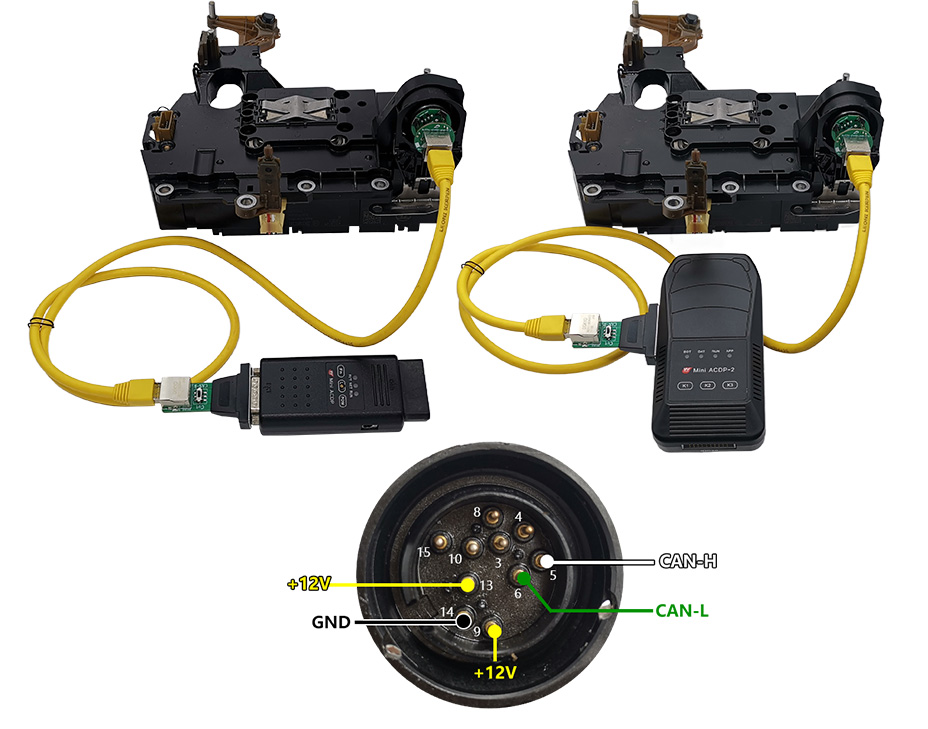

8HP Gen3 (TC275/TC277) ▼

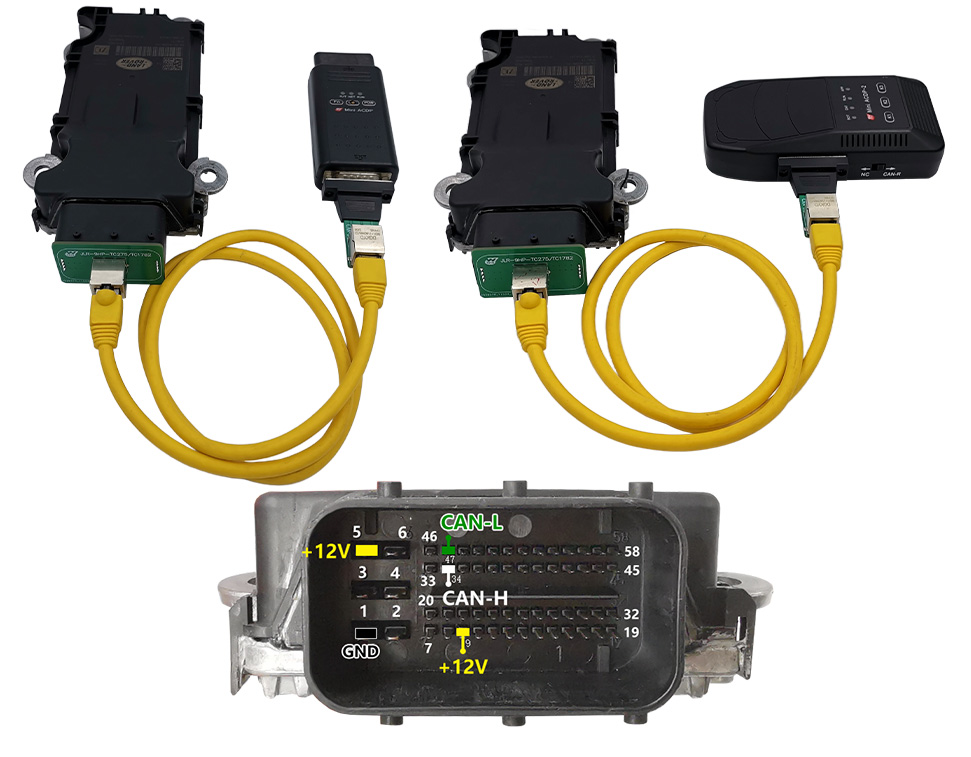

8HP Gen3(TC275) ▼
9HP48/50（TC275/TC1782）▼

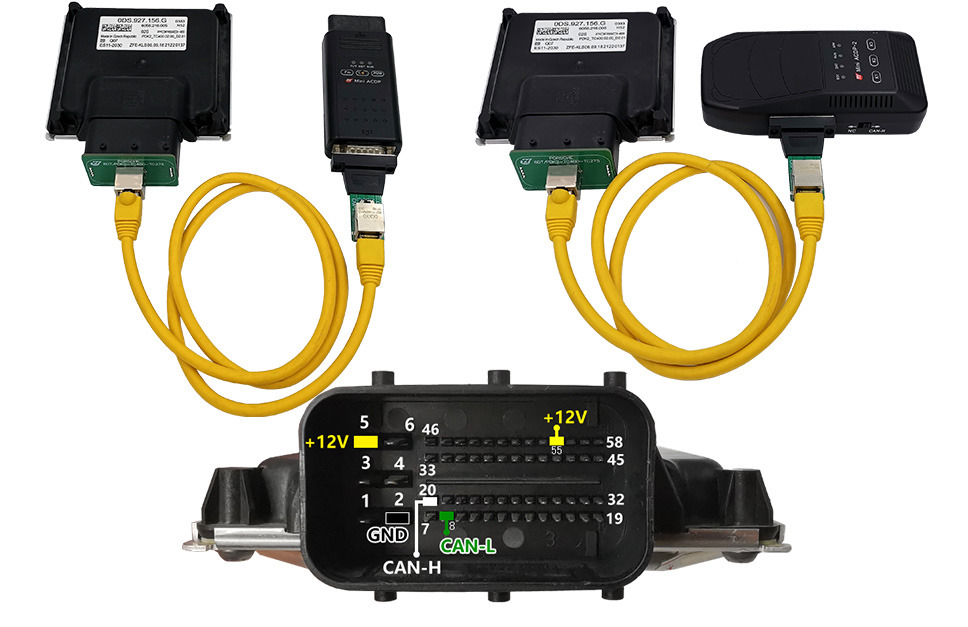

8DT/PDK2-TC400（TC275）▼

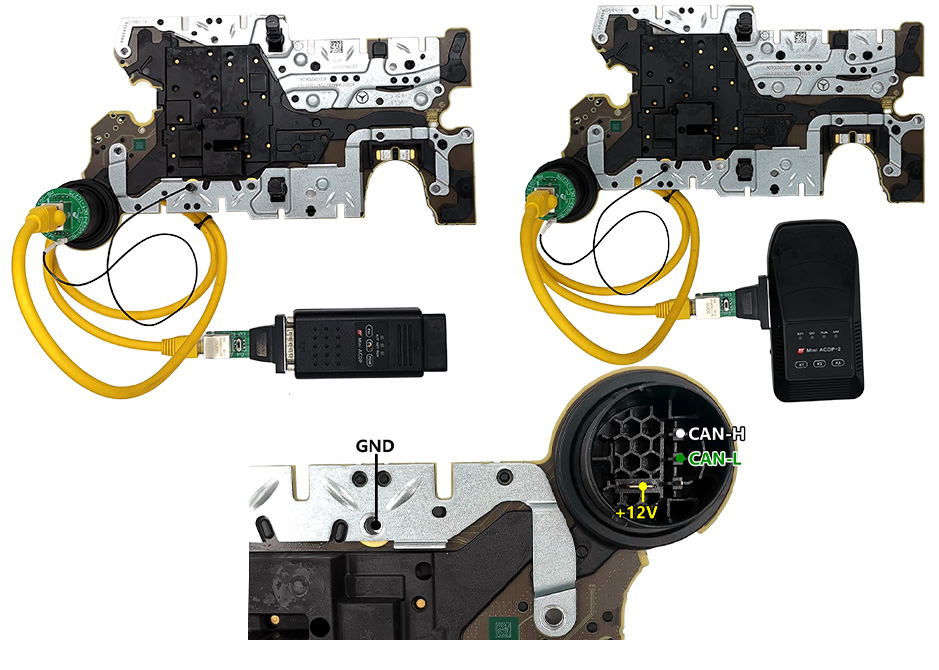

VGS3-FDCT（TC275）▼

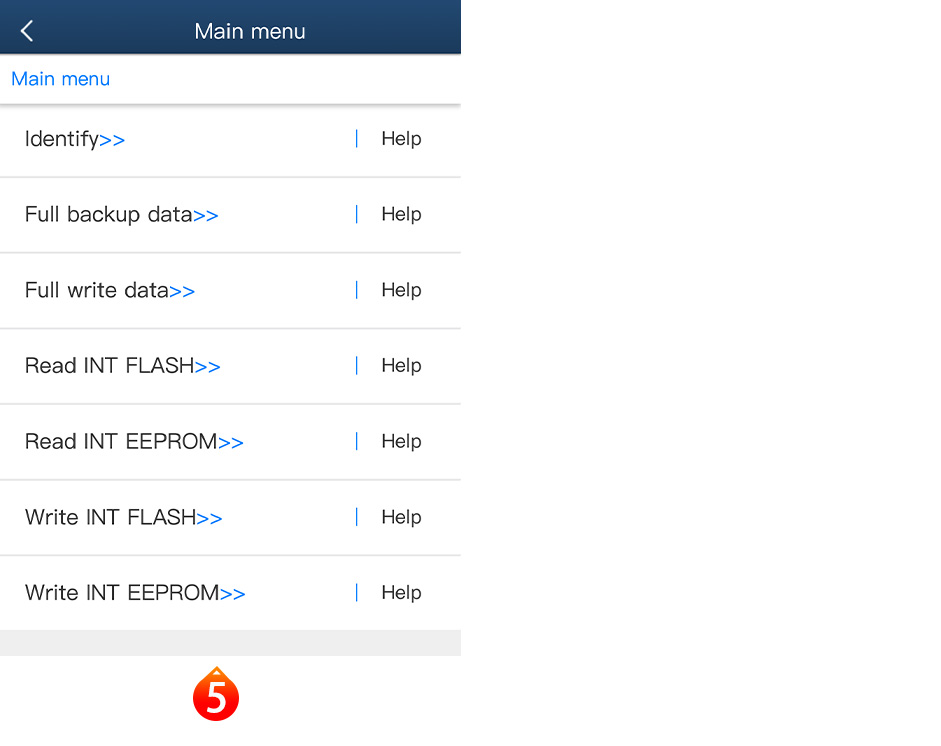

APP operation interface：

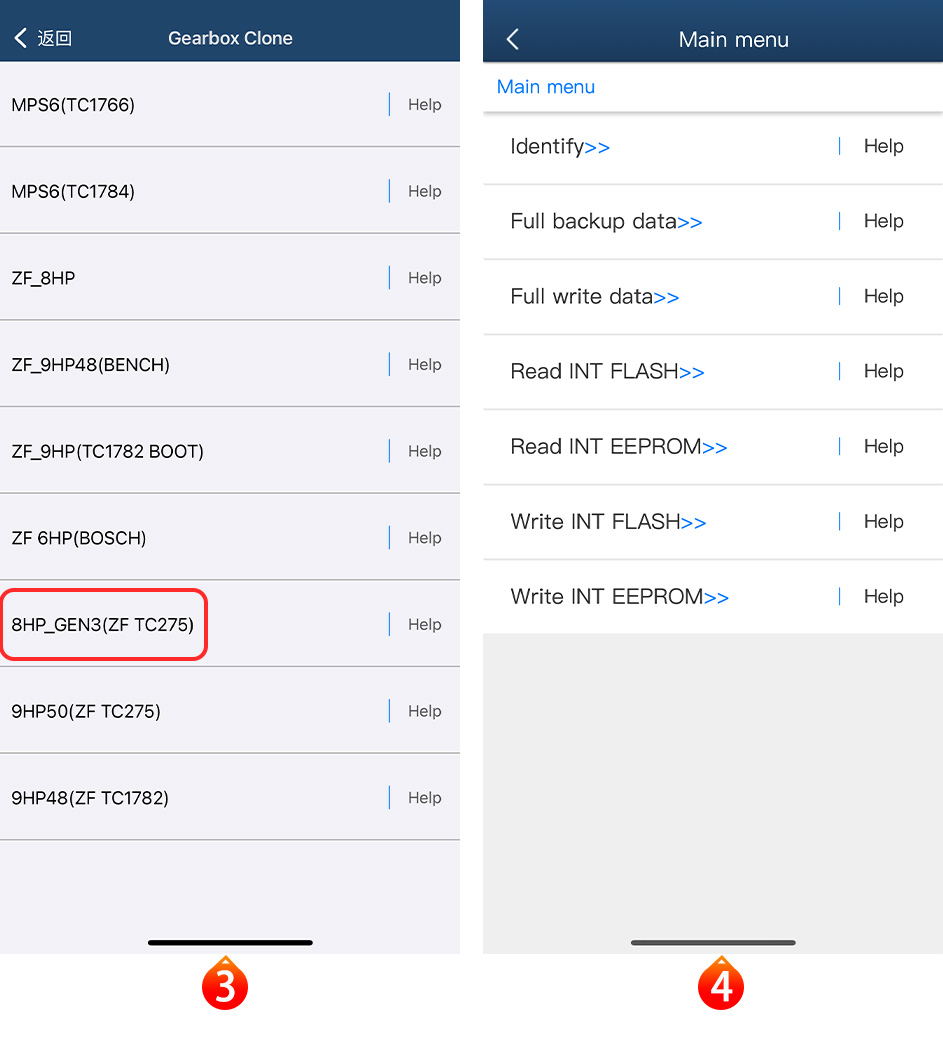

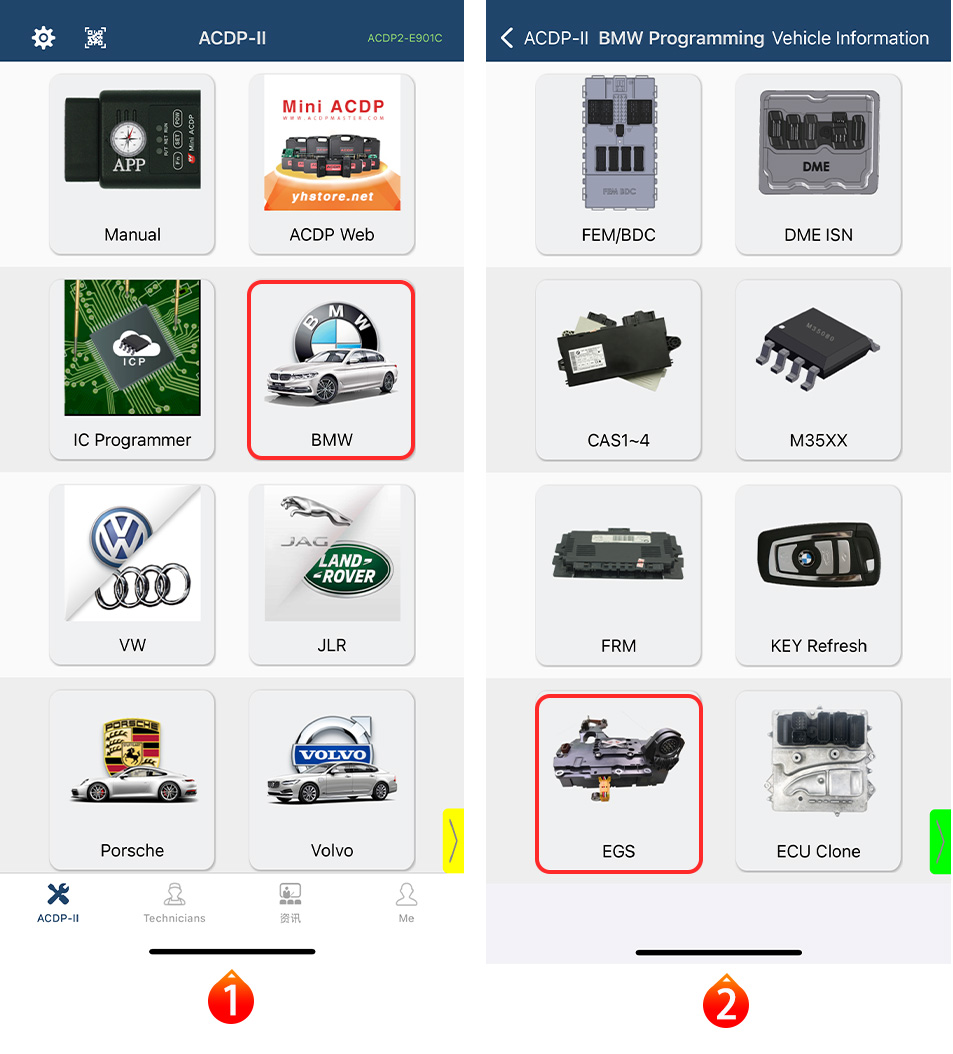

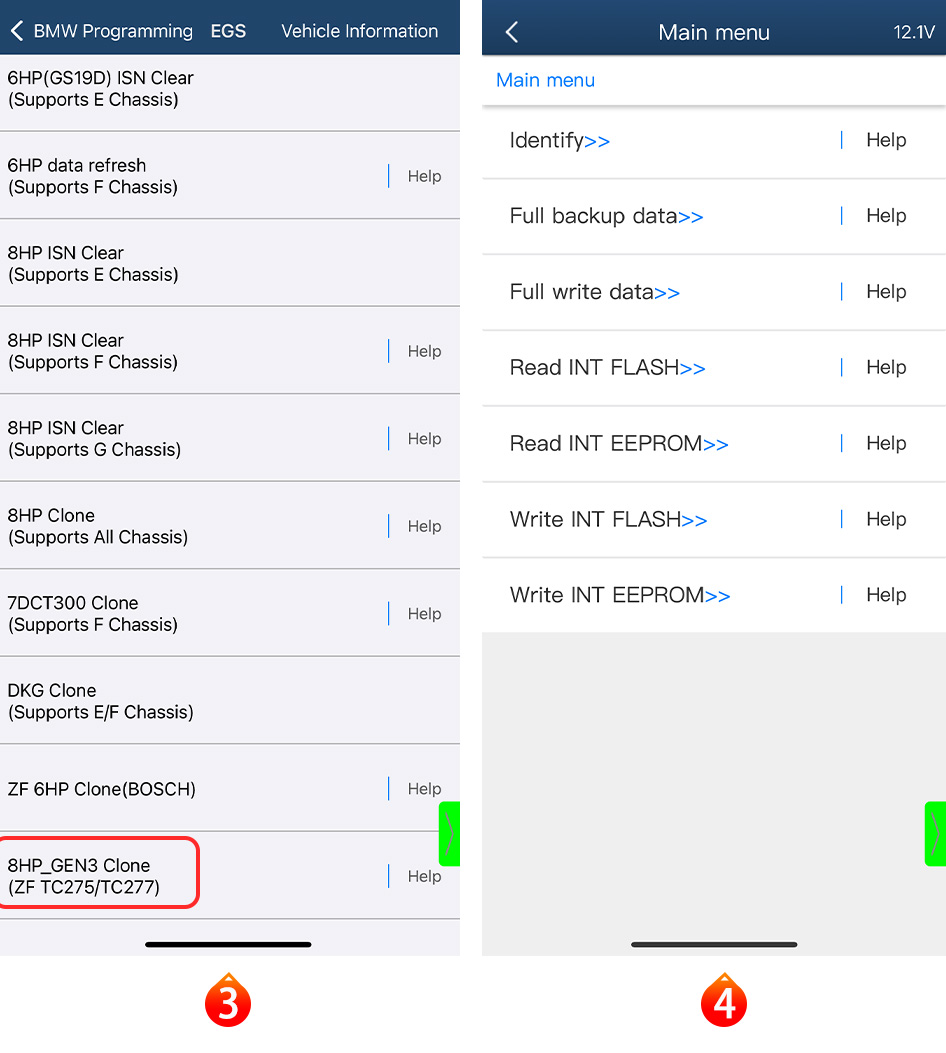

8HP Gen3(TC275/TC277) ▼

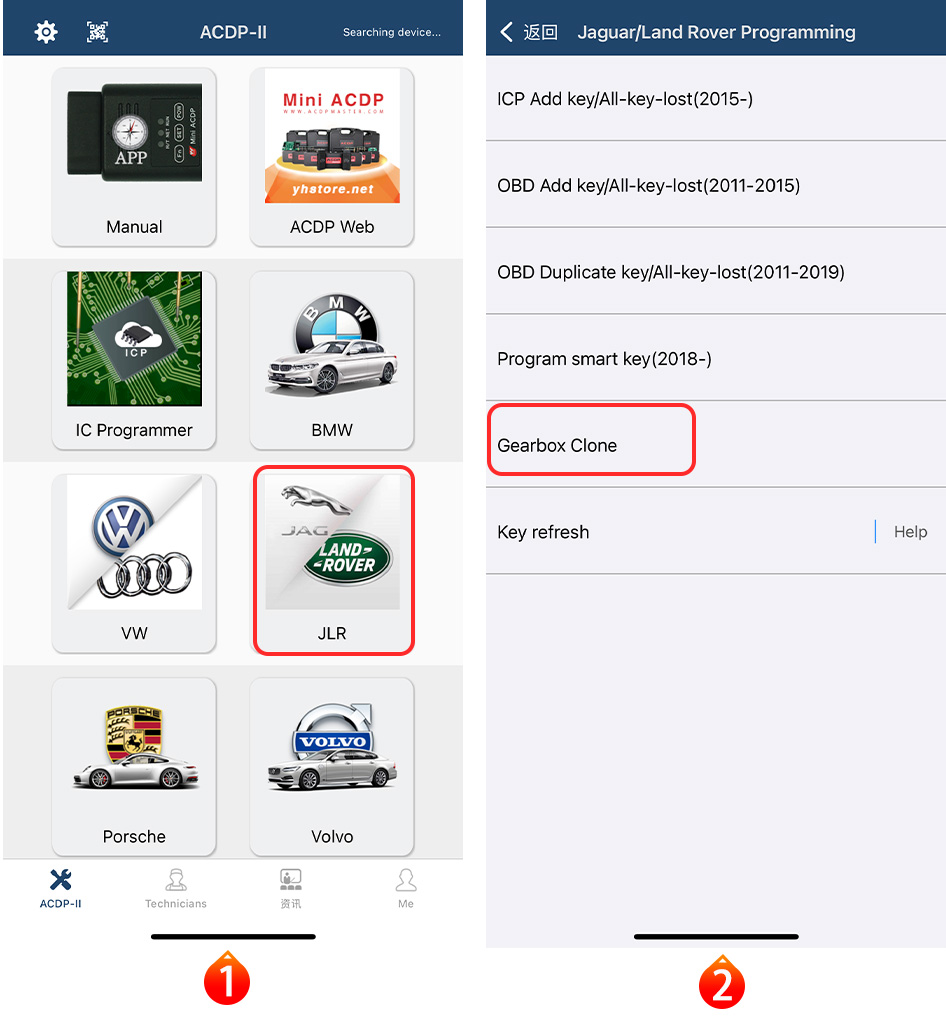

8HP Gen3(TC275) ▼

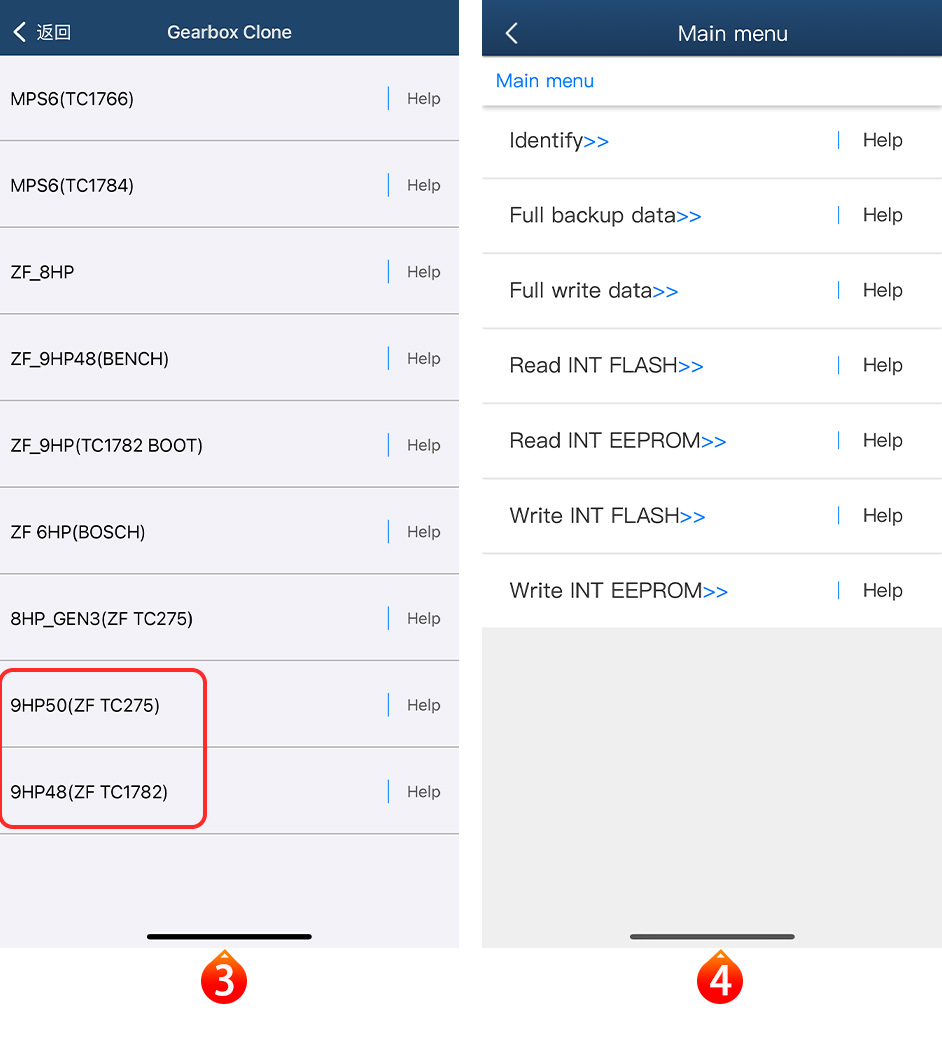

9HP48 (TC1782)/ 9HP50（TC275） for JLR, Honda, JEEP, Chrysler and other ▼

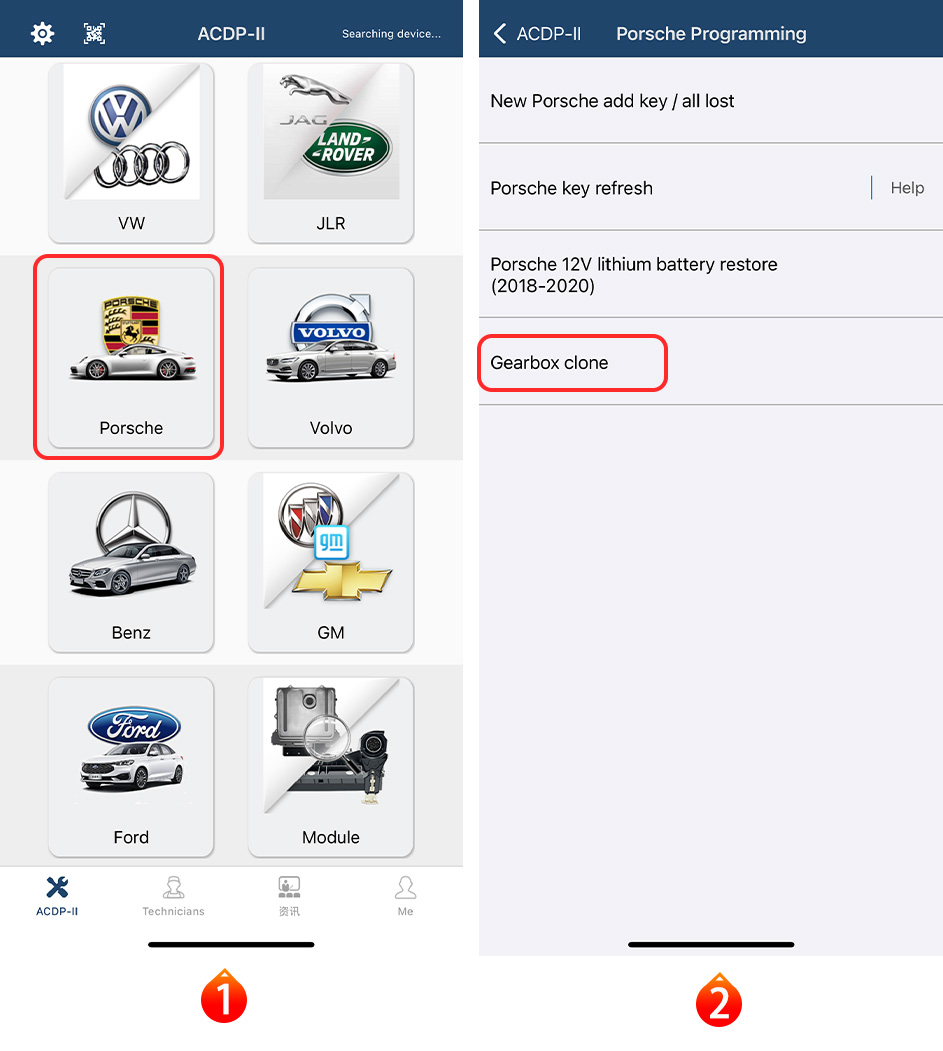

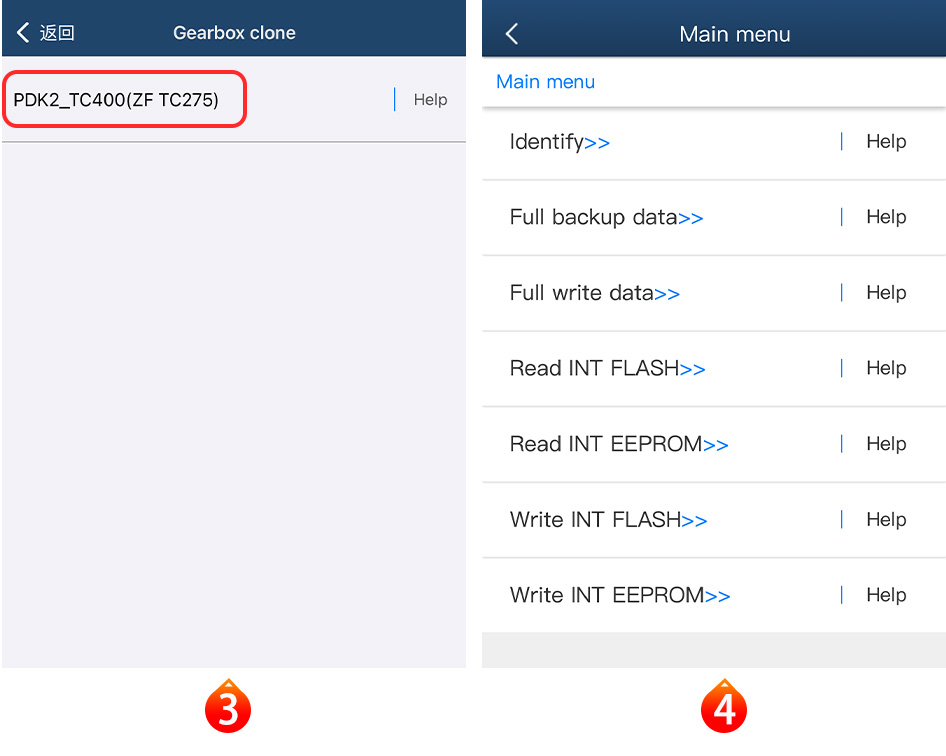

8DT/PDK2-TC400（TC275）▼

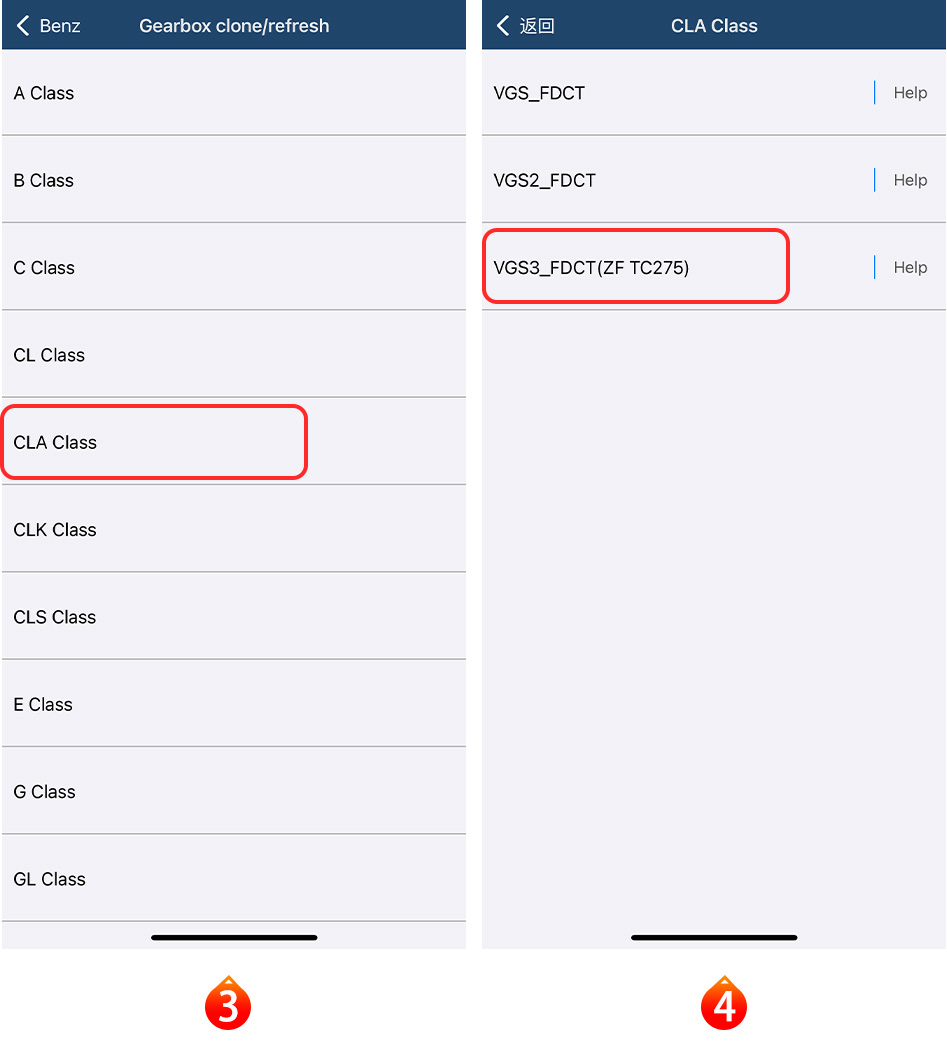

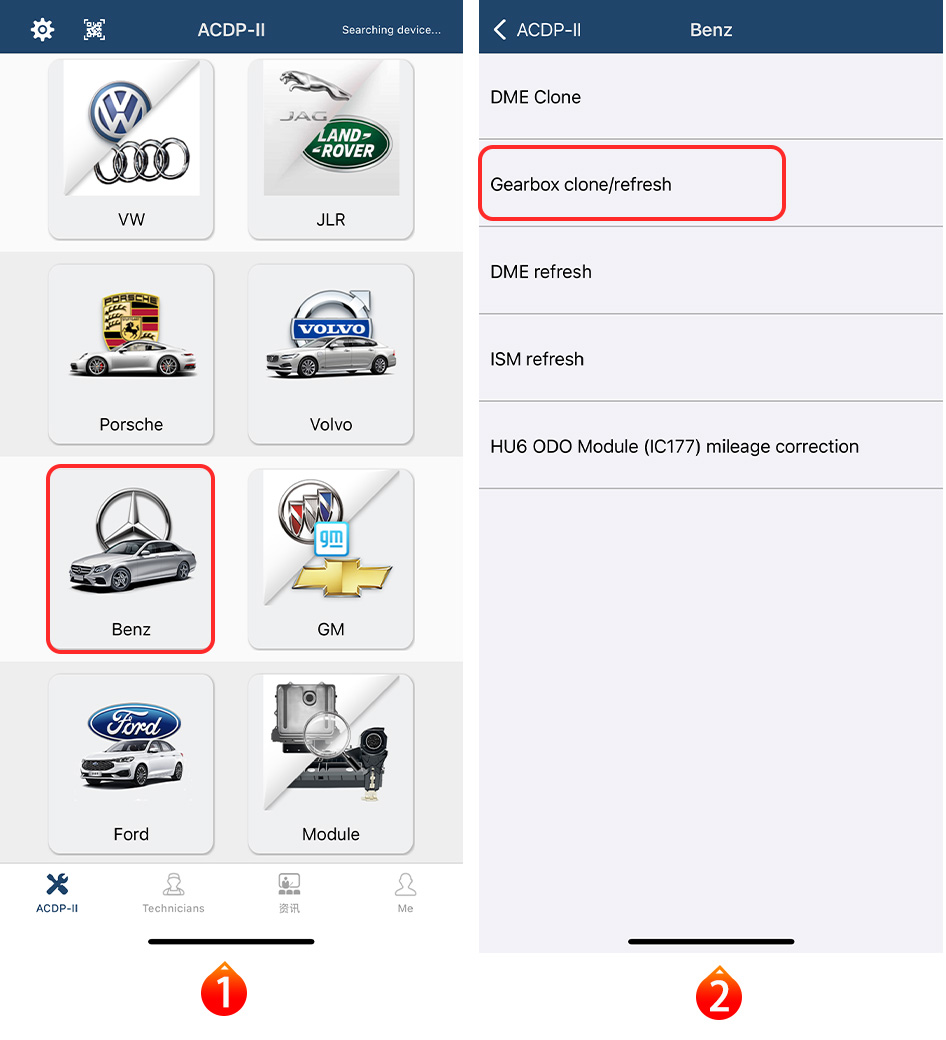

VGS3-FDCT（TC275）▼
Configuration List:
ACDP Configuration List (Module 36 ZF-TC1782/TC275/TC277 gearbox Read & Write )
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | 8HP Gen3 (TC275/TC277) Interface board |  |
Applicable to connect BMW GEN3 8HP gearbox | 1 |
| 2 | 8HP-Gen3-TC275 Interface board |  |
Applicable to connect JLR-8HP-Gen3-TC275 gearbox | 1 |
| 3 | VGS3-FDCT-TC275 Interface board |  |
Applicable to connect MB-VGS3-FDCT-TC275 gearbox | 1 |
| 4 | 9HP-TC275/TC1782 Interface board |  |
Applicable to connect JR,Honda,JEEP Chrysler and other 9HP48/9HP50 gearbox | 1 |
| 5 | 8DT/PDK2-TC400-TC275 Interface board |  |
Applicable to connect Porsche 8DT/PDK2-TC400 gearbox | 1 |
| 6 | DB15-LAN3 adapter |  |
Applicable to connect ACDP host and TCU cable | 1 |
| 7 | TCU cable |  |
Applicable to connect PTCU adapter and interface board | 1 |
| 8 | PTCU3 cable |  |
Applicable to connect ACDP host and gearbox | 1 |
| 9 | GND cable |  |
Applicable to connect MB-VGS3-FDCT gearbox GND | 1 |
