ACPD Module 35 Toyota R7F714xx ODO/Buick BCM (NEC3558)mileage correction
Module functions：
Support toyota semi-LCD meter mileage correction with chip model R7F701441.
Support toyota full LCD meter mileage correction with chip model R7F701401.
Support Buick BCM mileage correction with chip model NEC3558.
Supported car models：
Support Buick（17-22）, Toyota（21-24） Levin, Corolla, Camry, RAV4, Frontlander, Sienna, Alphard, Vellfire and so on...
Module features：
1：Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2：The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3：The software comes with pin detection function, making data reading and writing safer and more reliable.
Overall connection diagram(Compatible with ACDP and ACDP2)：

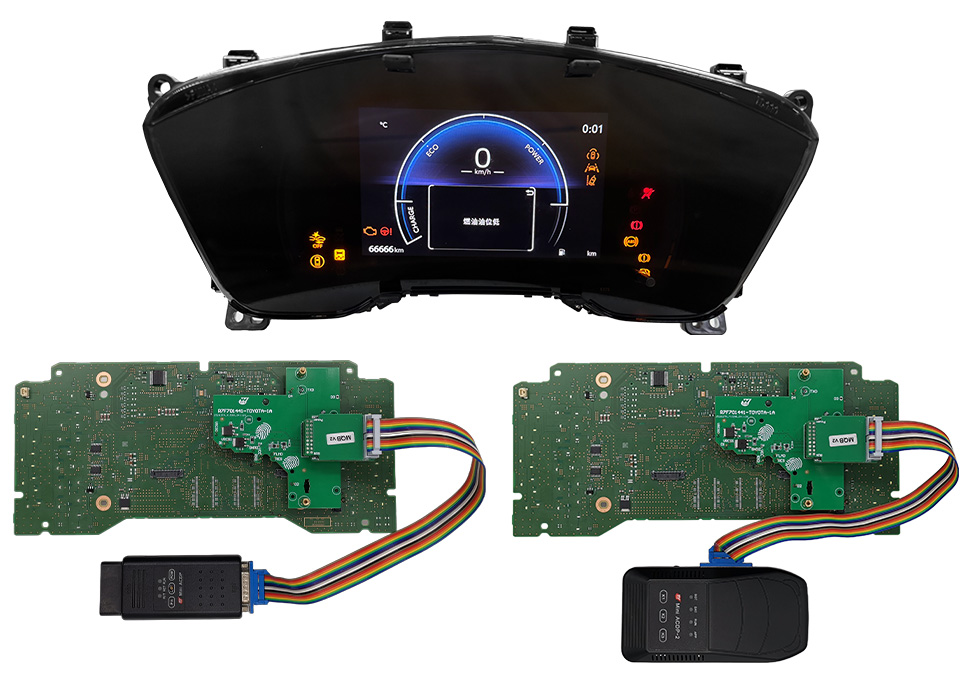

R7F701441 ▼

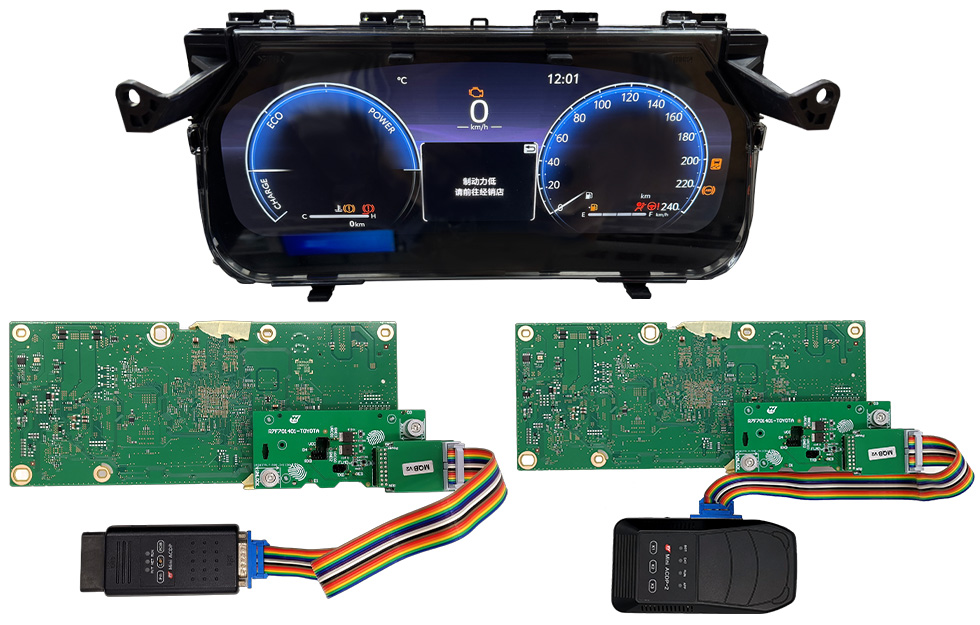

R7F701401 ▼

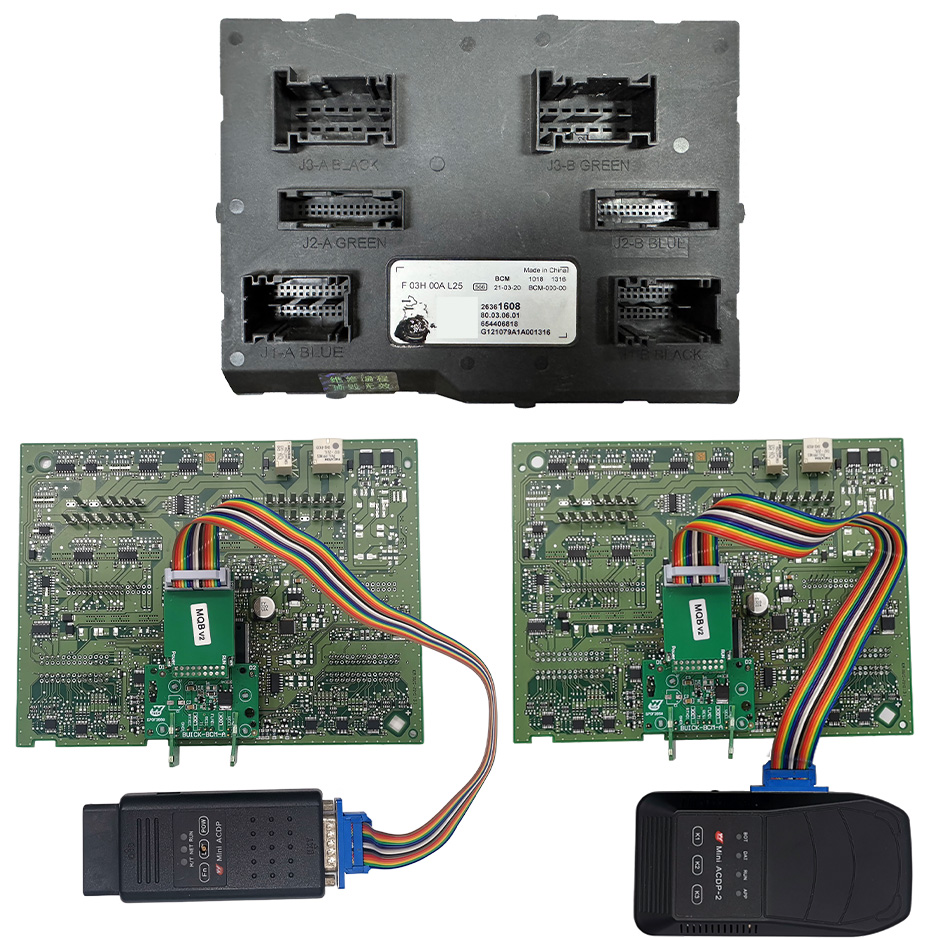

D70F3558 ▼

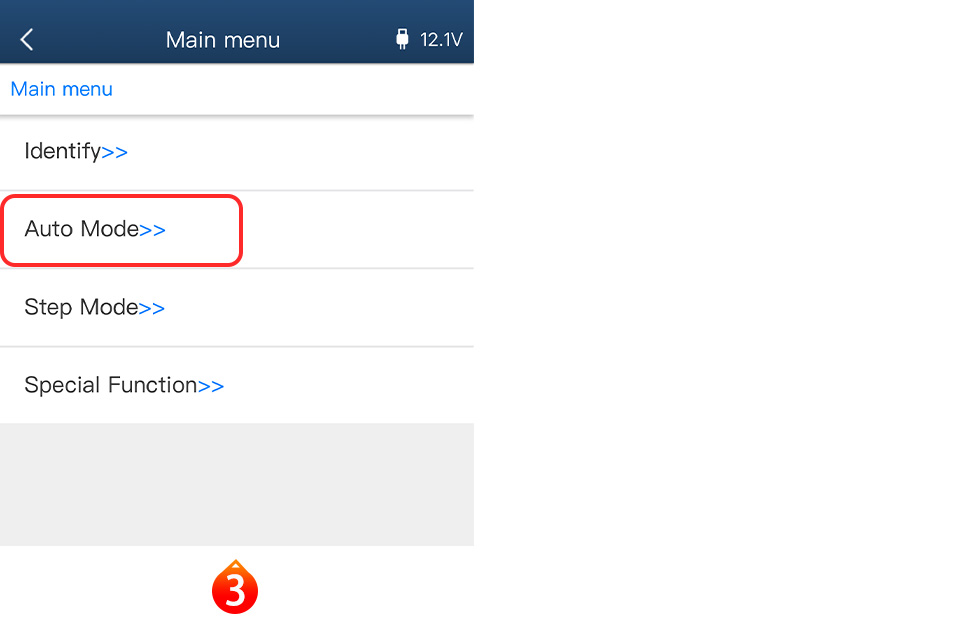

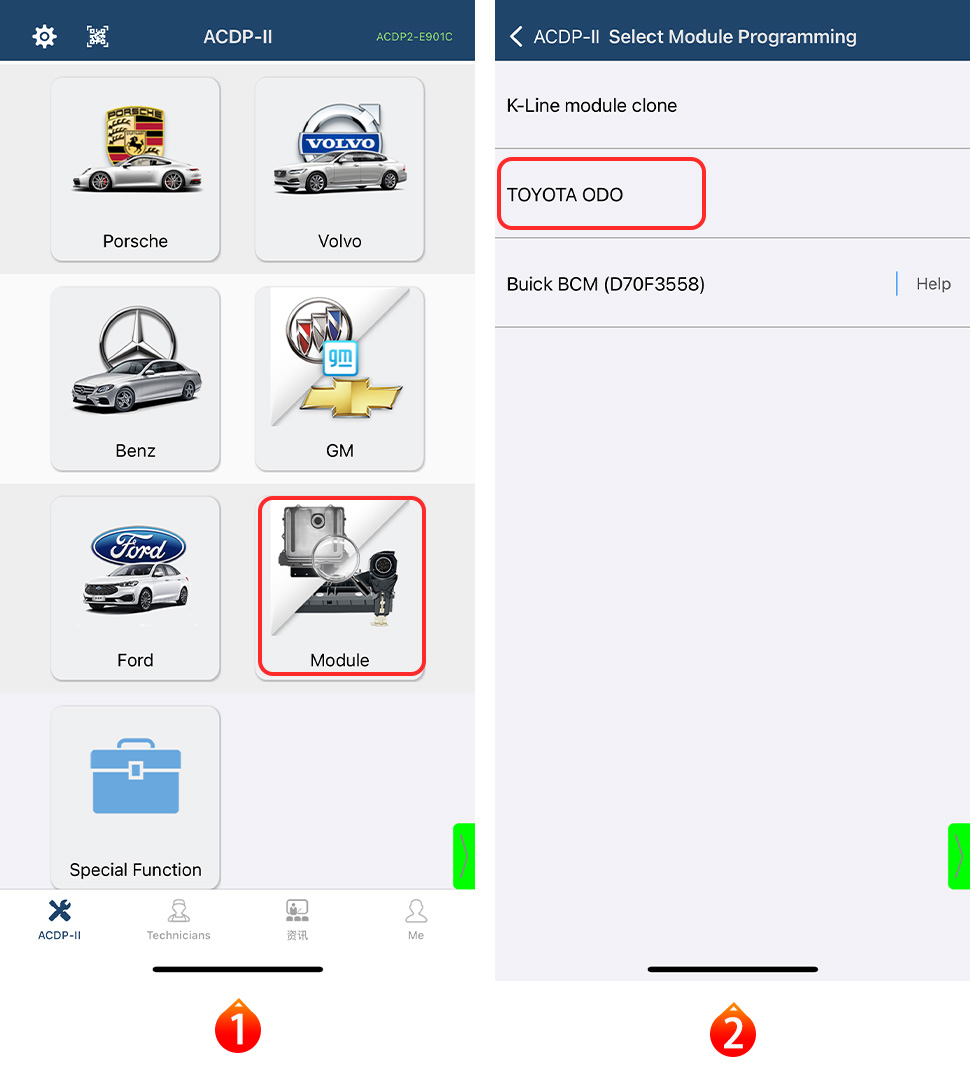

APP operation interface：

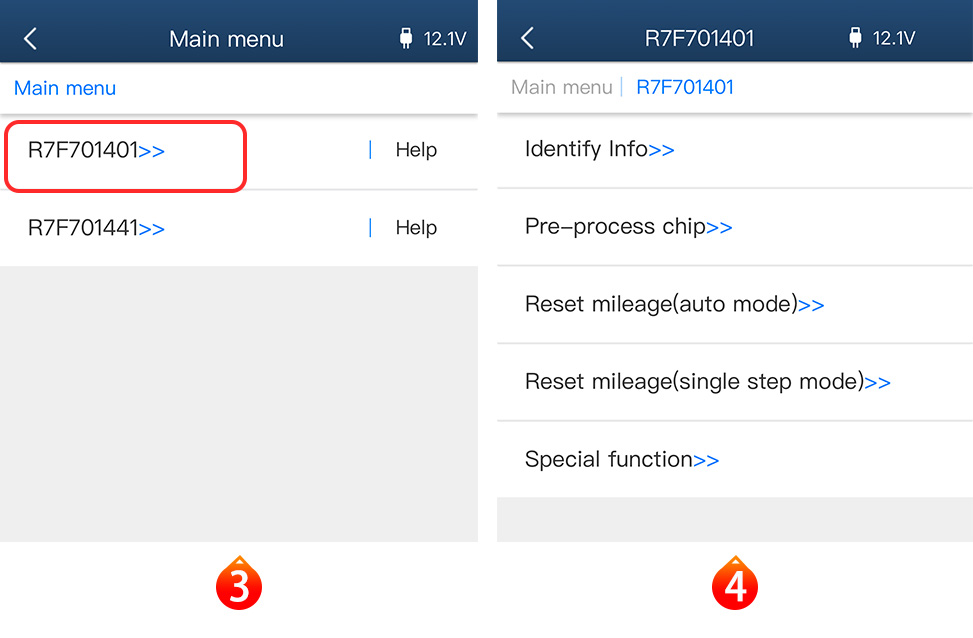

Toyota 1401 chip model ▼

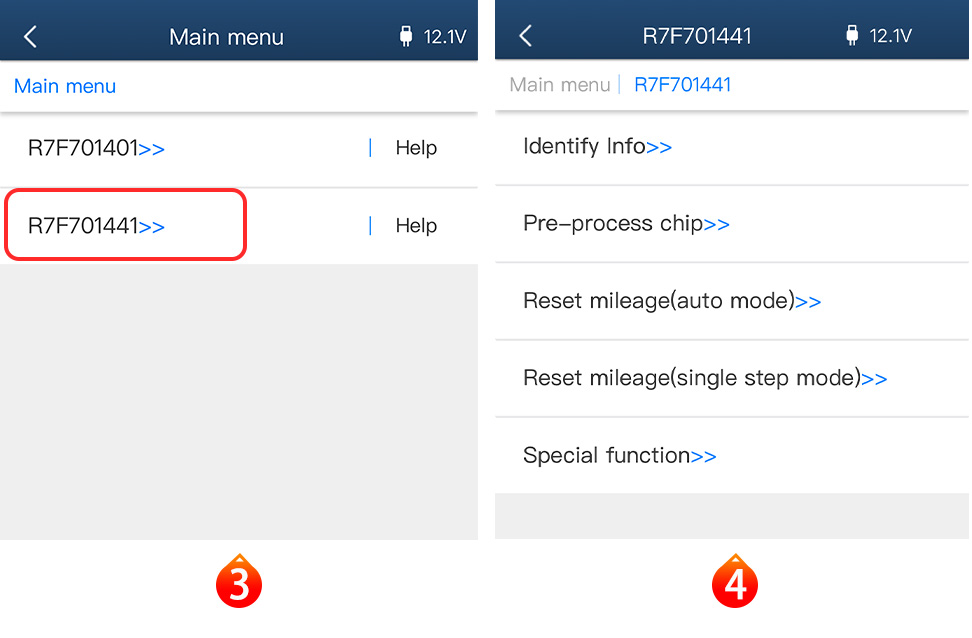

Toyota 1441 chip model ▼
Toyota 1441 chip model ▼
Configuration List:
ACDP Configuration List (Module 35 Toyota R7F714xx ODO /Buick BCM (NEC3558) mileage correction)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | R7F701441-TOYOTA-1A Interface board |  |
Applicable to connect R7F701441 chip Toyota instrument | 1 |
| 2 | R7F701441-TOYOTA-1B Interface board |  |
Applicable to connect R7F701441 chip Toyota instrument | 1 |
| 3 | R7F701401-TOYOTA Interface board |  |
Applicable to connect R7F701401 chip Toyota instrument | 1 |
| 4 | BUICK-BCM-A Interface board |  |
Applicable to connect NEC3558 chip Buick BCM | 1 |
| 5 | MQB-V2 adapter |  |
Applicable to decrypt Toyota instrument andchip Buick BCM | 1 |
| 6 | 20 pin cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
| 7 | screw |  |
Applicable to fix interface boards | 3 |
