ACDP module 34 MQB-34

Module functions：

1：Support IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
2：Supports IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
3：Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4：Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instrument.

Module features：

1：Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2：The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3：The software comes with pin detection function, making data reading and writing safer and more reliable.

Supported odometer number (not limited to)：

R7F701401/R7F701402/R7F701407 5A:

83A920700B，83A920700，8V0920740B，81A920740L，51G920640D，55G920790，2GD920790A，5GD920790，5NG920640C，5NG920650C，5ND920650C，5NG920654，2GG920640，3GB920640， 3GB920790，56G920790，3VD920740B

R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F701407 5C:

3GB920640A，3GB920640B，3GB920640C，3GD920640D，19G920640B，19G920640C，19D920640B，19D920640C，17G920640A，2GD920640B，2GD920640C ，5GD920640D，5ED920860C，19G920650B，19G920650C，55G920650A，55G920650B ，55G920650C，5HG920340 ，5HG920340A ，5HG920340B ，5HG920340C，5NG920640D, 5NG920650D, 2GG920640A, 51G920640E

D70F3423 +95320：

31G920850B，18G920860B，31G920850A，18G920860A，31G920850F，34D920850C，31G920850C，34D920850E，31G920860A，34D920850G

D70F3426 +95128：

5GG920640，5GG920860，5GG920860A，5G0920861A

Supported chip models：

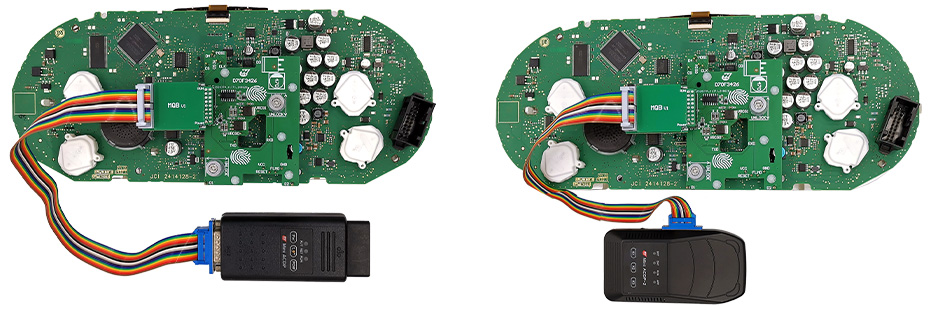

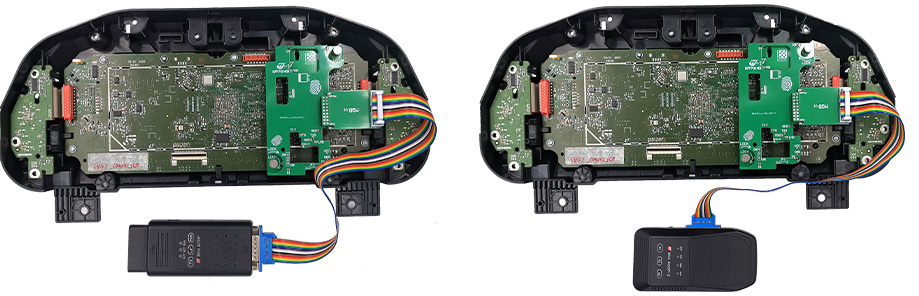

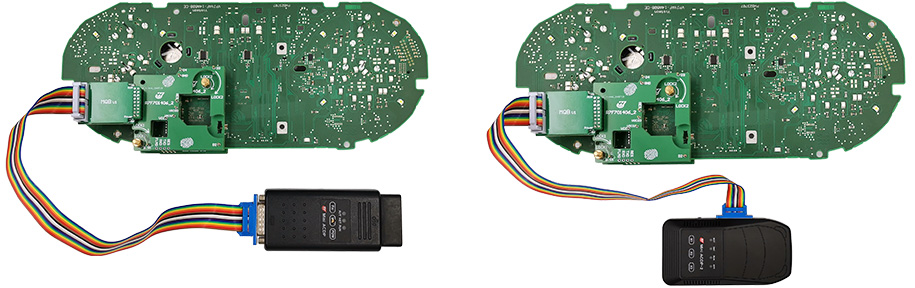

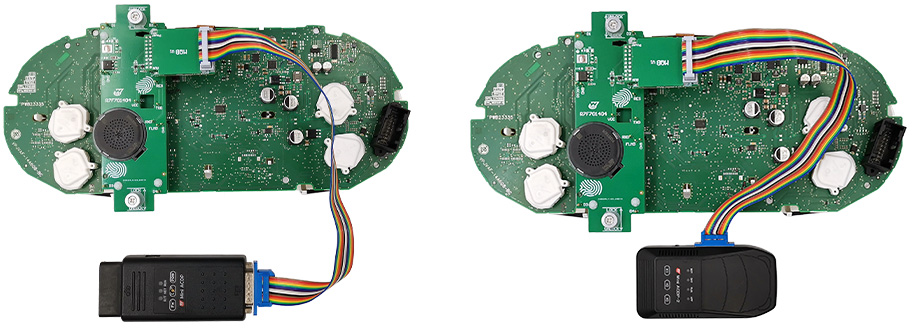

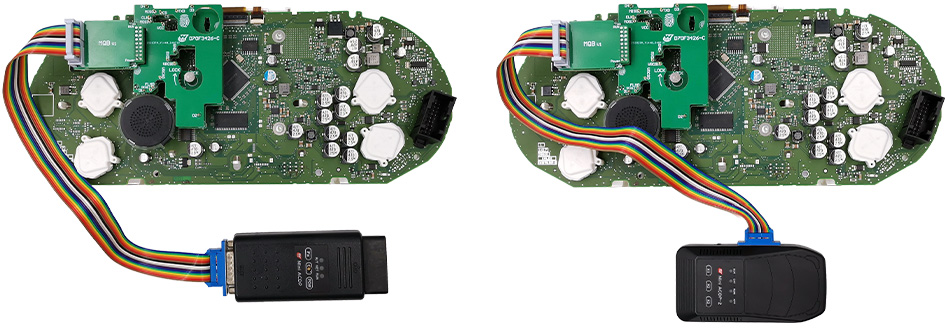

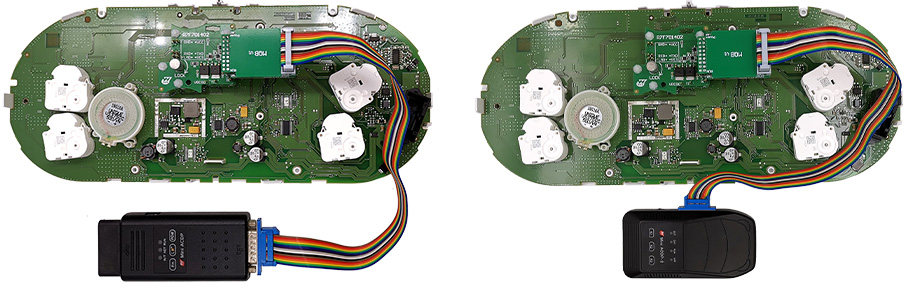

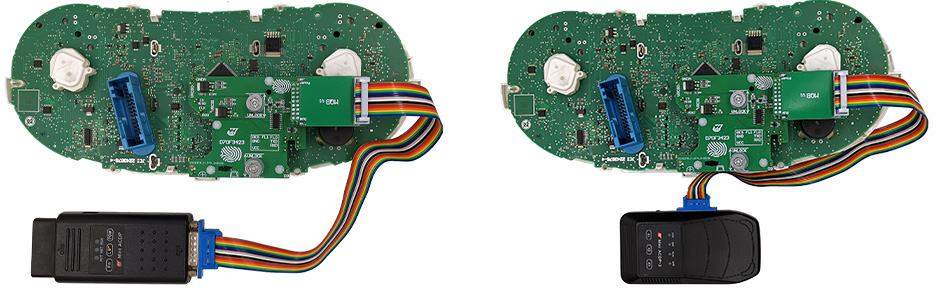

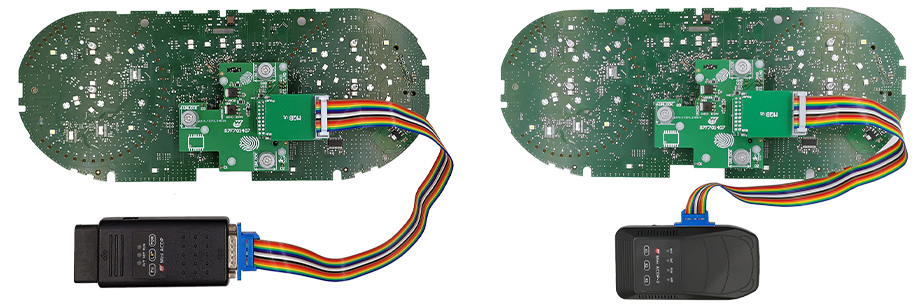

R7F701401 5A/5C ▼

R7F701402 5A/5C ▼

R7F701404/05 5C ▼

R7F701406 5C ▼

R7F701407 5A/5C ▼

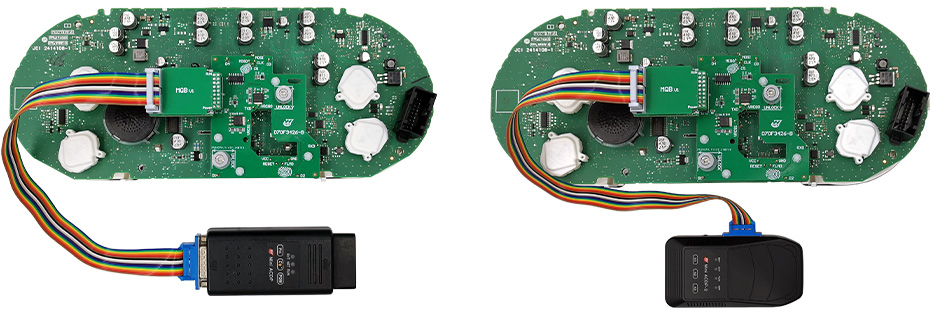

D70F3423 +95320 ▼

D70F3426 +95128 ▼

D70F3426-B +95128 ▼

D70F3426-C +95128 ▼

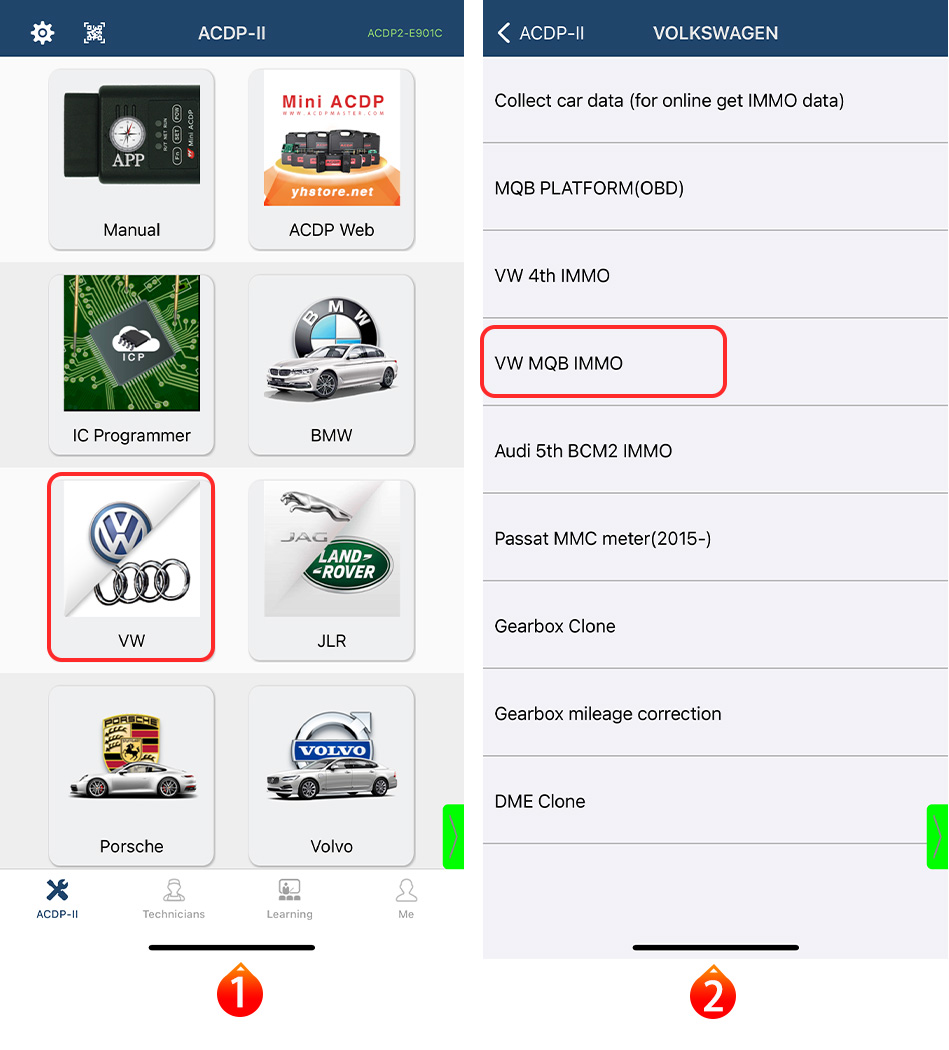

APP operation interface：

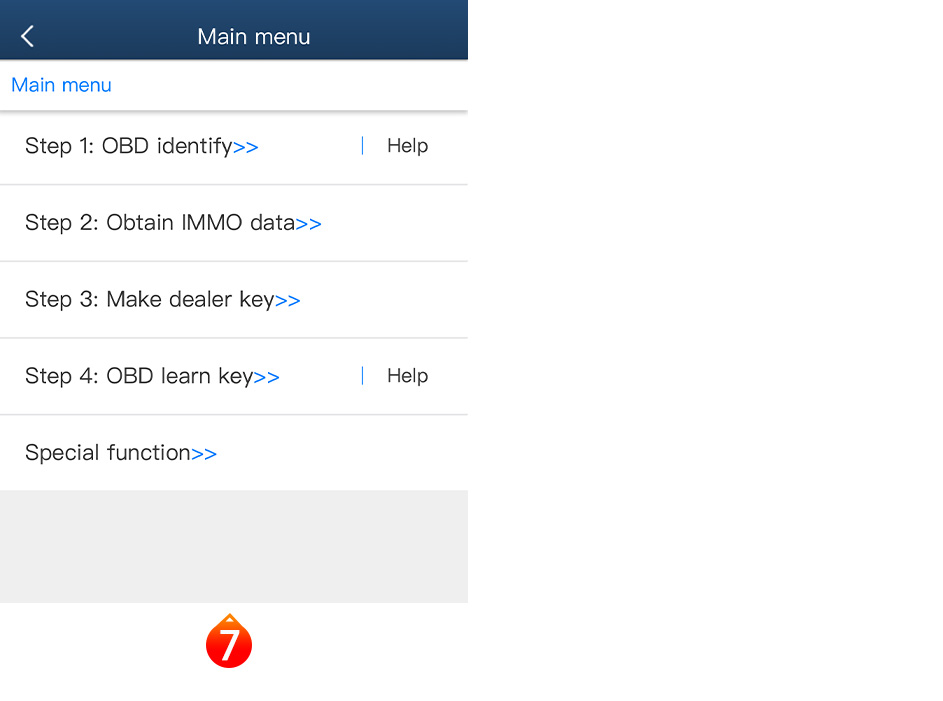

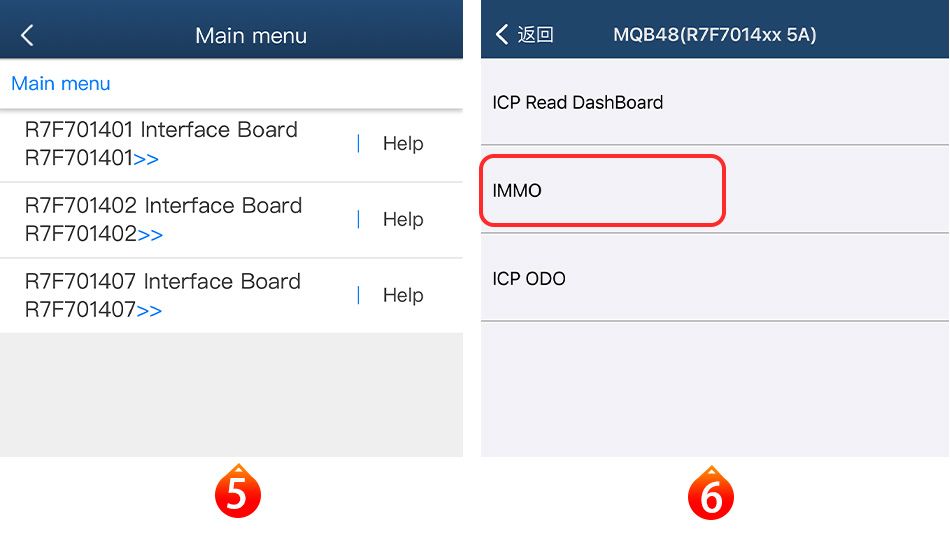

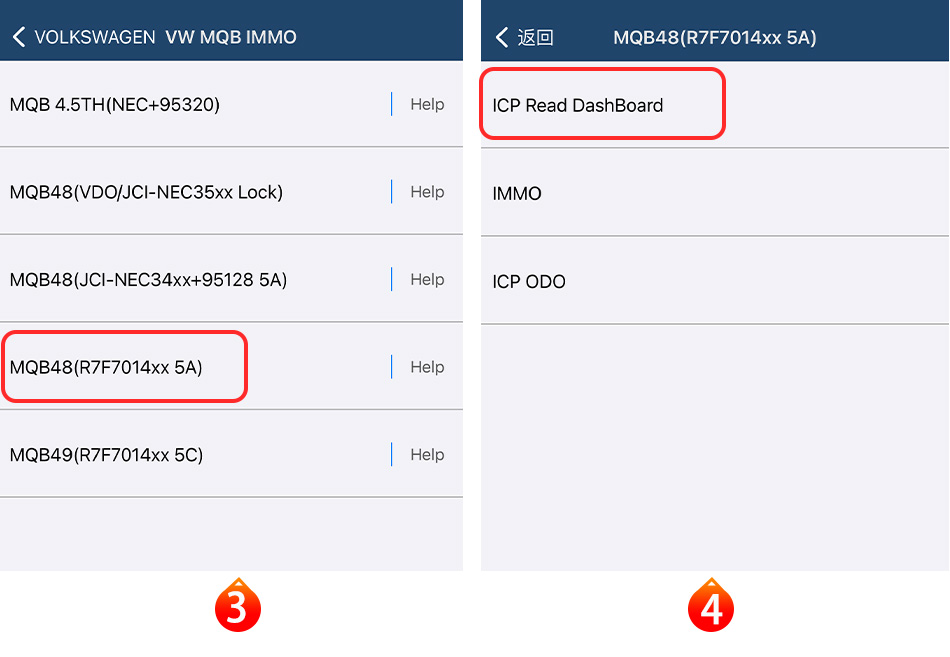

MQB48(R7F7014xx5A) IMMO ▼

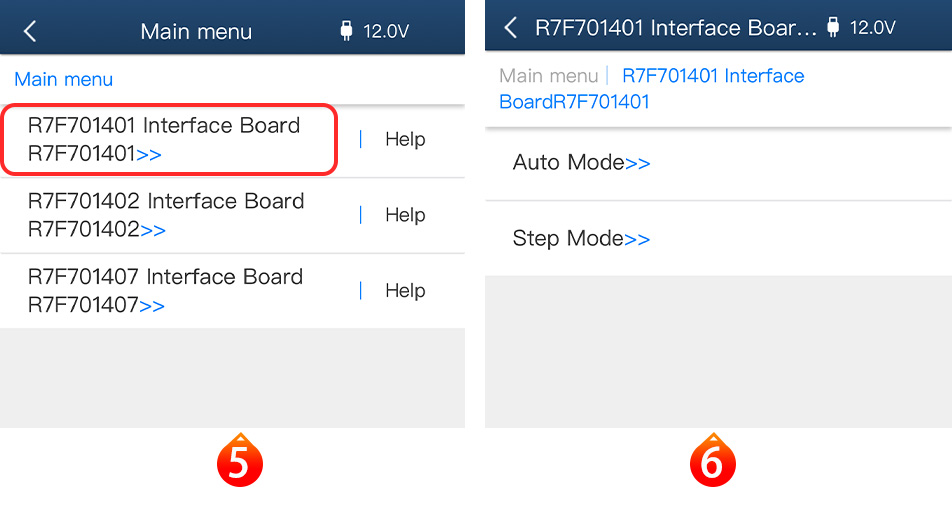

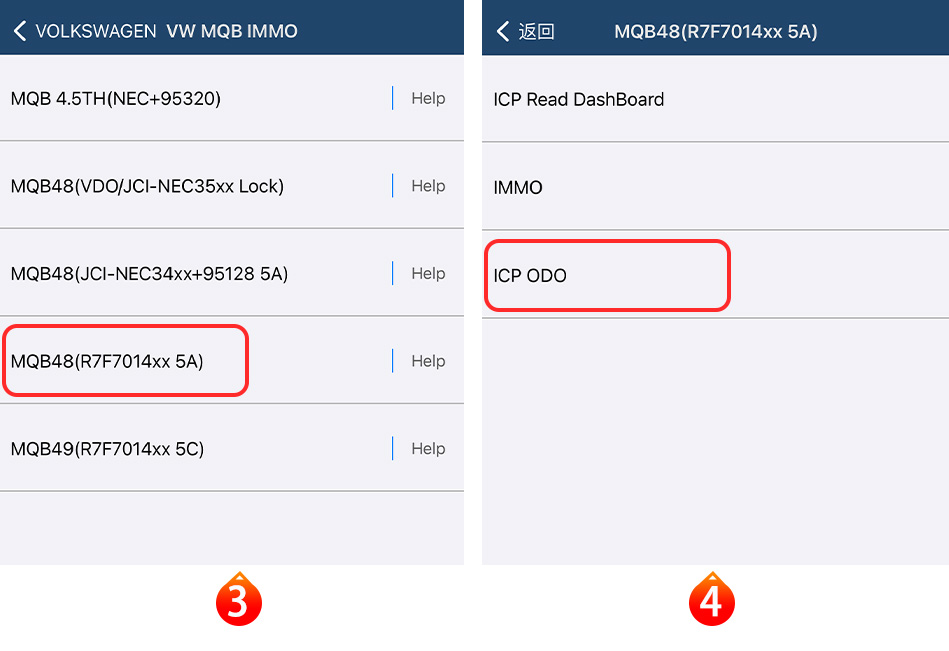

MQB48(R7F7014xx5A) ICP ODO ▼

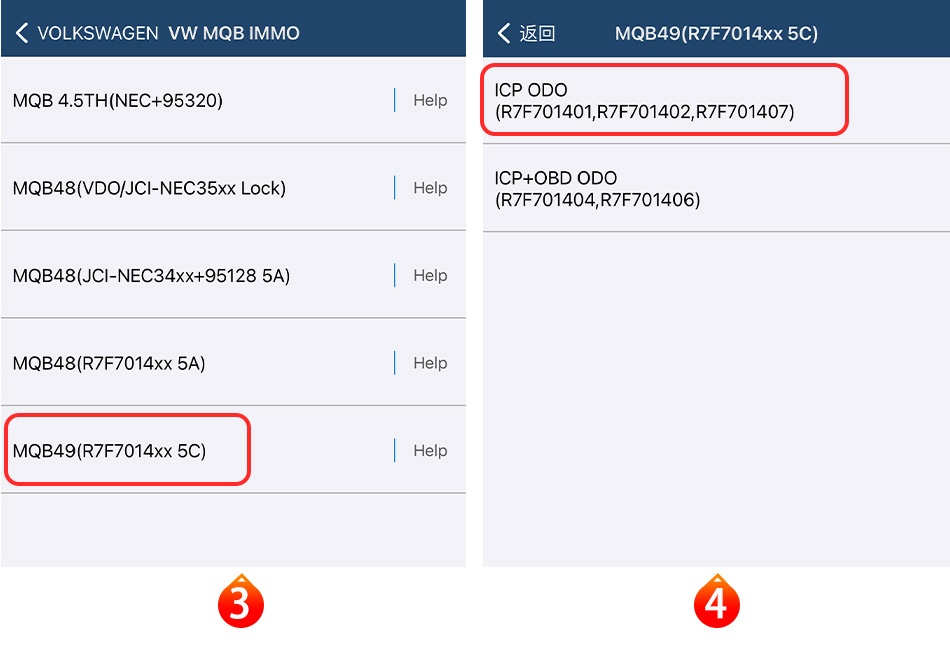

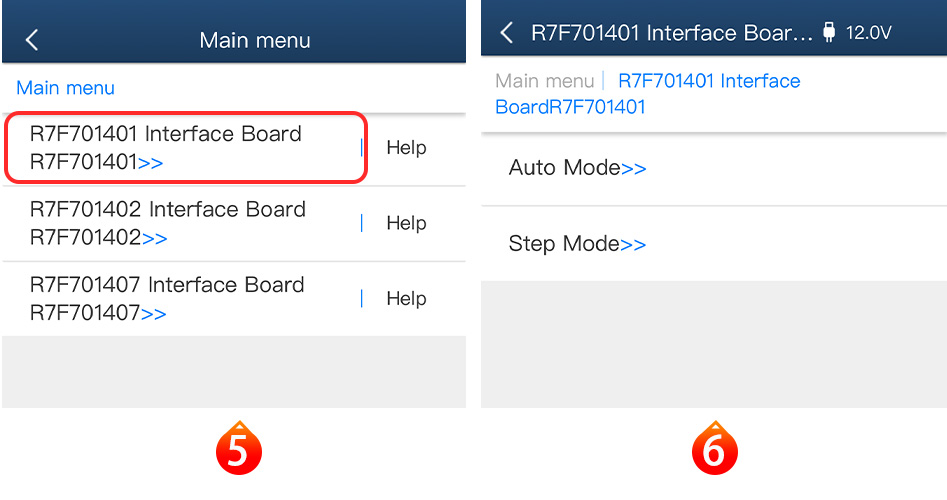

R7F701401-1402-1407 5C ICP ODO ▼

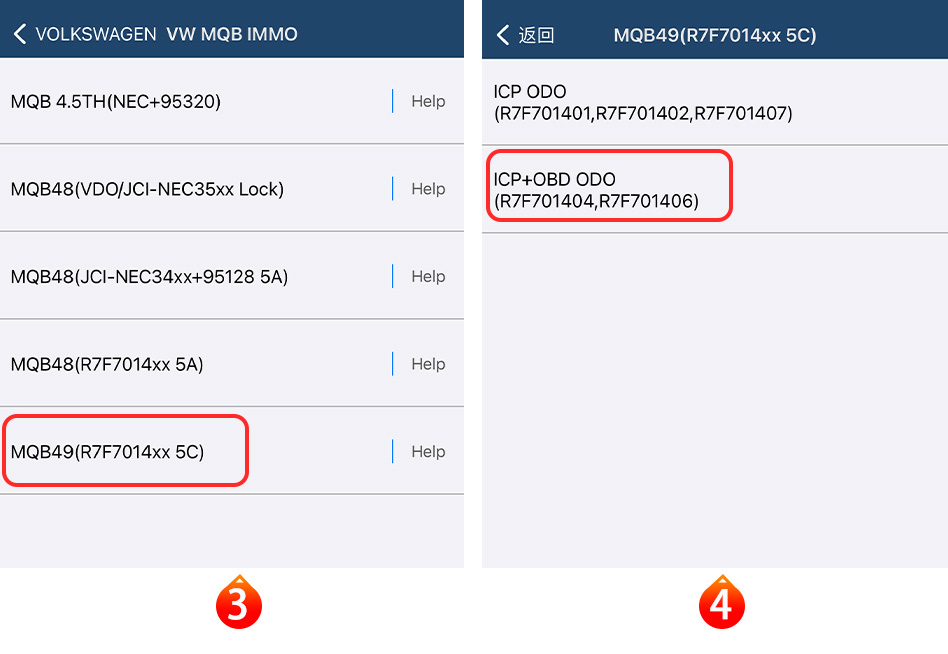

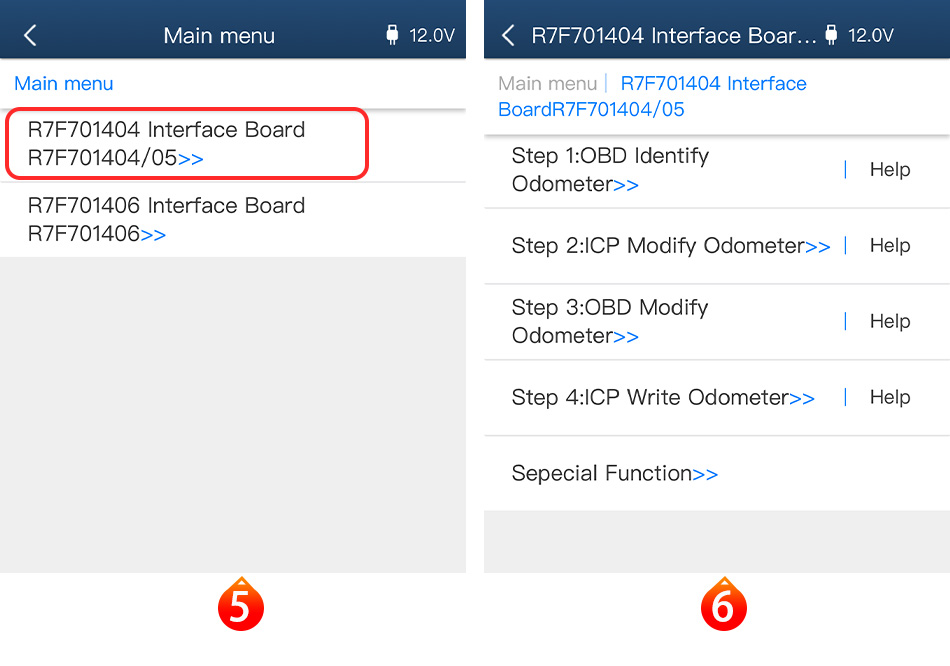

R7F701404-1406 5C ICP ODO ▼

Configuration List:

ACDP Configuration List (Module 34 MQB-34)
