ACDP module 33 MQB-33
Module functions：
Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction.
Module features：
1：Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2：The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.

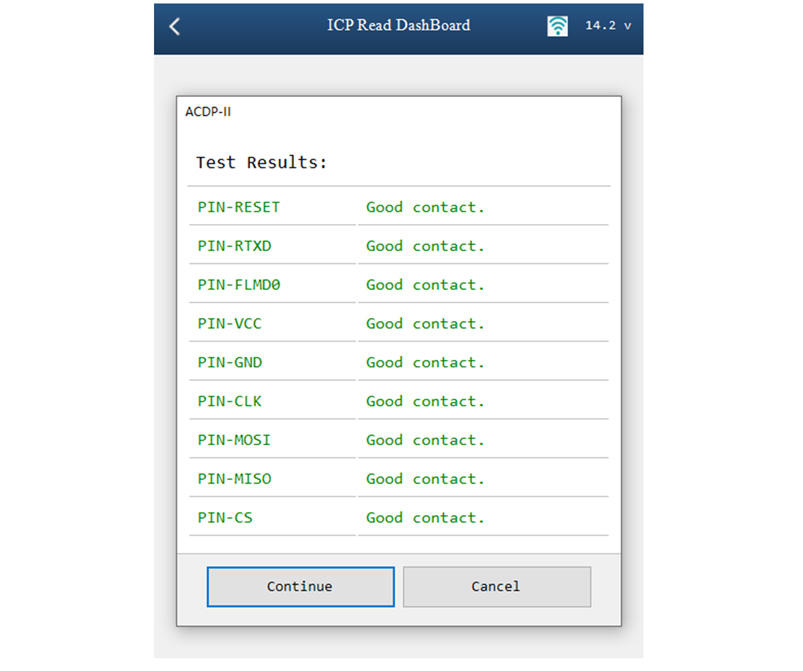

3：The software comes with pin detection function, making data reading and writing safer and more reliable.
Module features：
D70F3524 (A2C00889000)、D70F3525 (A2C81589600)、D70F3526 (A2C81589700/A2C99606600)、D70F3529、D70F3532 (A2C81589500/A2C81589501)、D70F3535 (A2C81589200)、D70F3536、D70F3537 (A2C81589300/A2C81589800)
Supported chip models：

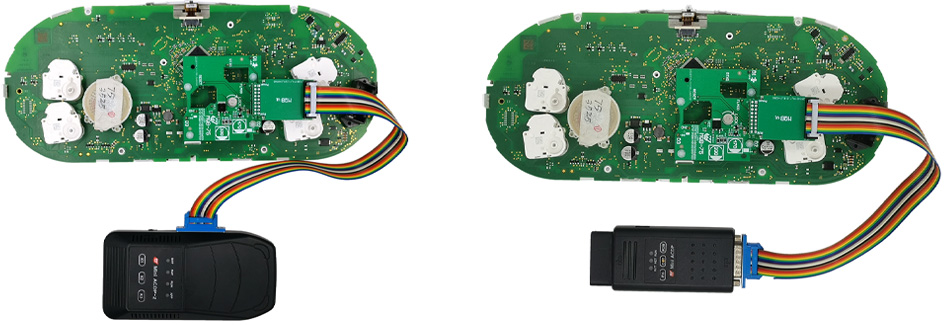

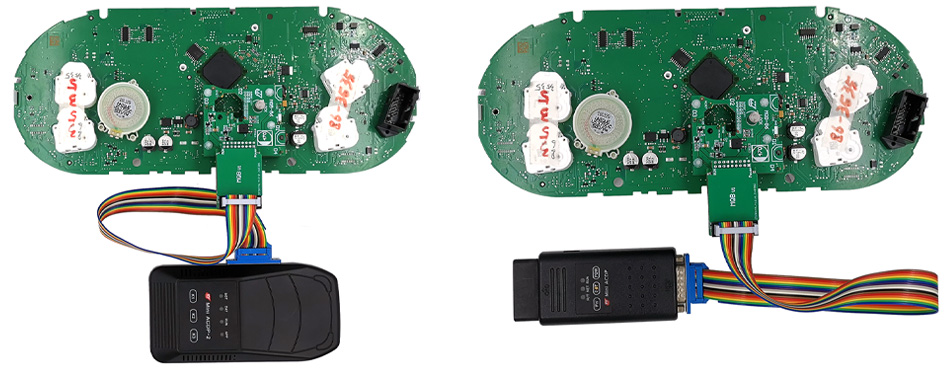

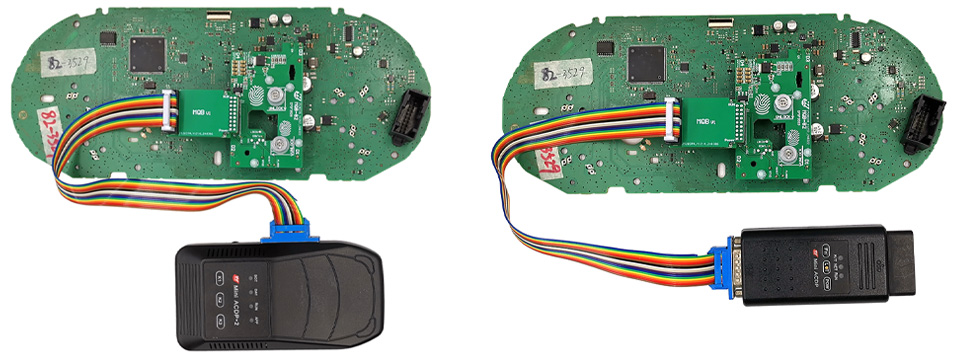

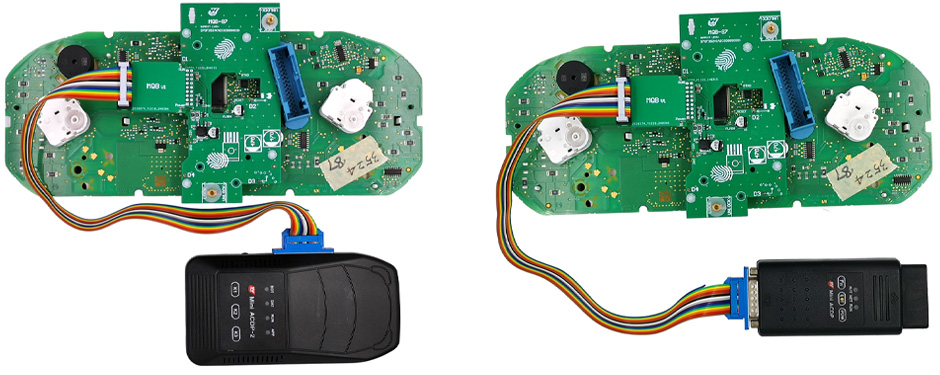

MQB-74 interface board ▼
Supported chip models: D70F3524 (A2C00889000)、D70F3525 (A2C81589600)、D70F3526 (A2C81589700/A2C99606600)

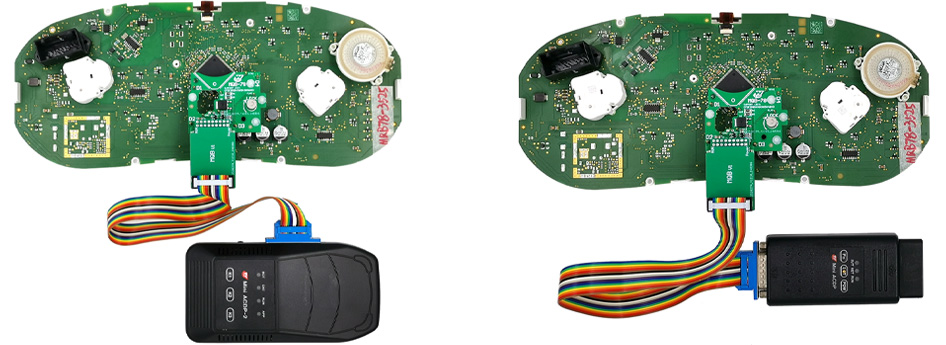

MQB-75 interface board ▼
Supported chip models: D70F3525 (A2C81589600)、D70F3526 (A2C81589700/A2C99606600)
MQB-77 interface board ▼
Supported chip models: D70F3525 (A2C81589600)
MQB-78 interface board ▼
Supported chip models: D70F3525 (A2C81589600)
MQB-79 interface board ▼
Supported chip models: D70F3526 (A2C81589700/A2C99606600)
MQB-80 interface board ▼
Supported chip models: D70F3526 (A2C81589700/A2C99606600)
MQB-81 interface board ▼
Supported chip models: D70F3525 (A2C81589600)、D70F3526 (A2C81589700/A2C99606600)
MQB-82 interface board ▼
Supported chip models: D70F3529
MQB-83 interface board ▼
Supported chip models: D70F3532 (A2C81589500/A2C81589501)
MQB-84 interface board ▼
Supported chip models: D70F3532 (A2C81589500/A2C81589501)
MQB-85 interface board ▼
Supported chip models: D70F3537 (A2C81589300/A2C81589800)
MQB-86 interface board ▼
Supported chip models: D70F3535 (A2C81589200)、D70F3536、D70F3537 (A2C81589300/A2C81589800)
MQB-87 interface board ▼
Supported chip models: D70F3524 (A2C00889000)

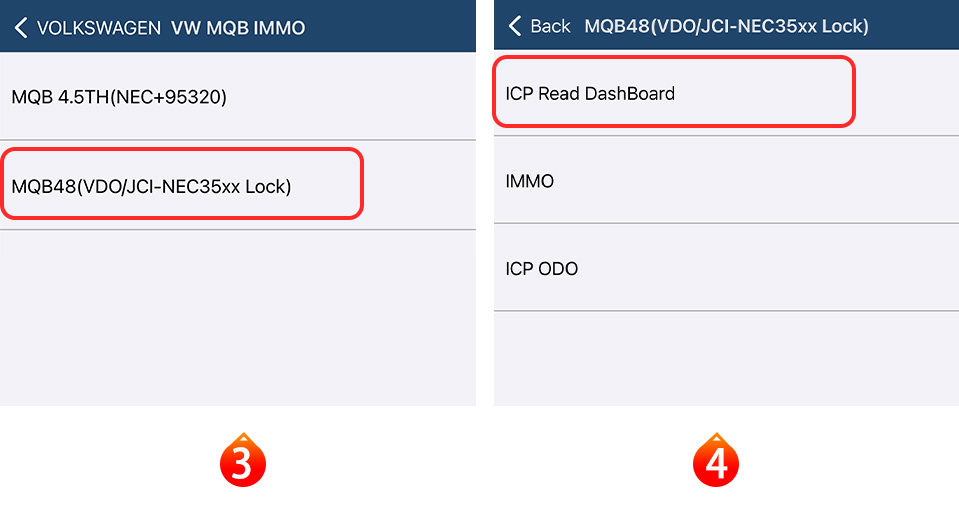

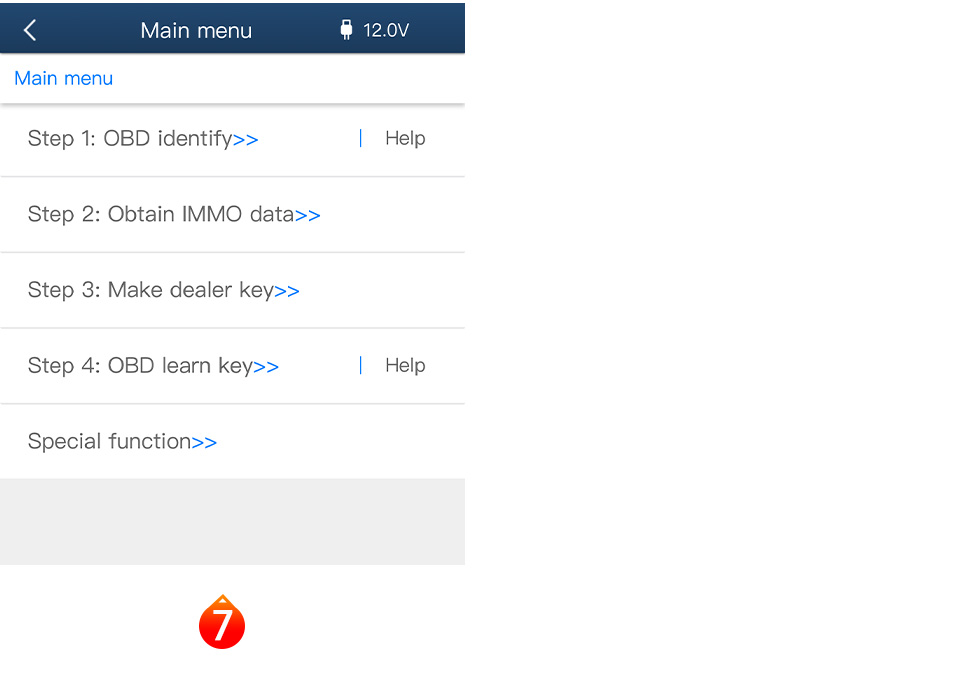

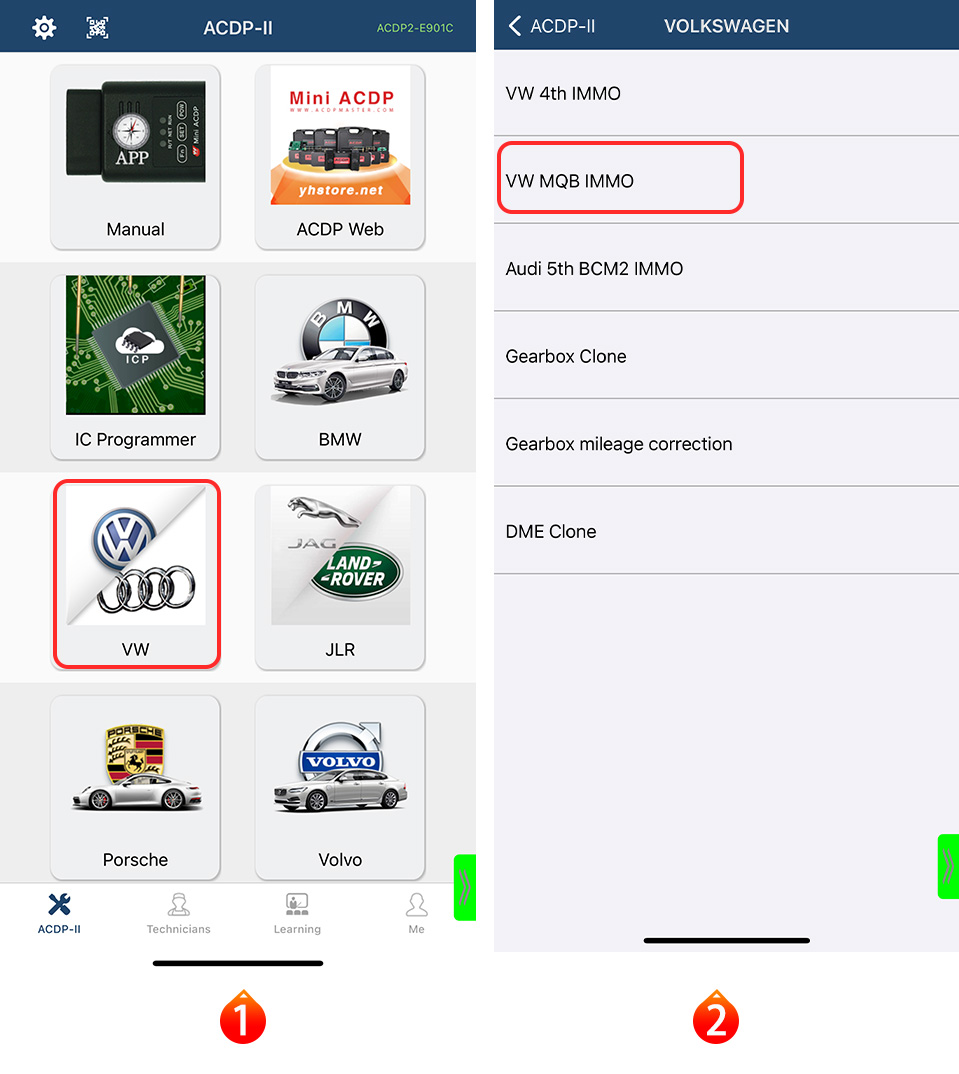

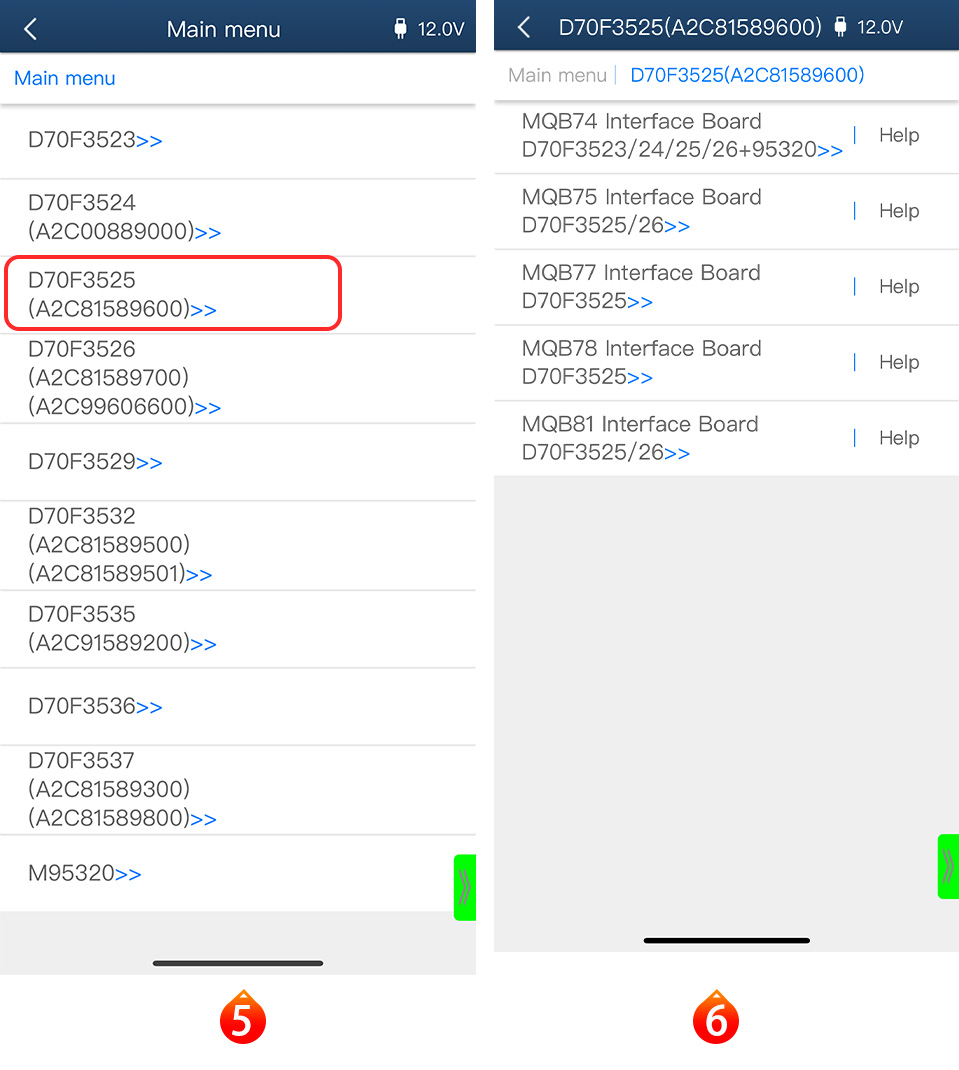

APP operation interface：
Configuration List:
ACDP Configuration List (Module 33 MQB-33)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | MQB-74 Interface board |  |
Applicable to connect D70F3524/D70F3525/D70F3526 chip instrument | 1 |
| 2 | MQB-75 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 3 | MQB-77 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 4 | MQB-78 Interface board |  |
Applicable to connect D70F3525 chip instrument | 1 |
| 5 | MQB-79 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 6 | MQB-80 Interface board |  |
Applicable to connect D70F3526 chip instrument | 1 |
| 7 | MQB-81 Interface board |  |
Applicable to connect D70F3525/D70F3526 chip instrument | 1 |
| 8 | MQB-82 Interface board |  |
Applicable to connect D70F3529 chip instrument | 1 |
| 9 | MQB-83 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 10 | MQB-84 Interface board |  |
Applicable to connect D70F3532 chip instrument | 1 |
| 11 | MQB-85 Interface board |  |
Applicable to connect D70F3537 chip instrument | 1 |
| 12 | MQB-86 Interface board |  |
Applicable to connect D70F3535/D70F3536/D70F3537 chip instrument | 1 |
| 13 | MQB-87 Interface board |  |
Applicable to connect D70F3524 chip instrument | 1 |
| 14 | PCF-KEY adapter |  |
Applicable to generate MQB dealer keys | 1 |
| 15 | MQB V2 adapter |  |
Applicable to decrypt MQB instrument | 1 |
| 16 | 20 PIN cable |  |
Applicable to connect ACDP host and MQB adapter | 1 |
| 17 | screw |  |
Applicable to fix interface boards | 5PCS |
