ACDP module 32 K-Line module clone
Supported chip models：
Support mpc56x chip DME and TCU clone.
Supported models：
Support clone ME9.0/ MED9.1/ MED9.5/MED9.5.10/EDC16C2/EDC16C8/EDC16CP31/EDC16CP35 DME etc , and 6 HP Bosh TCU.
Overall connection diagram：

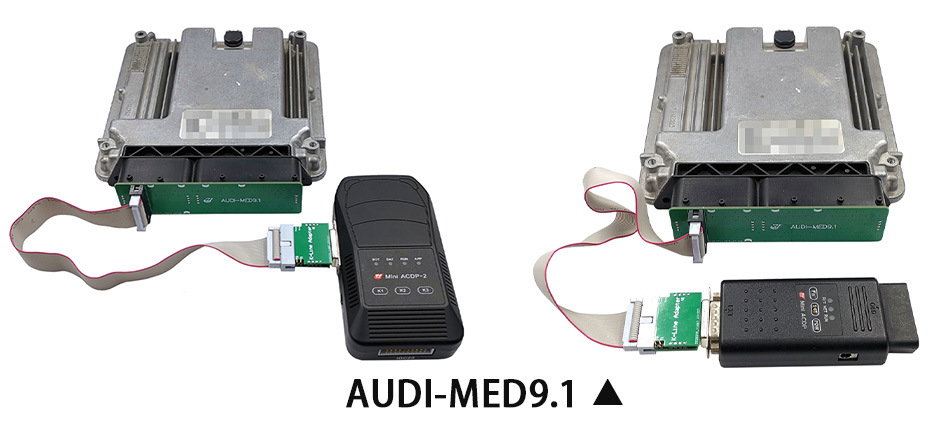

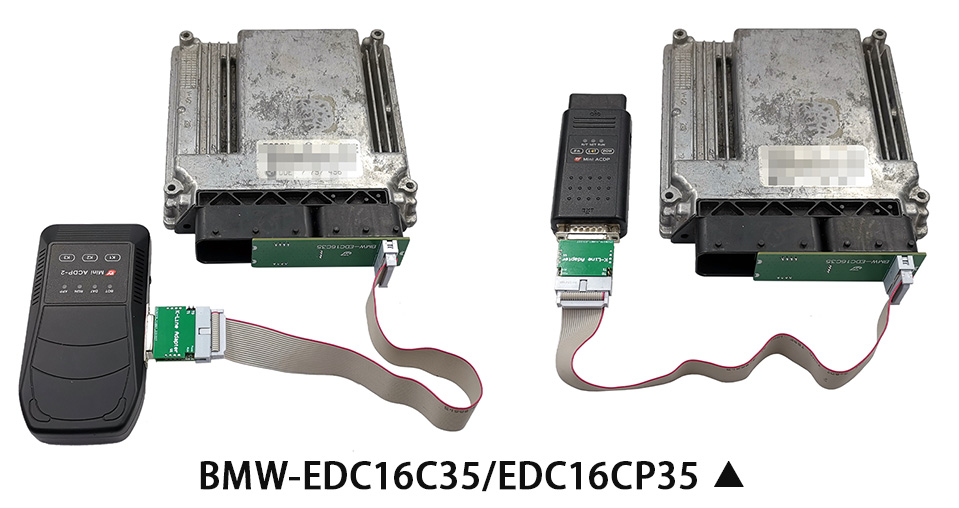

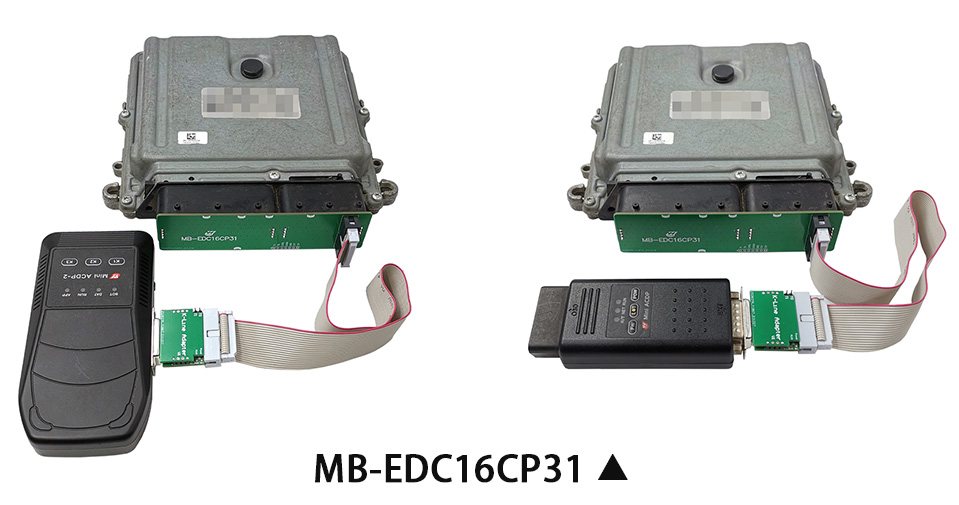

BENCH interface board mode ▼

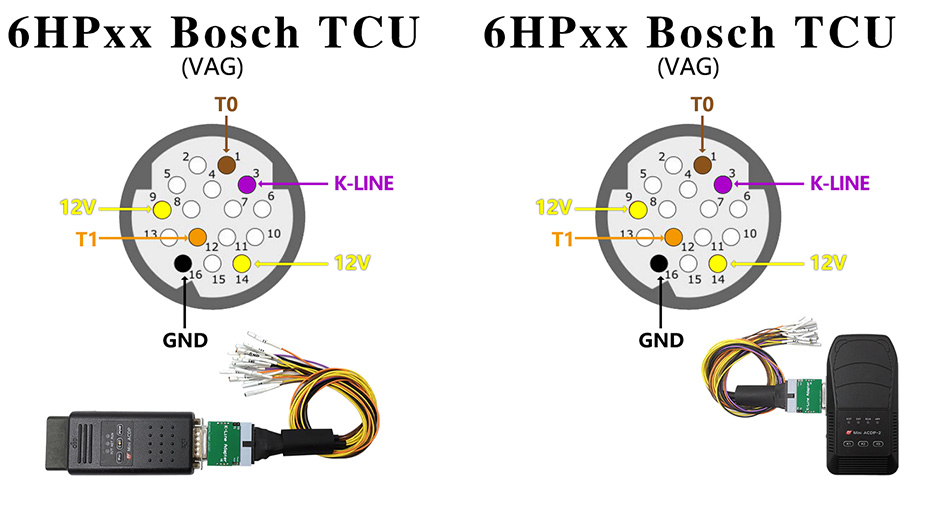

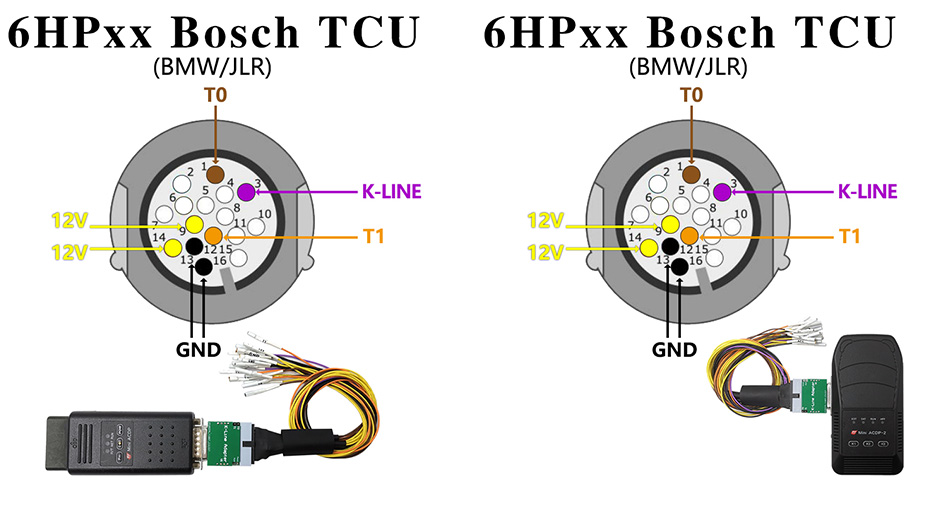

Bench wiring method ▼

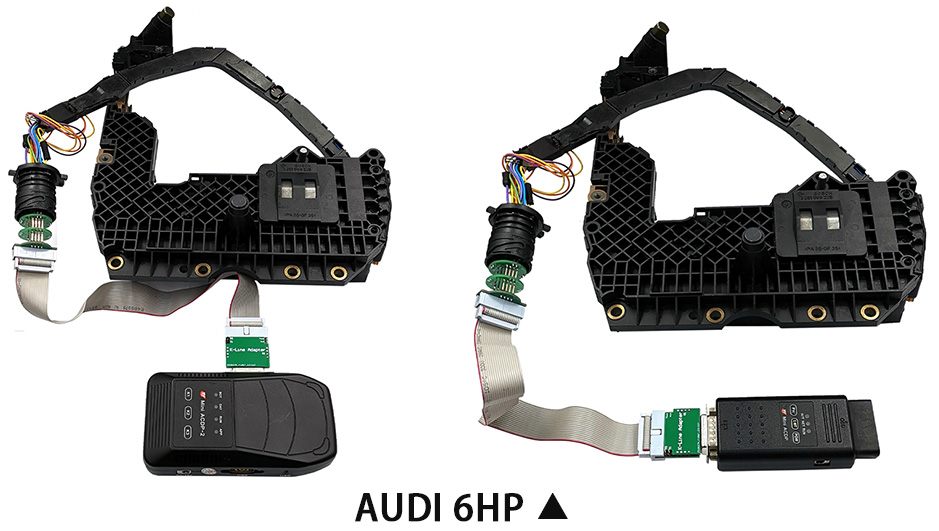

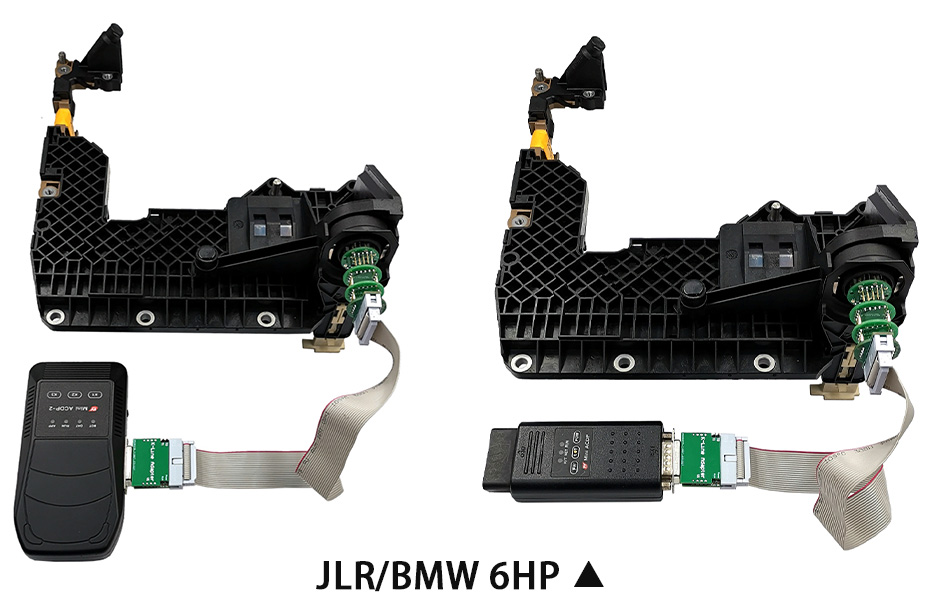

Bosh 6HP gearbox

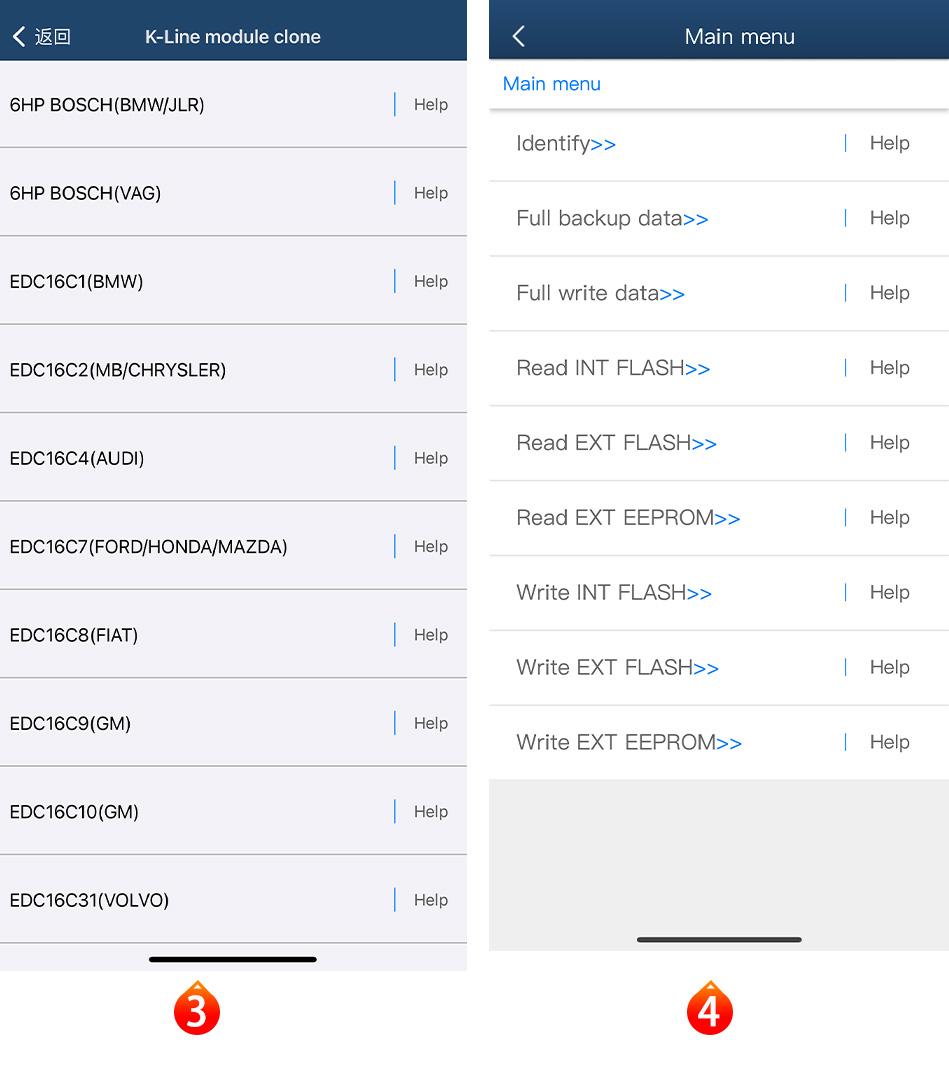

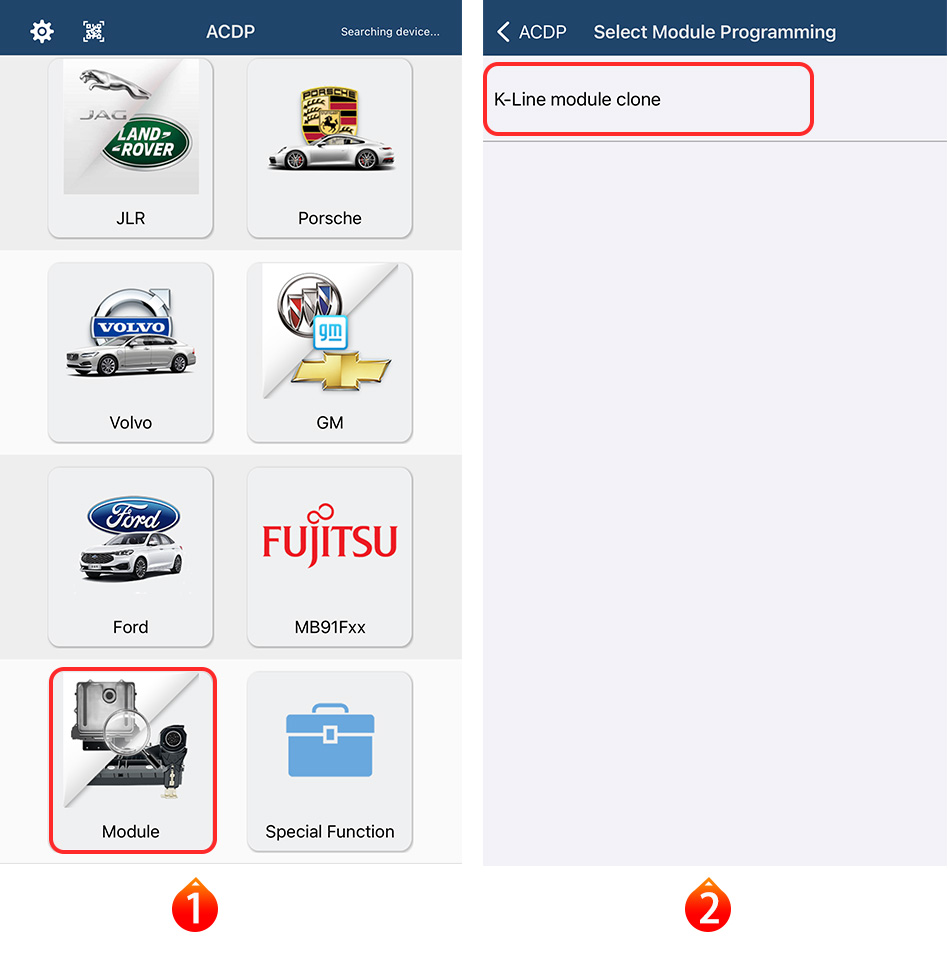

APP operation interface：
Configuration List:
ACDP Configuration List (Module 32 K-Line module clone)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BMW/JLR 6HP Interface board |  |
Applicable to connect BMW/JLR 6HP gearbox | 1 |
| 2 | Audi 6HP Port Interface board |  |
Applicable to connect Audi 6HP gearbox | 1 |
| 3 | K-Line adapter |  |
Applicable to connect ACDP host and interface board | 1 |
| 4 | AUDI-MED9.1 Interface board |  |
Applicable to connect AUDI MED 9.1 DME | 1 |
| 5 | MB-EDC16CP31 Interface board |  |
Applicable to connect MB EDC16CP31 DME | 1 |
| 6 | BMW-EDC16C35/EDC16CP35 Interface board |  |
Applicable to connect BMW-EDC16C35/EDC16CP35 DME | 1 |
| 7 | K-Line cable |  |
Applicable to connect DME and gearbox in plug-in mode | 1 |
