ACDP Module02 FEM/BDC Module

Module Function：

1: Support FEM/BDC IMMO key programming and mileage reset by ICP.
2: Support disbable key,enable key,delete key by OBD.
3: Support backup IMMO data and write IMMO data.
4: Support FEM/BDC module restore.

Module Feature：

1:OBD detect FEM/BDC,can directly identify whether the FEM/BDC module has been pretreated by the OBD.
2: Fully automatic mode matching. safe, simple and efficient.
3: 95128/95256 pin intelligent detection, data reading and writing safe and reliable.

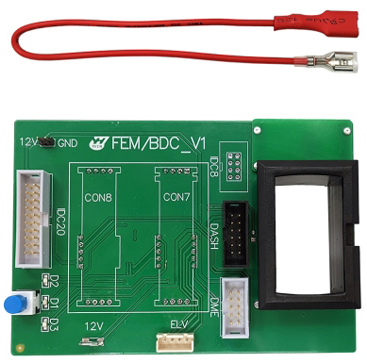

4: The integrated interface board connect the FEM/BDC modulet. Simple operation,plug to use it directly,safe and reliable connection.

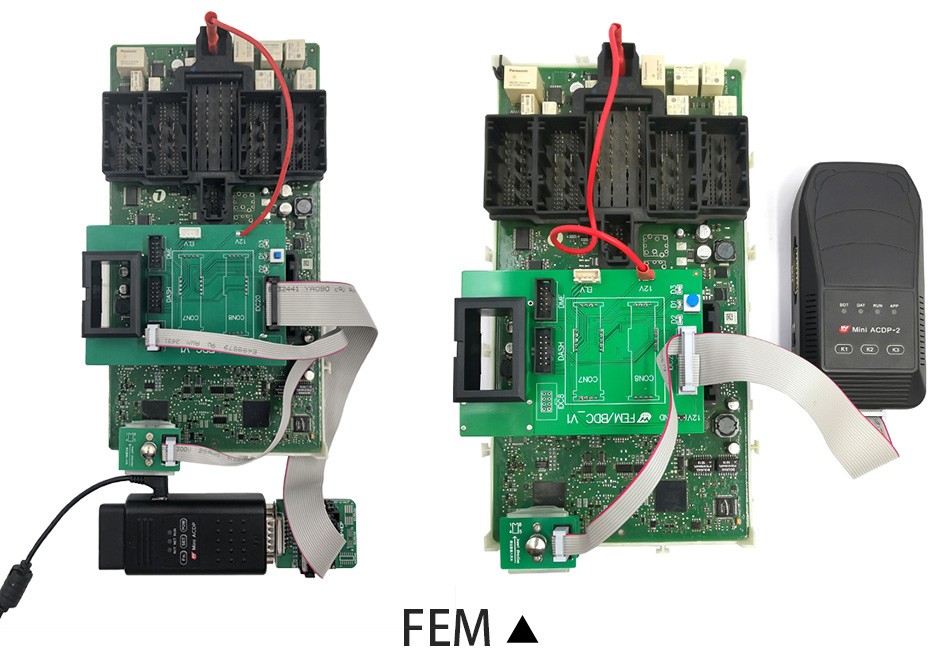

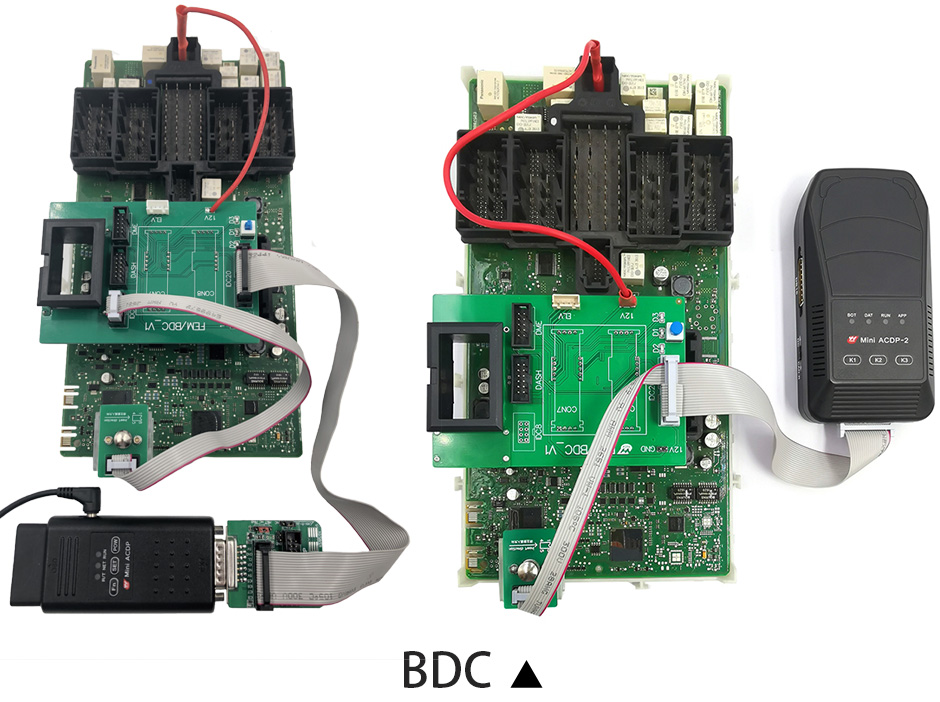

Overall connection diagram：

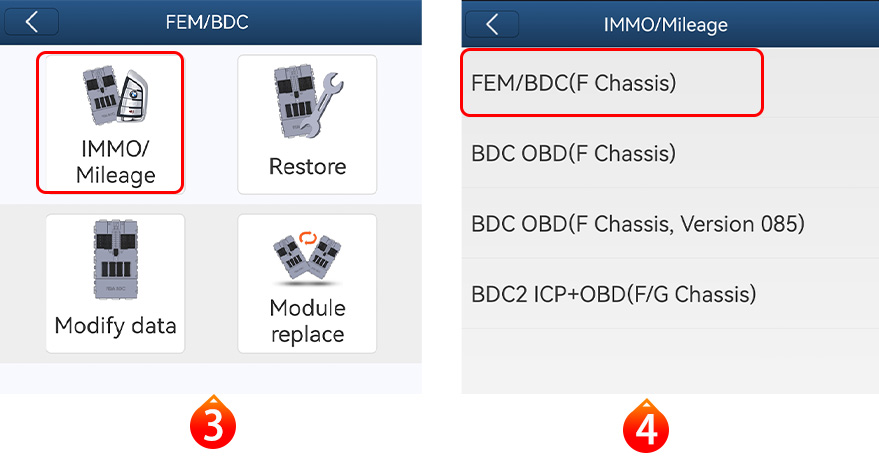

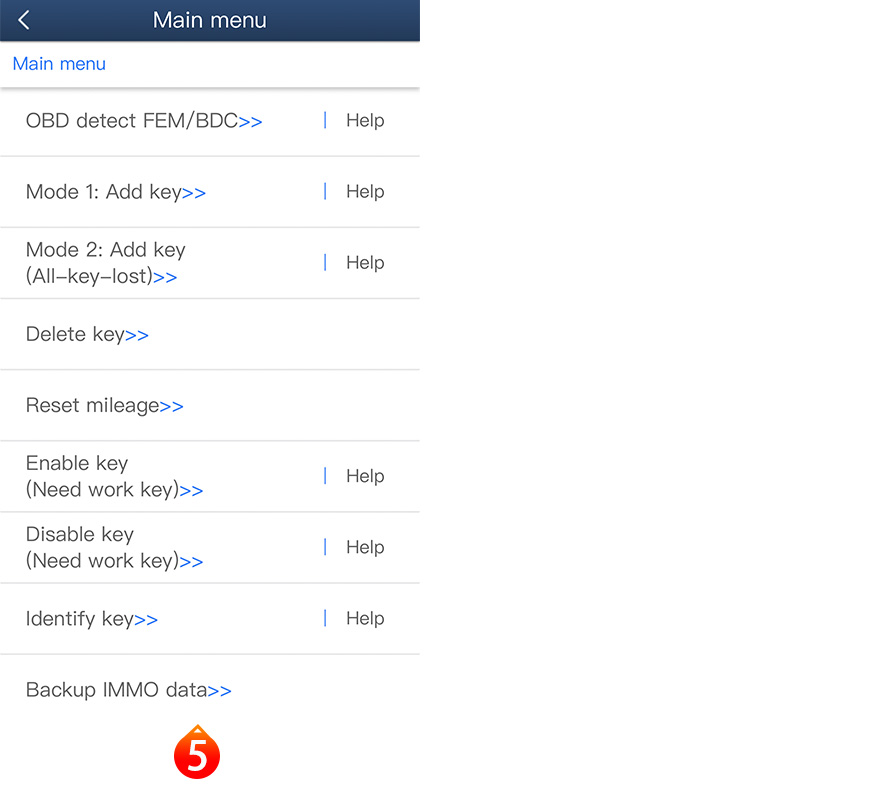

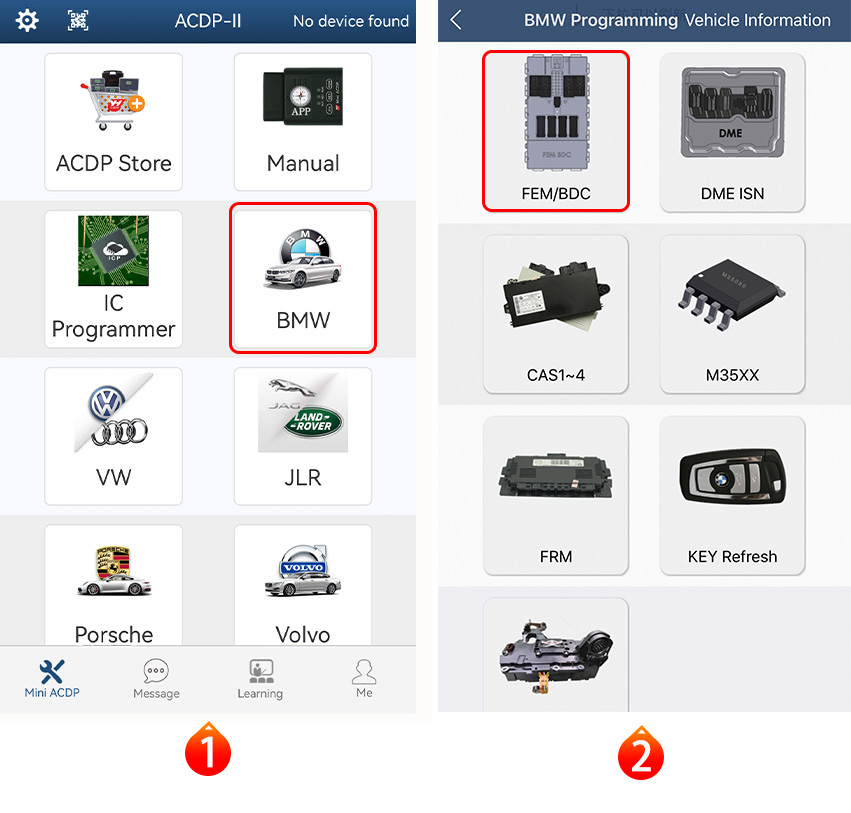

APP operation interface：

The comparison between ACDP and other devices for programming FEM/BDC

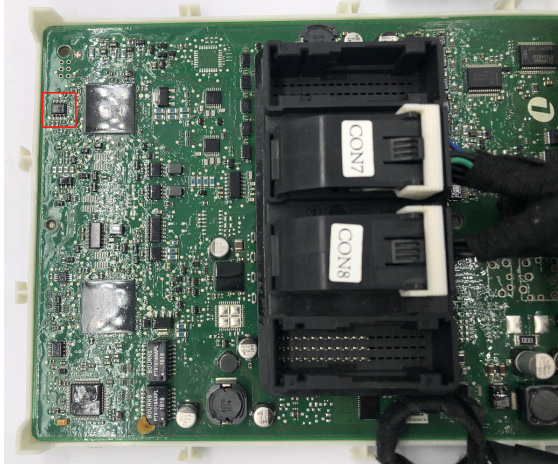

1：The other devices to program FEM/BDC by traditional way---soldering.

Double soldering of the FEM/BDC core-chip 95128/95256 for reading/writing data

disadvantages：

1. Requiring soldering, which with complicated and long time operation.
2. Double soldering of the FEM/BDC core-chip 95128/95256 may cause the module damage.
3. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost.

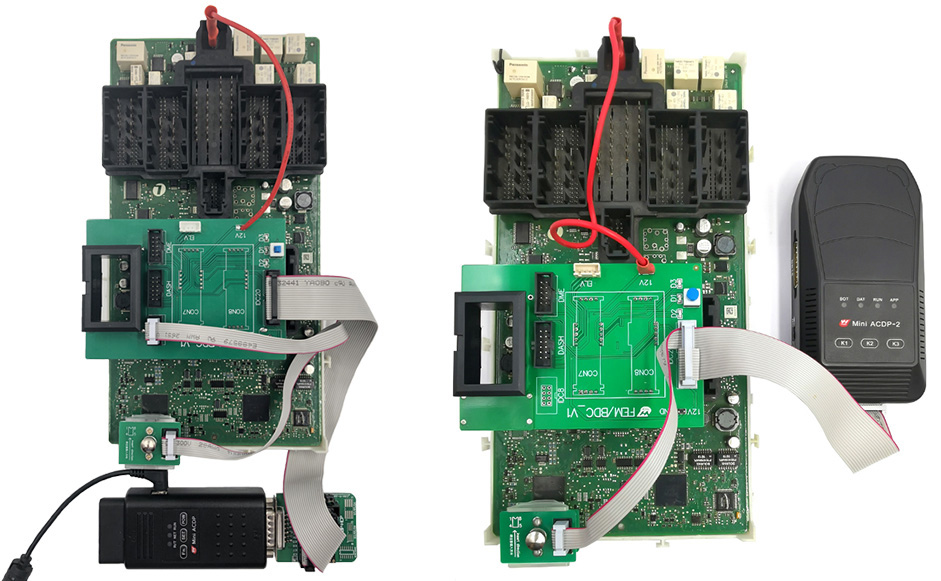

2：ACDP programming FEM/BDC by ICP

Advantage：

1. Special puncture socket replaces the soldering to make the operation simple and efficient.
2. No cutting, no soldering and no removing 95128/95259 chip for reading data, thus no risk ofmodule damage.

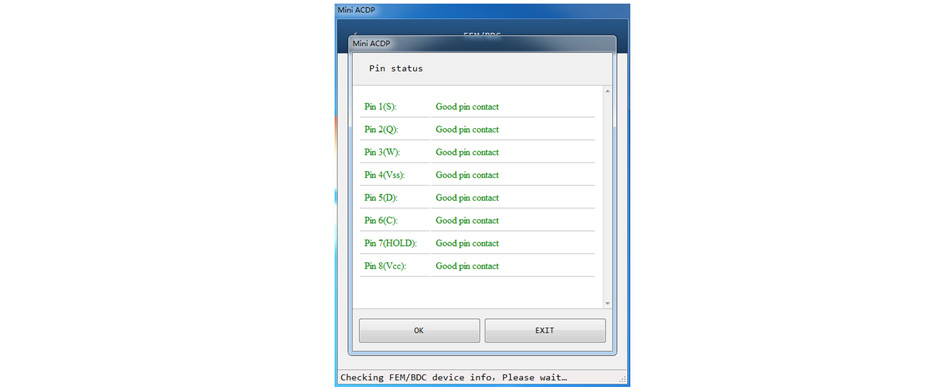

3. Pin intelligent detection to ensure data reading/writing safe and reliable.

Configuration List:

ACDP Configuration List (Module02 FEM/BDC Module)
