ACDP Module 29 Audi Gen5 BCM2 IMMO Module

Supported Models：

1：Support adding key and all-key-lost for 2013-2018 Audi A4/A5/Q5 and other models. BCM2 types：0711,0650,0641 etc.

2：Support adding key for 2013-2019 Audi A6/A7/A8 and other models. The BCM2 IMMO data can be read when all keys lost. But the sync data needs to be obtained from a third party.BCM2 types：0824,0825,0827 etc.

Module functions：

1：Support Audi Gen5 unencrypted version and partial encrypted version BCM2 to read IMMO data by OBD.

2：Support Audi Gen5 encrypted version BCM2 to read IMMO data by ICP .

3：Support chip models: D70F3381 / D70F3382 / D70F3634 / D70F3635.

Module features：

1：OBD identify to know，whether the vehicle supports to read IMMO data via OBD, whether the BCM2 type is encrypted version, and whether the BCM2 module needs to be removed to read IMMO data.

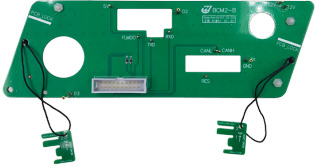

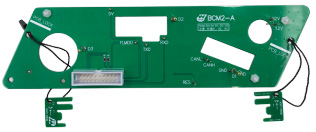

2：Special interface board to read BCM2 IMMO data, pin intelligent detection, data read and write safe and reliable.

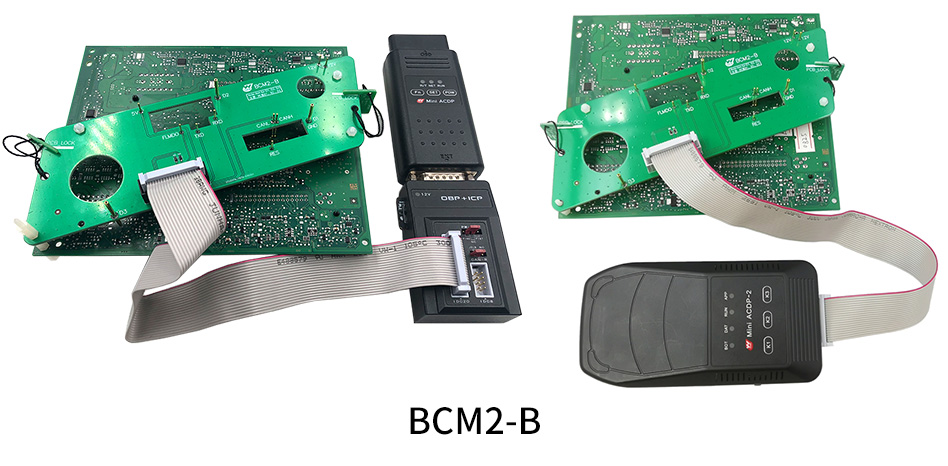

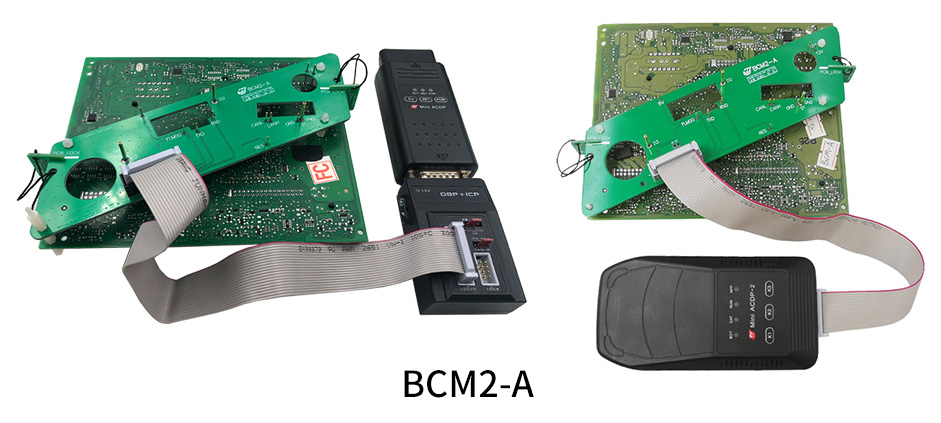

Connection diagrams：

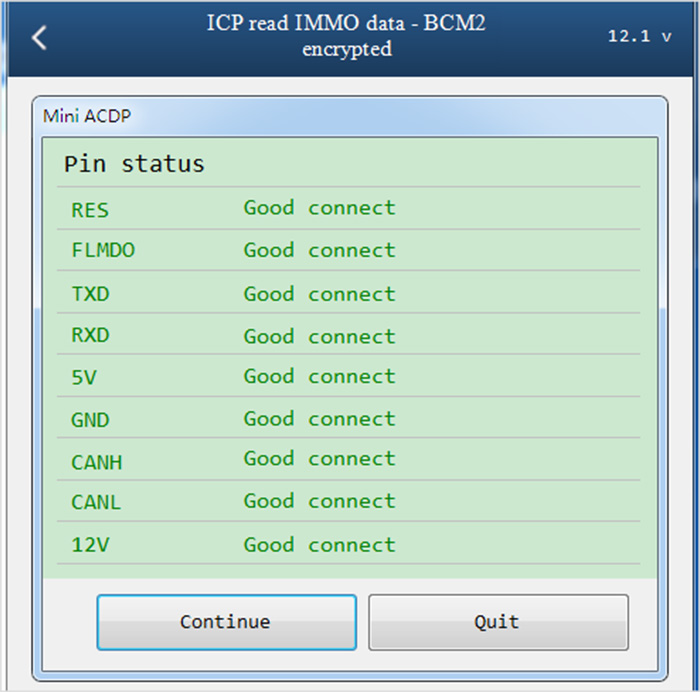

Pin detection interface：

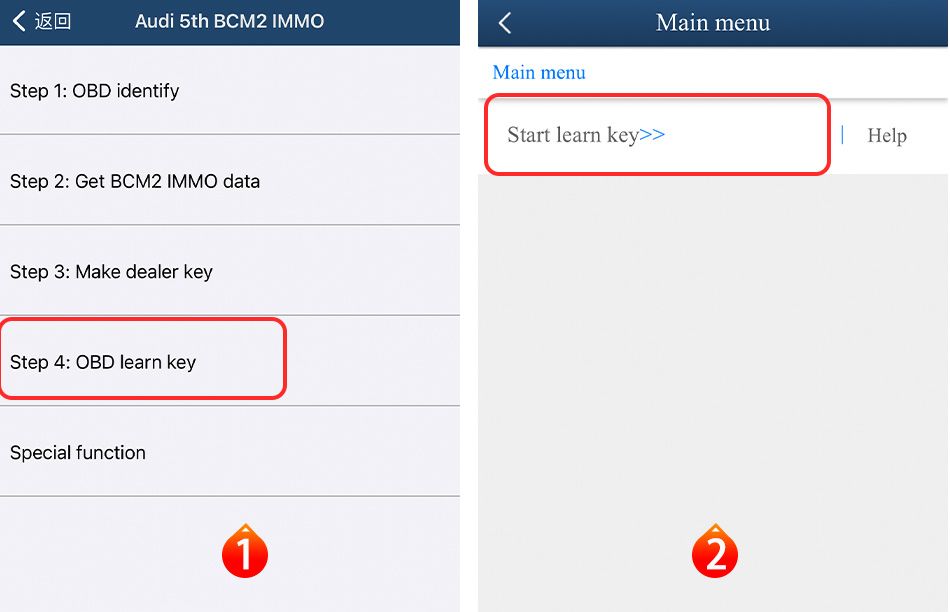

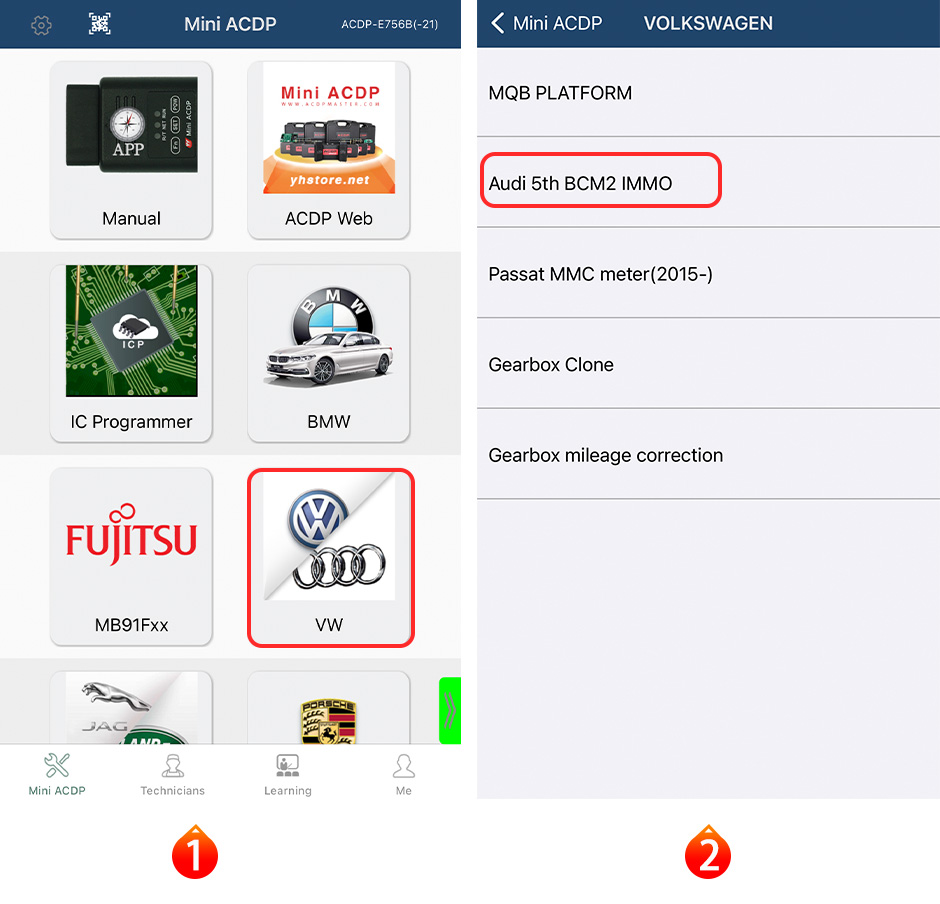

APP operation interface：

（take Audi A4/A5/Q5 BCM2 encrypted for example）

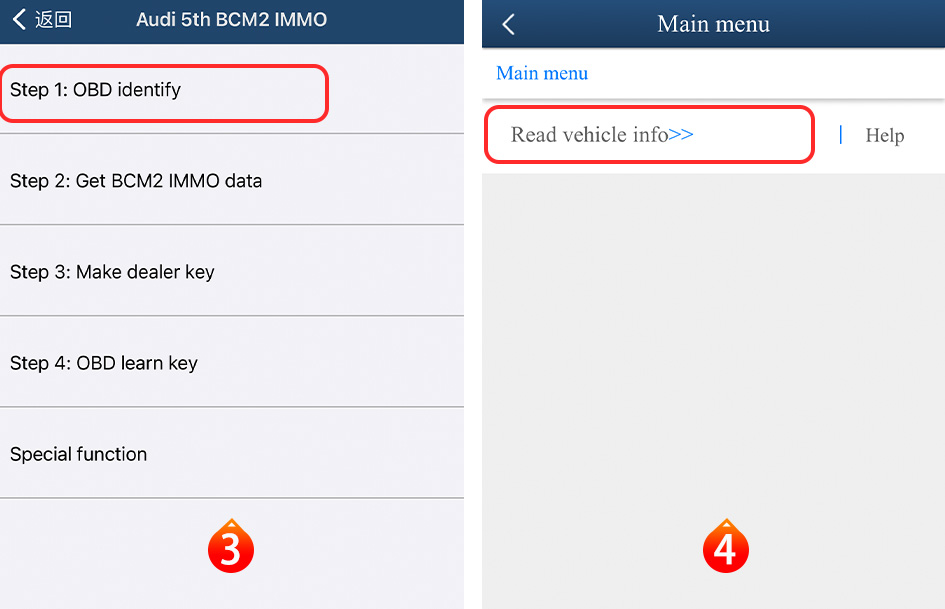

Step 1：OBD identity ▼

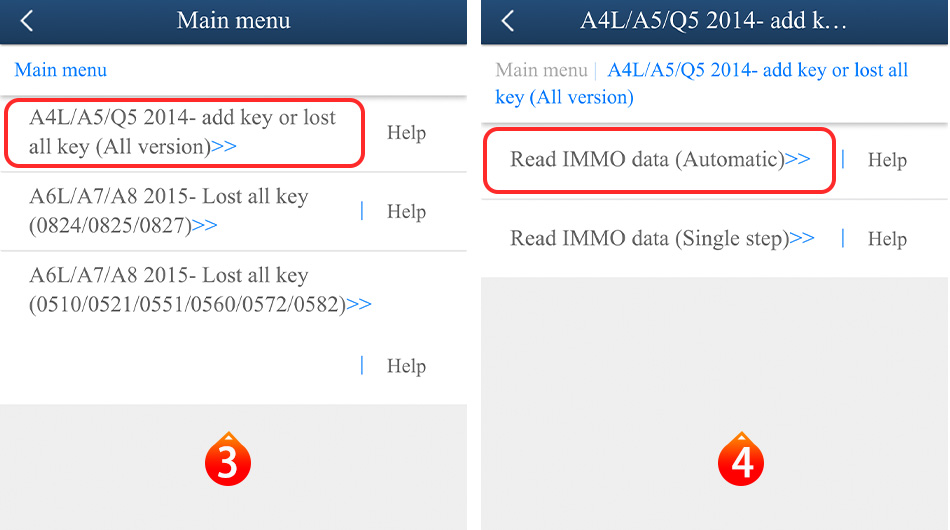

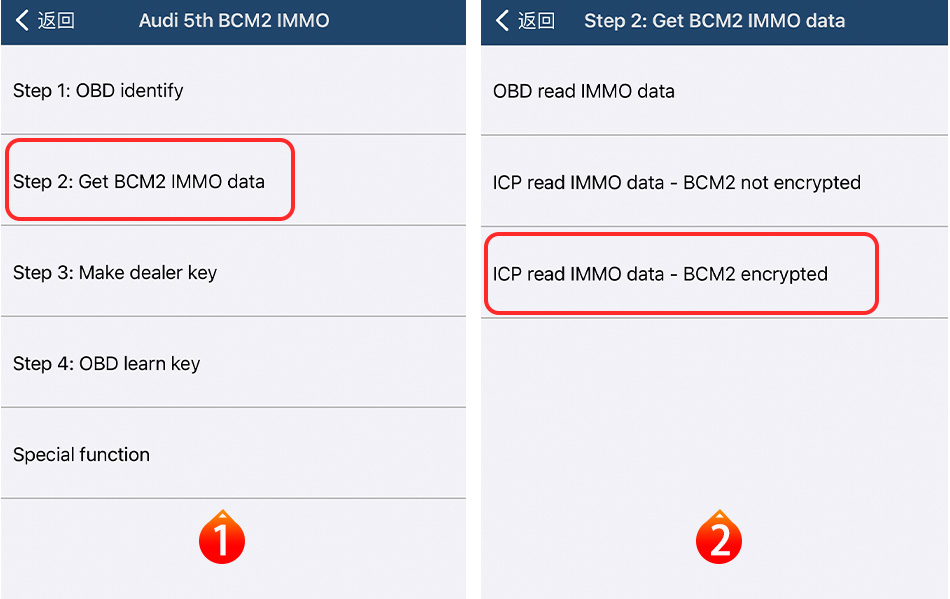

Step 2：Get BCM2 IMMO data ▼

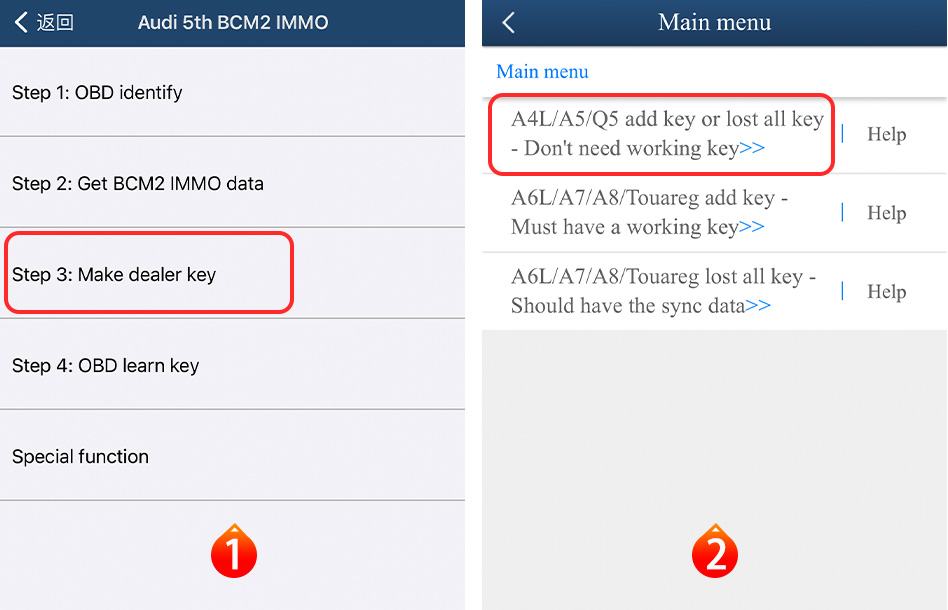

Step 3：Make dealer key ▼

Configuration List:

ACDP Configuration List (Module 29 Audi Gen5 BCM2 IMMO Module)
