ACDP Module 28 ZF-9HP gearbox clone
Module Function：
Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox BOOT mode clone.
Module Features：
1：The interface board can be inserted blindly to align with the boot test point , no need magnifying glass for calibration or complex probe workbench operation.
2：BOOT test point with pin detection function, data read and write safe and reliable.
3：The special interface board replaces the cable, which is simple, efficient, safe and reliable.

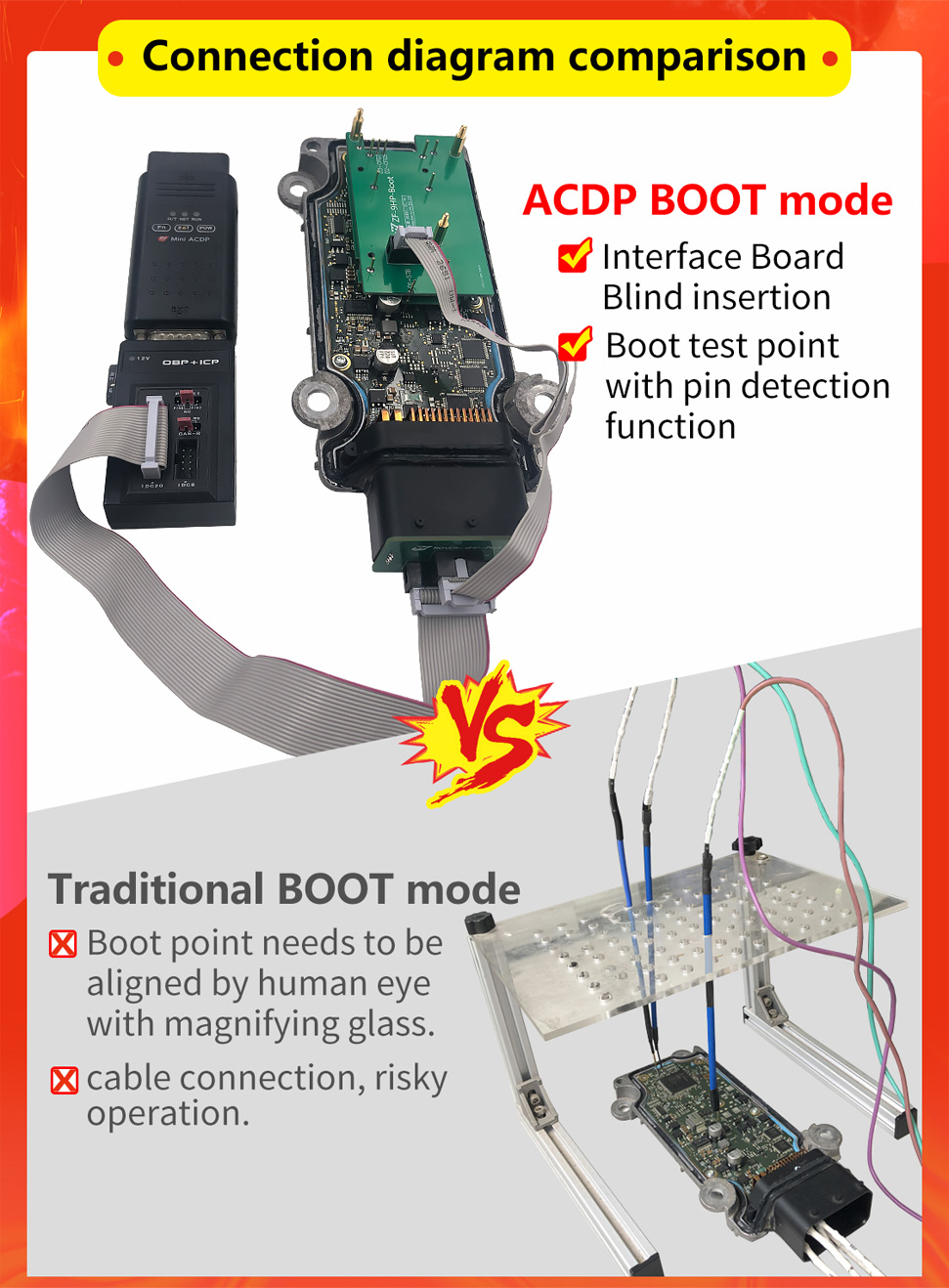

Connection diagram comparison：

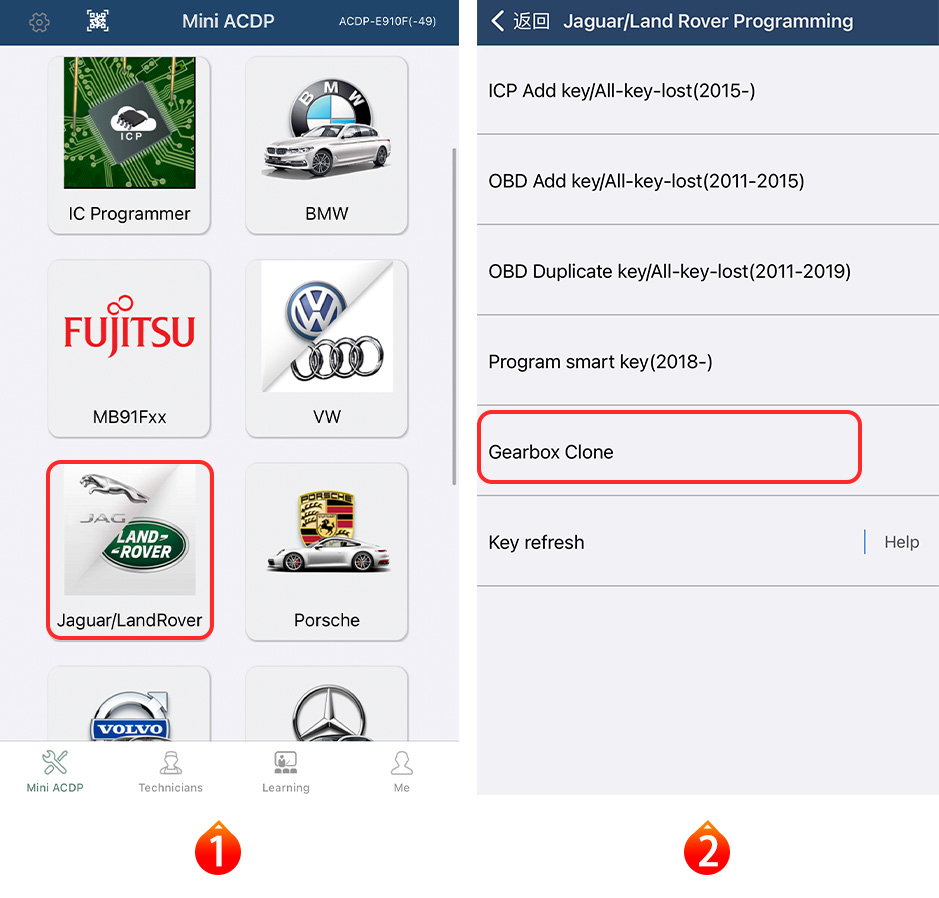

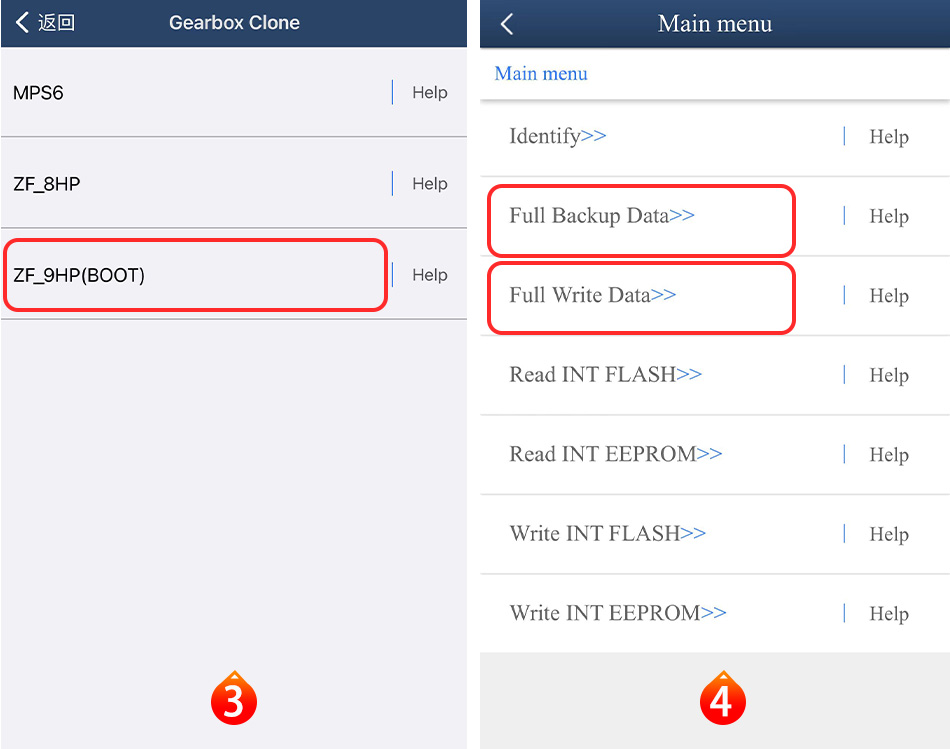

APP operation process：
Configuration List:
ACDP Configuration List (Module 29 Audi Gen5 BCM2 IMMO Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | ZF-9HP-BOOT Interface board |  |
Applicable to connect ZF-9HP gearbox boot points | 1 |
| 2 | ZF-9HP -Port Interface board |  |
Applicable to connect ZF-9HP gearbox | 1 |
| 3 | 8P cable |  |
Applicable to connect ZF-9HP-BOOT Interface board and ZF-9HP –Port Interface board | 1 |
| 4 | Copper pillars |  |
Applicable to fix ZF-9HP gearbox | 3 |
| 5 | Copper pillars |  |
Applicable to fix ZF-9HP-BOOT Interface board | 3 |
