ACDP Module 24：New JLR（2018+）IMMO module

Module functions：

1：Support some of the new JLR (2018+) OBD duplicate key（JPLA-14C104-AF/K8D2-14C250-AC）.
2：Support the new JLR (2018+) program new key by replacing RFA blank chip or RFA module.

!!It is risky to replace RFA blank chip or RFA module, please be careful. We provide blank chip and blank RFA module supporting services.

Module features：

1：When writing data to blank chip, you don’t need to weld wire. App has automatic pin detection. Refreshing data is safe and reliable.

2：Our platform can automatically detect the communication condition of RFA modules, including blank RFA modules and RFA modules after chip replacement.

3：OBD programming, learning keys, simple and efficient.

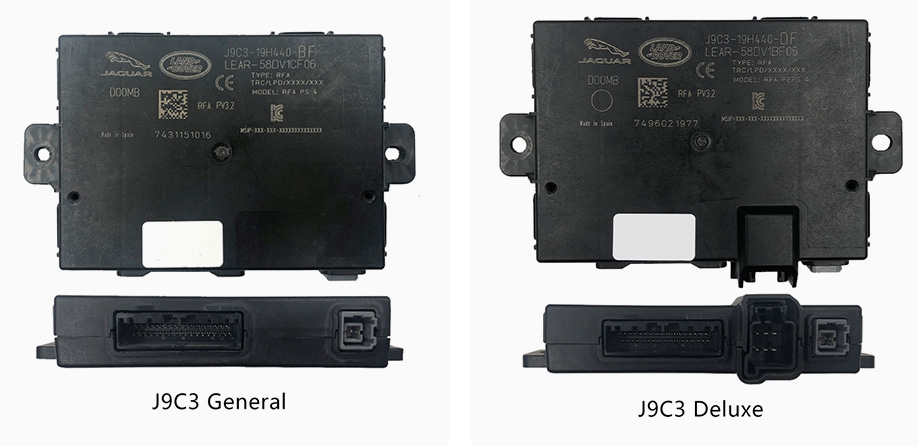

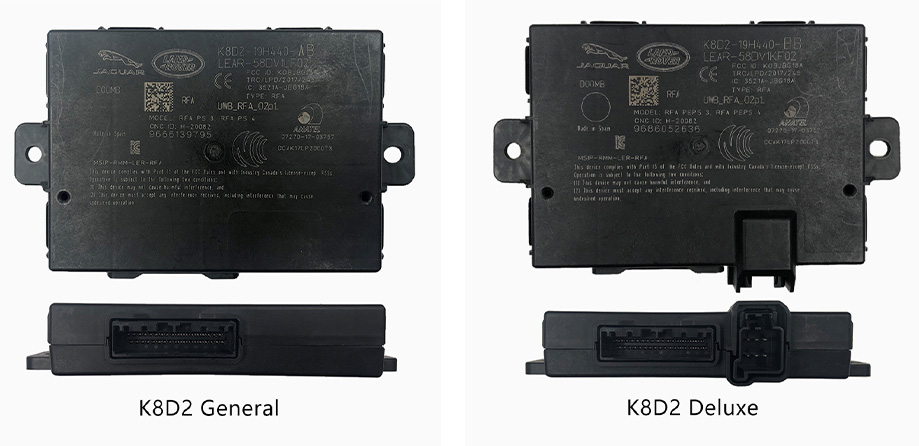

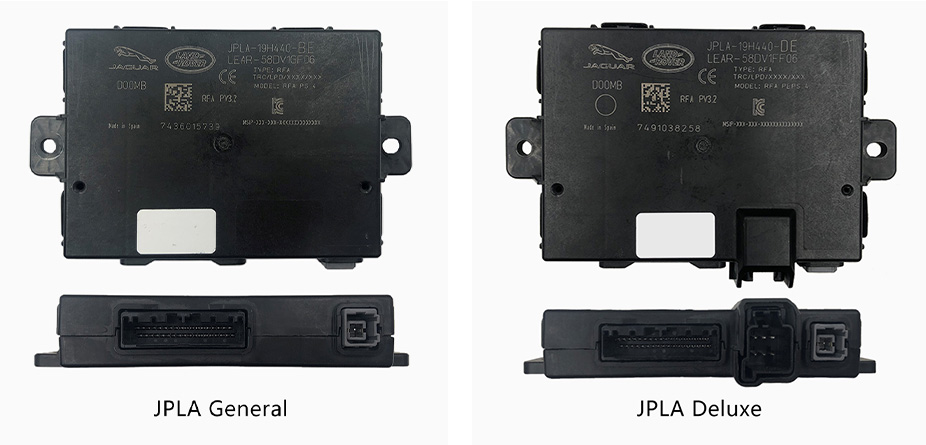

Supported module models：

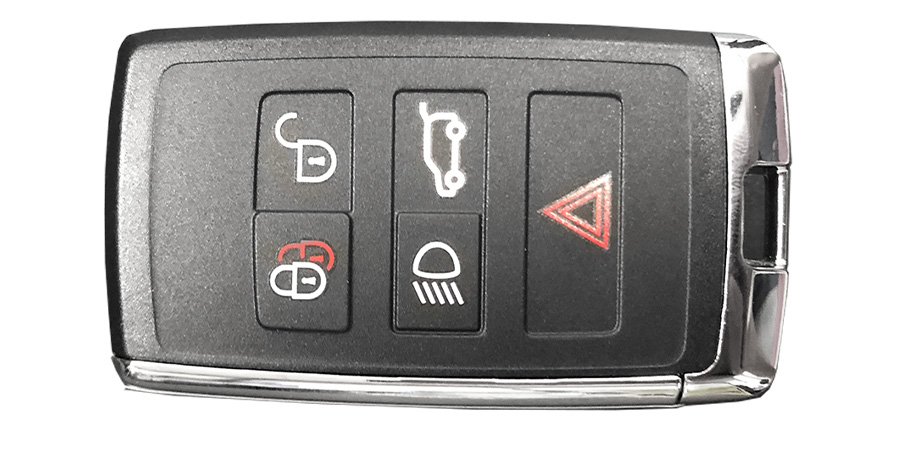

Supported key types：

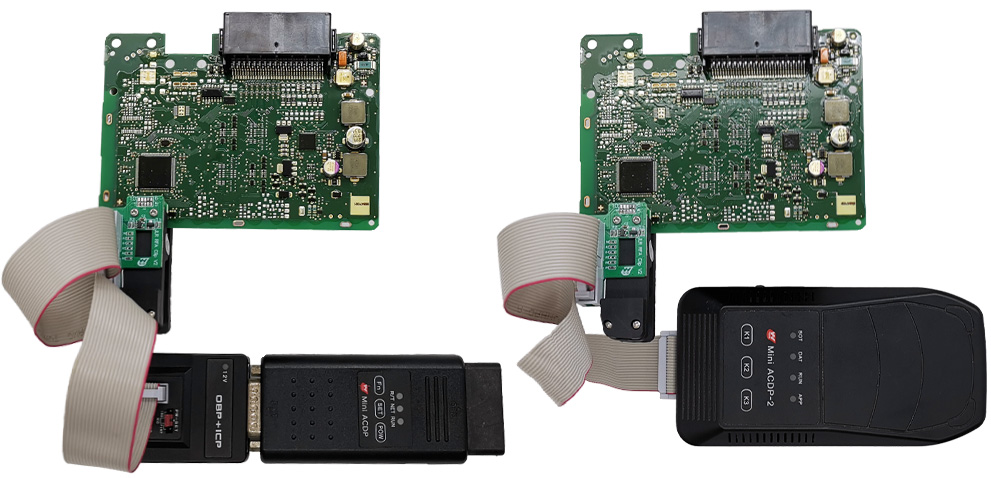

Overall connection diagram：

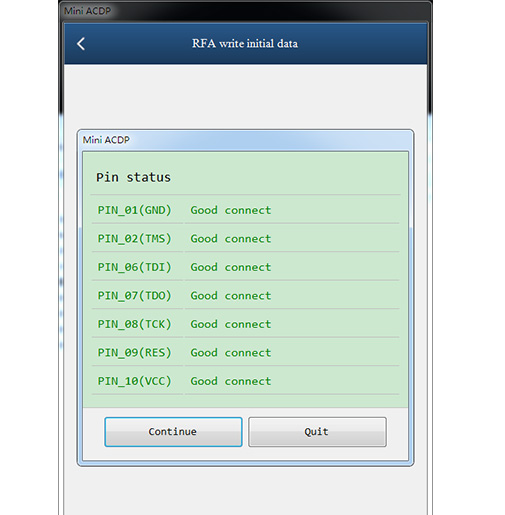

Pin intelligent detection:

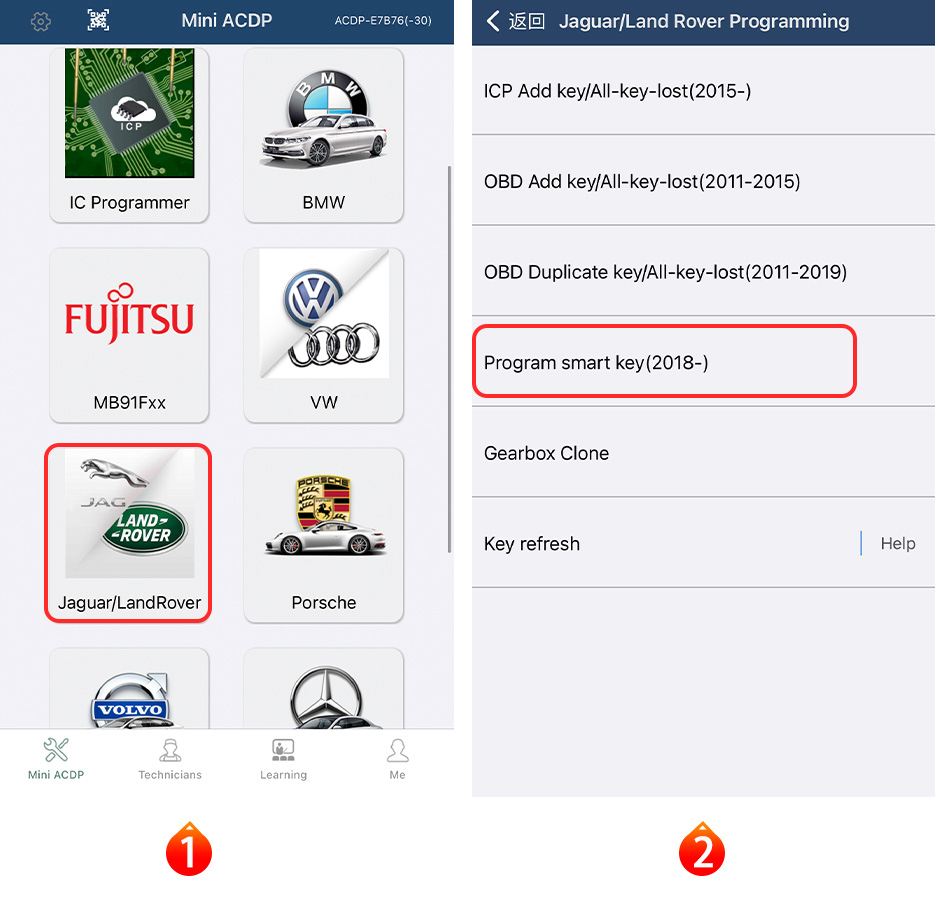

APP operation process：

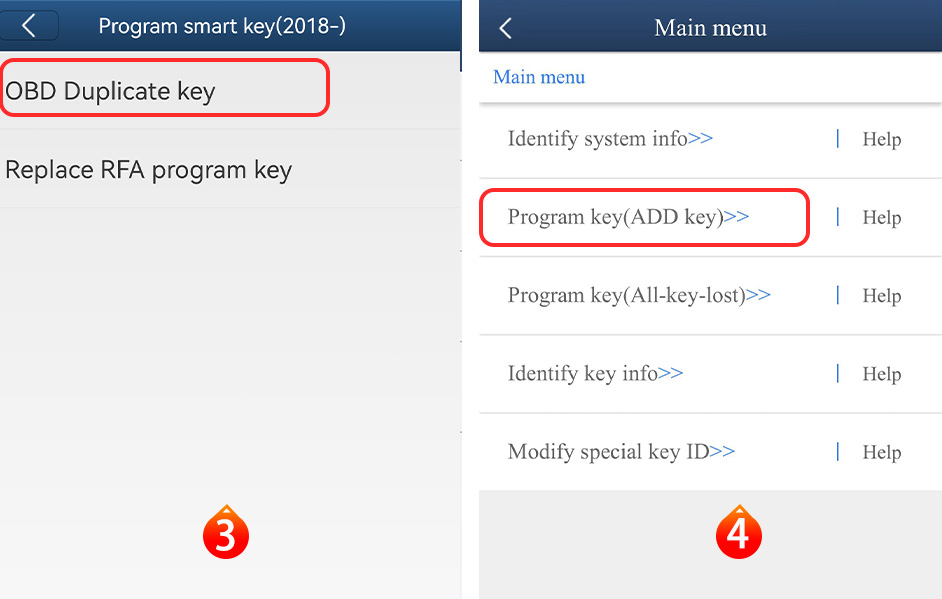

1：OBD duplicate key ▼

2：Programming the key by replacing the RFA chip or blank RFA module ▼

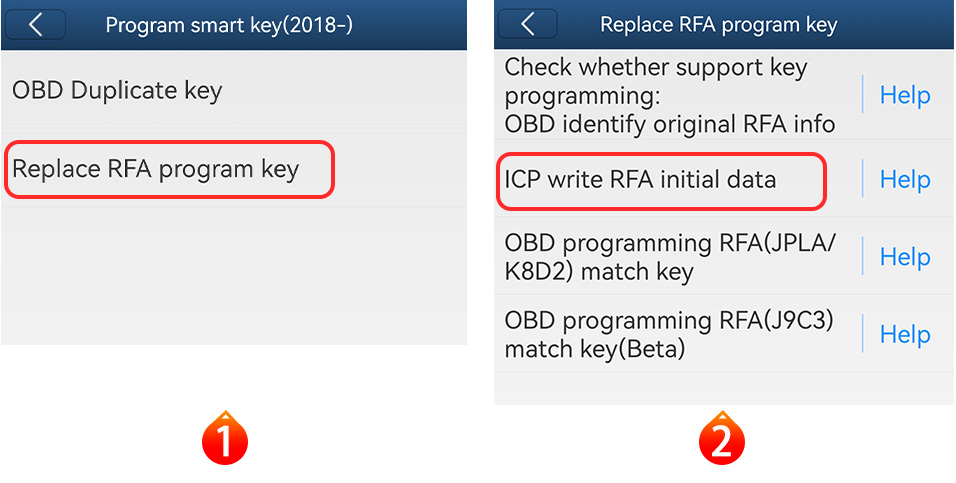

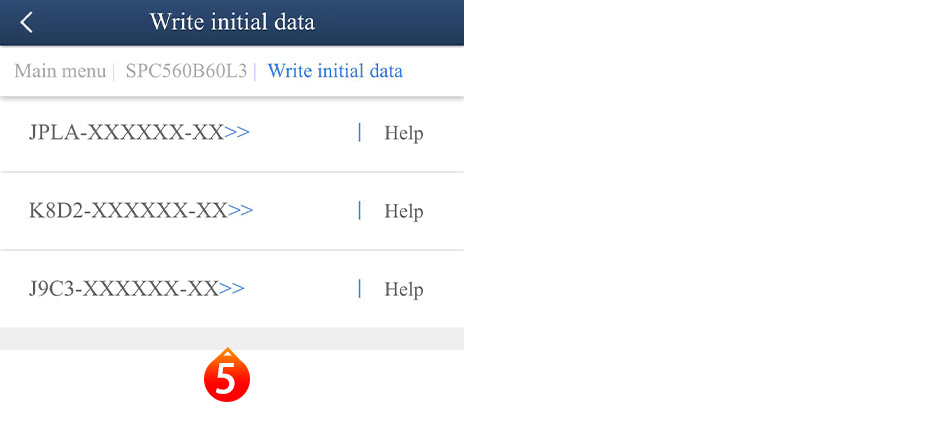

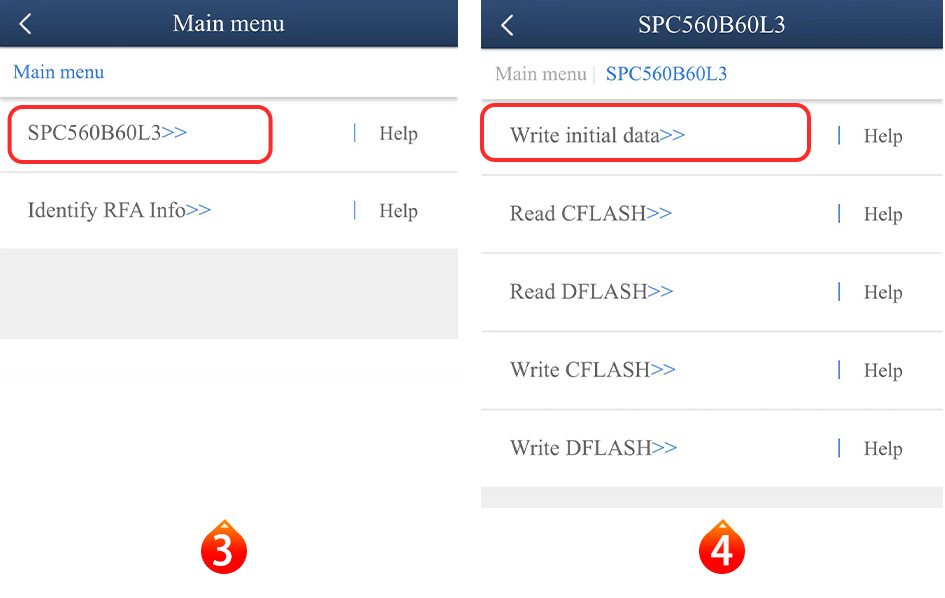

2.1：Write initial data after replacing RFA blank chip. ▼

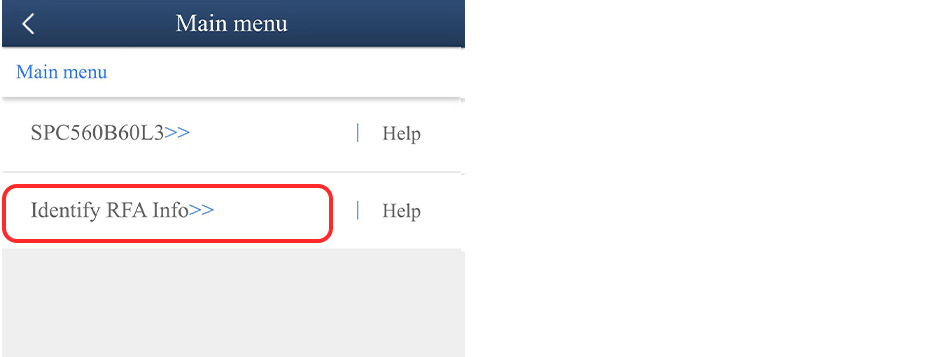

2.2：Identify RFA modules after initial data has been written ▼

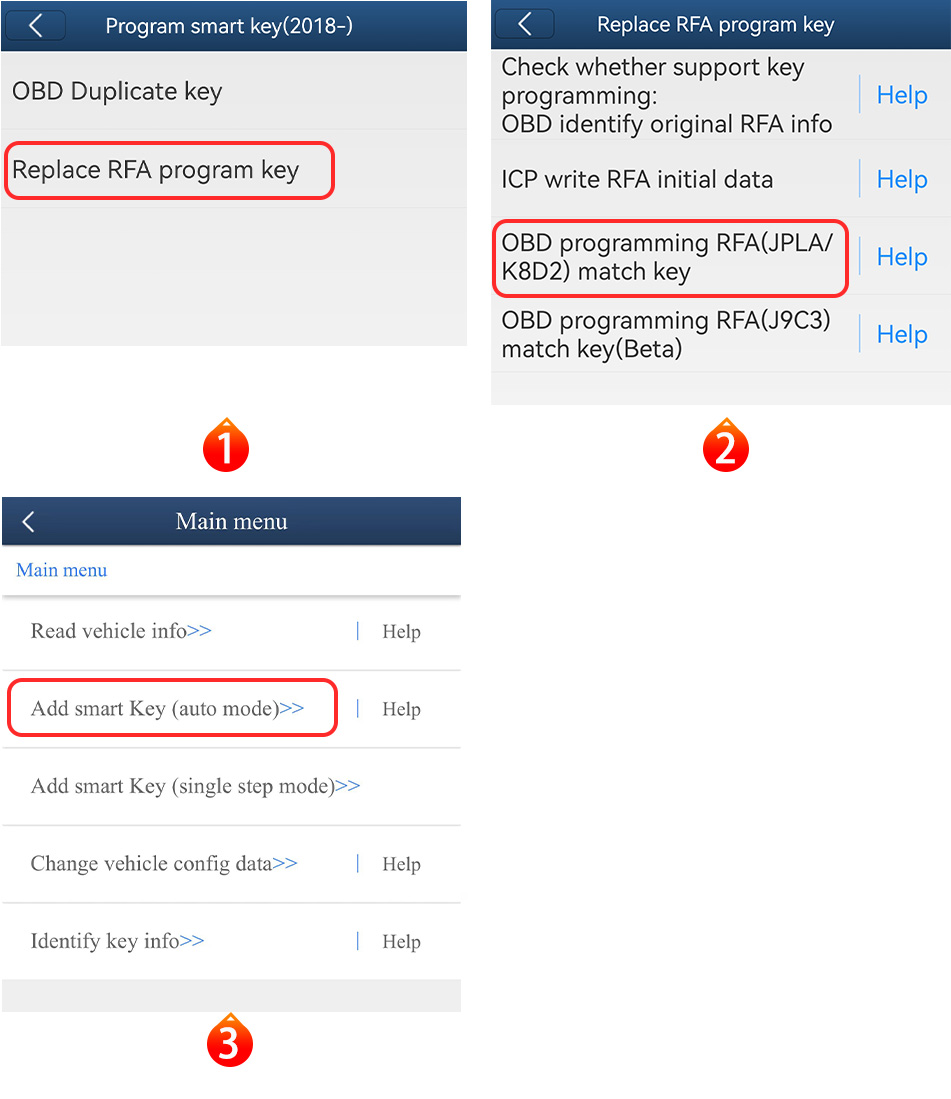

2.3：OBD programming RFA module, learn the key ▼

Configuration List:

ACDP Configuration List (Module 24 New JLR (2018+) IMMO module)
