ACDP Module 23 Porsche 12V lithium battery restore
Module functions：
When the voltage of the new Porsche (2018-2020) 12V lithium battery is too low for a long time, the vehicle crashes, the vehicle has an electrical short circuit, etc. Which leads to the battery being in protection mode, the internal program locks up, the vehicle cannot start, and the battery cannot be charged. This module can implement automatic data repair.
Module features：
ACDP use special interface board instead of welding wire. APP has automatic pin detection, perfect repair data. Data repair is safe and reliable.

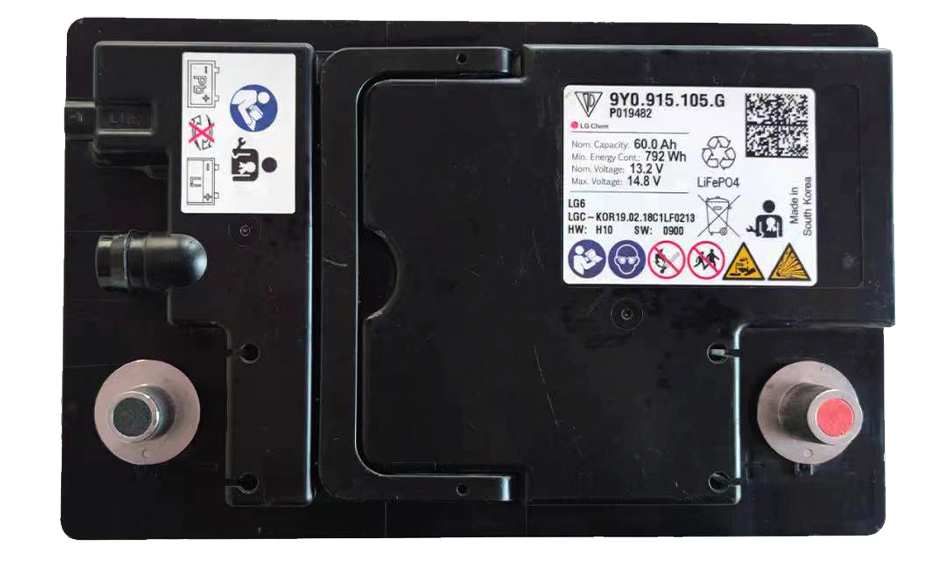

Supported battery appearance：

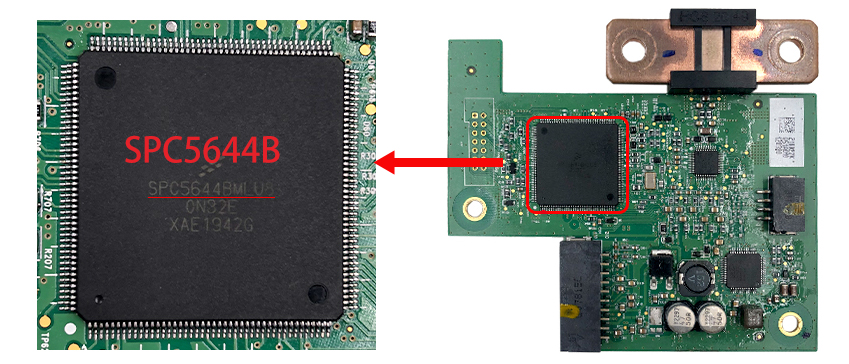

Supported chip models：SPC5644B

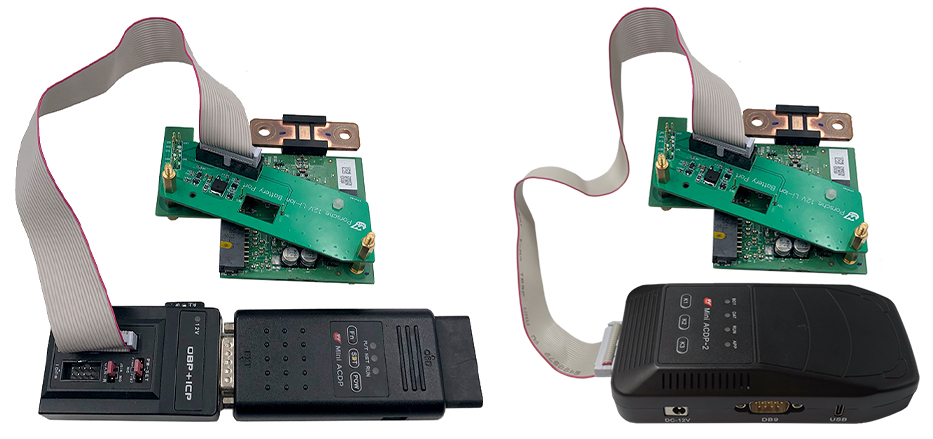

Connection diagram：

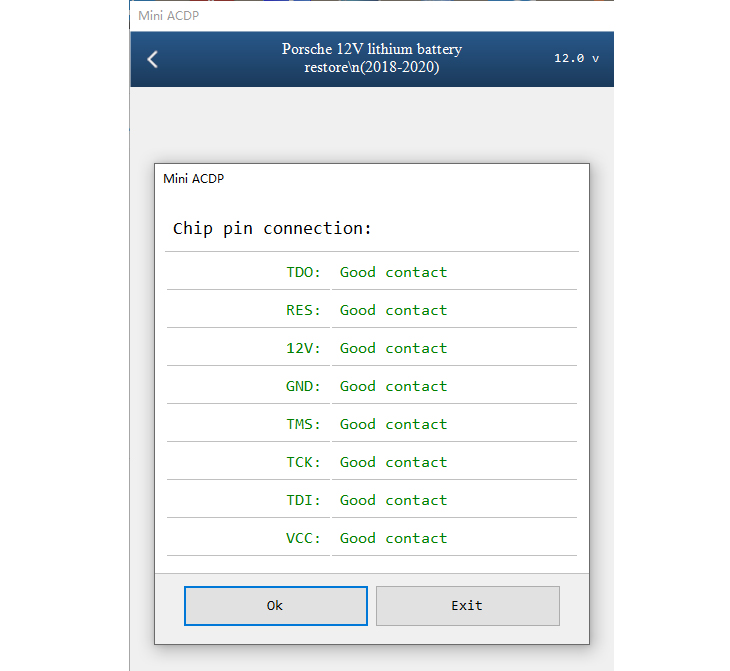

Pin detection result：

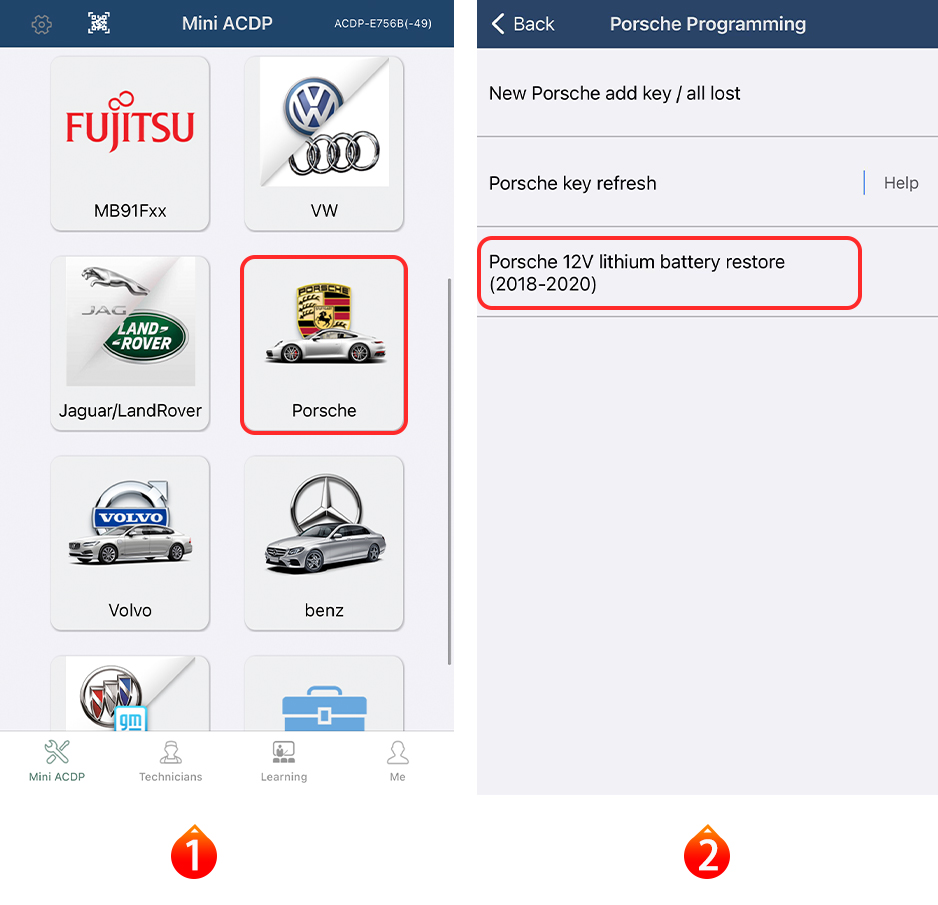

APP Operation Interface：
Configuration List:
ACDP Configuration List (Module 23 Porsche 12V lithium battery restore)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | Porsche 12V Li-lon Battery Port interface board |  |
Applicable to connect Porsche 12V Li-lon Battery PCB | 1 |
| 2 | Module copper pillar package |  |
Applicable to fix Porsche 12V Li-lon Battery Port interface board | 6 |
