ACDP-2 Module 18 Mercedes-Benz DME/ISM refresh
Module function：
1.Support Mercedes-BenzCR3XX/CR4XX/CR5/CR6/CR60XX/SIM271DE2.0/SIM4LKE/SIM271KE2.0/CRD11/CRD2XX/ME97/MED177X/SIM266 etc.DME refresh.
2.Support Mercedes-Benz ISM refresh.

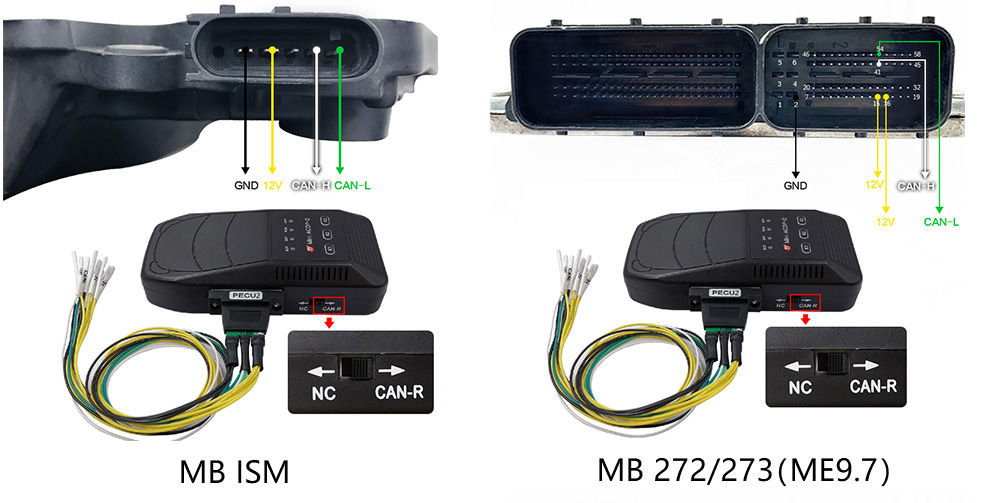

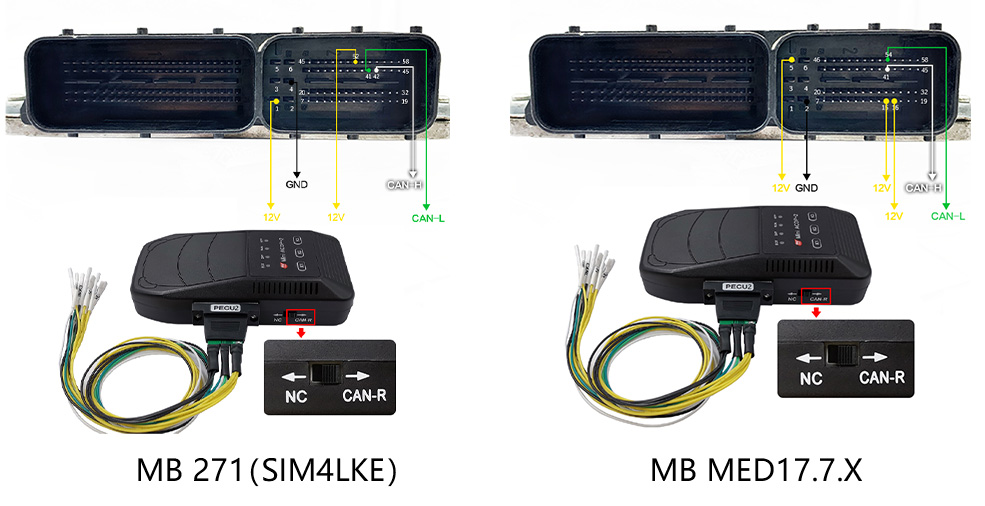

Overall connection diagram：

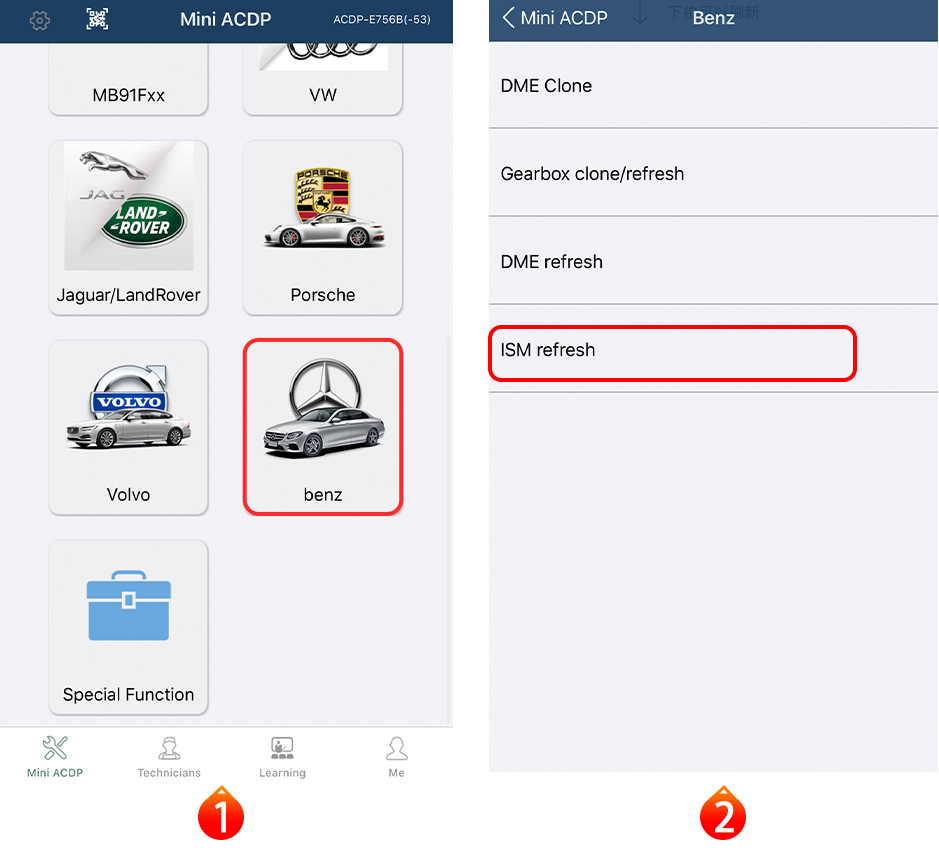

APP operation interface：

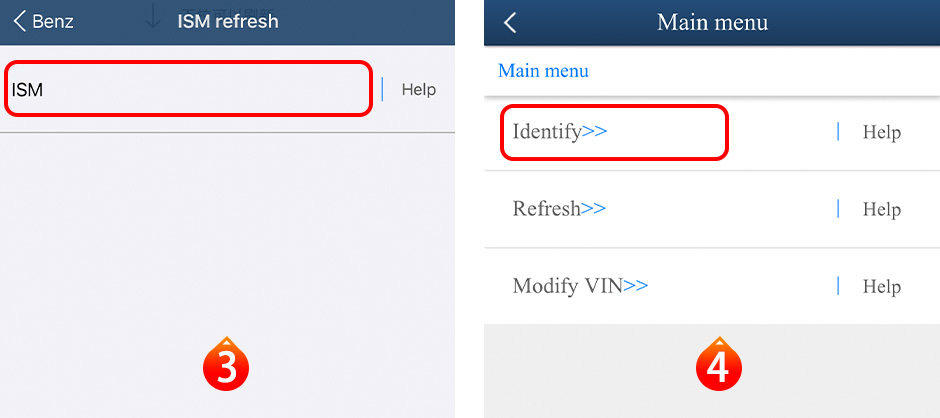

Mercedes-Benz ISM refresh ▼

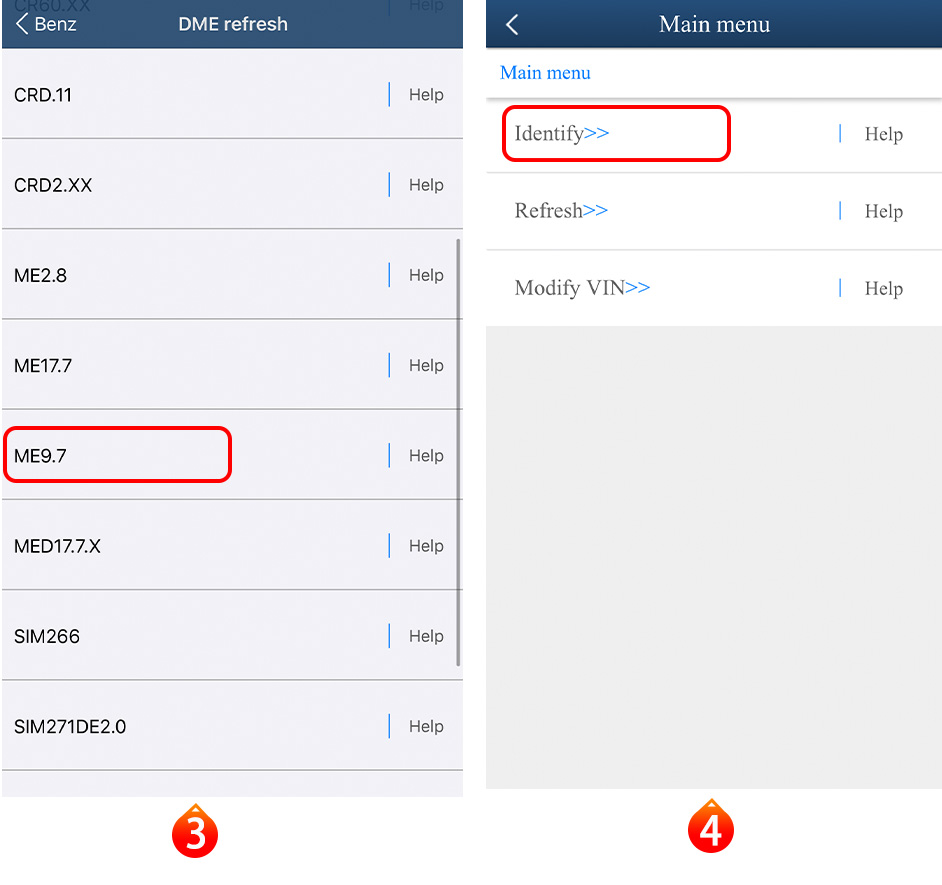

Mercedes-Benz 272(ME9.7) DME refresh ▼

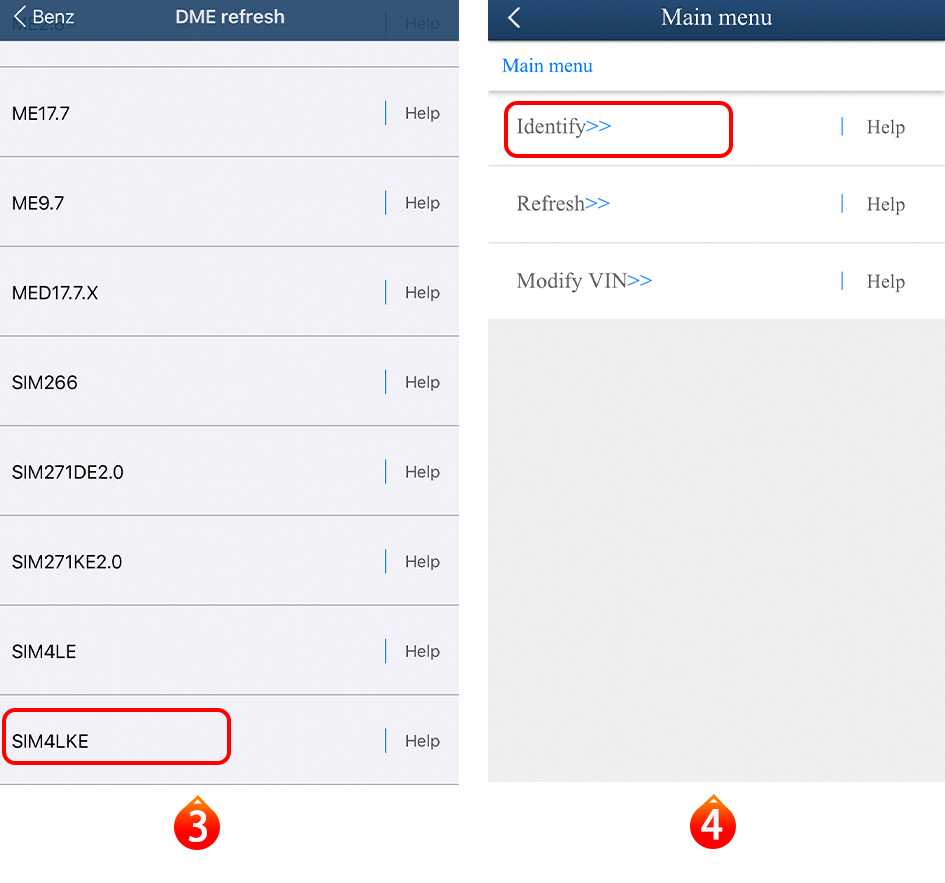

Mercedes-Benz 271(SIM4LKE) DME refresh ▼
Configuration List:
ACDP-2 Configuration List (Module 18 Mercedes-Benz DME/ISM refresh)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | PECU2 Cable |  |
Applicable to connect DEM/SM test points | 1 |
