ACDP Module16 Mercedes-Benz gearbox Clone/Refresh
Function：
1、Support cloning Mercedes-Benz (VGS-FDCT/VGS2-FDCT) dual-clutch gearbox.
2、Support cloning Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.
3、Support Mercedes-Benz 722.9 the second generation (VGS2-NAG2) gearbox refresh.
4、Support Mercedes-Benz 722.9 the third generation (VGS3-NAG2) gearbox refresh.
Features：
The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

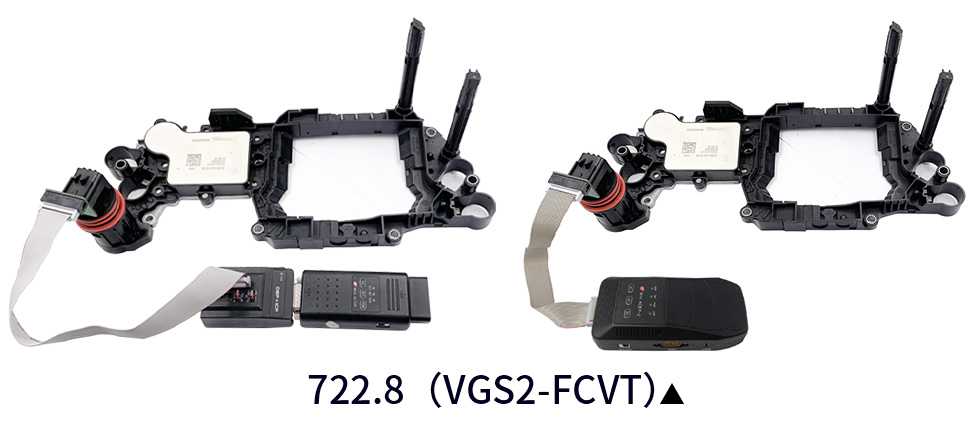

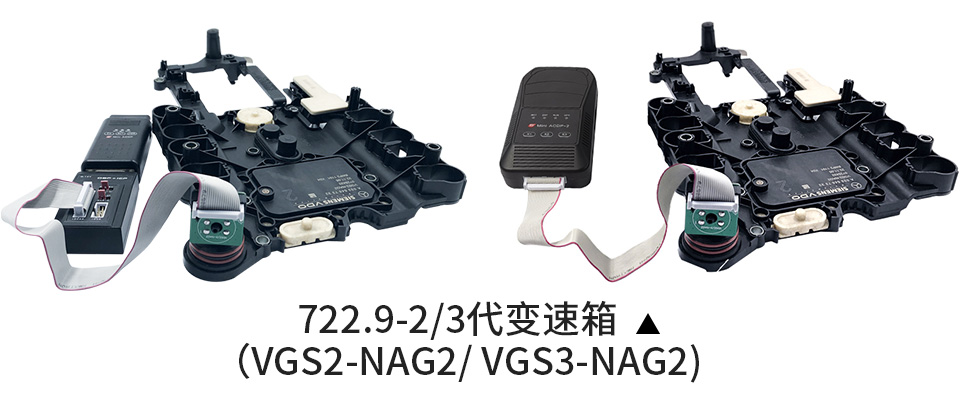

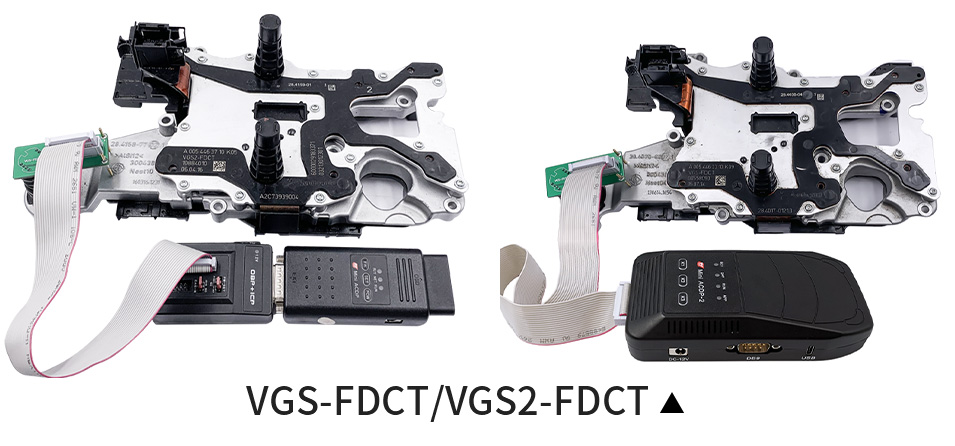

Overall Connetion Diagram：

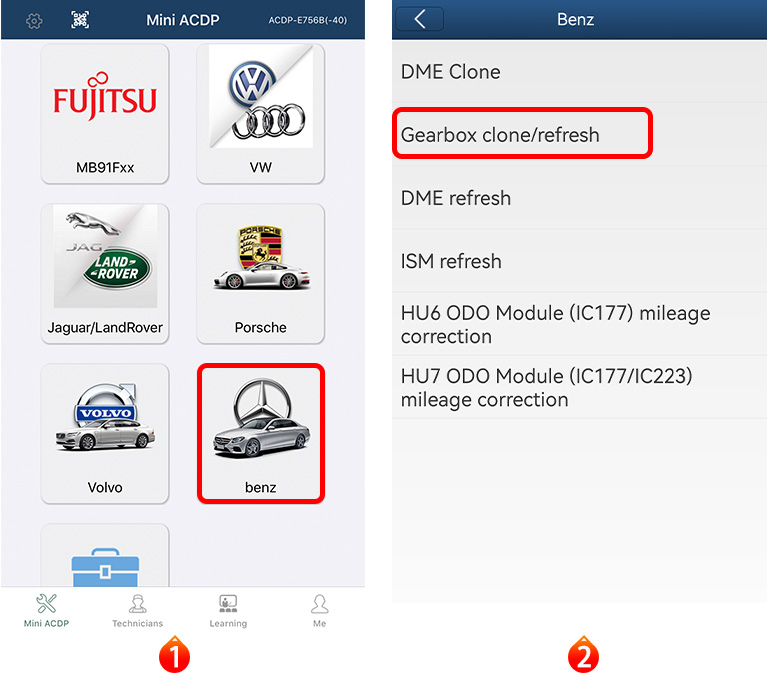

APP operation interface：

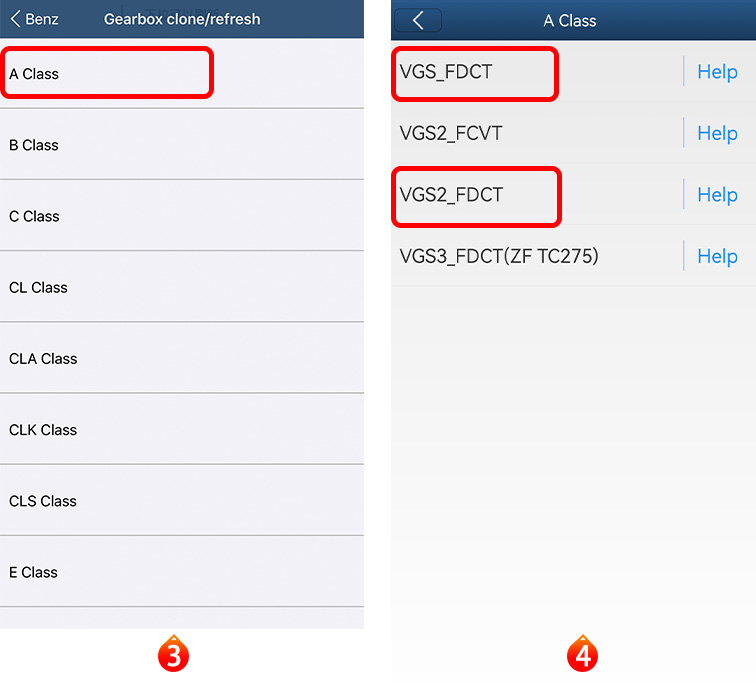

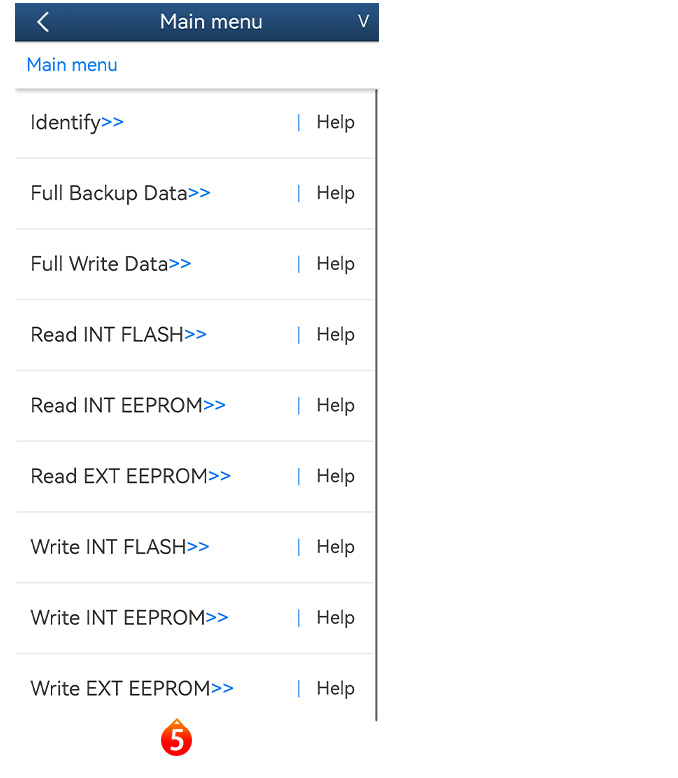

VGS-FDCT/VGS2-FDCT ▼

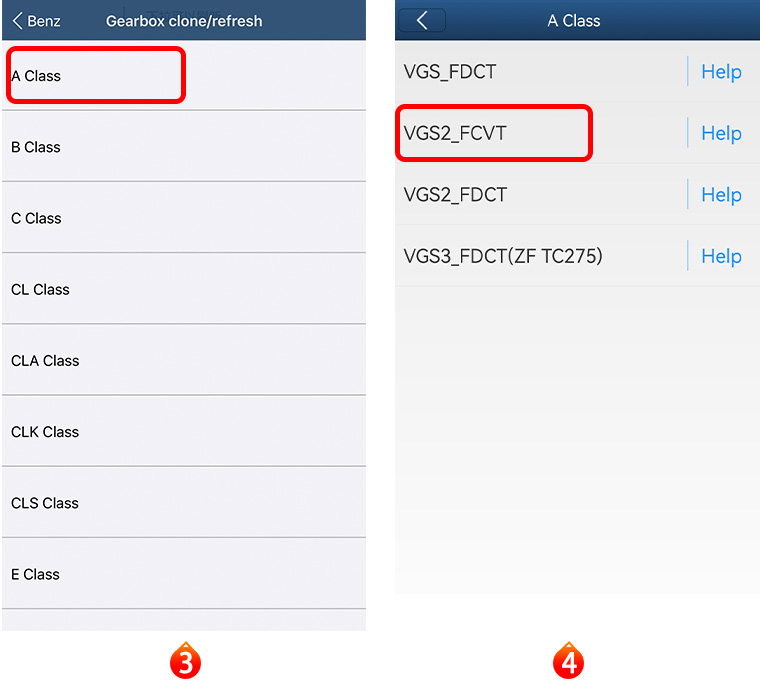

722.8（VGS2-FCVT）▼

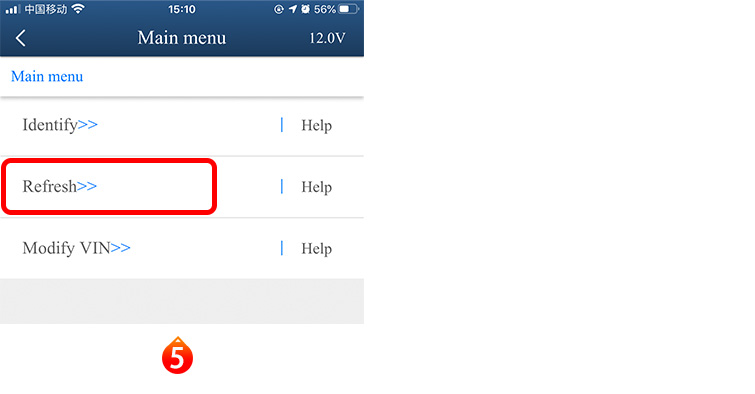

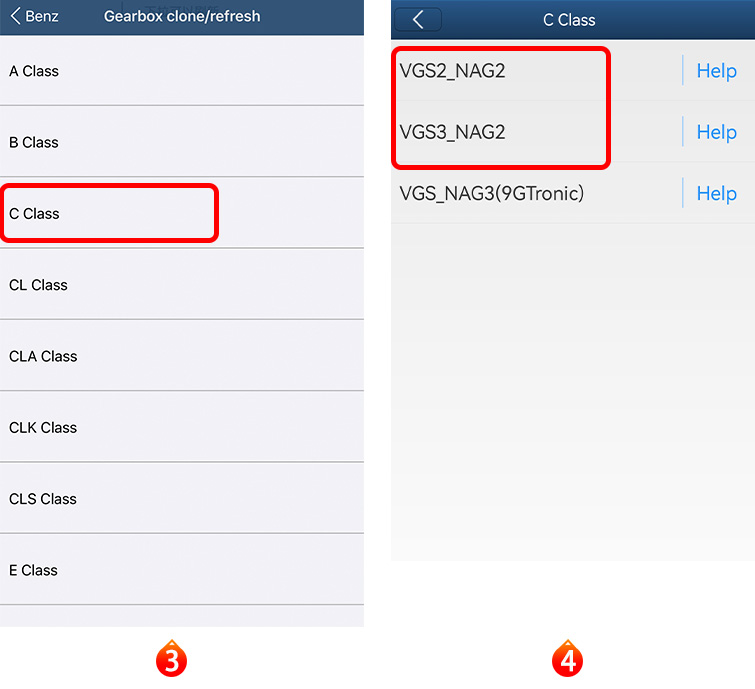

722.9-2/3（VGS2-NAG2/ VGS3-NAG2）▼
Configuration List:
ACDP-2 Configuration List (Module16 Mercedes-Benz gearbox Clone/Refresh)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | VGS2-FCVT Interface board |  |
Applicable to connect MB 722.8 (VGS2-FCVT) gearbox | 1 |
| 2 | VGS/VGS2-FDCT Interface board |  |
Applicable to connect MB (VGS-FDCT/VGS2-FDCT) dual-clutch gearbox | 1 |
| 3 | VGS2/3-NAG2 Interface board |  |
Applicable to connect MB 722.9-2/3 (VGS2-NAG2/ VGS3-NAG2) gearbox | 1 |
| 4 | GND Cable |  |
Applicable to connect VGS/VGS2-FDCT Interface board and gearbox（for spare） | 1 |
