ACDP-2 Module 15 Mercedes-Benz DME clone
Module function：
X1：MB-Bench-P2-X1supports DME clone of Mercedes-Benz152/157/274/276/278(MED17.7.3) 272/276(MED17.7.3.1),276/278(MED17.7.1),etc.
X2：MB-Bench-P2-X2 supports DME clone of Mercedes-Benz 133/270/274(MED17.7..2),etc.
X3：MB-Bench-P2-X3 supports DME clone of Mercedes-Benz260/264(MED17.7.7),etc.
X4：MB-Bench-P2-X4 supports DME clone of ercedes-Benzdiesel vehicle642(EDC17CP01)，642/651(EDC17CP46)，626/622/651(EDC17C66)，651/642(EDC17CP57),651/642(EDC17CP10),etc.
X5：MB-Bench-P2-X5 supports DMEclone of Mercedes-Benz 272/279(ME17.7),etc.
X6：MB-DME-ADAPTER X6supports DME clone of Mercedes-Benz diesel vehicle 642/654 (MD1CP001),etc.
X7：MB-DME-ADAPTER X7 supports DME clone of Mercedes-Benz 177/178(MED177.5)etc.
X8：MB-Bench-P2-X8 supports DME clone of Mercedes-Benz CLS/GT(MG1CP002),etc.
Module features：
1、No need to open DME shell, no need to drill hole on DME ,no need to plug wire.
2、The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place simple and efficient , plug and play , safe and reliable.

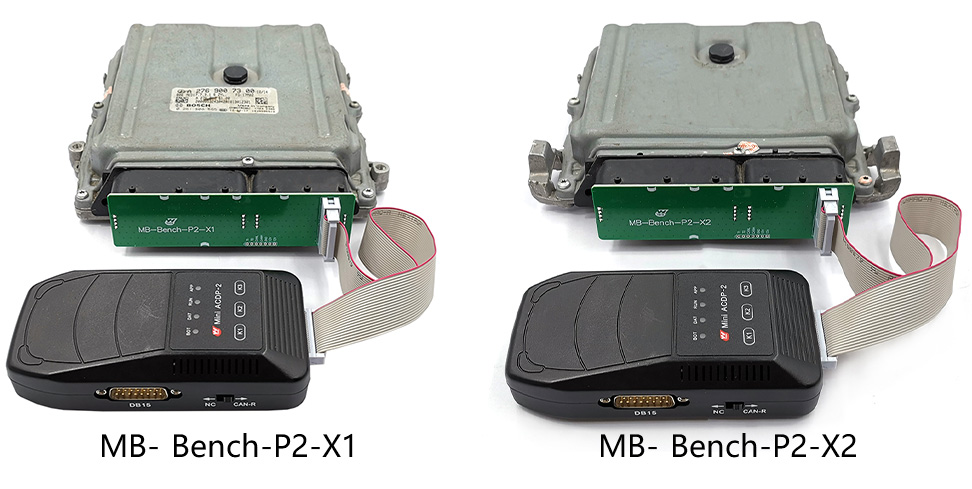

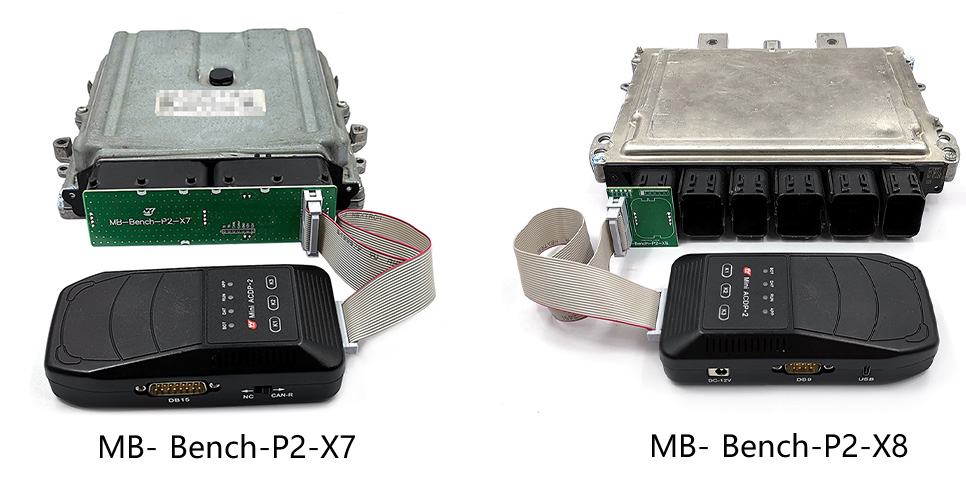

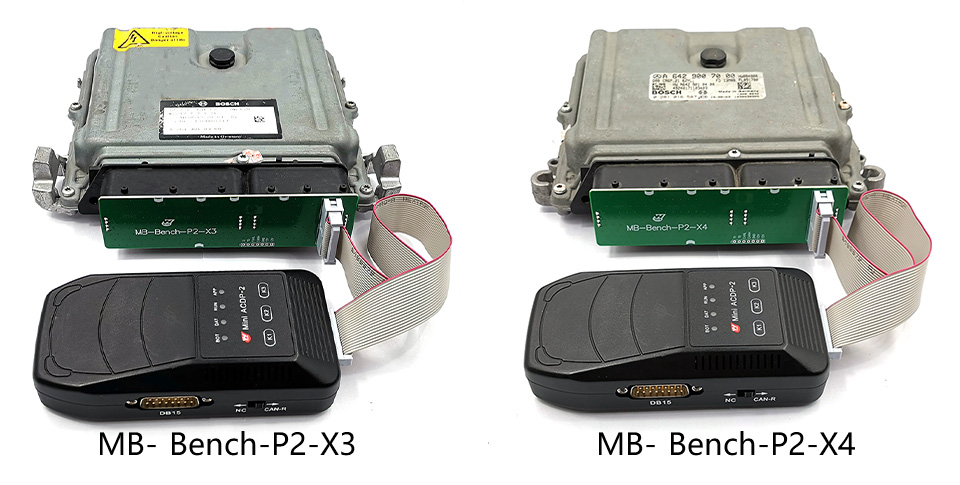

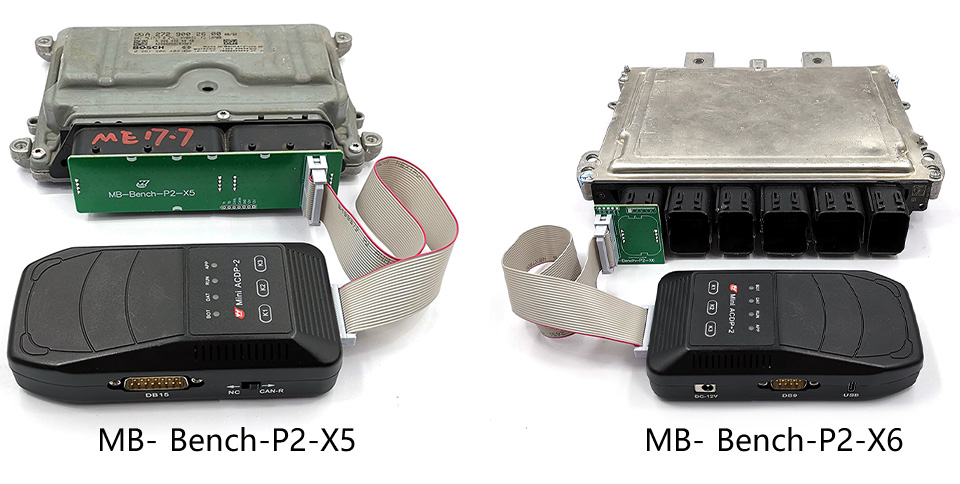

Overall connection diagram：

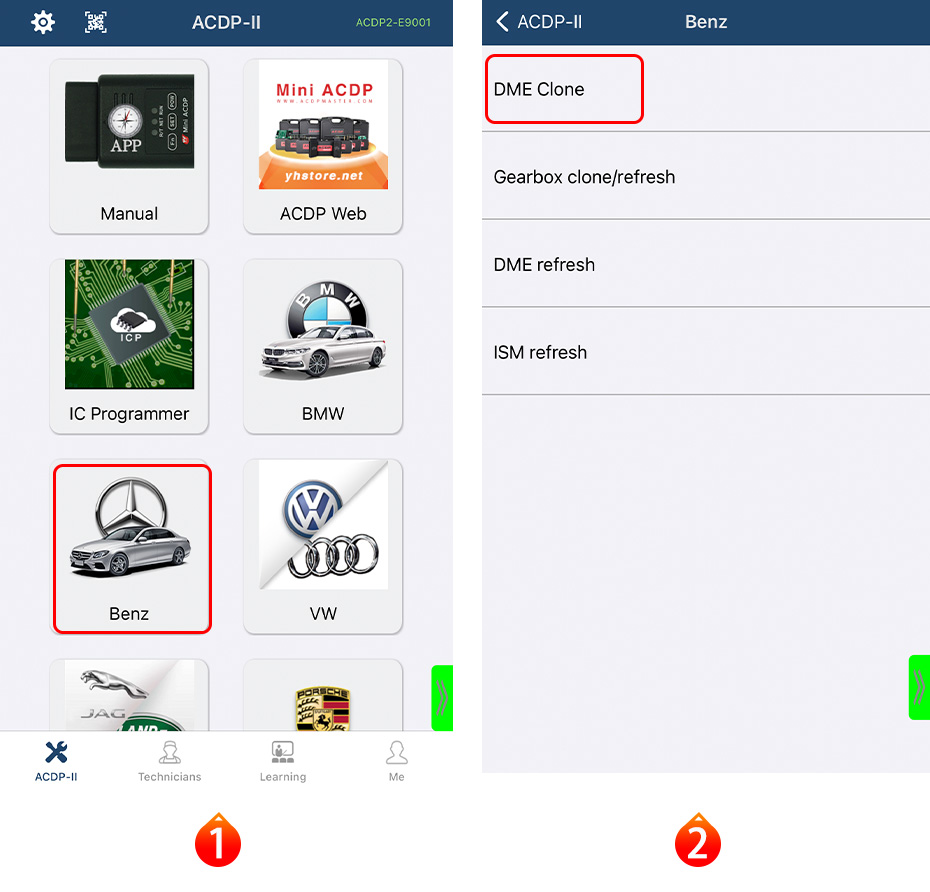

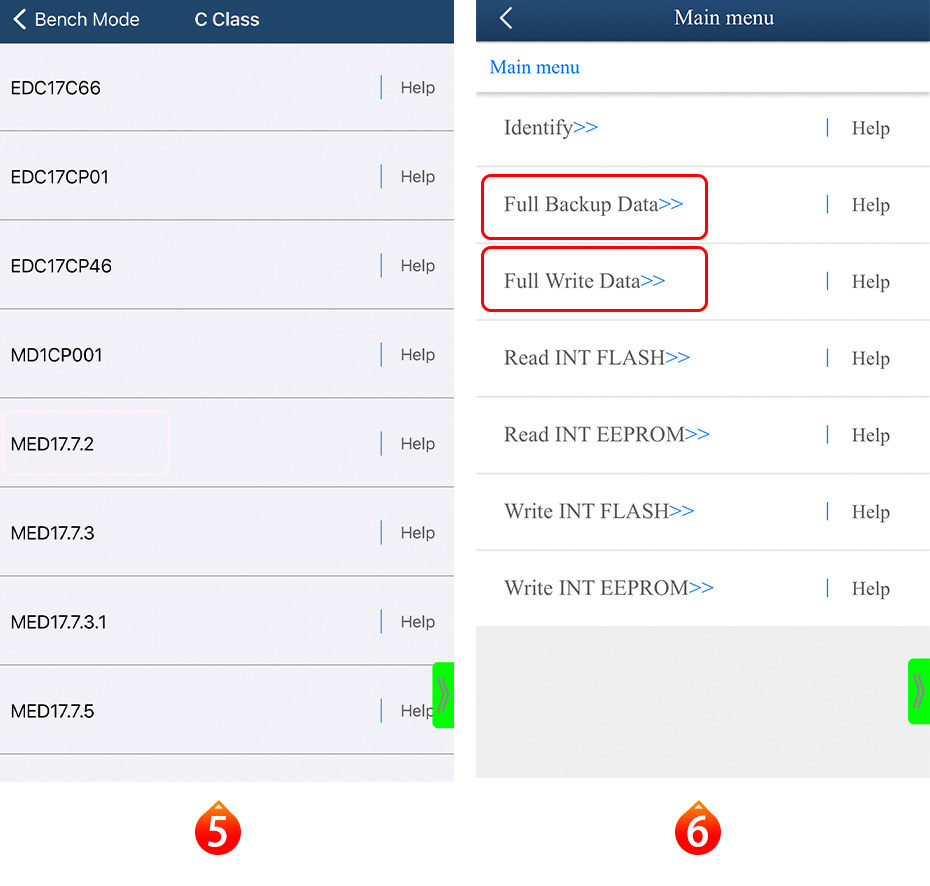

APP operation interface：
Configuration List:
ACDP-2 Configuration List (Module 15 Mercedes-Benz DME clone)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | MB-Bench-P2-X1 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 2 | MB-Bench-P2-X2 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 3 | MB-Bench-P2-X3 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 4 | MB-Bench-P2-X4 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 5 | MB-Bench-P2-X5 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 6 | MB-Bench-P2-X6 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 7 | MB-Bench-P2-X7 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
| 8 | MB-Bench-P2-X8 Interface board |  |
Applicable to connect to the corresponding model of Mercedes-Benz DME | 1 |
