ACDP-2 Module 12 VOLVO Module
Module function：
Support adding keys and all-key-lost for Volvo semi-smart keys(OBDand ICP) and smart key (ICP).
Module features：
1:Free of disassembly, Solderless,No need to remove components，No need to cut the line，No risk of damage to the computer board.
2:Set anti-theft data reading and writing，anti-theft data calculation，key programming in one.
3:The interface board replaces the welding wire，the pin connect with intelligent detection,and the data reading and writing is safe and reliable.
4:With the key unlock function, No longer afraid of loss caused by key be locked.

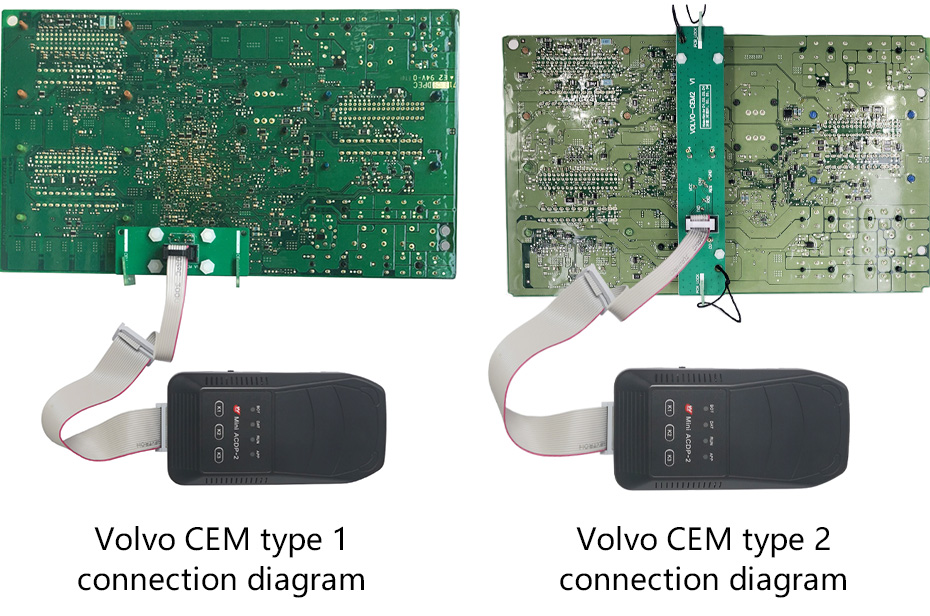

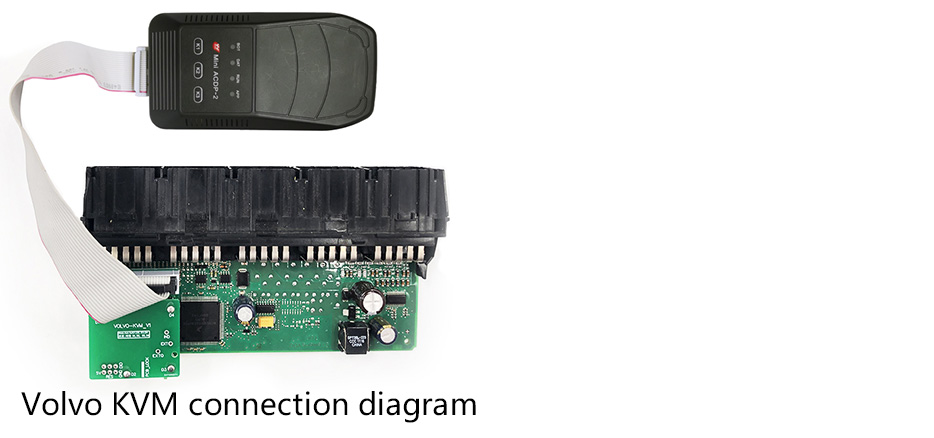

Overall connection diagram：

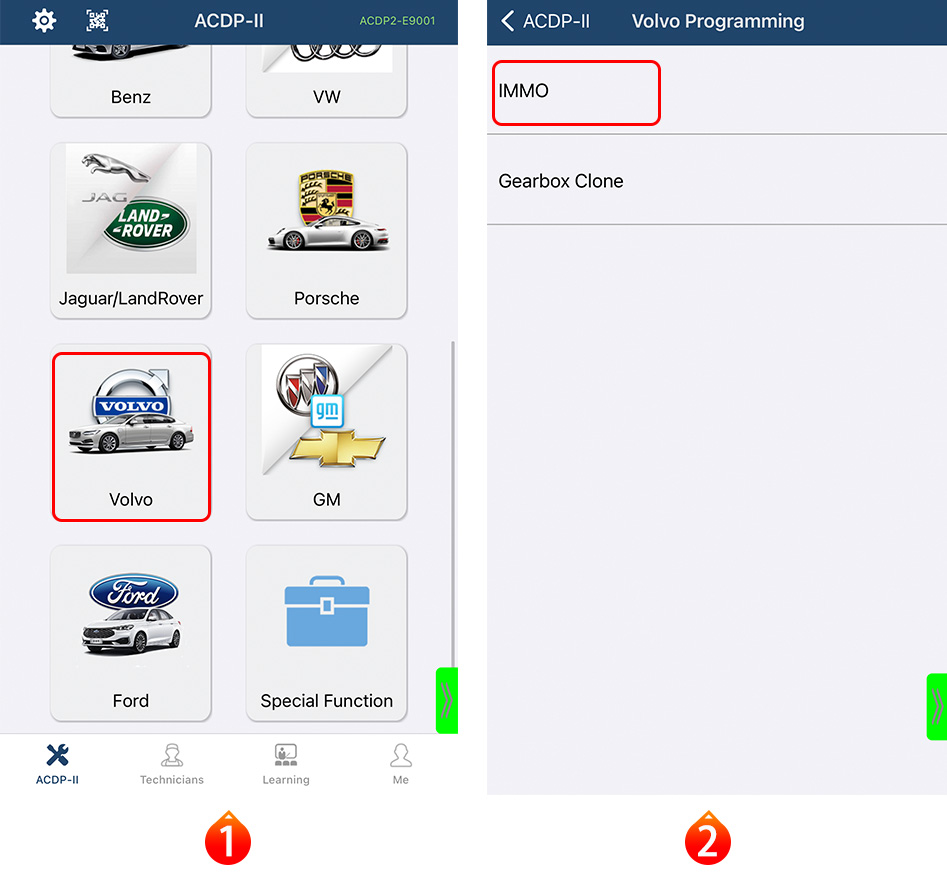

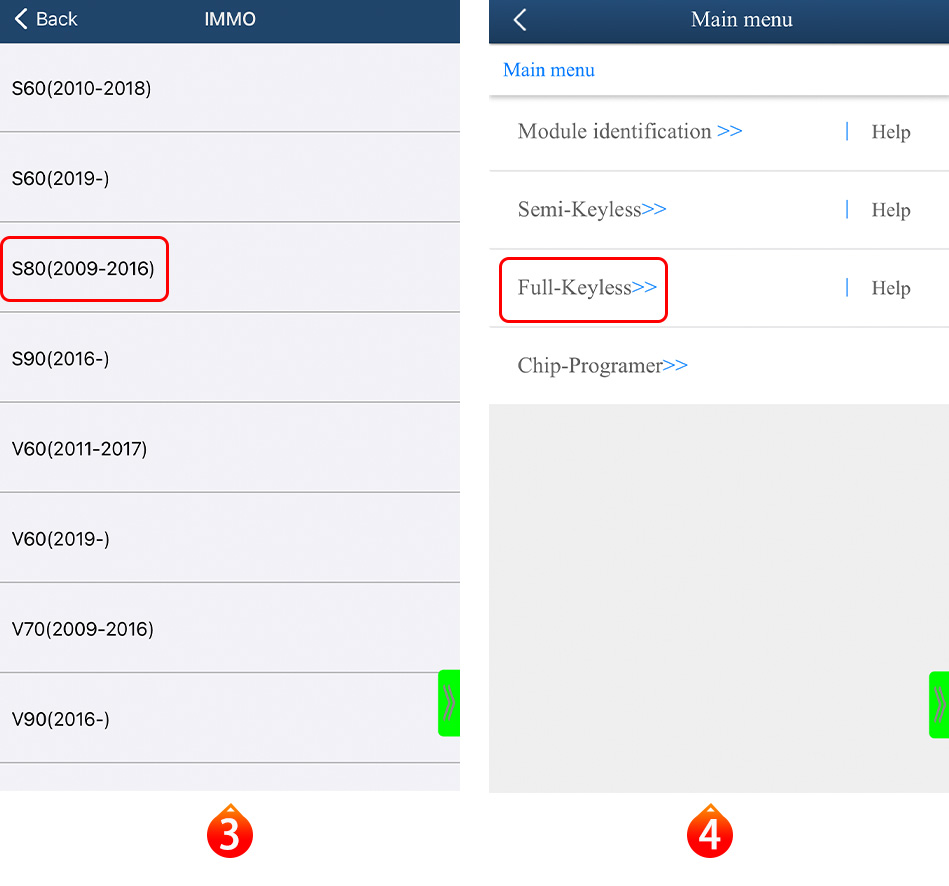

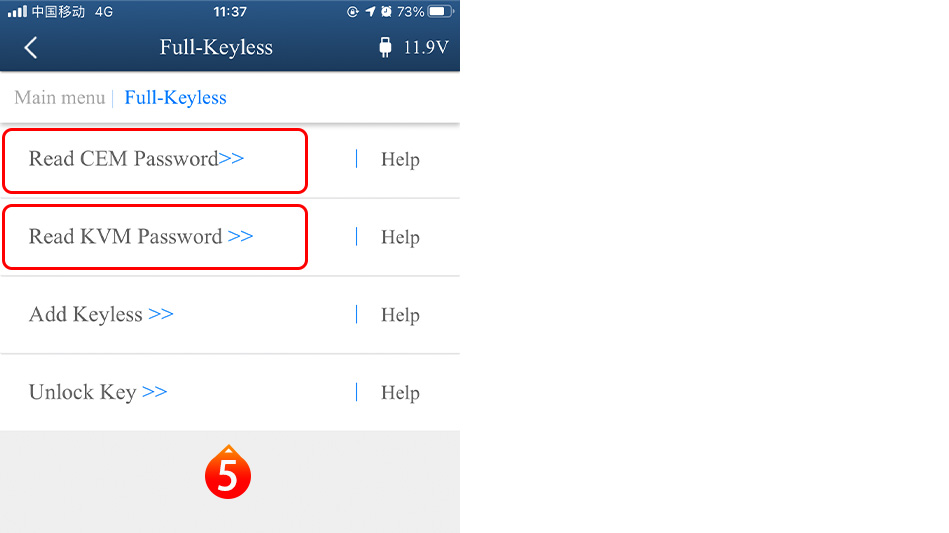

APP operation interface：
Configuration List:
ACDP-2 Configuration List (Module 12 VOLVO Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|

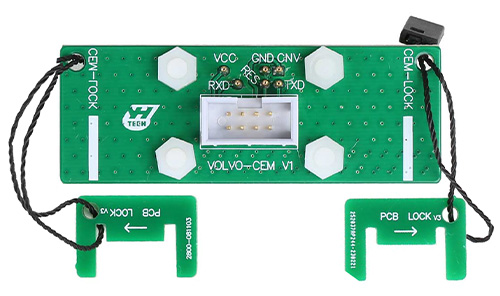

| 1 | VOLVO CEM V1 Interface board |  |
Applicable to connect VOLVO CEM module and read password. | 1 |

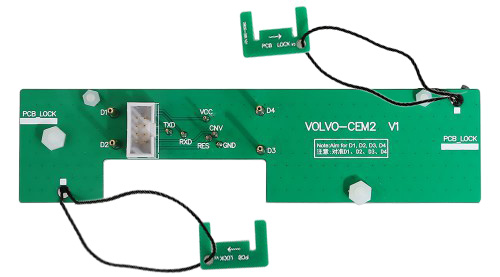

| 2 | VOLVO CEM2 V1 Interface board |  |
Applicable to connect VOLVO CEM module and read password. | 1 |

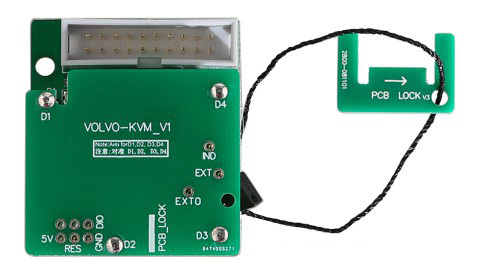

| 3 | VOLVO KVM V1 Interface board |  |
Applicable to connect VOLVO KVM module and read password. | 1 |
| 4 | VOLvo Copperpillar Package (M2.5*12+6mm)x2 (M2.5*20+6mm)x1 |
 |
Applicable to fix OLVO interface board. | 3 |
| 5 | Test Points cleaning probes |  |
Applicable to clean Test Points. | 1 |
