ACDP Module10 Porsche BCM Module

Module function：

Support Adding key and all-key-lost for Porsche BCM.

Module features：

1: Free of disassembly, Solderless. No need to remove components, No need to cut the line,No risk of damage to the BCM computer board.

2: Set anti-theft data reading and writing, anti-theft data calculation, key programming in one.

3: The interface board replaces the welding wire, the pin connect with intelligent detection, and the data reading and writing is safe and reliable.

4: With the key refresh function, No longer afraid of loss caused by key be locked.

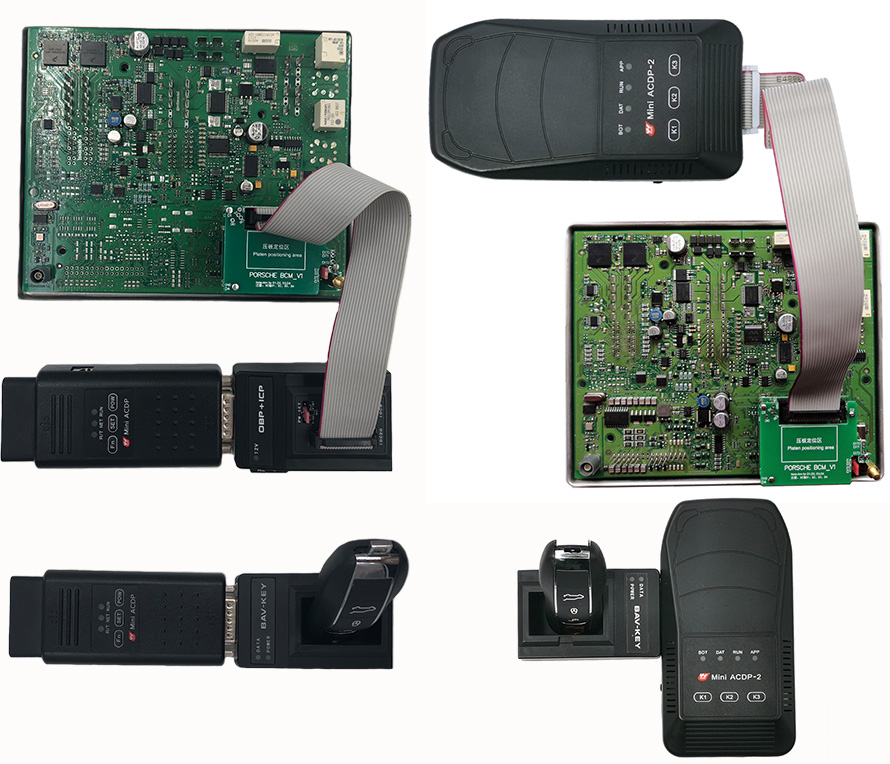

Overall connection diagram:

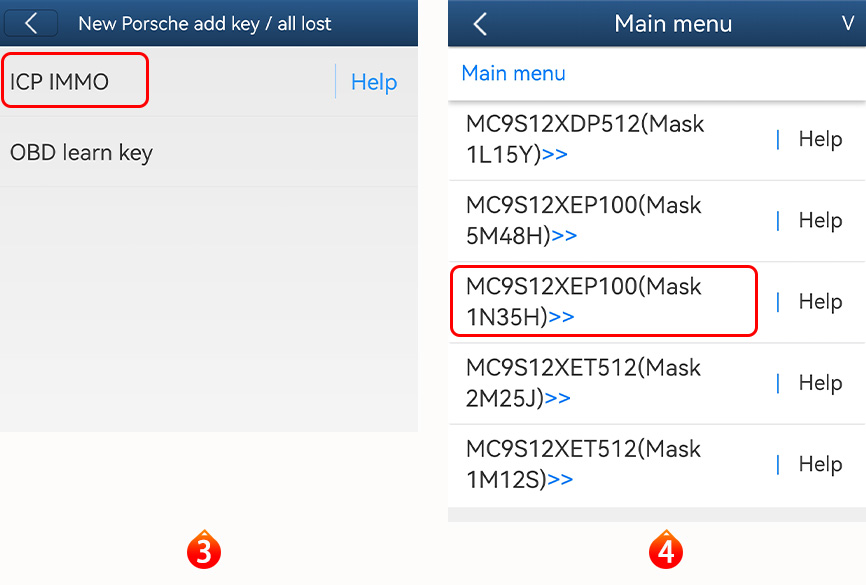

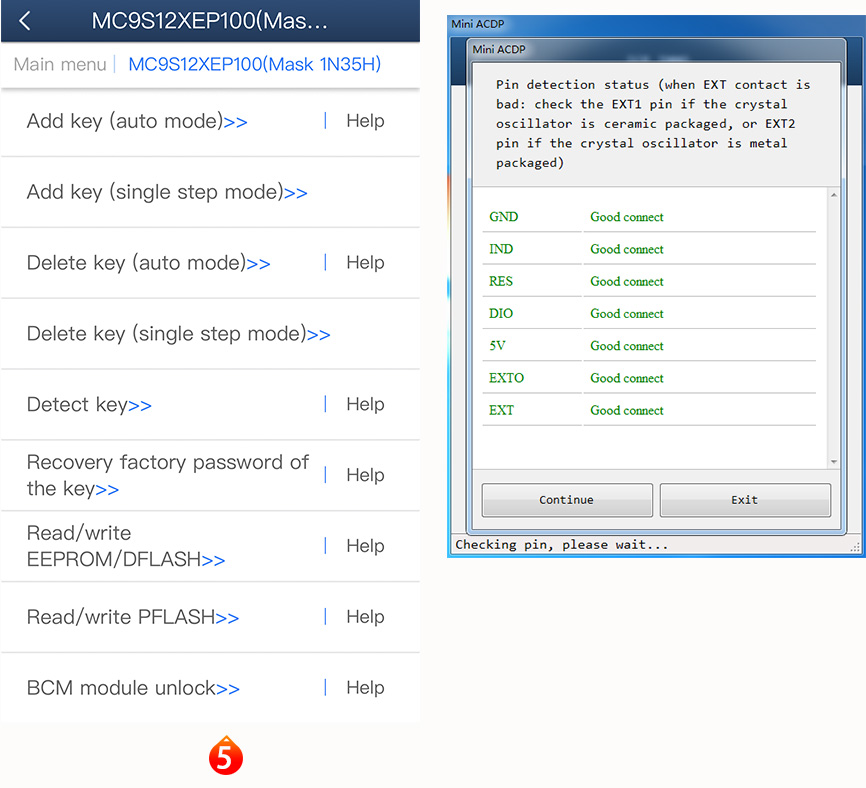

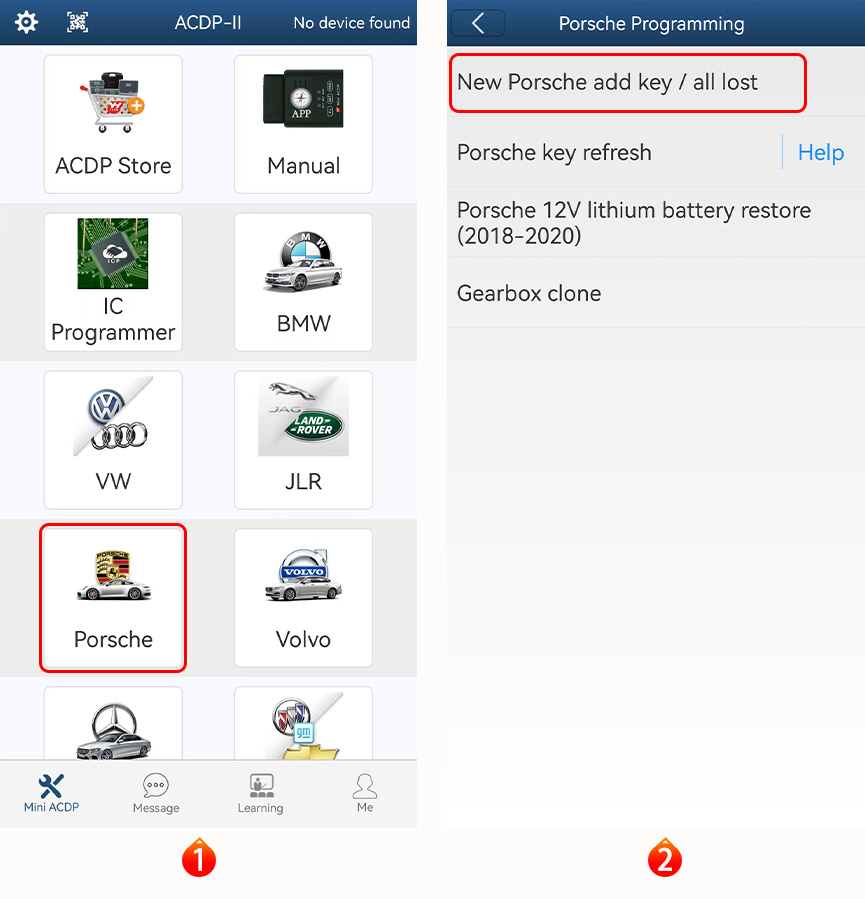

APP operation interface：

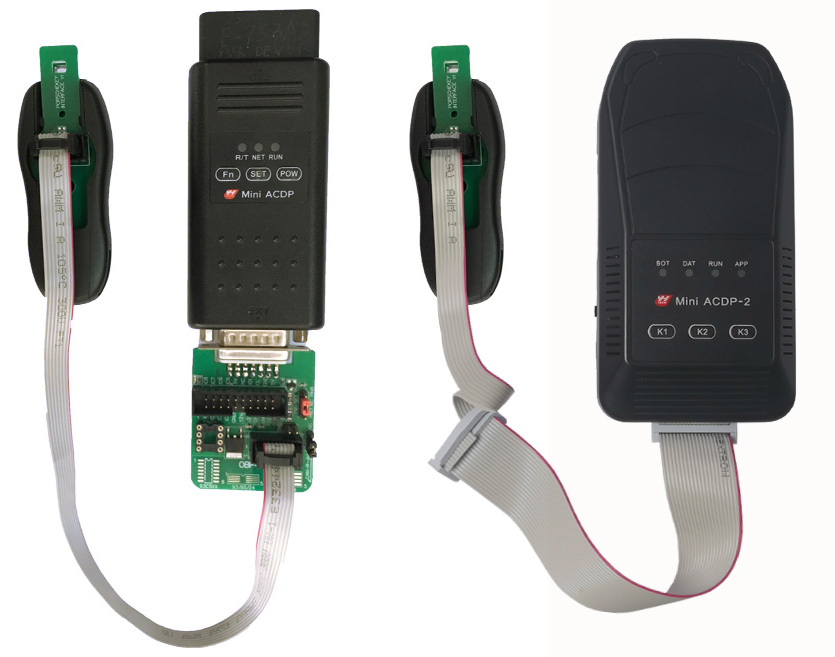

Porsche key refresh Connection diagram ▼

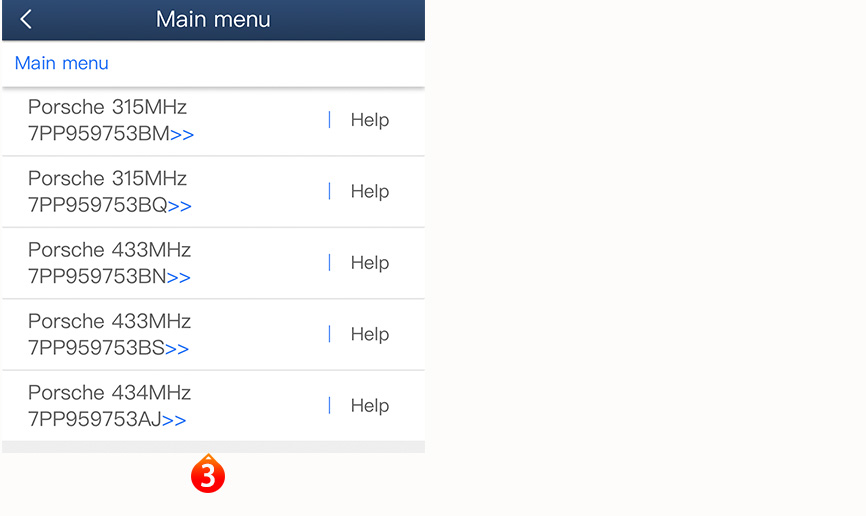

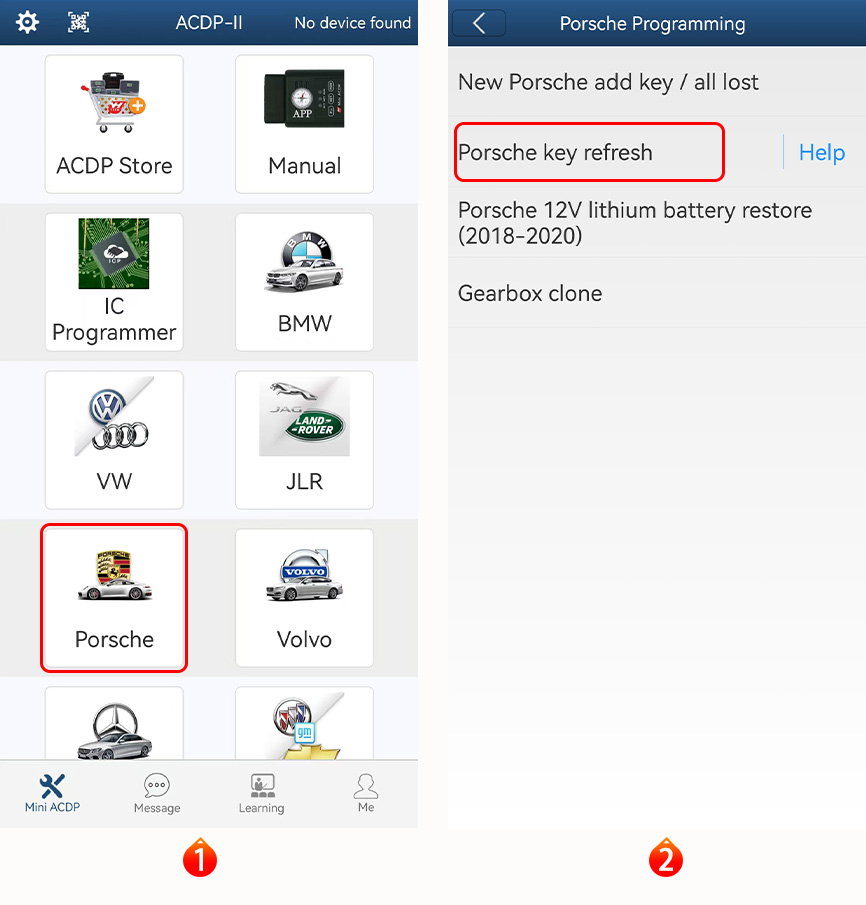

APP operation interface：

The comparison between ACDP and other devices for reading/writing Porshe BCM data

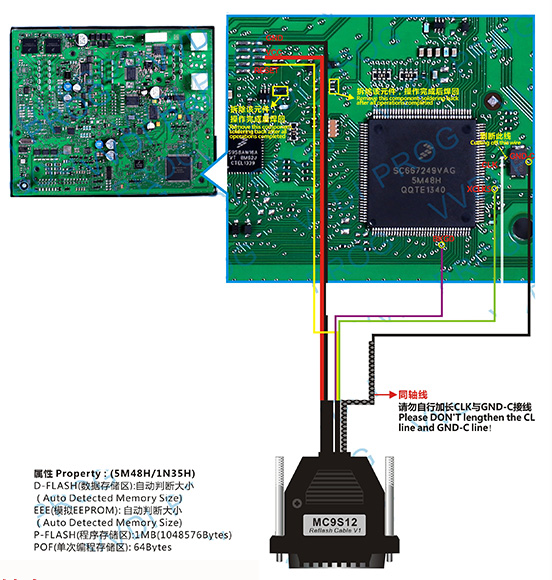

一：The other devices to read/write Porshe BCM data by traditional way---soldering.

Requiring desoldering these 2 components as marked，and soldering them back after reading/writing data is completed.

disadvantages：

1. Requiring soldering, which with complicated and long time operation.
2. Requiring cutting lines and removing 2 components which may cause the risk of module damage.
3. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost.

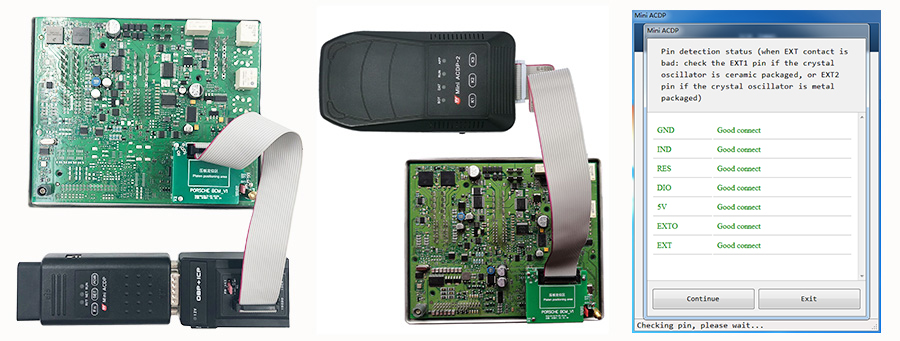

二：ACDP reading/writing Porshe BCM data by ICP

Advantages：：

1. Interface board replaces the soldering to make the operation simple and efficient.
2. No cutting lines, no lifting pins, no removing components, no soldering and no risk of module damage.
3. Pin intelligent detection to ensure data reading/writing safe and reliable.

Configuration List:

ACDP Configuration List (Module10 Porsche BCM Module)
