ACDP-2 Programming Module
Module features：
It supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP)and on adapter board programming(OBP).This module is a necessary basic configuration for other modules.
Extended Functions: By expanding more adapters to achieve various functions auch as ECU programming key programming/matching，ECU refresh.
The current adapters include:BMW CAS，BMW FEM/BDC，BMW DME，Meter/Instrument,BMW Key refresh,BMW FRM(Footwell)，BMW EGS(Gearbox),
Fujitsu CPU,VW MQB,Jaguar Land/Rover KVM，Porsche BCM，Volvo, etc.
1、No need removing chip，No need soldering，No need cutting line，No need lifting the pin.
2、USB direct connection, plug and play. wifi connection, wireless free.
3、Pin intelligent detection，Data reading and writing is safe and reliable.
Device connection mode：

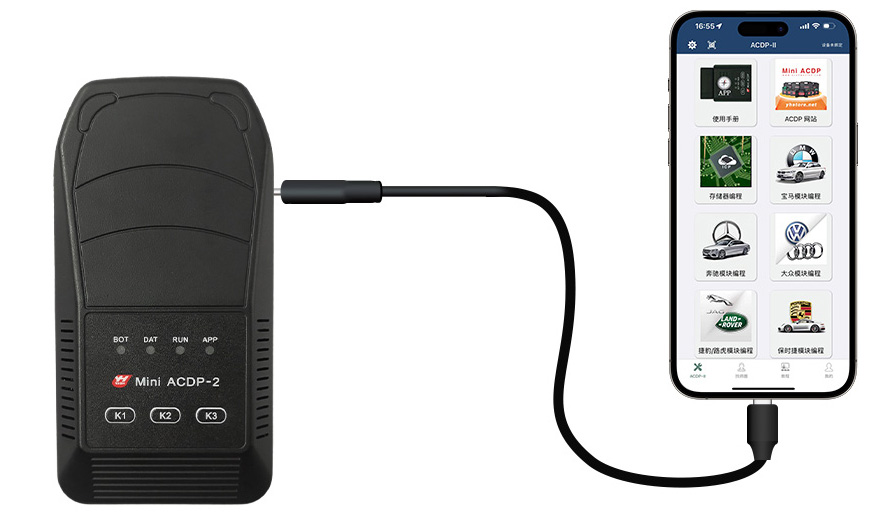

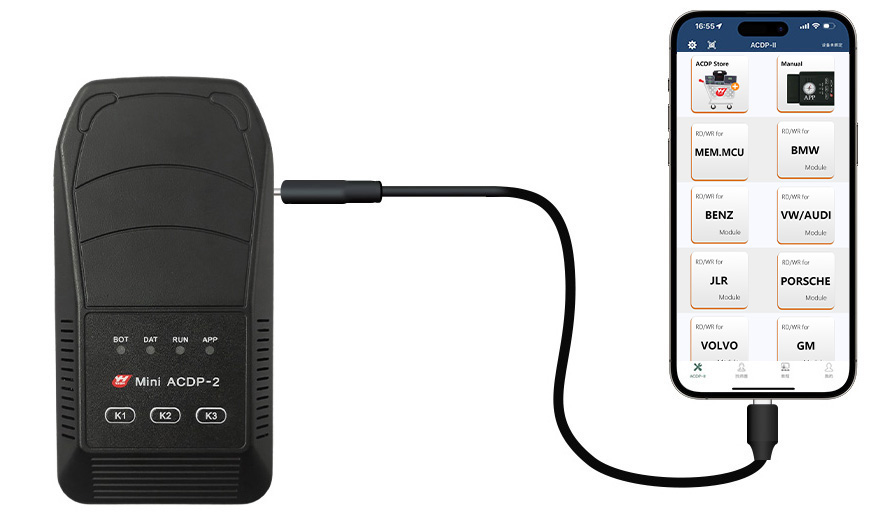

1：IOS connection ▼

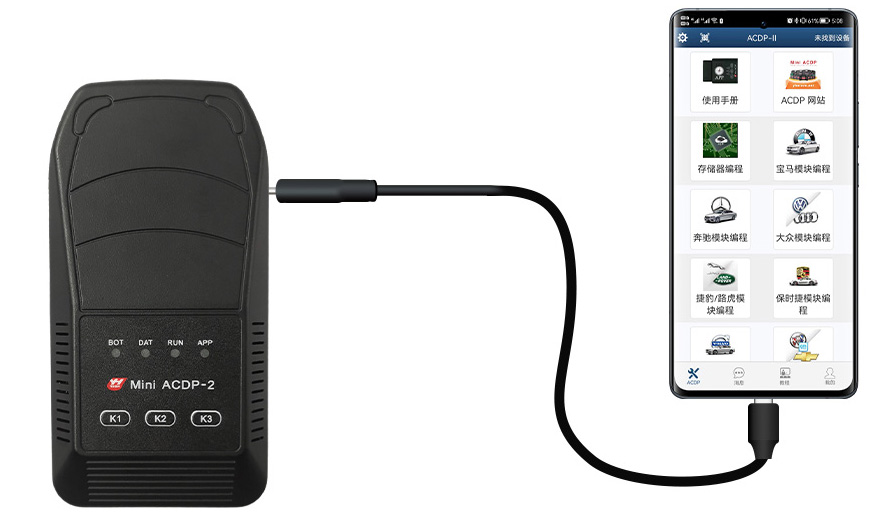

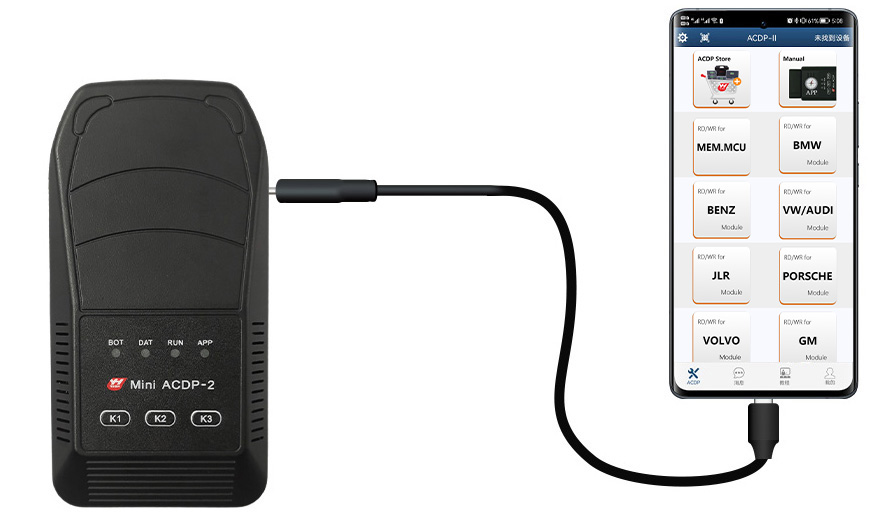

2：Android connection ▼

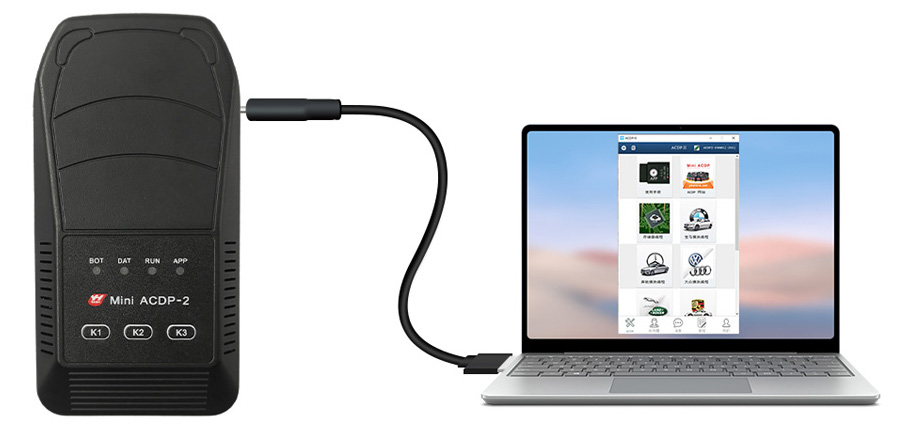

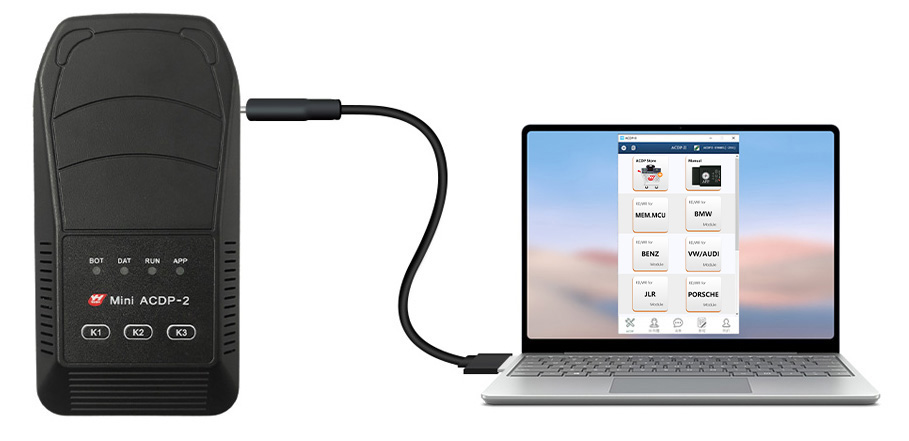

3：PC connection ▼
Configuration List:
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | ACDP-2 Programmer |  |
1 | |
| 2 | Puncture Socket（With one more plastic part） |  |
Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable. | 1 |
| 3 | BAV-KEY adapter |  |
Applicable to identify BMW keys, data writing and matching. | 1 |
| 4 | P8P Cable |  |
Applicable to read and write 8-pin EEPROM data via cable connecting. | 1 |
| 5 | 8P Cable |  |
Applicable to connect the 8-PIN interface board of each module. | 1 |
| 6 | 20P Cable |  |
Applicable to connect the ACDP2 host to 20 pin interface board. | 1 |
| 7 | 20P to 8P cable |  |
Applicable to connect the ACDP2 host to 20 pin and 8 pin interface board. | 1 |
| 8 | Android cable |  |
Applicable to connect the ACDP2 host and Android phone. | 1 |
| 9 | IOS cable |  |
Applicable to connect the ACDP2 host and IOS phone. | 1 |
| 10 | PC cable |  |
Applicable to connect the ACDP2 host and PC. | 1 |
| 11 | OBD cable |  |
Applicable to connect the ACDP2 host and vehicle OBD. | 1 |
| 12 | 14V Switch Power Supply |  |
Power the ACDP-2 host. | 1 |
| 13 | OBP2 Switch Power Supply |  |
Applicable to reading 8-pin chip data with or without soldering | 1 |
| 14 | Test Points cleaning probes |  |
Applicable to clean test point three anti-paint. | 4 |
| 15 | Double-head line |  |
Applicable to point-to-point connections. | 3 |
