ACDP Programming Master
Module Function：

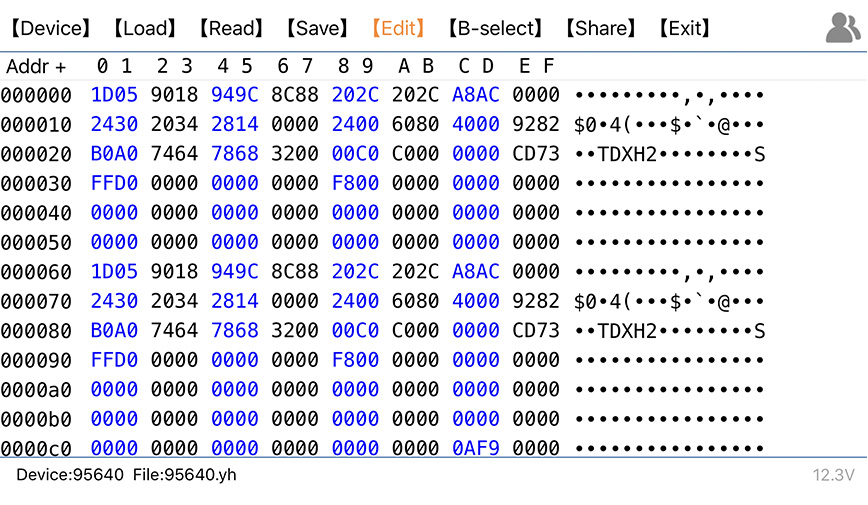

It supports 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP). This module is a necessary basic configuration for other modules.
Extended Functions: By expanding more adapters to achieve various functions auch as ECU programming, key programming/matching, ECU refresh. The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh,BMW FRM( Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB , Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.
Module Feature：
1：Programming data without soldering is safe and reliable: no need to remove chip, no need soldering,no need to cut the line, no need to lift the pin.
2：Supporting PC/Apple IOS/Android Mobile Phone Operations Wifi Connection /Router Connection/Mobile Hot Spot Direct Connection.
3：Smart pins detection. Data reading and writing is safe and reliable.
Pictures：
The comparison between ACDP and other devices for reading/writing data of 8-pin chip
The other devices to use the traditional way---soldering to read/write data of 8-pin chip
Need to desolder the 8-pin chip from cluster or airbag, then solder to the corresponding adapter, lastly connect device to read/write data.
disadvantages：
1. Double soldering of the FEM/BDC core-chip 95128/95256 may cause the module damage.
2. Manual soldering is risky and unreliable. Any faulty solder may cause the data lost.

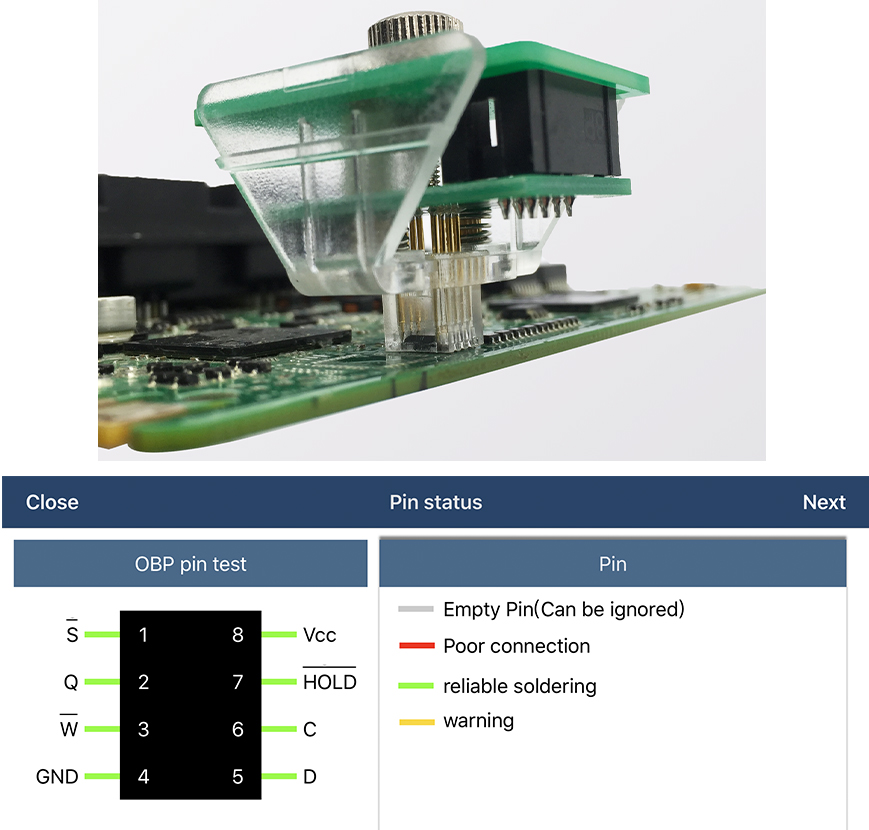

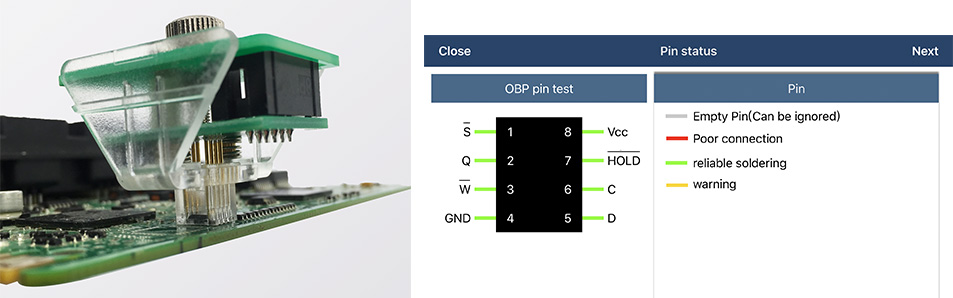

ACDP reading/writing 8-pin data by ICP
需要将8脚芯片从仪表或者气囊等PCB上用电烙铁焊下来，然后重新焊接到对应的适配器上，连接设备进行数据读写。
Advantage：
1. Special puncture socket replaces the soldering to make the operation simple and efficient.
2. Pin intelligent detection to ensure data reading/writing safe and reliable.
Configuration List:
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | ACDP Programmer |  |
1 | |

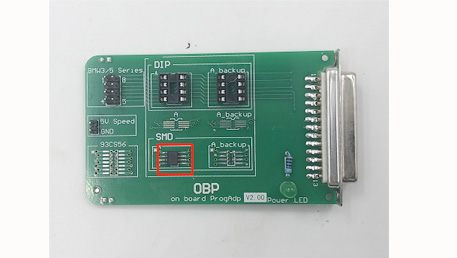

| 2 | OBP+ICP Adapter |  |
Applicable to read and write 8-pin EEPROM data without removing/soldering. Used with 8P cable and 20P cable. | 1 |
| 3 | Puncture Socket（With one more plastic part） |  |
Applicable to read and write 24/93/95 and other series 8-pin EEPROM data without removing/soldering. | 1 |
| 4 | BAV-KEY adapter |  |
Applicable to identify BMW keys, data writing and matching. | 1 |
| 5 | P8P Cable |  |
Applicable to read and write 8-pin EEPROM data via cable connecting. | 1 |
| 6 | 8P Cable |  |
Applicable to connect OBP+ICP adapter and puncture socket. | 1 |
| 7 | 20P Cable |  |
Applicable to connect OBP+ICP adapter and BDM01 adapter. | 1 |
| 8 | 12V Switch Power Supply |  |
Supply power to the ACDP Host. | 1 |
| 9 | Test Points cleaning probes |  |
Applicable to clean Conformal coating. | 4 |
| 10 | Double-head line |  |
Applicable to point-to-point connections. | 3 |
