ACDP Module8 FRM Module （Note: need module 1（A500）license）
Module Function：
Repair FRM（3M25J Chip）without coding.
Read and write BMW FRM module (FRM Footwell module) 0L15Y chip EEPROM/FLASH data.
Read and write 3M25J chip EEPROM/D-FLASH/P-FLASH data
Module Feature:
1:The interface board replaces the welding wire.
2:The pin connect with intelligent detection.
3:The data reading and writing is safe and reliable.

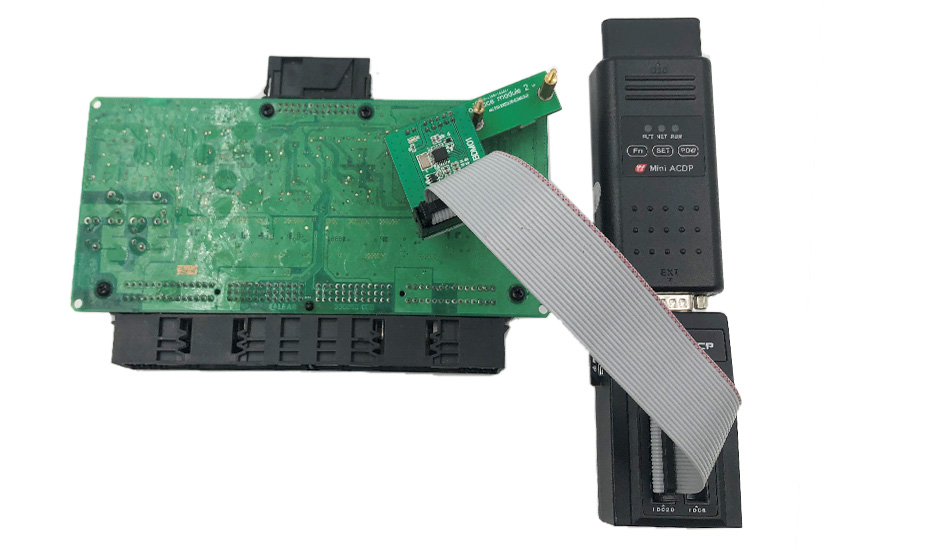

Overall connection diagram:

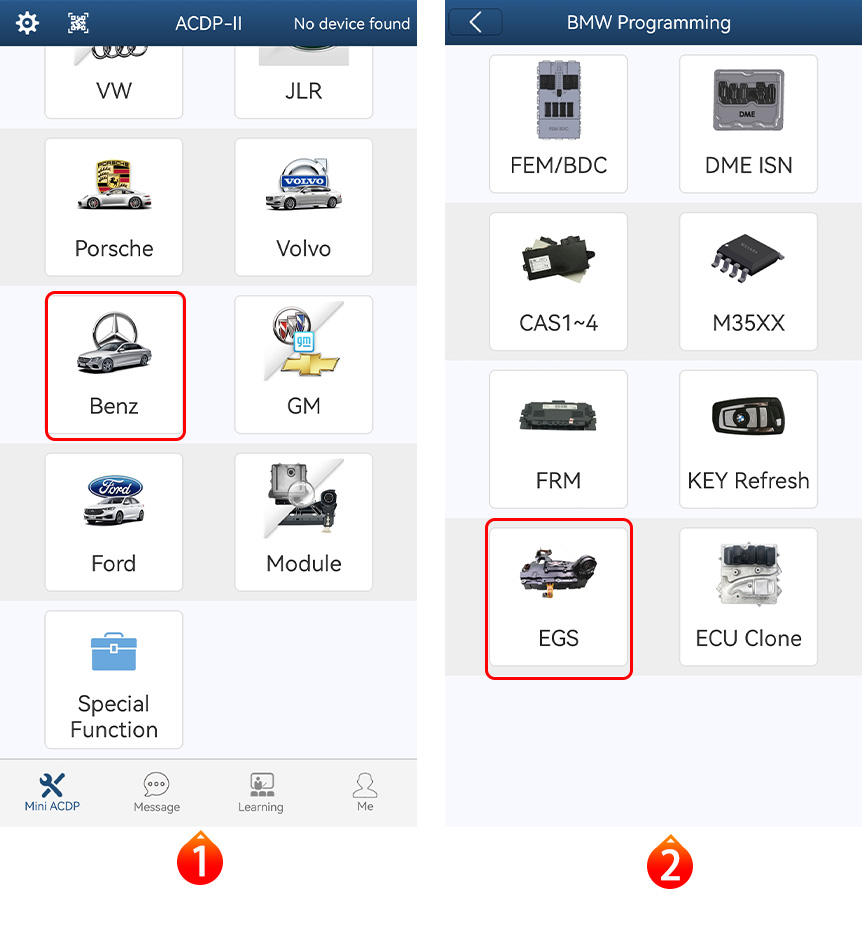

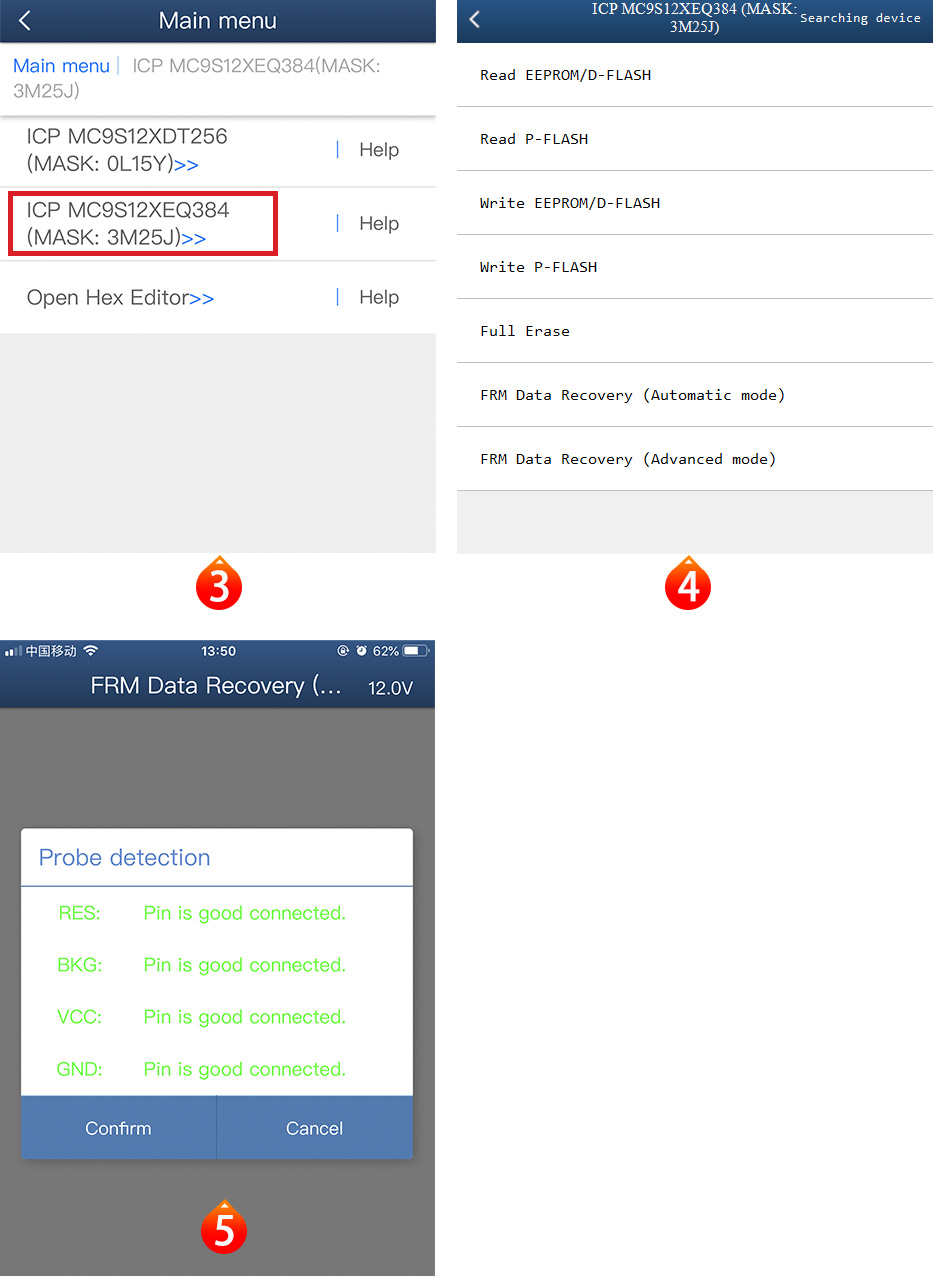

APP operation interface：
Configuration List:
ACDP Configuration List (Module8 FRM )
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | 0L15Y chip Interface board |  |
Applicable to connect BMW FRM module (FRM Footwell module)，test point of 0L15Y chip interface board. | 1 |
| 2 | 3M25J chip Interface board |  |
Applicable to connect BMW FRM module (FRM Footwell module)，test point of 3M25J chip interface board. | 1 |
| 3 | Copper pillar package（Single head six angle stud M2.5*12+6mm） |  |
Applicable to fix BMW FRM module (FRM Footwell module)，0L15Y and 3M25J chip interface boards. | 12 |
