ACD Module3 BMW ISN
Module Function：
Read the requested ISN code when making BMW all key lost.
Module Feature:

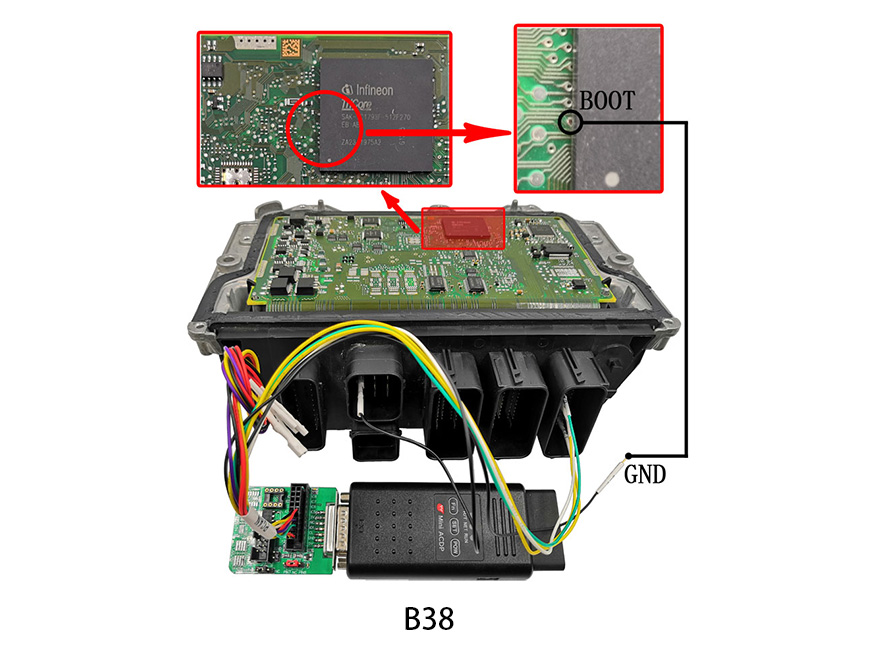

Read ISN codes of N20/N55/N13/B48 by OBD or without openning the DME shell. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell. Read ISN code of other models (B38, etc.) by opening the shell.

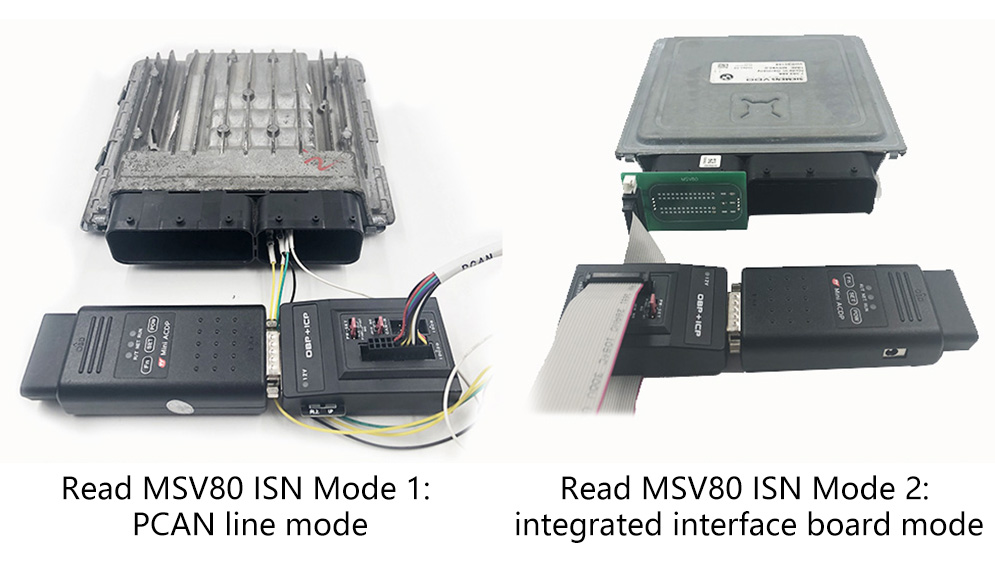

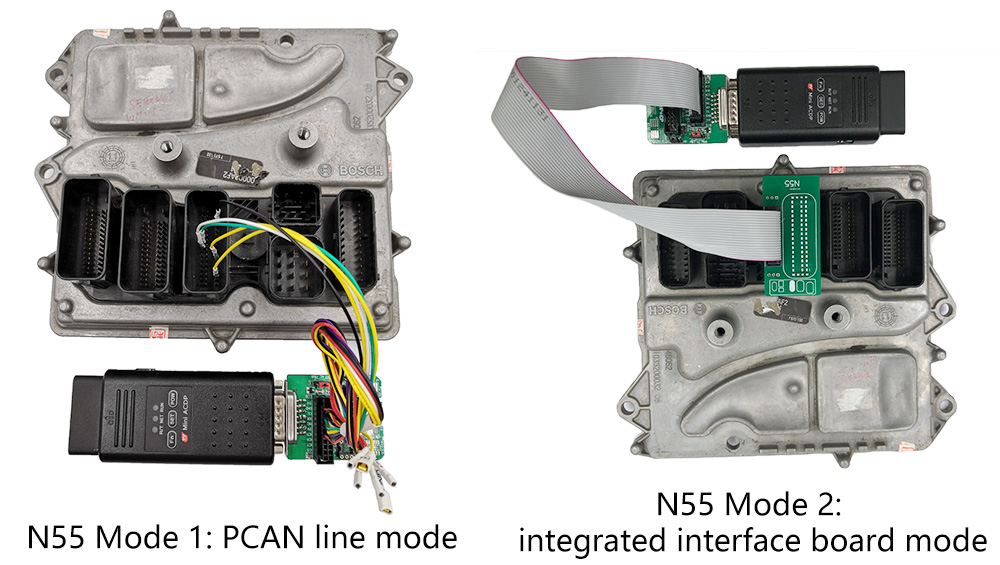

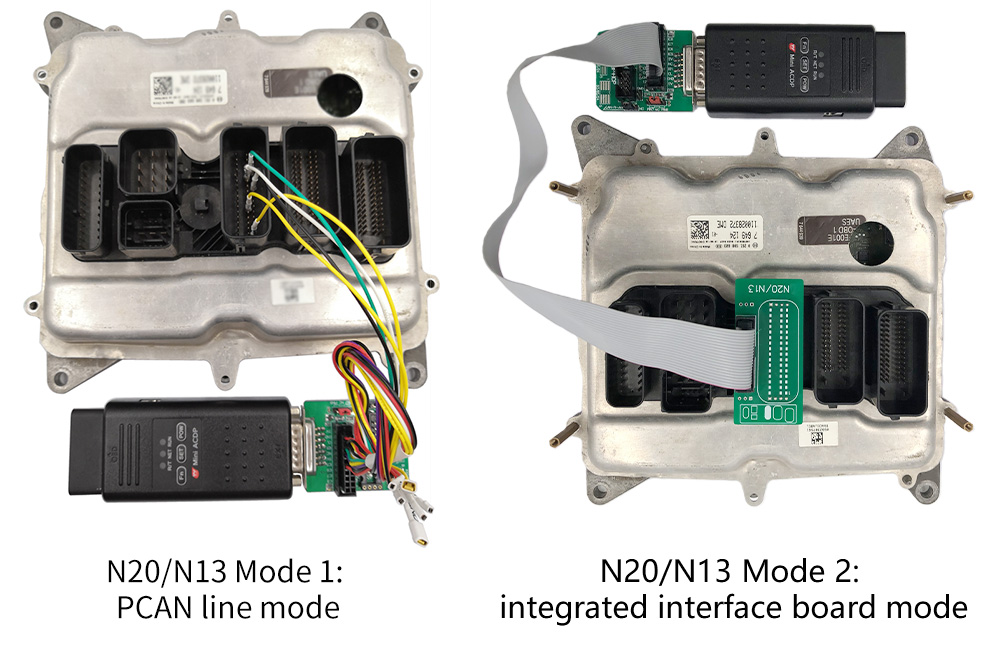

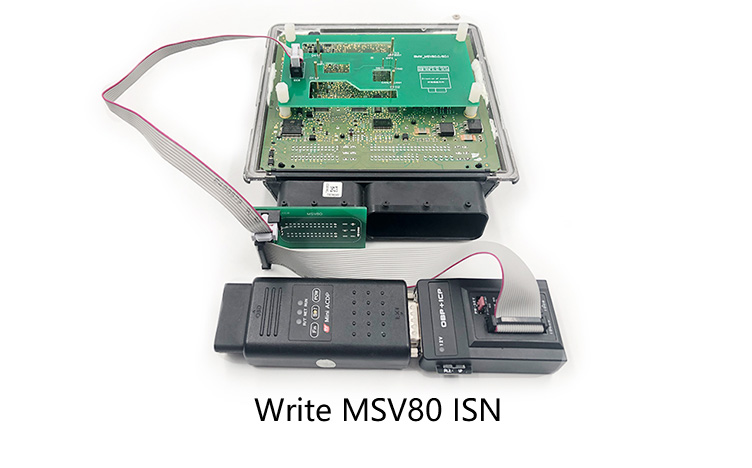

Overall connection diagram:

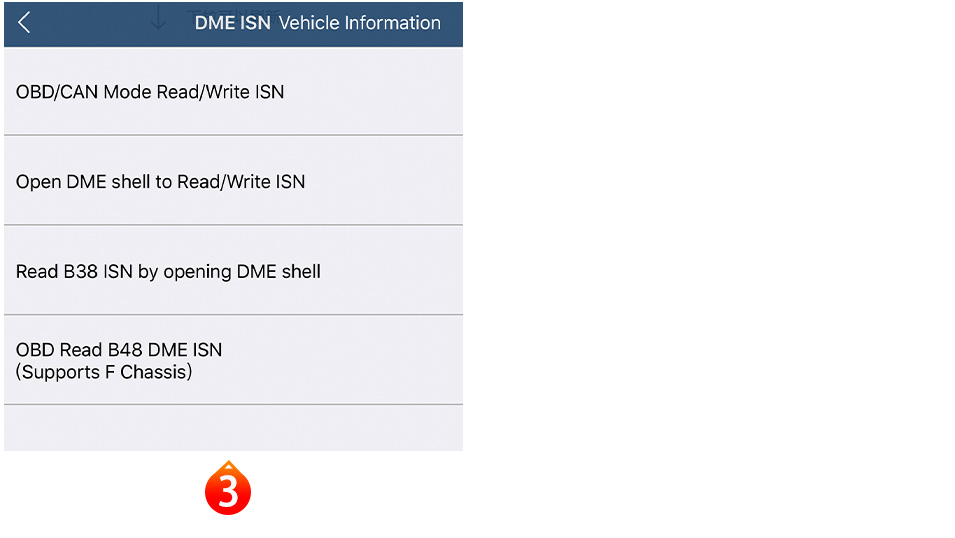

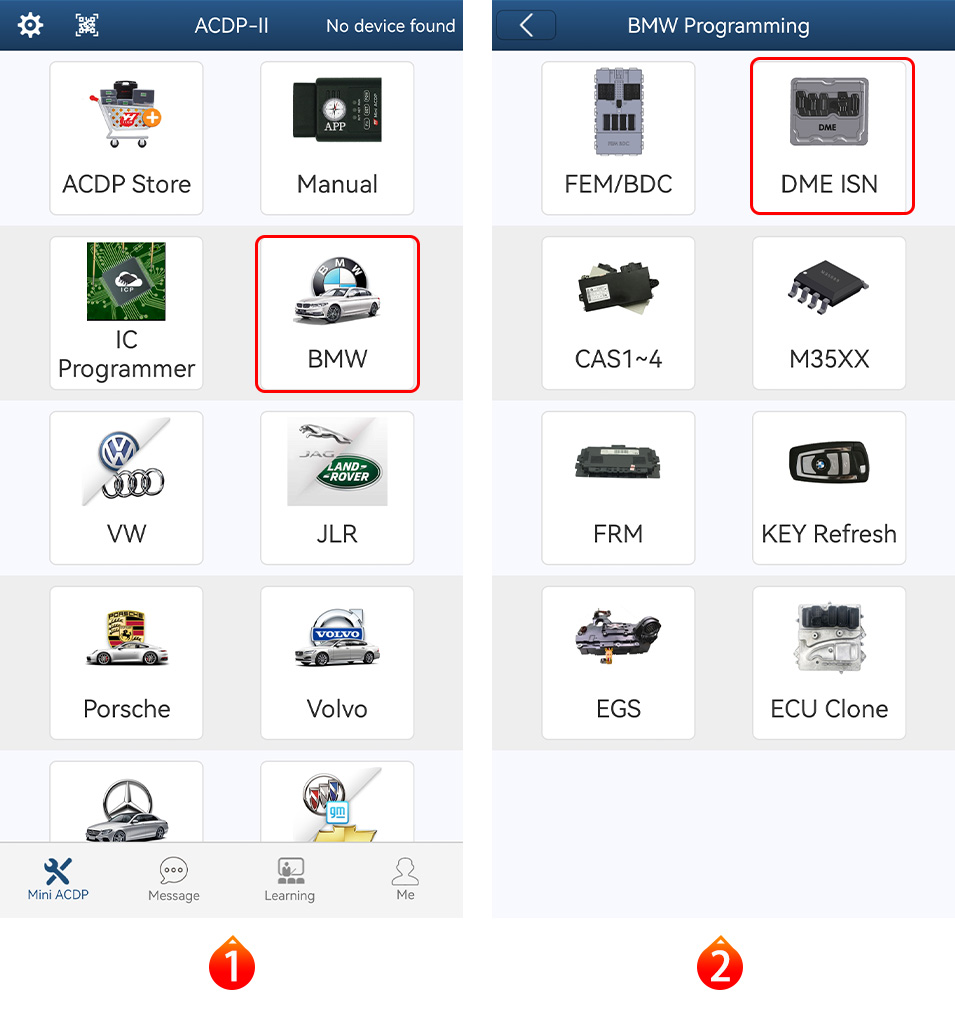

APP operation interface：
Configuration List:
ACDP Configuration List (Module3 BMW ISN Module)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | BMW-N13 Interface Board |  |
Applicable to connect BOOT point when reading ISN code of N20 DME bydrilling hole. | 1 |
| 2 | N20 shell drilling hole caliper |  |
Applicable to limit thedepth of drilling. | 1 |

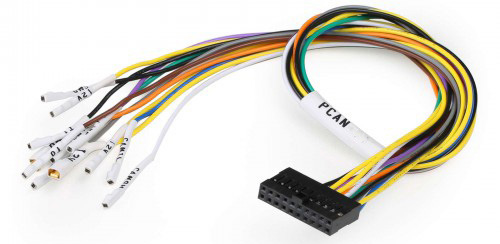

| 3 | P CAN Cable |  |
Applicable to connect BMW DME to read ISN code. | 1 |
| 4 | N13 Interface Board Copper pillar package (Single headsix angle studM3.5*27+8mm) |  |
Applicable to fix the BMW-N13 interface board. | 4 |
