ACDP Module 18 Mercedes-Benz DME/ISM refresh
Module function：
1.Support Mercedes-Benz CR3.XX/CR4.XX/CR5/CR6/CR60.XX/SIM271DE2.0/SIM4LKE/SIM271KE2.0/CRD.11/CRD2.XX/ME9.7/MED17.7.X/SIM266 etc.DME refresh.
2.Support Mercedes-Benz ISM refresh.
Overall connection diagram：

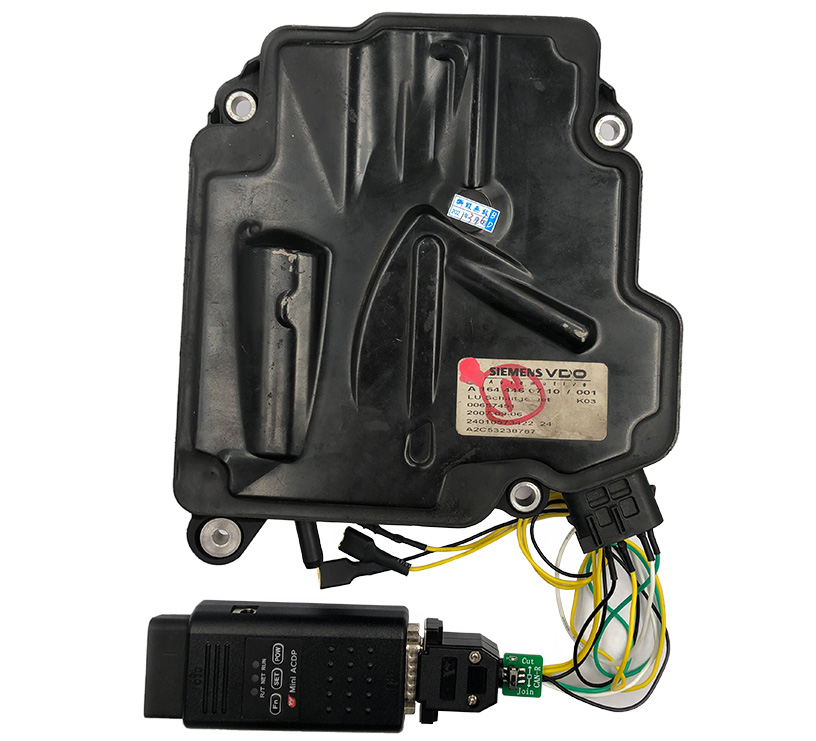

Mercedes-Benz ISM ▼

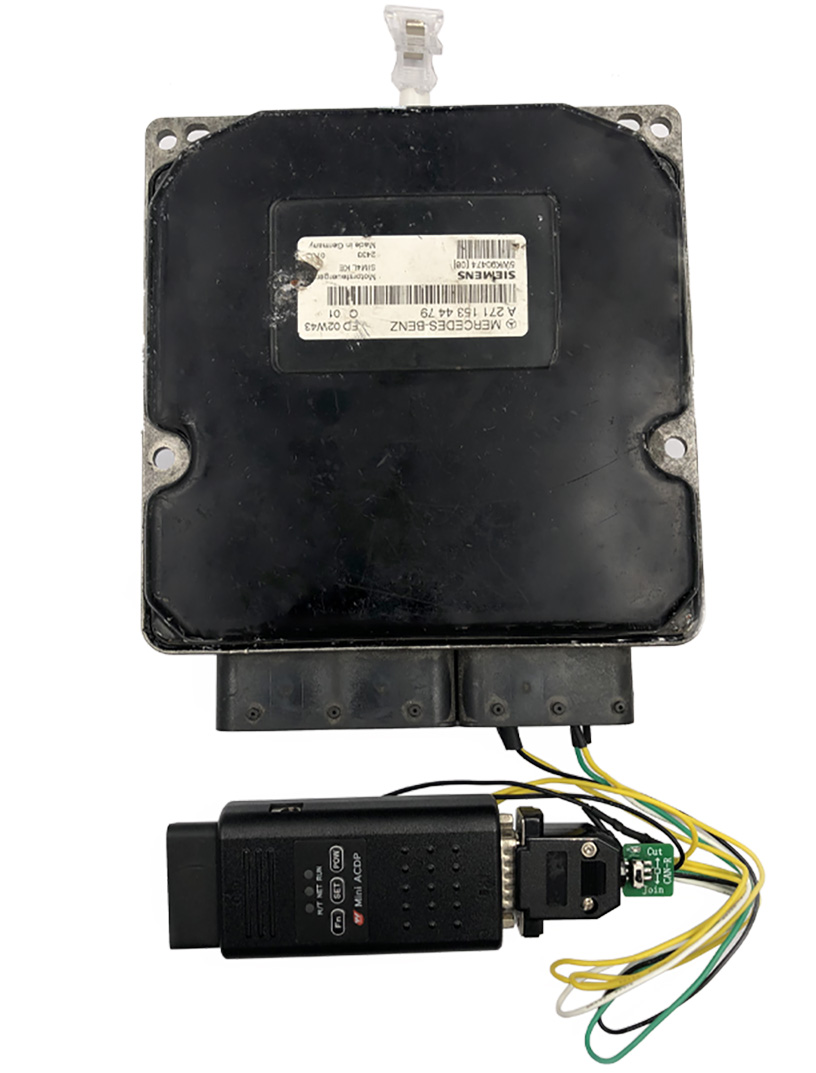

Mercedes-Benz 271 DME ▼

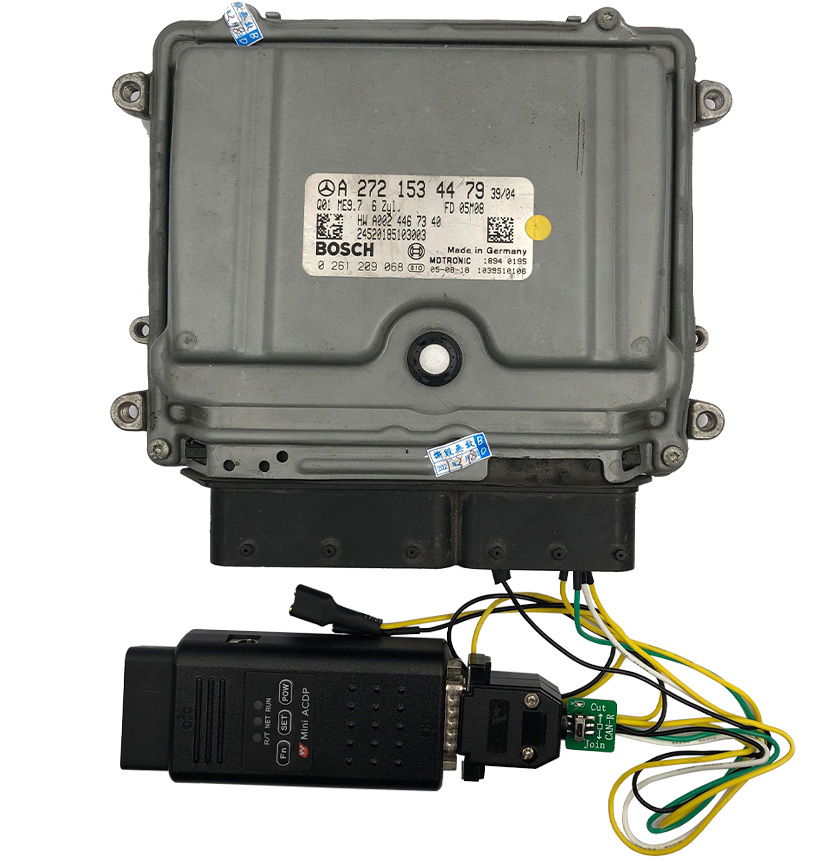

Mercedes-Benz 272(ME9.7) DME ▼
APP operation interface：

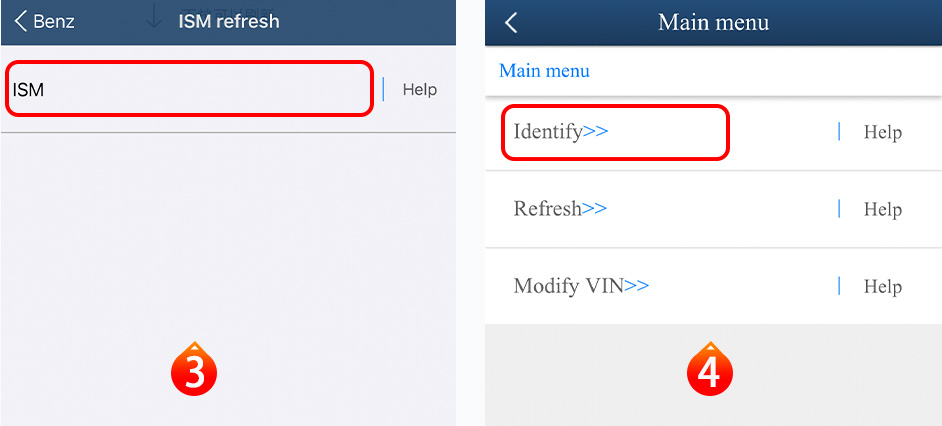

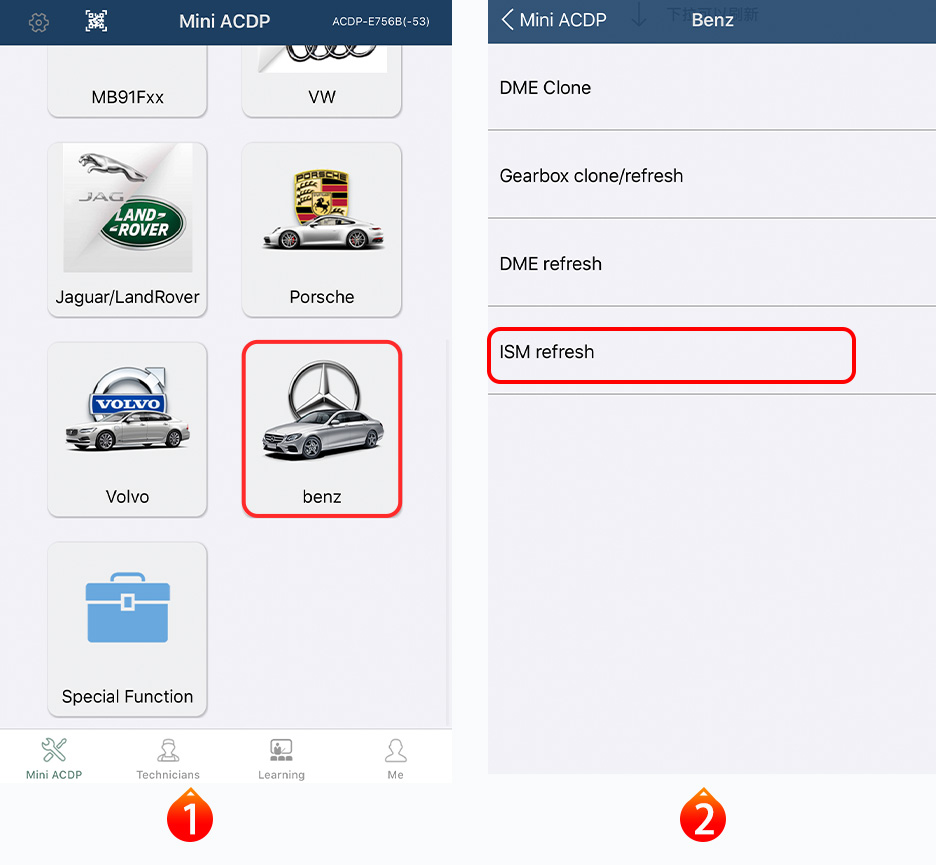

Mercedes-Benz ISM refresh ▼

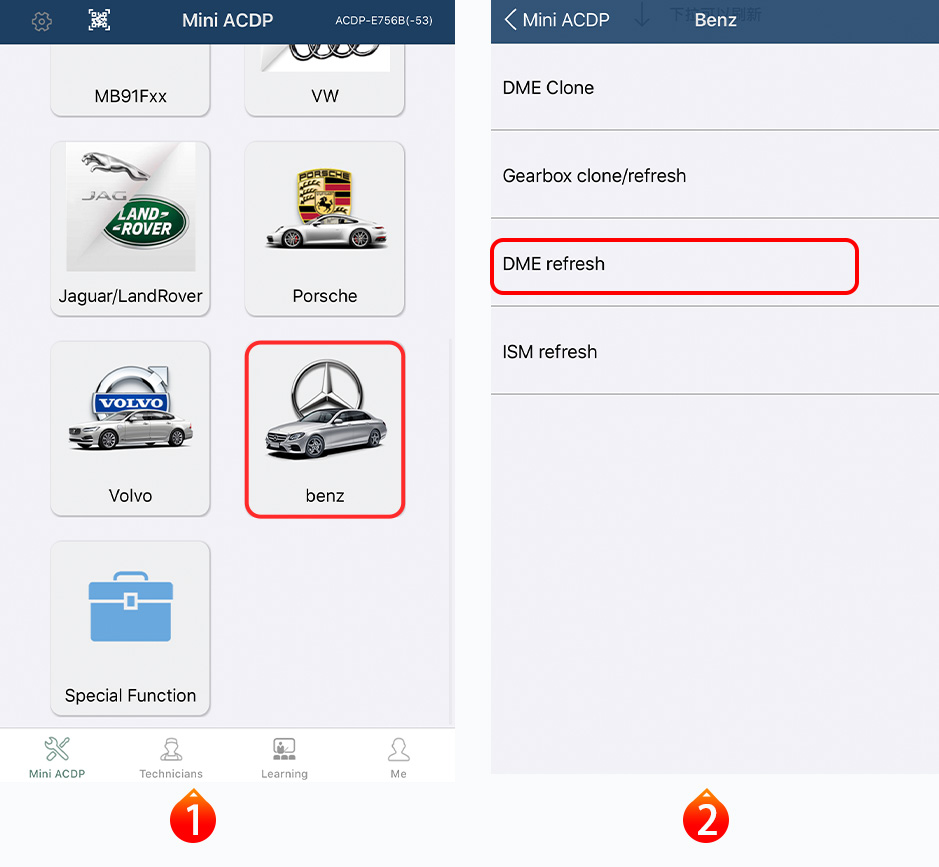

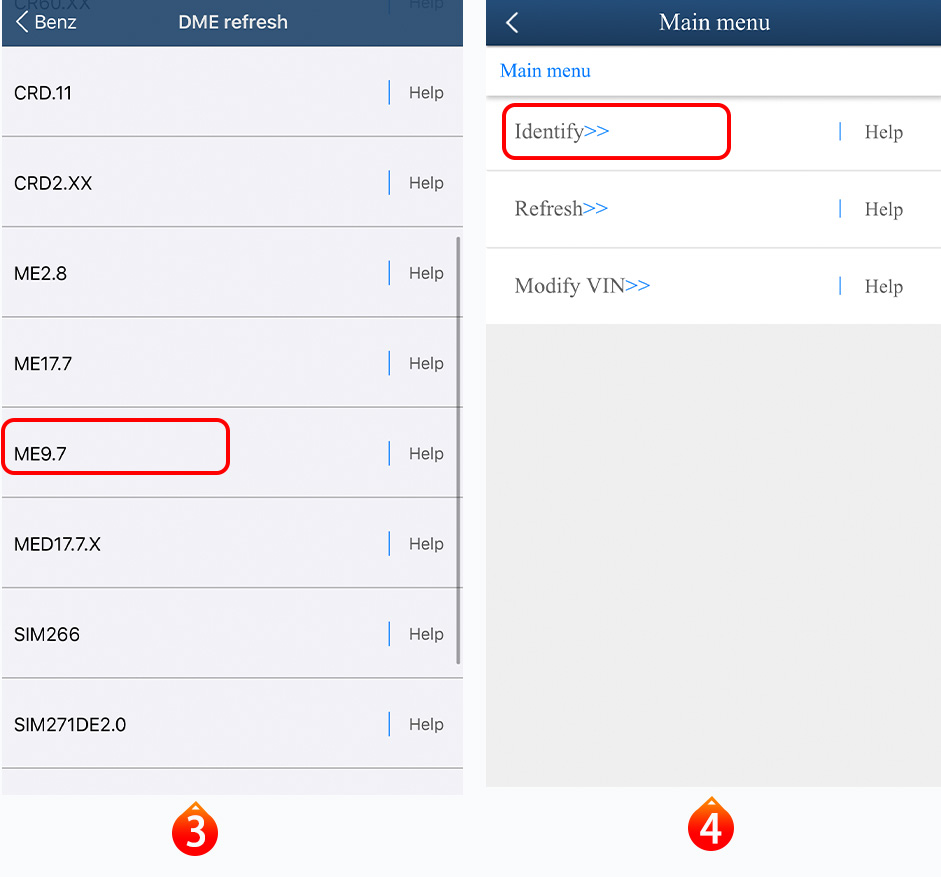

Mercedes-Benz 272(ME9.7) DME refresh ▼

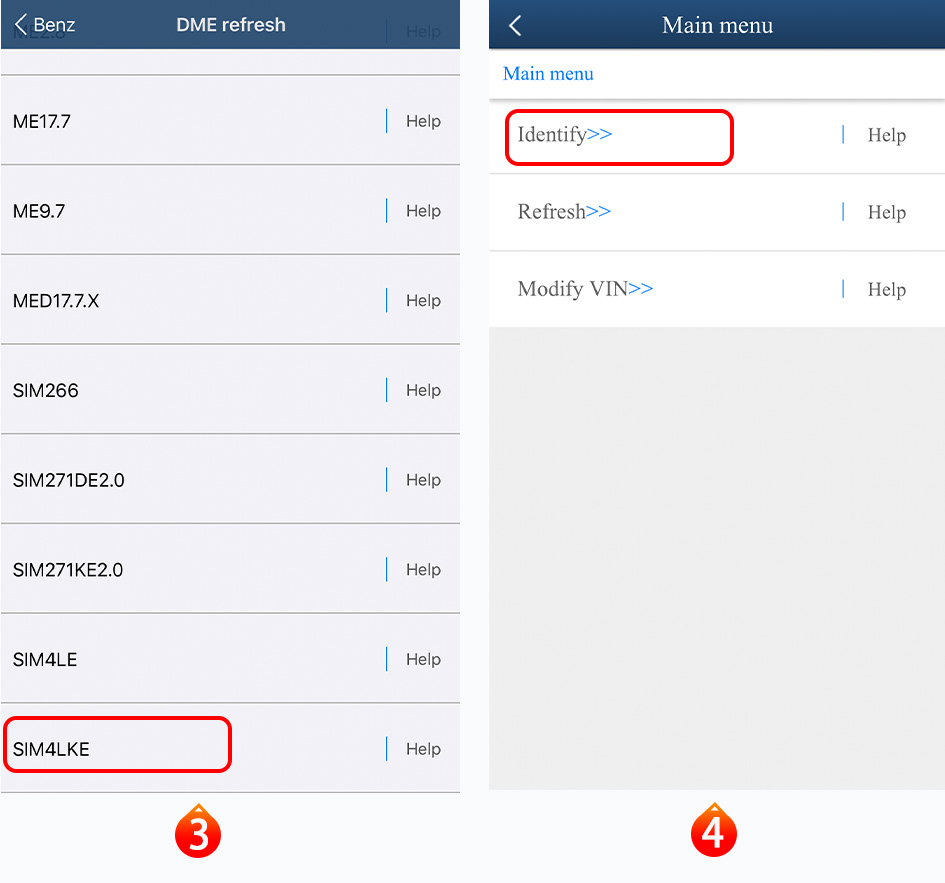

Mercedes-Benz 271(SIM4LKE) DME refresh ▼
Configuration List:
ACDP Configuration List (Module 18 Mercedes-Benz DME/ISM refresh)
| Item NO | Adapters/Parts | Pictures | Adapters/Parts functions | Quantity |
|---|---|---|---|---|
| 1 | PECU Cable |  |
Applicable to connect DEM/SM test points | 1 |
