ACDP Module15 Mercedes-Benz DME clone

Module function：

X1：MB-DME-ADAPTER X1 supports DME clone of Mercedes-Benz 152/157/274/276/278 (MED17.7.3), 272/276 (MED17.7.3.1), 276/278 (MED17.7.1), etc.

X2：MB-DME-ADAPTER X2 supports DME clone of Mercedes-Benz 133/270/274 (MED17.7.2), etc.

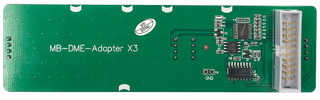

X3：MB-DME-ADAPTER X3 supports DME clone of Mercedes-Benz 260/264 (MED17.7.7),etc.

X4：MB-DME-ADAPTER X4 supports DME clone of  Mercedes-Benz diesel vehicle 642 (EDC17CP01)，642/651 (EDC17CP46)，626/622/651 (EDC17C66)，651/642 (EDC17CP57)，651/642 (EDC17CP10), etc.

X5：MB-DME-ADAPTER X5 supports DME clone of Mercedes-Benz 272/279 (ME17.7),etc.

X6：MB-DME-ADAPTER X6 supports DME clone of Mercedes-Benz diesel vehicle642/654 (MD1CP001),etc.

X7：MB-DME-ADAPTER X7 supports DME clone of Mercedes-Benz 177/178 (MED17.7.5),etc.

X8：MB-DME-ADAPTER X8 supports DME clone of Mercedes-Benz CLS/GT (MG1CP002),etc.

Module features：

1、No need to open DME shell, no need to drill hole on DME ,no need to plug wire.
2、The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place simple and efficient , plug and play , safe and reliable.

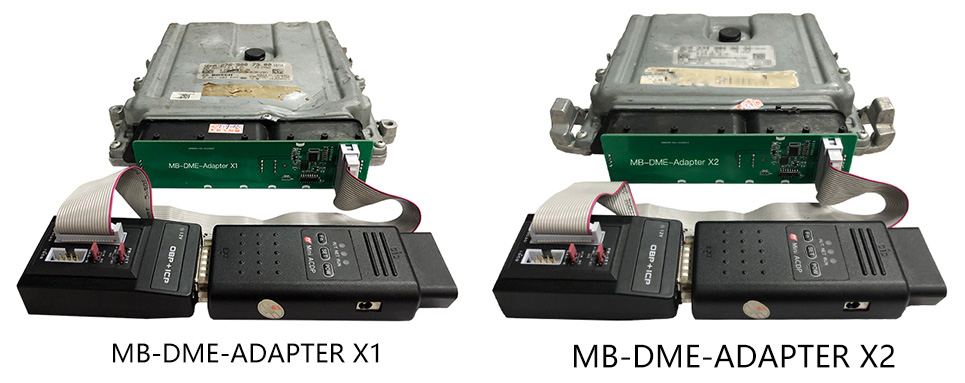

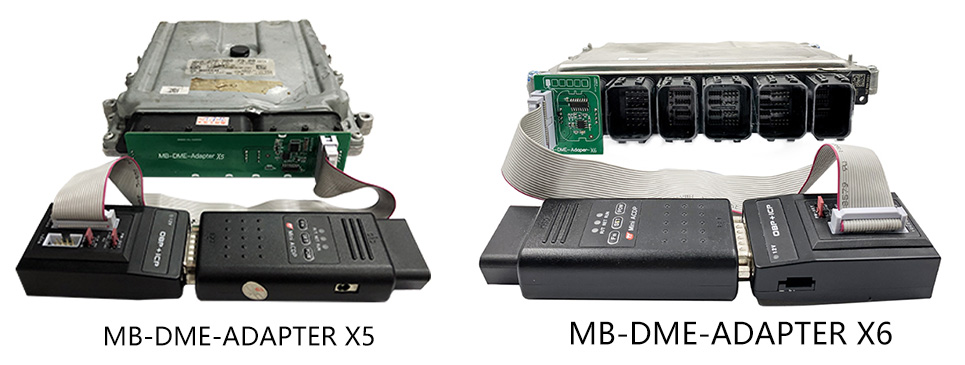

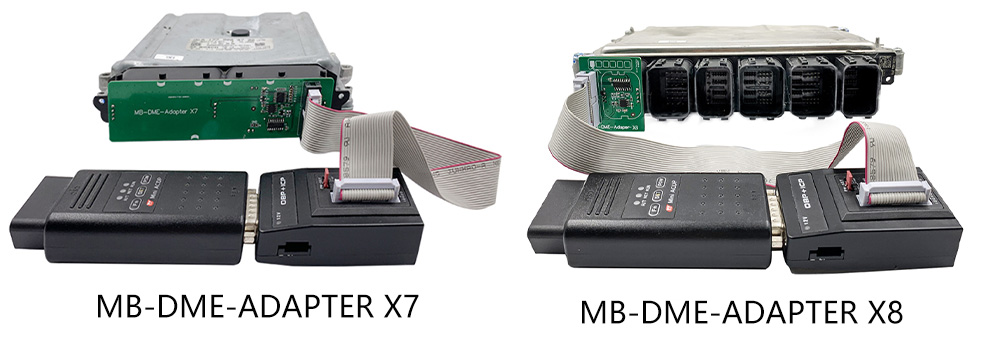

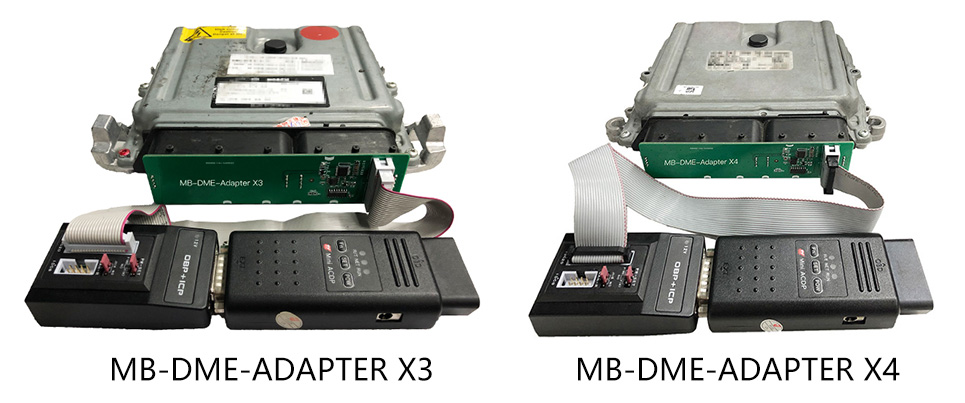

Overall connection diagram：

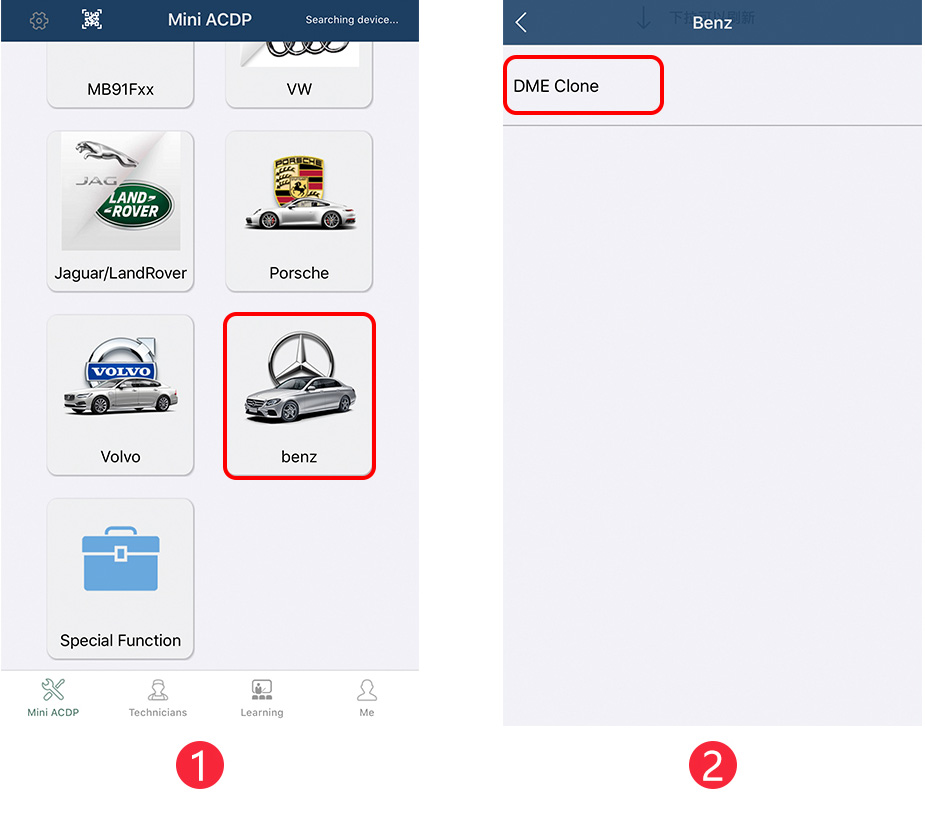

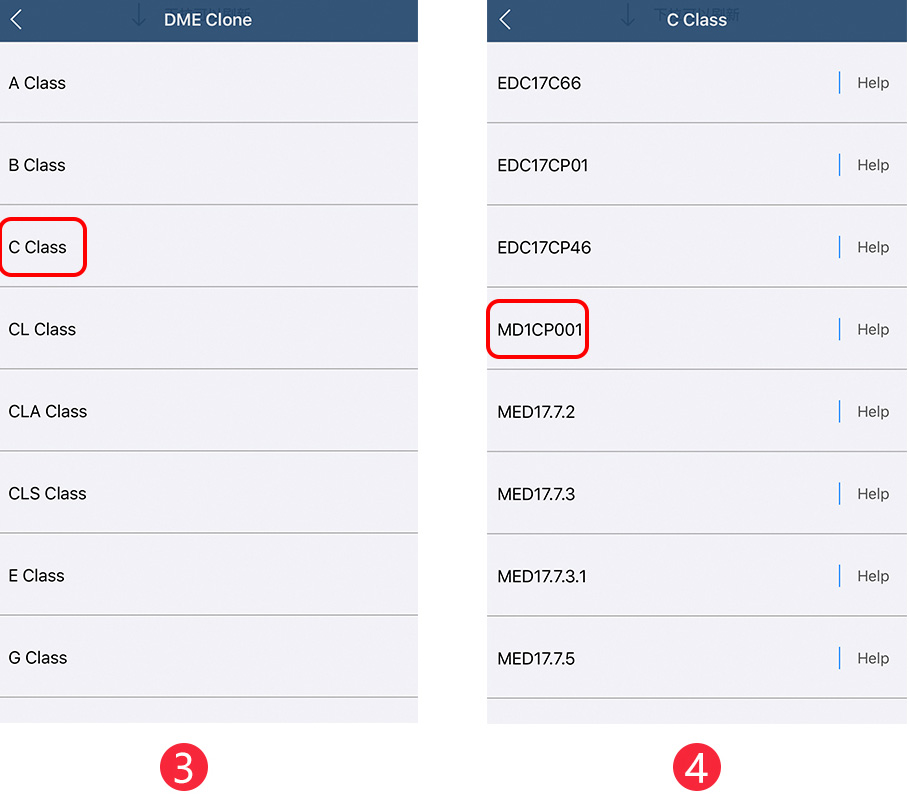

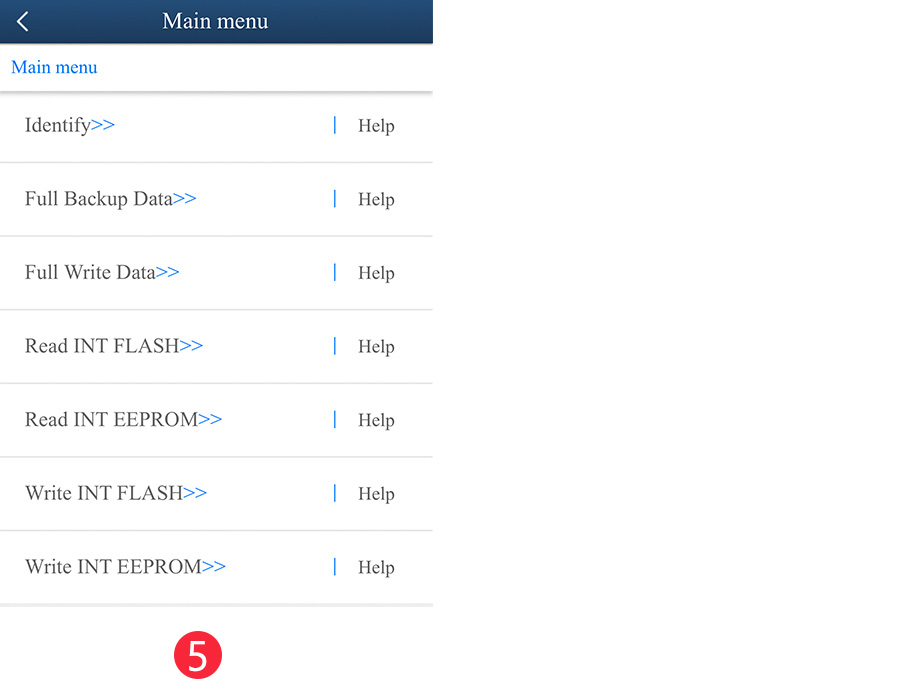

APP operation interface：

Configuration List:

ACDP Configuration List (Module 15 Mercedes-Benz DME clone)
